Protective Relays Dealers

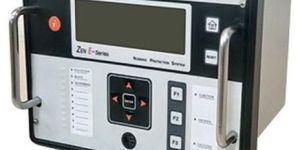

Being a reliable name, we are focused towards delivering exceptional quality range, along with this, we follow strict guidelines and conduct regular quality examinations to ensure quality. We are equipped with the upgraded machines and technology, thus, we are capable of making stern packaging of products. To keep the product safe from external factors, we make use of finest packaging material.   Protection Elements for Comprehensive Numerical Transmission Line Protection Relay; Impedance Function : Single Phase Distance Protection Four Independent Groups Five Independent Zones of Protection Permissive Over reach Trip Transfer (Z1ext.) Independent Polygonal/Mho characteristics for Phase to Phase and Phase to Ground Faults Power swing Detection Load Encroachment Detection Settable Switch On to faults and Auto Recloser VT Fuse Fail Circuit Breaker failure(50BF) Disturbance Recorder 16 Red, Green LED for Indications Relay healthy indication (Green). Relay Design Features : Minimum operating time of 1.5 Cycles (30msec). Large 20x4 LCD display for Parameter and setting display. In built Real Time Clock with non-volatile memory for time stamping. Display of various counters Disturbance Recorder - Up to 1sec of actual waveform of current & voltage along with logical and physical status are captured & saved in built-in memory with date time stamping, for analyzing fault condition & fault location. Online display of CB status and other digital and logical status. Continuous monitoring of module’s internal hardware and alarm generation in case of failure of any critical components. 10 Programmable Digital Output contacts. 8 Optically isolated digital status input for monitoring of status and avoid use of external relay logic. 2 dedicated status input for Trip Circuit Monitoring. 100 nos. of event memory, event such CB close, Trip, digital status change, relay pkp etc. All events are with date and time stamped with up to 1ms accuracy. 10 nos. of Fault data stored with keypad interface and time. Display of Voltage, current, frequency, Reactance, Resistance in terms of secondary value. Control Panel: Control Panel suitable for the testing of Numerical Distance protection relay, Mainly consist of Power Input 230V AC 50 Hz, Built in variable current source 0-20 Amp and Variable Voltage source: 0-250V AC, Time interval meter- stop/ start timer digital, Power ON/ OFF mains switch/ MCB, power ON indication, Control circuit for Current injection and voltage injection. Auxiliary power supply for relay 220 or 110 or 48 or 24 Volts AC or DC. Built in digital Ammeter and Voltmeter. With fault simulating switchs.

• Aux Supply: 110 VAC OR 230 VAC OR 415 VAC
• Mounting: Door Mount [Door Cut out 92 Xx 92 mm]
• Out put Contact: P-NO-NC [240 VAC
• Voltage Type: AC
• Current: Not Applicable
• Display: Line Voltage through 7 Segment LED
• Temperature: +10 TO 60 Degree C [ Operation]
•  :
•  :

Features Software based design ‘Block on Start’ feature provides very accurate overload protection Definite time over load protection Locked rotor current protection Single phasing protection Wide setting ranges Draw -out case Principle of Operation: This is a Microprocessor based relay which has been designed to sense the load currents in all the three phases of an AC motor. It monitors the levels of these currents continuously, giving output signals for relay and LED driver circuits.

• Feature: Four relays for alarm/trip

Protection Relay 8208 Scanner offers multi-channel monitoring with advanced functions and simple programming features in very compact 14 DIN size for monitoring process values and protection application. 8208 has flexible configuration option for 8 channels accepting universal input and 4 relays to serve various applications. The unit has separate Numeric displays for CH. No., Group and Process Value. All Configuration and Calibration can be done from front panel keypad. 8208 has 4 relays with full mapping and logic flexibility. User has facility to program alarm, trip set-points and logic individually or group wise.

• Material: Plastic
• Finishing: Polished
• Current Type: DC
• Color: Black
• Condition: New
• Power Consumption: 6W-10W
• Usage: Mines, Factories, Power Plants
• Certification: CE Certified
• Voltage: 110V
• Mounting Type: Base Mounting
• Relay Type: Oil Filled
• Specialities: Stable Performance, Shocked Proof, High Performance, Heat Resistance
• Overall Dimension: 275x90x285mm
• Size (Inches): 4-6 Inches, 6-8 Inches, 8-10 Inches
• Thickness: 0-10mm, 10-20mm
• Phase: Triple Phase
• Warranty: 1 Year
• Country of Origin: India
• Number of Poles: 4 Pole
• Terminals: 3 Terminal
• Rust Resistance: Yes
• Witdh: 50-80mm, 80-120mm, 120-150mm
• Relay Height: 30mm, 40mm, 50mm
• Relay Length: 20mm, 30mm, 40mm

• Size: 96mmX96mmX65mm
• Type: Microprocessor based motor protection device
• Model Number: LEDX

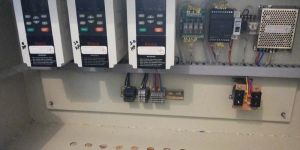

Being one of the renowned firms in the industry, we are decidedly involved in providing a premium quality array of Motor Protection Device. Note: CE Certification Model: LEDX Protections: Over Load Under Current Earth Fault Locked Rotor Short Circuit Single Phase Unbalance Phase Reversal(optional) Over Temperature(optional) Range: 0.4 to 12.5A 0.8 to 25A 2 to 62.5A 4 to 125A 40 to 250A 80 to 500A 100 to 1000A 200 to 2000A Display type: LED Seven Segment, 4 Digit Size: Panel Mountable 96X96X65 Note: All Dimensions are in mm

• Frequency: 50Hz
• Warranty: 1Year
• Country of Origin: India

Under and Over Voltage Relay  C&S Make

• Brand Name: ABB
• Material: Aluminium
• Finishing: Powder Coated
• Current Type: AC
• Shape: Rectangular
• Condition: New
• Power Consumption: 6W-10W
• Usage: Mines, Factories, Power Plants
• Certification: CE Certified
• Voltage: 110V
• Mounting Type: Din Rail Mounting
• Phase: Triple Phase
• Warranty: 1 Year
• Country of Origin: India

• Brand Name: EcoSmart
• Usage: Industrial Control Panels, PCC, MCC
• Size: Bazel Size 96x96 Depth 68 mm
• Type: Panel Door Mounting
• Model Number: MPR-250
• Place of Origin: Vadodara, India
• Theory: Micro Computer based
• Aux. Supply Voltage: 110V AC, 230V AC, Or As per requirement

Buyers can rely on us for the best in line products as we prepare them using the finest grade raw material and modern techniques. Also, the basic material is sourced from the reliable places. Our payment terms and conditions and easily comprehensible and our methods are practical. We do not impose hidden charges and ensure business is carried out ethically.   Listed below are the quality attributes of our range : Current base smart logic motor monitoring algorithm for protection Instantaneous response to abnormal supply or load conditions 7 segment LED display for monitoring all three phase currents as well as tripping annunciation Menu driven user interface with 3 Key & 7 segment LED display Easily programmable protection parameters & trip delay settings Site selectable trip class for customized trip characteristics based on motor type, & nature of application Displays and records trip events for enhanced fault analysis Option available for RS 485 connectivity for interfacing with PC or DCS Wide operating voltage range (Control supply) 90 V to 270 V AC (other options available on request) Applicable for 3 phase induction motors up to 2500 Amp   Approx Price : Rs 6,800 / Piece(s)

The first protective relays were electromagnetic devices, relying on coils operating on moving parts to provide detection of abnormal operating conditions such as over-current, over-voltage, reverse power flow, over- and under- frequency. Microprocessor-based digital protection relays now emulate the original devices, as well as providing types of protection and supervision impractical with electromechanical relays. In many cases a single microprocessor relay provides functions that would take two or more electromechanical devices. By combining several functions in one case, numerical relays also save capital cost and maintenance cost over electromechanical relays. However, due to their very long life span, tens of thousands of these "silent sentinels" are still protecting transmission lines and electrical apparatus all over the world. An important transmission line or generator unit will have cubicles dedicated to protection, with many individual electromechanical devices, or one or two microprocessor relays.

• Country of Origin: India
• Color: Grey
• Voltage: 440V
• Condition: New
• Finishing: Polished
• Warranty: 1 Year
• Current Type: AC
• Mounting Type: Base Mounting
• Power Consumption: 2W-5W
• Corrosion Resistance: Yes
• Terminals: 7 terminal
• Relay Type: Dry Filled
• Rust Resistance: Yes
• Brand Name: Jai kisan
• Shape: Rectangular
• Usage: Factories, Power Plants
• Specialities: Stable Performance, Durable
• Size (Inches): 4-6 Inches
• Working Temperature: 25---45 degree

• Packaging Type: Carton Box, Wooden Box, Metal Sheet Box
• Overall Weight: 100gm, 200gm, 300gm
• Usage: Factories, Power Plants, Shopping Malls, VCB
• Specialities: Stable Performance, Shocked Proof, High Performance, Heat Resistance, Durable, Dipped In Epoxy Resin
• Size (Inches): 4-6 Inches, 6-8 Inches, 8-10 Inches
• Overall Dimension: 580x260x465mm
• Witdh: 80-120mm
• Relay Height: 40mm
• Relay Length: 30mm
• Brand Name: CG
• Shape: Square
• Condition: New
• Phase: Single Phase
• Warranty: 1 Year
• Country of Origin: India
• Current Type: AC
• IP Rating: IP30-50
• Corrosion Resistance: Yes
• Number of Poles: 3 Pole
• Terminals: 3 Terminal
• Switching Voltage For Zero: 220V

CG numerical communicable relays are indigenously developed products whose design is based on microprocessor technology using DSP. The products are designed with focus on accuracy and speed of operation, complying with the latest IEC standards.  Multifunction Relay Platform Over current and earth fault relay Under voltage and over voltage relay Self powered relay Circuit breaker manager   Numerous integrated communication protocols are available for flexible integration in most substation control SCADA systems. The relays are fully type tested as per latest IEC standards from accredited laboratory.

We are Reckoned among the Top-notch protection Relays suppliers in India. the Entire Gamut of Electrical Protection Relays is Procured from the Reliable Vendors So as to Ensure Delivery of Immaculate Products Top the Customers. Moreover, the Materials Used in the Manufacturing of the Motor Protection Relays also Helps in Making Them Highly Durable and Resistive to Various Fluctuations in the Flow of Electric Current. We also Provide the Lt / Ht Protection Relays as These Relays Exhibit Inexplicable Performance in Various Industrial Applications. features trouble-free and Strong Construction.compact Design.high Stability On External Faults.dust Proof Enclosure. application : Protection for Ac Machines, Reactors, Autotransformers and Bus Bars. Earth Fault Protection of Generators and Transformers. description : Mcagrelay,Usedwith a Stabilizing Resistor Designed for such Applications Where Sensitive Settings with Stability On Heavy Through Faults Were Occur. the Relay Has Its Operating Coil Connected in Series with a Small Choke and Capacitor Forming a Series Resonant Circuit. this Circuit is Energized from An Internal Auto- Transformer, Which is Tapped to Provide Seven Equally Spaced Current Settings. rating : 1aor Sa setting Range : 20-80% or 10-40% - in Seven Equal Steps as Standard. Continuously Variable External Stabilizing Resistors of 200 and 50 Ohms are Supplied as Standard for 1a and Sa Relays Respectively. Stabilizing Resistors with other Ohms Values are also Available. burdens : 0.9va At Current Setting On Lowest Tap. 1.0va At Current Setting On Highest Tap. Current Transformer Requirements Will Be Given- On Request. short Time : 20x Setting Current for 3 Seconds. accuracy error Class Indexe 5.0 as per Bs 142 -19665.0 as per is 3231-1965. operation Indicator : Hand Reset Operation Indicator Provided. contacts : Two Pairs of Self Reset' Make' Contacts. insulation : the Relay Meets the Requirements of Is3231-1965/iec255-5 Seriesc- 2 Kvfor 1 Minute. case and Finish : 1d Vertical Draw Out Case Suitable for Flush Mounting Finished Twin Tone and Tropicalised. Suitable Trip Isolating Switches and Ct Shorting Switches Provided On Cradle Assembly/ Case. information Required with Order type of Relay (mcag 14 or Mcag 34).ct Secondary Rating.current Setting Range. the Relayscomply with is 3231: 1965 and Suitable for Use in Normal Tropical Environments.

• Voltage: 230 V
• Frequency: 60 Hz
• Phase: 2 Phase
• Ambient Temperature: 10 to 50 Degree Celsius
• Current: 5A
• Type: Protective Relay
• Power Source: Electric

Taking quality as our prime importance, we are engaged in manufacturing, supplying, exporting and trading Motor Protection Relay . Ideal for motor protection, these relays are manufactured using reliable hardware with special algorithms, which allows to calculate the tripping time. Continuously monitors the three phase currents to build the thermal replica, which is used to protect the motor against thermal overloads, these relays are appreciated for accurate measurements and thermal memory. Features: Accurate measurements Thermal memory Dimensional accuracy Other Details: Selectable Thermal Trip Time characteristics Class - 10A, 10, 20 and 30 Pre-alarm at 105 % of Im by Potential Free Output Contacts Fault records up to Previous 999 faults and 20 Previous On-Board faults with Date and Time stampings IncrementDecrement Key and ModeSet key in front facia Operational and Type Nature of Fault indications through OLED Communication through Modbus protocol with RS-485 Port EnableDisable option for Earth Fault, Under Current, Locked Rotor, Phase Unbalance Protection Various Models with Current ratings Dimensions in mm: 70X75X109 (WXHXL) Operating Temp: 0c to +60c Auxiliary Power Supply: 85-275V ACDC Trip Accuracy: As per IEC 947-4-1Trip Class 10A, 10, 20, and 30 Pick-Up Accuracy: +- 12.5% Specifications: Thermal Over Load Protection: Over Load Current Setting Range 2.0Amps 96.0Amps in 4 ranges as explained in SL.13 Trip Time Characteristics Class 10A, 10, 20 &30 as per IEC 947-4-1 Pre-alarm at 105 % of Im by One set of Potential Free output Contacts Thermal Memory Provision Earth Fault Protection: Earth Fault Current Setting Range10% to 50% of Im, in steps of 1% (20% - Factory Set) Trip Time Delay 0.1Sec to 5.0Sec in steps of 0.1Sec (0.1Sec - Factory Set) EnableDisable Option Phase Unbalance: Unbalance Current Setting Range 10% to 50% of Im, in steps of 1% (40% - Factory Set) Trip Time Delay 0.1Sec to 5.0Sec in steps of 0.1Sec (2.0Sec - Factory Set) EnableDisable

Supported by a team of hardworking professionals, we have been able to offer a range of Motor protection devices. The products we offer are developed employing latest technology in accordance with international quality standards. Available in different sizes, designs and specifications for motor protecting , these products are widely used for having hassle-free functioning of boilers in various domestic and industrial purposes with wide range of controls and PLC nad DCS controls

• Brand Name: L&T/Siemens or Polycab
• Number of Poles: 2 Pole, 3 Pole, 4 Pole, 5 Pole
• Application: Industrial
• Voltage Type: DC

We are based in Ghaziabad(India) and ensure to make available the entire range of products to any required destination. To provide complete satisfaction to the customers, we offer only defect-free range of products that are tested against varied quality parameters.Features : Low maintenance Ease of use Highly durable

• Voltage: 380 VAC
• MODEL NUMBER: XJ3-G
• TYPE: MOTOR PROTECTION RELAY
• PINS: 8 PIN
• BASE: PROVIDED WITH RELAY
• SIZE: 75 X 42 X 91

xj3-g ac380v phase sequence protection relay three-phase unbalanced motor protectorxj3-5phase sequence and phase failure protection relay
