Pump Test Bench Dealers

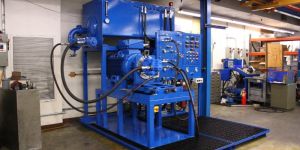

We provide all types of Repairing, Service with 100% satisfaction of clients for all types of hydraulic pumps, gear pump, piston pump and Pump Testing Bench.

Being the leaders in the industry, we offer 6 Cylinder Diesel Fuel Injection Pump Test Benches. These machines are highly durable and are available at the best rates in the industry. Our wide range of products includes Belt Drive Test Bench, Standard (HPSSD-8VSD) and ‘Standard’ HPSSD-6H-1.

• Type: Test Bench
• Certification: ISO 9001:2008
• Weight: 100-1000kg
• Color: Black, Green
• Voltage: 440V
• Condition: New
• Automatic Grade: Semi Automatic
• Driven Type: Electric
• Warranty: 1year
• Brand Name: Sani
• Model Number: SMT-125 Multipurpose

Our Diesel Fuel Injection Pump Test Bench has a robust electronic control with touch buttons control panel. It features an easy to read microprocessor based digital display with built in self check and stroke counting (100 to 1200). Our Diesel Fuel Injection Pump Test Bench offers a speed range between 50-100-3000-3500 rpm. It has swivelling injector console with 6, 8 or 12 measuring points with open graduate calibration system swivel through 108 degree. Our Diesel Fuel Injection Pump Test Bench has injectors fitted with DN 12 SD 12 nozzles as standard.

• Color: grey
• Name: Fuel Injection Pump calibrating stand
• MOQ: 1

This FIP Test Stand is being used for Alco Locomotive Pump Calibration.

• Overall Dimensions (m):: 1.88 x 1.17 x 1.78

Mechanical Variable Speed Drive with the help of expandable compound pulley system and dual belt fitting with standard drive shaft coupling, Shaft Bearing, self aligning, self lubricating, totally enclosed, Measuring panel can be swiveled on either side at 180o for right and left hand pumps.

• Approx Price: Rs 1.75 Lakh / Piece(s)

To meet diverse requirements of our prestigious clients, we are engaged in providing an excellent range of AC Drive Test Bench.   Features : Precision-designed Superior performance Reliable operations   Technical Specifications : Drive AC Frequency Drive Main Motor 5HP, 3 Phase, single phase 220/ 440 V. 50 Cycles in 8 Cylinders 10 HP, 3 Phase, 440 V. 50 Cycles in 12 Cylinders 5 HP, 3 Phase, 440 V/220 V. 50 Cycles in 8 Cylinders No of Cylinders : 8, 12 Cylinders Tachometer Electric Digital 0.9999 RPM with accuracy Stroke Counter 100 – 1200 Strokes (insteps of 100 Strokes) Fuel Supply By Soundless gear Pump Pressure Gauge 0.1001 bs/SQ” (0 – 7 Kg/Cm2) 0.50001 (0.35 kg/cm2) Speed Range & Control 80 – 3000 RPM in both directions cw & controlled by regulator switch in both without gear box Phasing Pressure Phasing recorded on digital Fuel Tank 30 – 35 litre Capacity Fuel Supply Motor 1 HP, 3 Phase 440 Volts

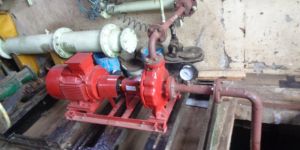

• Type: Centrifugal Pump Test Bench
• Application: Testing Centrifugal Pump
• Weight: 100-1000kg
• Color: Available in Many Colors
• Voltage: 110V
• Automatic Grade: Automatic
• Power: 1-3kw
• Warranty: 1year

The Bench Mark* 320 is a economical, fully programmable alternative to old-fasinoned permanent  marking techniques. This complete system, with self-contained controller and extruded aluminum marking head mounting post and base, is the right choice for many stand-alone bench top marking applicatons. An Electromechanical marking pin eliminated the need  for any air supply, making it easy to move the BenchMark* 320 from one work area to another."I want to thank Telesis for manufacturing a product that performs as well in real life as it states in your literature. Our new BenchMark* 320 Marking System from Telesis has performed above our expectations since putting it into service. The BenchMark* 320 greatly simplified our identification tag printing process and provided Krisp Kreme with "just in time" tag production capabilities. If you are looking for high quality, flexibility and realiability in permanent marking equipment, Telesis had the solution." Jeff Renz, Krispy KremeFeatures Extremely affordable High quality, permanent, programmable marking on a wide range of materials – from soft plastics to hard metals up to Rc60 Large 4" x 6" (100 x 150mm) marking window Unique marking arm design allows clear access for loading and unloading of parts. Electromechanical marking pin eliminates the need for air supply. Marks up to 5 characters per second. Automatically generates serial numbes, as well as date, time and shift codes. Compact, conventient controller with rubber keyboard and 4-line LCD display-no PC required Optional Accessories Rotary fixture for marking circumferences of cylindrical parts. Bar Code Scanner for automatic data entry Start-Print footswitch and Pushbutton station Logo/Font design software package for design of custom fonts or logos PC-Based upgrade utility available Free from www.telesis.com PC-Based pattern Back-up utility available Free from www.telesis.com

The performance of a Diesel Engine depends upon its injection pump. Diesel fuel pump test benches records and sets the performance of the fuel injection pump to the maximum accuracy.

With the assistance of our capacious warehouse and sophisticated inventory system, we are able to meet the bulk as well as urgent requirements of the clients. Moreover, our experts keep a stringent check on the safety of the products. Keeping in compliance with the international standards, we ensure that the raw materials used for varied products are 100% certified and quality approved. This helps us in maintaining a set standard of our products. Our diesel fuel pump calibration test bench is available with a quality warranty of 12months against any manufacturing defects.

• Drive: A. C. Frequency Drive
• Main Motor: 15 h. P. Or 10 h. P. 3 phase, 415v, 50 cycles.
• No. Of Cylinders: 12 cylinders
• Tachometer: Electronic digital 0-9999 r. P. M. With the accuracy of ±1 r. P. M.
• Stroke counter: 100-1200 strokes (in steps of 100 strokes).
• Fuel supply: By soundless gear pump.
• Fuel pump motor: 1 h. P. , 3 phase, 415v, 50 cycles.
• Pressure & vac cum gauge: 0-100 lbs/in2 (0-7 kg/cm2)  0-500 lbs/in2 (0-35 kg/cm2)  0-200 lbs/in2 (0-14 kg/cm2)  0-30 ln/hg (0-760 mm/hg)
• Speed range: 0-4000 r. P. M. In both directions cw & acw.
• Test injectors: 12 fitted with calibrating nozzle set at a standard pressure.
• Phasing: Pressure phasing recorded on degree dial.
• Fuel tank: 50-55 litre.

We are one of the prominent service providers for Cummins fuel pump with our modern Test Bench. We offer latest Fuel Pump calibration techniques, and latest calibration stand comprising of digital readings to ensure accurate setting of standard values and to achieve desired performance. Ideally Used For : Checking and adjusting the P.T. pumpTesting of the electromagnetic valve of P.T. pumpMeasurement of the internal pressure of P.T.pumpChecking the sealing of P.T. pump bodyCalibration of pressure and flow of P.T. pumpChecking and Adjusting Idle speed & Max speedAdjustment of throttle leakage Features : Digital readingsAccuracyHigh efficiencyReliable Applications : Earth Moving equipmentPower GeneratorsFire PumpsAir compressorsMarine applications

• Country of Origin: Made in India
• Brand Name: SEHMI
• Power: 440 volts

• Power: 8 KW
• Maximum torque (motor): 61 Nm
• Speed range: 0-4,000 rpm
• Three-phase current– nominal voltage 400V/ 230V: 380-400/200-240 VAC
• Input frequency: 50/60 Hz
• Test pressure: 18-220 MPa
• Temperature control range: 30-50, ±0.5 ℃
• Dimension L x H x W: 2,070x1,850x790 mm
• Weight with cooler without/with operating supplies approx: 850/920 kg
• Model: EPS 708

• NO. OF CYLINDER: Twelve (Can be measured CW or ACW)
• MAIN FABRICATED FRAME: 8 mm M.S. Sheet, 26 " wide
• NATURE OF DRIVE: A.C. Inverter Drive
• MAIN ELECTRIC DRIVE: 15 H.P. , 440 volts (Simmons)
• FUEL SUPPLY MOTOR: 1.5 H.P. 440 volts (Simmons)
• DISPLAY: Touch HMI Through PLC
• R.P.M. RANGE: 0-4000 R.P.M.
• PRESSURE GAUGES: 0-7, 0-2.5, 0-21, 0-42 Bar (4" Dia)
• OIL TANK : 50 Liters (SS 304)
• R.P.M. CONTROL: By Speed Booster & HMI
• SWIVELING INJECTOR CONTROL: Height Adjustment By Jack, 320 mm
•  : Long Glass Tubes, 260/44 ml- 12 each
• FLYWHEEL : 360 mm (Hard Crommed)
• MOUNTING RAIL: Solid Casted Machined T-Sloting
• TRANSMISSION: Direct Drive
• SOLENOID OPERATION: Dual
• F.I.P. MOUNTING ACESSORIES : For Inline & Rotary (Heavy Duty)
• INJECTORS: 12 Pieces
• FLEXIBLE COUPLING: 95 mm and 120 mm As per Standard
• CLOSE LOOP TEMP. UNIT: For maintaining the temp. of Fuel
• CIRCULATION PUMP SUPPLY: 0.5 H.P. motor with 3 L/min Hyd. Pump
• CONDENSING FAN UNIT: To reduce the tempertaure of Rail
•  : Overflow
• LUBRICATING FLUID PUMP: For Lubrication of tappet assembley

We are offering diesel fuel pump test bench. The business area involves manufacturing & assembly of alternators, generators, electric motors, bench grinders, bench polishers , diesel engines etc. With latest machinery and testing equipments.

Keeping in mind the precise demands of clients, we manufacture and export a wide range of Diesel Fuel Injection Pump Test Bench. The latest design and fast performance make these devices highly efficient. Our entire range of machines is engineered under the firm direction of quality inspectors having rich industrial experience. Besides, to deliver defect free range at our clients end we offer quality checked devices to our clients.

The performance of a Diesel Engine depends upon its injection pump. Diesel fuel pump test benches records and sets the performance of the fuel injection pump to the maximum accuracy.
