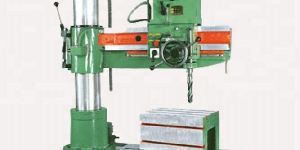

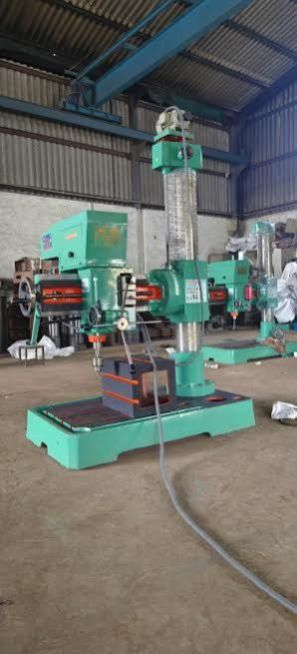

50mm all Geared Radial Drill Machine
600,000 Per Piece
1 Piece (MOQ)
Features: Fabrication Table for the Machine Milling Adaptor Attachment for the Machine Coolant Pump with Fitting Coolant tank for Pump Machine Lamp Rotary Table Drill Chuck with Key & Arbor Drill Sleeve Drill Vice Special T-Bolts Foundation Bolt

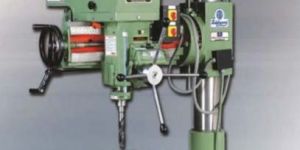

Universal Auto Feed Radial Drill (SMTR-II)
162,500 Per Piece
1 Piece(s) (MOQ)
Universal Radial Drilling Machine SMTR-II Technical Specification : Capacity : M.S. C.I. Drill Capacity 38 mm 38 mm Drill Head : 1. Spindle nose MT 4 2. Spindle Travel mm. 220 3. No. of Spindle Speed 8 4. Range of Spindle Speed RPM 62-1980 5. Range of Power Feed mm / Rev. (2) 0.08-0.04 Power : H.P. V. Belt Main Motor 1.5 B-45 Arm Elevating Motor 0.5 A-23 Working Table : L x M x W mm. 380x300x300 Working Range : 1. Drilling Radius Max./Min. mm. 895/440 2. Distance from column to Spindle Max./Min. mm. 810/360 3. Max Drill Head Travel mm. 450 4. Distance from Base to Spindle Max./Min mm. 930/230 5. Diametere of Column mm. 165 6. Swivel of Arm L/R Side 90 Base Plate : 1. L x W x H mm. 760x1250x150 mm 2. Working Surface mm. 820 x 610 3. No. of T-Slots mm. (4) 16 4. Overall Height mm. 2000 Wooden case size L x W x H mm. 1250 x 1550 x 2000 PDF Creator - PDF4Free v2.0 http://www.pdf4free.com
Best Deals from Radial Drill Machine

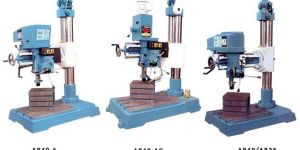

Radial Drilling machines 40mm Capacity
105,000 Per Piece
2 Piece(s) (MOQ)

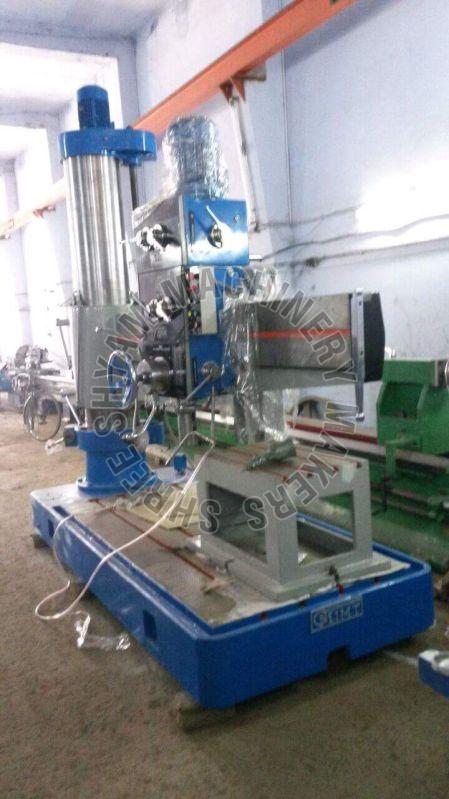

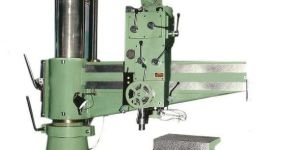

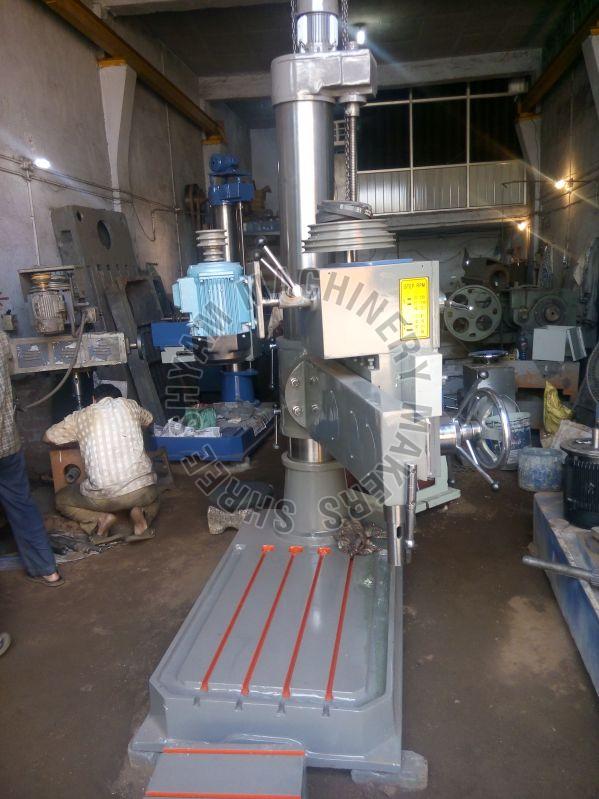

All Geared Radial Drill Machine
Get Price Quote
1 Piece (MOQ)
0.0
Website

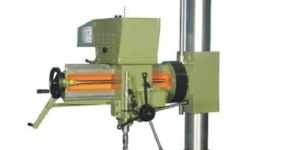

Radial Drilling Machine
Get Price Quote
1 Nos (MOQ)
40mm capacity radial drilling machine

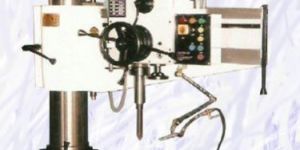

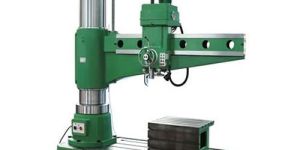

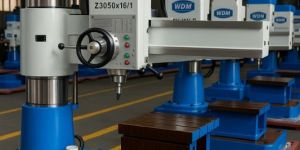

GK-65B Radial Drilling Machine
Get Price Quote
We are the main supplier of this product.

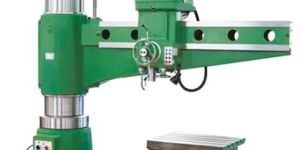

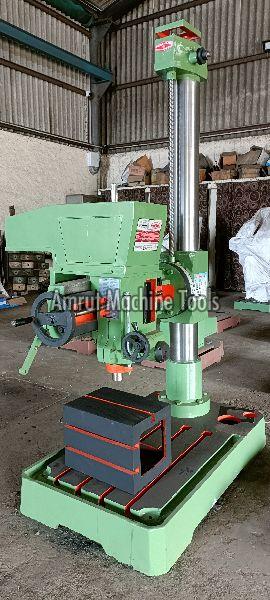

Radial Drilling Machine
Get Price Quote
The company is enlisted among the topmost Manufacturers, Exporters and Suppliers of Radial Drilling Machine in Punjab, India. Our Drilling Machine is fabricated as per the international quality standards. High efficiency, flawless performance and longer functional life are some of the salient features of our Radial Drilling Machine. WE provide machine in different sizes, dimensions and other technical specifications to meet the diverse demands of buyers. Details : Casting Confirming to I.S 210 heaving close grain structure free from foundry defects High metal removing capacity Selected materials used in construction for screw, shafts and gears All materials used are the best quality available Gears generated on imported precision machines & hardened Working accuracy as per I.S

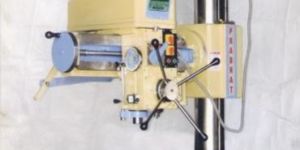

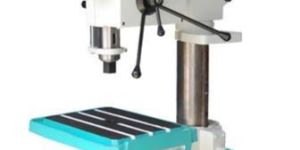

AUTO FEED RADIAL DRILL MACHINE
Get Price Quote
1 Piece(s) (MOQ)
A clutch assembly through gear drives the spindle which in turn rotates in both directions (anti-clock and clock wise) with the help of friction clutch. This is designed to return in higher speed in reverse direction after clock wise tapping operations. helps in perceptible feel of the force exerted on the tap thus reducing tap breaking due to excessive force exerted. Rigid machine structure offers vibration free machining All the gears are supported through good quality bearings instead of bushes Oil bath gear box and hardened gears give very long life to the machines Autofeed gears are also hardened For extra rigidity & stability machine base is reinforced by ribs Octagonal shape Pillar bracket acts like rib providing more rigidity Available with six spline and supported through taper roller bearings to withstand thrust load Drive to the spindle is through six splined sleeve inside The RAM is made from special alloy steel pipe of more thickness

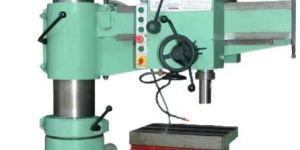

AR 50 Radial Drilling Machine
550,000 Per Piece
ARSUN AR Series of Radial Drills offer rigidity, precision and easiness in operation and are suitable for drilling, reaming and thread cutting operations. Features : Robust, precision, easy to operate and reliable. Powerful: Maximum dia. 50 mm drilling in steel. Auto feed disengages at present depth and at too high drilling pressure. Double column design for rigidity and effortless centering. Acceptance according to IS : 2199. Applications : The machine is suitable for one-off or for batch production. It finds application in tool-rooms, engineering & fabrication shops, manufacturing of dies, moulds & machineries, automobile & ship building industries, railways, defense and bridge construction. Standard Equipments : Box Table / Cube type Table Reduction Socket Coolant Device Work Lamp Electric Supply – 415V / 50Hz / 3Phase AC Operator Manual

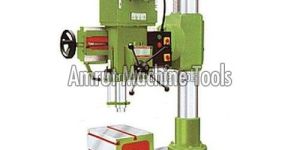

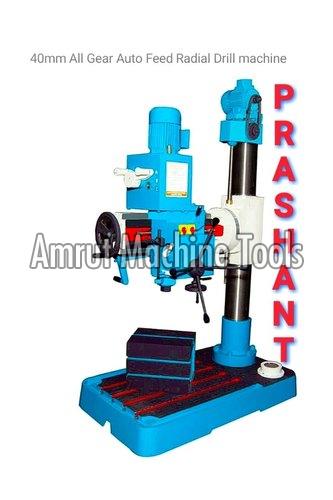

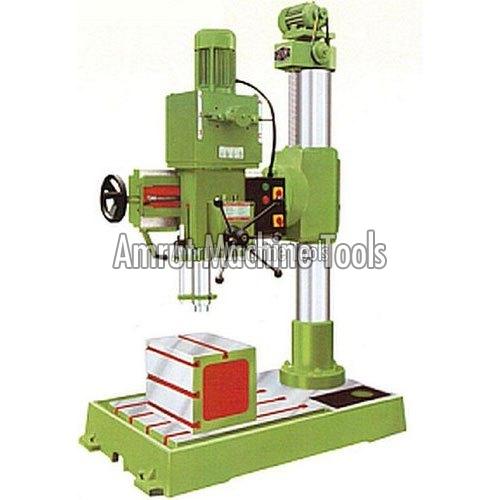

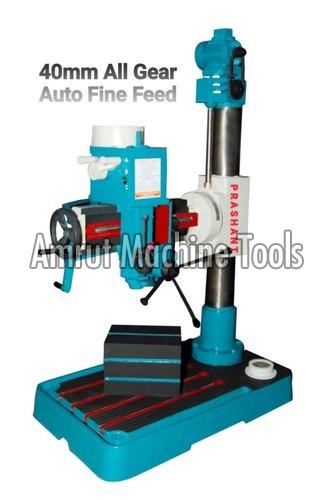

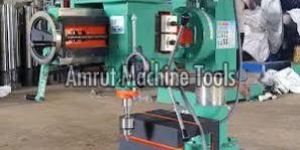

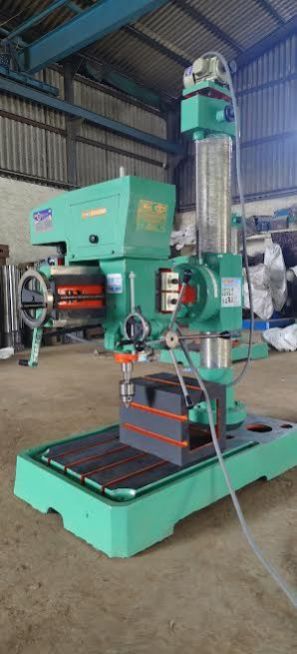

40mm All Geared Radial Drilling Machine
149,000 - 180,000 Per piece
1 Piece (MOQ)

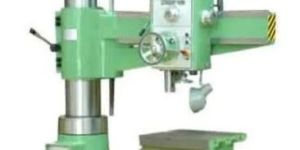

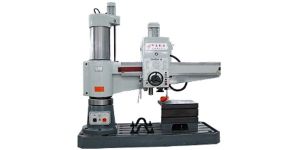

Radial Drilling Machine
Get Price Quote
Salient Feature of Drilling Machine 34 Years well experienced engineers & technicians creates excellent quality of machines. Double column construction for rigidity and effortless ceantring . Wide rang of 9 spindle speeds for drilling,tapping,reaming & boring operations. Gear Box Gears are made from 20MNcr5 materials with hardened & ground. Machines are inspected as per IS : 2199-162 standards. Dependable and accurate,supported by a nationwide after-sales service. Main spindle made from EN steel with 6 slots. Spindle running in a set of 3 No. best quality bearings,which permit vibration free rough boring. Arm,column & base rigidly built reinforcement ribs to reduce distortion and give long life. Base plate having built coolant tank. Standard Accessories : Electrical Consisting of main Motor. Elevating Motor, Control Panel. Limit switch & wiring. Built in Coolant Tank Optional Accessories : Heavy Duty Box Table Coolant Pump with Fittings. Machine Vice. Machine Lamp. Note : Dimensions, Design, Weight, & Specifications Can Be Change as Market Demands or Further Improvement of Machine Without Notice.

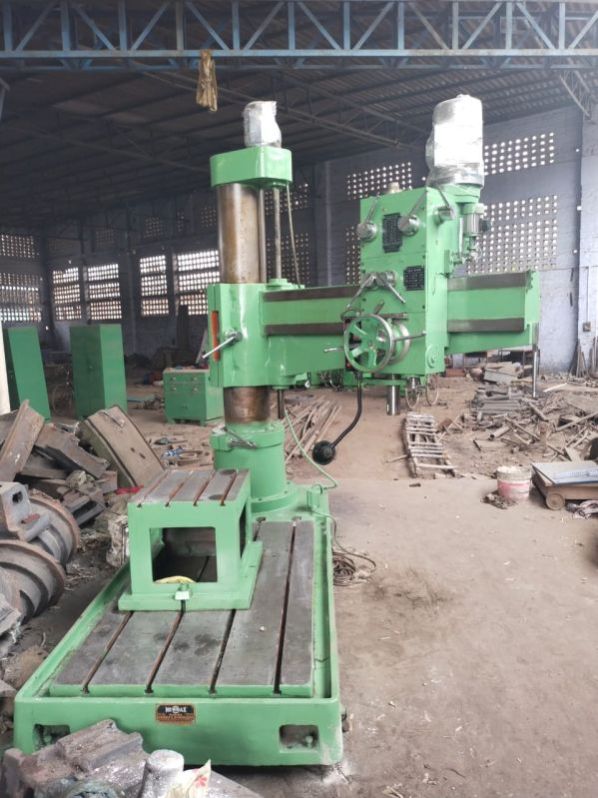

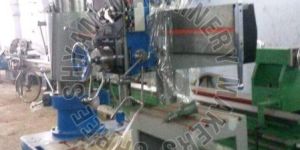

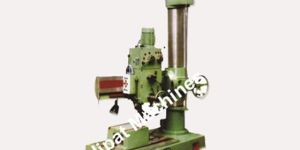

All Geared Radial Drilling Machine
750,000 - 1,200,000 Per piece
1 piece (MOQ)
Deals in Different size from 25 MM upto 80 MM

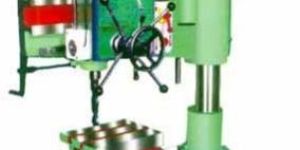

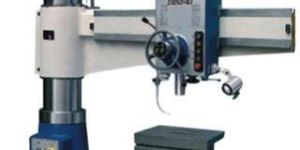

Radial Drilling Machine
Get Price Quote
We are listed at the apex in the list of the eminent Radial Vertical Drilling Machine Exporters and Supplies in India. The Radial Drilling Machine is made up of excellent quality materials that ensure high durability, tensile strength and resistivity to adverse conditions. Various national as well as international clients are placing bulk orders for the Radial Drilling Machines due to the accurate performance in respective applications. Moreover, Radial Drilling Machines are also loaded with all the advanced features. We market 'ENERGY' Brand Radial Drilling Machines & Vertical Milling cum Drilling Machines. Various Models of "ENERGY" Brand Radial Drilling Machines are as follows : Model RDM-35/1100 with Electricals and Standard Accessories, with drilling capacity in steel/ CI = 35/80mm Model RDM-40/1100 with Electricals and Standard Accessories, with drilling capacity in steel/ CI = 40/45mm RDM-50 Series (with drilling capacity in steel/ CI = 50/60mm) : Model RDM-50/1200 with Electro Mechanical Clamping, Electricals and Standard Accessories Model RDM-50/1500 with Electro Mechanical Clamping, Electricals and Standard Accessories Model RDM-50/1900 with Electro Mechanical Clamping, Electricals and Standard Accessories Model RDM-50/2300 with Electro Mechanical Clamping, Electricals and Standard Accessories RDM-60 Series (with drilling capacity in steel/ CI = 60/70mm) : Model RDM-60/1500 with Electro Mechanical Clamping, Electricals and Standard Accessories Model RDM-60/1900 with Electro Mechanical Clamping, Electricals and Standard Accessories Model RDM-60/2300 with Electro Mechanical Clamping, Electricals and Standard Accessories RDM-80/2500 (with drilling capacity in steel/ CI = 80/95mm) with Hydraulic Clamping, Electricals and Standard Accessories Universal Portable Radial Drilling Machine, Model URDM-50 with Electricals and Standard Accessories (with drilling capacity in steel/ CI = 50/60mm)

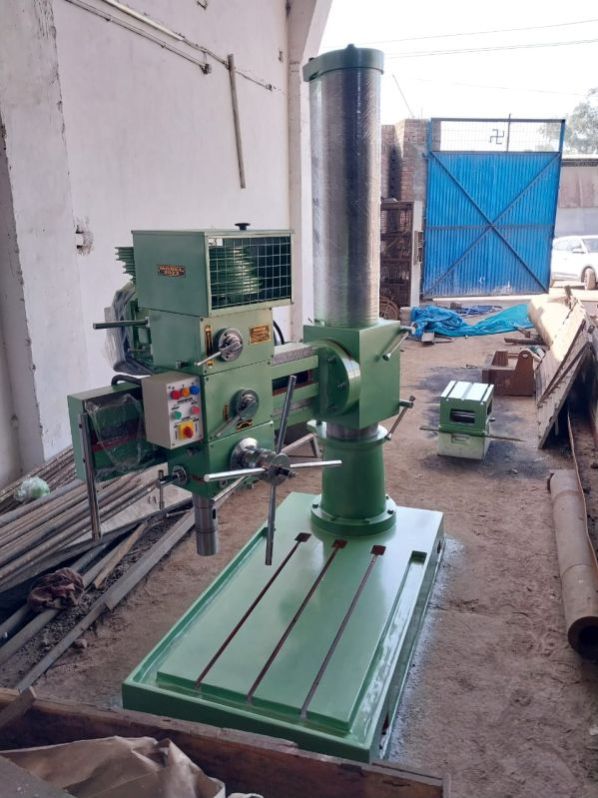

Semi Geared Radial Drill Machine
Get Price Quote
We are listed amidst the dependable drill machine suppliers in india. The materials used in the manufacturing of the semi geared radial drill machine ensure high durability, tensile strength and resistivity to adverse conditions. Additionally, our semi geared radial drilling machines are loaded with advanced features that comply with the universally accepted quality standards. salient features : robust constructexcellent durabilityresistant to corrosionall pervasive applicationshassle free operationenergy efficienteasy to use & maintainwork in adverse conditionshigh withstanding power
Radial Drilling Machine
48,000 Per Piece
1 Piece(s) (MOQ)

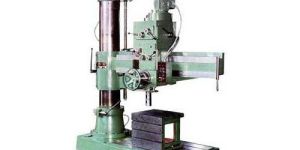

Geared Radial Drill Machine
140,000 Per Piece
1 Piece (MOQ)

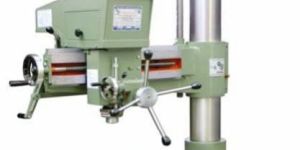

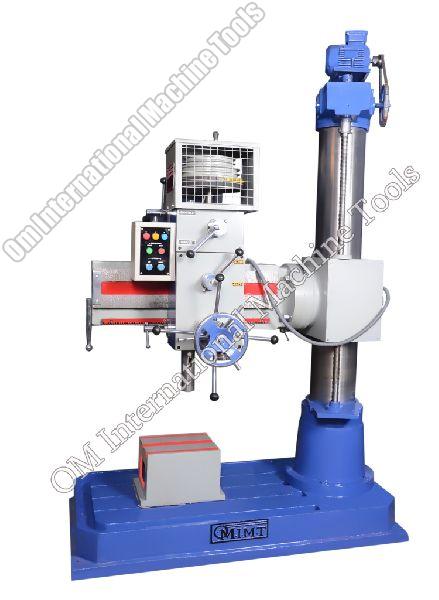

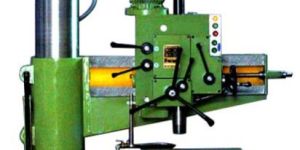

Auto Feed Heavy Duty Radial Drill Machine
260,000 - 290,000 Per piece
1 Piece (MOQ)
Radial Drilling Machine
Get Price Quote
Heavy duty base plate with grand finish (In side of moulded ribes for Vibration free),Tilting table of 90° Left & Right,Main Spindle made from EN Steel with 6 slot,Wide supports of column, Column bracket and arm,Long bottom for greater rigidity to reduce vibration.
single column radial drilling machine
105,000 - 160,000 Per piece
1 Piece (MOQ)
Geared Radial Drill Machine
550,000 - 1,150,000 Per Piece
