Rail Joints Dealers

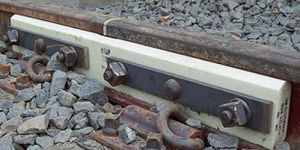

About Us: We are one of the RDSO approved vendors for the manufacturing of glued insulated rail joints. We are only the functional manufacturers in the East Coast Railway zone and we have set up a fabrication unit for manufacturing the Insulated rail joints at Industrial Growth Center, Bobbili, Andhra Pradesh. Modern Signaling System depends on Track Circuits where in a portion of track is isolated from the adjoining track. This is accomplished with help of Insulated Rail Joint. These joints are made under the technical guidance of Research Designs and Standards Organization, which is Indian Railways' R&D Organization. Product Description: Mainly we are manufacturing & Supplying G-3(L) type Glued Joints with 950mm long Fish Plates tightened with 6 H.T.S. 24mm Dia Bolts. The insulating materials like end post, liners, bushes or sleeves and glue used in it are being manufactured with the RDSO approved raw materials (Resin, Hardener & Fiber Cloth).

• Features: -: High tensile strength, Longevity ,Dimensional accuracy

• Material: Iron
• Type: Jointed
• Brand Name: Khemchand
• Weight: Approx 80 to 100 kg
• Temperature: 12 degree C to 35 degree C
• Humidity: 60%

• Material: Iron
• Shape: Rectangle
• Weight: Approx 8 to 10 kg
• Type: Rail Joints
• Lock type: Fixed
• Surface: Rough
• Temperature: 10 degree C to 40 degree C

• Material: Cast Iron
• Suitable For: Railway Track
• Surface Finish: Zinc Coated
• Technique: Hot Rolled
• Corrosion Resistance: Yes

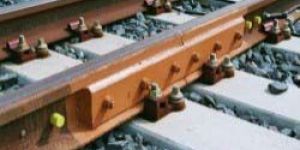

These joints are used on track-circuited area. We are manufacturing a large number of Glued Insulated Rail Joints for different rails sections. Which are using on long welded rail section and continues welded rail sections for insulation of rail to the adjacent rails. Mainly we are manufacturing G-3(L) type Glued Joints are assembled using two specially rolled solid Web-fit type Fish Plates of requisite length, which are glued to the rail ends by means of a high strength adhesive. Insulating liners, bushes, HTS bolts and end posts are provided to ensure adequate Electrical insulation. In dry conditions the minimum electrical resistance of these joints are 25 mega-ohm and the minimum resistance in wet condition are 3 kilo-ohms. The pull out strength of the joints are more than 150 Tonnes and can safely with stand high thermal forces of LWR/CWR through the joint. We have all modern assembling, manufacturing and testing facilities to produce such joints. Benefits to insulated steel joints: Easy of installation at site, minimum number of components without the need for handling chemicals, welding, or detergents gives a total cost saving and reliable product with very high fatigue properties.

Wide and varied range of standard and special products: Conventional fabricated. Welded. Welded with Rail-head Pearlitized. Straight and Curved Diamond Crossings. Swing Nose (particularly suited for high-speed high density routes), an innovative design with global potential.

• Material: Steel
• Type: Jointed
• Condition: New
• Usage/Application: Railway Industry

mageba TENSA-RAIL RSU single-gap expansion joints allow for movements up to 350 mm and more. They are made of steel edge profiles and an elastomeric sealing fixed between the profiles. For larger movements they are fitted with a drainage channel made from EPDM. The joint‘s gap is protected by a cover plate from the ingress of dirt or ballast.

• Feature: Highly Durable, Excellent Performance
• Country of Origin: Made in India
• Application: Rail Industry
• Material: Iron
• Type: Supported Rail Joints
• Surface Finish: Brushed
• Thickness: 18 mm
• Brand: Techma

• Material: nylon type 66
• colour: natural

• Material: steel
• Type: Jointed
• Dimension: na
• Brand Name: paras
• Usage/Application: diff diff
• diff diff: cutomised
