Raschig Rings Dealers

We bring forth Raschig Rings, which is actually a form of random packing. It is used in commercial fractional distillation columns in order to reduce pressure loss and forms an effective replacement for trays. Moreover, it proves to be more efficient and economical. Provided as Dohntec Raschig Ring, this is used widely in a range of mass transfer applications. Its ring structure gives one of the biggest surface areas amongst tower packing options, and is effective in handling heavy loading, temperature shocks and process upsets.

Distillation, Absorption columns, Steam striping, Condensing. Benefits Effective surface area with high pressure drop and voidage. M.O.C Ceramics, Polypropylene, PTFE, PVDF, Metals (SS, MS, Al, etc.,). Carbon, Glass etc.,

We have come up with the high quality Graphite Raschig Rings. Known for accurate dimensions these Graphite Raschig Rings have many features which makes them best in the market. Our Graphite Raschig Rings are made of superior quality Graphite and are believed to be superior in oxidizing conditions. These Graphite Raschig Rings are well tested on strict parameters to ensure perfection. We ensure that these Carbon Raschig Rings are selected after testing different conditions such as resistance to corrosion, mechanical strength and capacity. Features Resistant to thermal shocksCapacity to with stand higher process temperaturesHigh thermal conductivityExcellent wet ability by all liquidsNon reactiveResistant to corrosionBetter efficiency Available in Various Specifications Like LengthRings per towerAbsorption surfaceWeight of rings per towerPer cent of free gas space Applications Absorption towersDistribution towersDistribution columnsScrubbersChemical plants and refineries Our Range Of Products Is Also Known As Packing RingsGraphite Raschig RingsCarbon RingsCarbon Raschig RingsGraphite RingsTower Packing

• Type: Raschig Rings
• Material: Metal,Plastic,Stainless Steel,
• Application: Chemical Laboratory,Industrial Use
• Color: Grey,White,
• Feature: Smooth Finish
• Condition: New
• Country of Origin: India

Kuber Precision Technology also offers specially designed Raschig rings packing is proficiently loaded with low pressing factor drop from 0.1 to 0.4 mbar/stage, suits low fluid burden 0.05 m3/m2h, and has a higher surface area and NTSM. Their surface area and shape creates a randomly packed distillation environment that performs better than fractal patterns and allows for good internal liquid distribution, consistent and repeatable efficiency.

• Material: Ceramic
• Sizes: 12mm, 19 mm, 25mm, 38mm, 50mm and 75mm
• Available in: Glazed as well as unglazed surface
• Production Capacity: High

Our company is reckoned as the prestigious Manufacturer, Exporter & Supplier of Ceramic Raschig Ring from Gujarat, India. Our Raschig Rings are widely preferred for their precise design, durability, smooth finish and exceptional strength. Our quality auditors check the Raschig Rings on various quality parameters before approving them for dispatch. We can be counted upon for delivering Ceramic Raschig Ring to international and domestic markets within stipulated time.Highlights : These are available in sizes 12mm, 19 mm, 25mm, 38mm, 50mm and 75mm height and diameter. Widely used in sulphuric acid plants, chlor alkali plants, fertilizer plants and ethyl acetate plants.

The first scientific tower packing developed for the chemical industry, still finds its use in certain industries involving fouling and scaling.

• Material: Ceramic
• Thickness: 6 +- 2 mm
• Diameter: 50 +- 3 mm
• Size: 50 x 50 x 6 Inch
• Length: 50 +- 3 mm
• Quantity (Aprx +-10%) Nos. Per Cubic Meter: 5700
• Weight(Aprx+-10%) Kg Per Cubic Meter: 655
• Free Space: 72%
• Contact Surface: 112 mm
• Relative Efficiency: 156 mm
• Relative Scrubbing Capacity: 81 mm

• Type: Raschig Glass Rings
• Material: BOROSILICATE 3.3
• Shape: Round
• Application: Chemical Laboratory
• Color: Transparent
• Feature: Sturdiness
• Condition: New
• Other Name: Glass Rings to Raschig,
• Dia x H (mm): customise
• Pack (Kg.): 1
• Usage: Hospital, Laboratory, Clinic

• Features: Resistant to thermal shocks , Non reactive ,Resistant to corrosion.

• Size/Number: OD-MM(TOLERANCE+/-2TO 3MM)

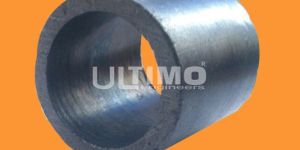

RASCHIG RINGS have assumed an important functional role in the working of absorption towers, distribution columns, scrubbers etc. in Chemical Plants and Refineries. ith the grovth of chemical industries, the need for versatile Raschig Rings has also grovn proportionately. Carbon Raschig Rings (Tover Packings) exhibit such remarkable versatility that these find increasing usage in refineries 8t chemicals plants. Carbon Raschig Rings are characterized by unique properties as follows:-

Raschig Rings in which we deal are extensively used in applications in refineries & chemical industries in absorption towers, distribution towers, distribution columns, scrubbers, etc. We manufacture and supply Carbon Raschig Rings and Graphite Raschig Rings in India. These Raschig Rings are appreciated for their properties such as high thermal conductivity, resistant to thermal shocks, non-reactive, etc. Raschig Rings are practically resistant to all corrosive chemicals over a wide range of temperatures. Our Raschig Rings are made available in various specifications such as length, rings per tower, absorption surface, kgs of rings per tower and percent of free gas space. These Raschig Rings are carefully chosen in varied applications only after considering their chemical properties and mechanical strength, etc. Besides, we also hold expertise in fabricating Carbon Raschig Rings to suit the requirements of the clients.

• Color: whiteish blue / yellow
• Country of Origin: Made in India
• Brand Name: Nilgiris Chemical Stoneware Company
• Material: Ceramic
• Size: 3-300mm

Raschig rings are pieces of tube (approximately equal in length and diameter) used in large numbers as a packed bed within columns for distillations and other chemical engineering processes. They are usually provide a large surface area within the volume of the column for interaction between liquid and gas. They form what is now known as random packing, and enabled Raschig to perform distillations of much greater efficiency than his competitors using fractional distillation columns with trays.

• Color: Silver / Grey
• Country of Origin: Made in India
• Usage/Application: Packed Column / Industrials.
• Dimensions: 25mm to 75mm

• Material: Ceramic
• Color: White
• Shape: Round
• Usage/Application: Refinary Industry,Pertrochemicals Industry
• Dimensions: 20-75 Mm
• Brand Name: Devson
• Surface Area: 334-91 m2

We are offering raschig rings. These products are manufactured in compliance with the set industry norms so as to attain lasting performance. The supreme quality rings offered by us finds extensive usages for various random packing purposes. We are a leading manufacturer & exporter of ceramic raschig rings. Ceramic raschig rings with partitions are available in sizes given as 50 mm, 75 mm, 100 mm, 125 mm, 150 mm and 200 mm
