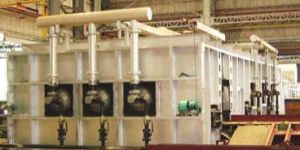

Reheating Furnaces Dealers

We are the established manufacturer and exporter of an ample range of utmost quality Reheating Furnace. Resistant to corrosion, these are widely acknowledged in the market. In addition to this, the entire range of high quality reheating furnaces offered by us is highly popular for its trouble free operation and high tensile strength.

We pleased to get this opportunities to introduce our firm specialized for undertaking refractory Installation work. We involve in this field since long back time and executed several new projects as well as rebuild/ repairing work in India and abroad with excellent quality of work performance within a stipulated time frame. Our company is registered and developed with all infrastructures i.e. equipments, tools-tackles, organized workmen team. So, we are capable to undertake any quantum of related work in any industry and for your kind information, we have our own EPF code, ESIC code no, GST, PAN and manpower holding with valid passport. So, we can comply all statutory liabilities and fulfill all obligations. Assuring you that we shall always be at the best service in future and all your enquiries will receive our best attention, we request you for your kind consideration for us.

We have earned specialization in manufacturing, exporting and supplying of reheating furnace. our reheating furnaces are designed and made by experts using advanced techniques. Capable of withstanding high pressure and temperature, our reheating furnaces fin d application in various industries. Clients can avail reheating furnaces at very reasonable rates from us.

• After-Sales Service Provided: Engineers available to service machinery overseas
• Application: Heat Treatment Furnace
• Type: Reheating Furnace
• Port: MUMBAI,GUJRAT
• Place of Origin: Punjab, India

Wesman has built a large number of fuel fired and electrically heated Bogie/Car Bottom furnaces for the past five decades. Wesman has a full range of Bogie Hearth type Reheating and Heat Treatment Furnaces up to a capacity of 500 MT to offer to Foundry Cast House, Pressure Vessels, Heavy Structurals, Forgings and other metal industries with temperature range of 200 deg C to 1350 deg C. These furnaces can be offered with single/double doors with single/double bogies to meet the customer�s requirement. An intermediate door to divide a large furnace in two parts/chambers can also be designed, if desired. The material are loaded on the bogie with the help of EOT crane or any mechanical device and the loaded bogie is pushed into the furnace over rails by means of electro-mechanical rack and pinion or rope and drum type bogie drive mechanism. The furnaces can also be offered with coro-rollers type bogie drive arrangement. After the reheating/heat treatment operation, the bogie can be taken-out from the furnace and material can be unloaded for further process. Tayo Jamshedpur - Pulse fired bogie hearth heat treatment furnaceFuel fired furnaces are fired with Wesman�s high efficiency burners supported by a full complement of combustion system consisting of combustion fan, atomizing fan, oil heating and pumping systems andor gas trains. In addition auto ignition, flame failure safety and complete control systems are offered. Practically any type of liquid or gaseous fuel can be used viz. Furnace Oil, Light Diesel Oil, LPG, Natural Gas and Coke Oven gas singly or a combination of any oil or gas in case of dual fired furnaces.

We are engaged in offering well-designed Rolling Mill Reheating Furnace. The Rolling Mill Reheating Furnace is manufactured using technologically advanced machinery, ensuring high international standards. Strict adherence to optimum quality is maintained throughout the production of the Rolling Mill Reheating Furnace. The Rolling Mill Reheating Furnace can be availed at the market leading prices from us. Attributes Robust constructionLong service lifeHighly efficientConsistent performance

• Brand Name: ROLLING MILL BILLET REHEATING FURNACE
• Application: Heat Treatment Furnace
• Condition: New
• ROLLING MILL BILLET REHEATING FURNACE: ROLLING MILL BILLET REHEATING FURNACE

We are offering reheating furnaces. the company is engaged in manufacturing industrial reheating furnaces in various technical specifications. Our reheating furnaces have high tensile strength due to which they can easily withstand the pressure and heat. We offer a wide variety of reheating furnaces as per the requirements of the clients. Moreover, we are identified as one of the most stupendous pusher type reheat furnace manufacturers in national as well as international markets.

Our customers can choose from a wide range of Pusher type Reheating Furnaces that we offer. The Pusher Type Reheating Furnaces are designed and manufactured as per the specifications of the customers. Our Pusher Type Reheating Furnace is capable of meeting every demand of the customers related to any engineering industry. These furnaces are known for delivering outstanding performance and are reliable in operation. Attributes : Optimal performanceHigh efficiencyEasy to operateMinimal maintenance

Established in the year 1987, at Ahmedabad (Gujarat), “Anil Industries,” are a leading manufacturer and exporter of Steel Rolling Mill Plants and its allied Machinery. Our range includes Hot & Cold Steel Rolling Mill such as Structure & Bar Rolling Mill, Fully Automatic, Semi Automatic and Manual from 6” to 30” capacity. We have a sophisticated manufacturing unit that is equipped with Lathe machine, Planno miller, Hobbing machine, Flow Boring, Boring Machine, Mig wellding and hydraulic power press etc. ensure smooth production process. To ensure delivery of quality products to our clients, we have also appointed a team of quality controllers who stringently check the products at various stages of production. Backed by a dexterous team, we are also able to meet the variegated demands of our clients in a stipulated time frame. We have been guided by our mentor, Mr. J.P. Singh, who has enabled us to carve a niche for ourselves in the market. His vision and sharp business Knowledge has helped us to be a market leader in the country as well in the world.

• Charge: Billets
• Grades: Carbon Steels / Low Alloy Steels
• Charge Length: upto 12,000 mm
• Furnace: 1250°C ( max.)
• Firing: BF Gas- / PG - / Mixed Gas- / Natural Gas- / LPG - /Oil fired
• Furnace Capacity: upto 120 TPH

Over the last 35 years, ENCON group has established the credentials in designing, manufacturing, installation and commissioning of fuel efficient solutions in the field of heat recovery systems, energy management system, furnaces and allied equipment. ENCON is managed by globally experienced qualified Engineers & Technocrats. Responding to various customers’ feedback, ENCON group’s endeavor is now to supply the wide range of Furnaces in Ferrous and Non ferrous industries. ENCON group is operating from Faridabad (Head office and Manufacturing unit), Gujarat and Kolkata. ENCON has an independent export activity and is ISO 9001:2008 certified Features: The Pusher hearth type furnace is normally arranged for side or front charging and side or end discharging from the furnace end by extractor. The Billets will be brought / stored on the charge grate and pushed one by one to the approach charge roller table. Necessary Charge positioning device will be provided to enable the charge to be located in the furnace properly in single or double row. The Billets will be charged in the furnace in single or double row by pushing with suitable hydraulically operated charge pusher mechanism. In order to achieve better temperature uniformity of the Billets, the furnace will be designed with adequate number of independent thermal control zones. There will be another unfired preheating zone which will act as recuperative zone to preheat cold Billets. The furnace will be equipped with ENCON burners. These burners will be located on the side or rear wall and can easily handle high air preheat temperature. A convection type multi-tubular recuperator for preheating the combustion air from the flue gas leaving the furnace. The furnace zone temperature will be automatically controlled through mass-flow based instrumentation. Instrumentation for temperature & pressure as well as control & other safety system are PLC-PC based. Necessary furnace pressure control instruments will be used. Complete interlocking and sequential control of the furnace will be carried out through Programmable Logic Controller (PLC) with or without any redundancy of the CPU.

• Type: Rotary
• Material: Aluminum, Iron
• Certification: CE Certified
• Weight: 100-300kg
• Voltage: 380V
• Application: Heating Process
• Power: 6-9kw
• Driven Type: Electric
• Warranty: 1 Year
• After-Sales Service Provided: Spare Parts

We hold expertise in designing and manufacturing reheating furnaces that find extensive application in various engineering related industries. These reheating furnaces are offered in several designs like pusher type, double zone pusher type, triple zone pusher type and triple bottom fired. Designed using imported modernized machinery.

• Material: Carbon Iron
• Power (KW): 3.5 kw
• Material Loading Capacity: >5000 kg
• Max Temperature (degree Celsius): 2000-2500
• Melting Material: Aluminum, Iron And Stainless Steel

Entec Industrial Furnaces Pvt. Ltd recognized as an eminent Billet Reheating Furnace manufacturers, suppliers and exporters of India. These furnaces are highly in demand because of its huge capacity, temperature resistance, tough construction, flawless performance and long lasting life. In the industrial world, it is also known as a heart of rolling mill, where billets or ingots heated to rolling temperature.We offer Billet Reheating Furnace in different specifications as per the need of the client. These are designed by a team of professionals who have in-depth knowledge of their work and have the capability to meet the needs of our clients in the best possible way. These are specially designed in a way so, that it distributes uniform heat.These furnaces have the capability to reheat the furnaces up to 50tons/hour. Being leading Steel Billet Reheating Furnace manufacturers, suppliers, and exporters of India, we provide global shipping of your consignment at your doorstep. Our complete range is available at a best industrial market price. So if you want to purchase any of our range, feel free to contact.In the Billet Re Heating Furnace, the charge is fed in the form of billets or ingots. It is a precision engineered product which is widely used across different industries for various applications. It is used mostly in steel rolling mills. The best feature of these billet reheating furnace is its minimum fuel consumption & minimum burning losses . Our range of billet reheating furnaces is available in a variety of capacities and specifications as per the need and requirements of the clients completely Tailor made and on turnkey basis.. We provide dual fired furnaces(Gas or Oil) as per the availability of fuel in a particular region.These furnaces are designed by a team of diligent experts who have years of experience in handling furnaces and reheating equipments. Capacity : Upto 50 Tons/hour. Features Of Billet Reheating Furnace Superb finish Unbeatable performance Robust construction Long-serving life Available in different specifications Fuel used is either gas or oil

Billet Reheating Furnace upto 50 Tonneshr. capacity. These furnaces are mostly used in Steel Rolling Mills. The salient features are:Low fuel consumption of 0.3 x 106 K.Caltonne, Burning losses are minimum ( less than 1% ), These furnaces are either oil fired or gas fired, Continuous availability of stock at the rated capacity, Capable of heating billetsingots upto 200 mm sq. for top firing and upto 300 mm sq. for top and bottom firing furnaces.

Reheating Furnace is the heart of any hot rolling mill where in the charge is heated to rolling temperature. The charge could be in the form of billets, blooms, slabs or ingots. The type of furnace could be pusher, walking hearth or walking beam – either top fired or top and bottom fired. OPERATION The fuel used could be either oil or gas. The burners are located in a manner so as to achieve uniform heat distribution. The radiation heat energy is efficiently transferred through the useful heat transfer area created by the charge bed. The furnace is basically divided into three zones namely preheating, heating and soaking zones. The actual heating takes place in the heating zone. The temperature uniformity up to desired limits between the core and the surface is achieved in the soaking zone. The flue gases move in a direction opposite to that of the charge thereby ensuring considerable amount of waste heat recovery by convection in the preheating zone, which is also termed as the recuperative zone. DESIGN AKSHI ENGINEERS designed furnaces are highly fuel efficient due to proper roof profile / zonal distribution, optimum preheating / recuperative zone lengths, proper burner / flue port locations and good instrumentation including furnace chamber pressure control eliminating atmosphere air ingress, which also reduces the scale loss and decarbonizes of the charge.   AUTOMATION AKSHI ENGINEERS has in house Electrical Automation facility so we also provide the Furnaces with Automation by using Oxygen analyzer and other measuring equipments along with PLC and SCADA automation to control the air and fuel proportionally which will save the fuel consumption.
