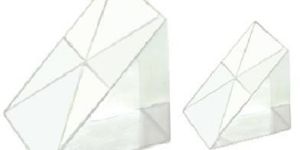

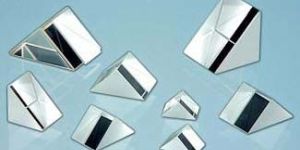

Right Angle Prism Dealers

• Application: Used in various industries, for diverse applications.
• Feature: The prism contains clear perspex and has a uni
• Country of Origin: Ambala Haryana
• Product Name: Right Angle Perspex Prism
• Brand Name: TD
• Condition: Good

We present to you, the Right Angle Perspex Prism. The perspex prism is a highly accurate optical device, which is used in various industries, for diverse applications. The prism contains clear perspex and has a uniformly polished surface.

All our Optical Prisms are manufactured using the latest technology for the optimum precision. For all these varieties made available at the most pocket friendly prices without the expense of quality have gained us a renowned name among the major precision optical prisms manufacturers and we are counted as the best optical prism exporter from India. Our elaborate range of Optical Prisms is manufactured using the following components : Enlarger Lenses Photo Enlarger Lens Achromatic Objectives Optical Flats Test Plates Mounted Lens

• Material: Glass
• Size: Available In Different Sizes
• Diameter Range: 3 mm to 100 mm
• 3 mm to 100 mm: up to 0.05 mm
• Surface Accuracy: up to λ/10
• Centering Accuracy: Better Than 3 Min
• Flatness: λ/2 @ 632.8nm
• Coating: Upon request
• Clear Aperture: >80%
• Corner Chips: None allowed

• Type: Right Angle
• Material: Glass
• Shape: Rectangular
• Application: Industrial Use
• Pattern: Plain
• Appearance: Modern
• Country of Origin: India

• Dimension Tolerance: +or-0.2 mm
• Clear Aperture: >80%
• Angle Tolerance: Std 30 Arc Sec or as Specified
• Flatness: λ/2 @633 nm

This is used as a Mirror to deviate light through 90 degree and also as retro reflector to deflect light through 180 degree by total internal reflection

• Material: BK7 Grade A optical glass
• Dimension Tolerance: +or-0.2 mm
• Clear Aperture: >80%
• Angle Tolerance: Std 30 Arc Sec or as Specified
• Flatness: λ/2 @633 nm
• Surface Quality: 60-40 scratch and dig
• Bevel: 0.2 mm to 0.5 mm
• Coating: Uncoated as Std ( Coating can be Provided)

TThis is used as a Mirror to deviate light through 90 degree and also as retro reflector to deflect light through 180 degree by total internal reflection

• Size: Available In Different Sizes
• Material: Crystal
• Pattern: Plain,Other
• Appearance: Transparent
• Application: Other
• Feature: Heat Resistance, Light Weight
• Shape: Other
• Type: Right Angle Prism

Material Crystal Quartz

We offer Right Angle Prisms. Technical details :- product code:prbp004material:bk7surface quality: 60/40angle tolerance: +-5 arc minutessurface flatness tolerance: 1/4 wavedimensional tolerance: +-0.1mmar coating : entrance and exit surface are coated with broad band ar, 1/4 wave mgf2 @550nm.

We offer clients a wide range of precision engineered right angle anamorphic prisms which is the most common type of prisms. These prisms are coated with various optical coatings to form cubic beam splitters and color separation cubes used in various projection systems and they are also often coated with high transmission using the hypotenuse face in total internal reflection. Properties :- 90°x45°x45°Clear glassRefractive index 1.52 approx.Polished faces Hypotenuse x Length mm :- 35x2570x50

• Application: Industrial Use
• Type: Right Angle Prism

Right angle prism Size25×25mm Three face polished R.i. = 1.517.

• Material: BK7 or Fused Silica
• Size: From 2mm to 50mm
• Dimensional Tolerance: : + 0.1mm

Right Angle Prism It is usually preferred over an inclined mirror as it is easy to mount and can handle external mechanical stresses.Very high transmission can be achieved by using the hypotenuse face in Total Internal Reflection mode and with entrance and exit surface anti reflection coated.If the hypotenuse faces may not be kept clean due to environmental conditions it is advisable to aluminize hypotenuse surface.

The right angle prism manufactured by us has r.i. As 1.517 app. And has there polished surfaces cemented together at angles of 90 x 45 x 45 degree. Used in different experiments to change the path of light by 90o, our right angle prism gives excellent performance due to its high-end manufacturing and expert designing. specialty : polished finishingstrong structuredimensional accuracyuniform structuredesigned by experts demanded by : collegesschoolsscientific instrument manufacturersoptical product manufacturersresearch laboratoriesastronomy institutes

Right Angle Prism, Optical Mirrors, Lenses, Optical Prisms, cube

Right Angle Prism, crystal prisms, Microscopes, Overhead Projector

Right Angle Prism, Digital Microscope, Camera Lenses, Lenses

Right Angle Prism, Concave Lens, magnifying lenses, Brass Magnifying Glasses

Right Angle Prisms, Achromatic Lenses, Double Concave Lenses

Right Angle Prism, SNT100F6 Newtonian Telescope, biconvex lenses

Right Angle Prism, LBS-3A Student School Microscope

Right Angle Prism, Front Coating Mirror, Biconvex Lens, Plano Convex Lens

Aluminum Coated Right Angle Prisms
