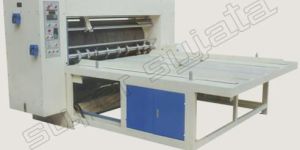

Rotary Die Cutting Machine Dealers

• Slotting Creasing Corner Cutting At Once: Semi Automatic Machine
• Chain Feeding: High Speed

Our organization , monu graphics , manufacture optimal quality rotary die cutting machine, rotary die cutting equipment¸ paper die cutting equipment and paper die cutting machine. It is because of our rotary die cutting tool that we have acquired irreplaceable place in the industry. Efficient motors are installed within the device whose speed ranges between 20- 80 p. You can have this object in semi- automatic and automatic kinds. The machine is die cutting using a cylindrical die on a revolving press. Call us and place your order for this highly advanced equipment. Instant delivery of purchased good is assured.

• ANY: 950000

This machine is designed for cutting, creasing and punching of corrugated sheets.this high speed machine is an ideal substitute for scorring (rotary), slotting and additionally gives higher productivity. It is equipped with chain feeding ensuring easy operation & helps in easy feeding of warp board. Die cutting roller is made of high quality steel with hard chromed plating. Upward roller can move 40 mm from left to right & can protect the american cue rubber roller. This machine is equipped with rubber turning system. We can directly process the damaged part of rubber after long use. Kick feed and lead edge ( vacuum) fed models are also available. Specifications: max speed 140 160 160 140 120 120rneconomic speed 80-100 80-100 80-100 70-90 70-90 rnmax paper size 1250x1700 1380x1700 1380x2100 1380x2600 1630x1700 1630x2900rnmin paper size 350x600 350x600 350x600 350x600 450x600 450x600rncardboard thickness 2-11 2-11 2-11 2-11 2-12 2-12rnmax die cutting size 1250x1600 1380x1600 1380x2000 1380x2500 1630x1600 1630x2800rnpower 5.5 5.5 5.5 7.5 5.5 11

• Used: For Die Cutting Of Corrugated Board
• Application: For Die Cutting Of Corrugated Board, (Chain Feeder/Kick Feeder)
• Size In Inch: 50 X 60", 50 X 80", 50 X 100", 66 X 80", 66 X 100", 66 X 120"
• Output Sheet P/M in Kick feeder: 80
• Output Sheet P/M in Chain feeder: 25-30
• Weight In Kgs.: 5500, 6000, 7000, 7500, 8500, 9500

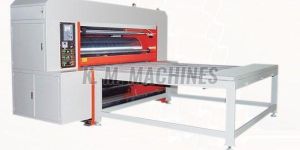

The Automatic Rotary Die Cutting Machine adopts double roller moving rolling pressing type, to make low, middle, high corrugated paperboard once to finish slicing line, slicing corner, rolling the line pressing trace, hitting hole, hitting button orders and so on. Automatic Rotary Die Cutting Machine espouses vacuum absorption and help carrying paper. The speed of the Automatic Rotary Die Cutting Machine is controlled electromagnetically. The Automatic Rotary Die Cutting Machine comes with 360° up and down adjustment. The Automatic Rotary Die Cutting Machine is available in chain feeding, suctions feeding and lead edge feeding models depending on speed requirements.

High Speed Automatic Rotary Die cutting roller for the high quality steel materials, 30 mm thickness, balance correction, hard-chrome plating   In past years demand of rotary die cutting is increase due to its speed and quality. We don’t think about large production in one day since we not getting the high speed rotary. Description Rotary Die cutting roller for the high quality steel materials, 30 mm thickness, balance correction, hard-chrome plating. Wallboard for high-quality cast iron material, 50 mm thickness and large processing center production Soft-roll automatic grinding institutions to pouches repeat usage, grinding 3-4 times. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line Juan Zhi cut imports of soft pouches, ease of installation, the die-12000000. Mechanical soft roll about 40 mm lateral movement, the pads wear uniform. 40cr material the use of grinding gears for 6, low noise, long life. Die-cutting roller cylinder automatic separation devices to reduce wear pouches

• Country of Origin: India
• Brand Name: KRISHNA
• Packaging Type: Carton Box
• Voltage: 440V
• Automatic Grade: Semi Automatic
• Phase: Three Phase
• Warranty: 1 YEAR
• Condition: New
• Power Source: Electric
• Type: CORRUGATED BOX
• Brand: KRISHNA
• Size: 1200X1800,1400X2200,1600X2600

• Material: Mild Steel
• Automatic Grade: Automatic
• Rewind diameter: 500 mm
• Surface: Polished
• Unwind diameter: 500 mm
• Paper width: 300 mm
• Condition: Refurbished
• Model: RE-RDC-300

Features: Single phase power supply. 2HP AC variable speed. Electronic web guide Mechanical spring loaded Brake & Clutch. Label count/mtrs count with batch over stop. Paper width 300 Mm. Batch over stop preset counter. Movable slitting trolly. 1",1 1/2", & 3" core mandrel. Duplex rewiding station.

• Material: Mild Steel
• Color: Silver
• Voltage: 110V
• Condition: New
• Finishing: Polished
• Automatic Grade: Automatic

1.designed according the high request and the reliable function, the operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a shot time, and display with a exact data.2.all the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish.3.the drive gears adopt high quality alloy steel, after heat treatment and lapping finish.4.lubricate oil automatic balance device, keep the equal oil level equal in each unit.5.the machine adopt plc control, with “automatic zero return” and ”emories” function.6.use sun feeder for feed the cardboard.7.customer can chose use steel anilox roller or ceramic roller, the lines of the anilox roller ac so can be chosed accord the customer use..

• Automatic Grade: Automatic
• Port: Mumbai/Tianjin
• Condition: New
• Item: RS4 using slotter attachments
• Lead Time: 45 days
• Speed: 0-100 pcs/min
• Operations: cutting + creasing + punching using wooden die
• After-sales Service Provided: Engineers available to service machinery overseas
• Packaging Details: Packing is as per Customer Choice - Wooden, plastic wrapped, loaded in container and exported
• Brand Name: Congzhou Machinery
• Place of Origin: Karnataka, India
• Voltage: 440 V
• Driven Type: Electric
• Supply Ability: 2 Set/Sets per Month

Our Rotary Die Cutter is known for its efficient performance and greater efficiency. Our products are manufactured keeping in mind international quality standards. Thus, they are reliable and worth their price. One of the leading companies based in Pune(India), we are a known for the exceptional assortment of products.

• Weight: 100-1000kg
• Voltage: 110V
• Rated Power: 1-3kw
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Warrenty: 1year

We are agile Manufacturer, Exporter & Supplier of Rotary Die Cutting Machine from Punjab, India. The product is precisely engineered for providing smooth operation. Low maintenance requirements, excellent performance and low power consumption are some of the key factors, which make our Rotary Die Cutting Machine high in demand among global buyers. We offer Rotary Die Cutting Machine at rock-bottom prices to our esteemed customers.Details : The die utters phase is controlled by corputer and electric digit with 360. The die cutting scraper could be adjusted horizontally with computer and electric digit control ranging from+5mm to -5mm. The light alloy aluminum back-kick vacuum' adsorption paper feed mechanism with several groups of rolling bearing to ensure more steady machinery operation. Left and right baffle and back baffle position are controlled by computer and electric 4t; the side baffle is equipped with pneumatic trimming facilities. Consecutive or skip paper feed, infrared electrophonic counter, brush dust removal mechanism. Available in Chain feeding & Automatic board feeding.

• Condition: New
• Warranty: 1 year
• Type: Automatic
• Features: Resistance against rust, Quality tested, Longer working life
• Power Source: Electric
• Usage: Industrial

Product details : The feeding unit adopt chain feeding system. PLC control, unite control panel on control desk, simple and clear , convenient and swift. The main motor apply the frequency converter controling the speed, start smoothly and adjust the speed according the user. Equipped with the number counter , easy and clear for production. Start with the alarm bell ring, more safety. The wall panel applies supper quality Cast Iron , 50mm thickness, down feeding roller is made by high quality steel with balance alignment and hard chrome plated. Upper feeding roller is covered by wearable rubber , long life span. Flexible channel on the surface of the rubber roller, ensuring the precise of feeding without damage the cardboard. Die cutting roller is objected to balance alignment and hard chrome plate.Supper quality steel. With compensating gear device in phase adjusting, digital display and control with adjusting in 360 degree both running and stop. When feeding ,die cutting roller pneumatic up and touch the rubber roller ; when stop , it automatic down and separate with the rubber roller, saving using time of the rubber roller. The rubber applies Taiwan MAXUAL polyurethane rubber, smooth cutting, and easy installation , can be used for 8000,000 times. Mechanical left and right moving device(40mm) for rubber roller: each cutting in different place, prolong the using life of the rubber roller effectively. Speed automatic compensating device make sure that all the boxes are the same size.The soft roller self-repairing device raising the rate of reuse. All the transmission gears are helical tooth, smooth transmission , little noise, with the materials of supper quality carbon structural steel,after heating treatment and high frequency hardening , HRC45-50, high wearable and long lifespan. Spray lubrication system , simple and effective.

• Automation Grade: Automatic
• Voltage (V): 240 V
• Phase: Single Phase
• Frequency: 50 Hz
• Power: 18 KW
• Model Name/Number: SCRD-C13
• Machine Size: 1400 x 2000 Inch
• Max Die Cutter Size: 1300 x 1800 mm
• Min Sheet Size: 380 x 700 mm
• Production Capacity: 60 Sheet/min
• Board Thickness: 3 mm
• Die Cutter Precision: \\<+_1 mm

The model JJF slitter rewinder is ideal for fully-automatic production of narrow width, small diameter (up to 10″) rolls. No other company in the world has installed more fully automated POS roll slitter rewinders in North America than Jennerjahn Machine, Inc. No rewind mandrels are required with the JJF. Cores are simply poured into a hopperbowl feeder system and automatically processed. The simple and innovative shaft-less rewind system eliminates the need for rewind mandrels. Upon seeing a demonstration, converters recognize the value of the machine’s simplicity and immediately understand how it will reduce labour, provide more consistent and reliable production, improve finished roll quality, and make them more efficient.

• Automation Grade: Semi Automatic
• Country of Origin: India
• Brand Name: Hari Industries
• Brand Name: Hari Packaging Machinery

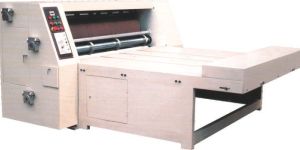

• Type: Chain Feed Combined Rotary Diecut Punching Machine
• Driven Type: Hydraulic
• Pressure: Medium Pressure, High Pressure
• Phase: Three
• Speciality: Easy To Use, High Efficiency, Reliable, Low Power Consumption
• Finishing: Powder Coated
• Power: 3-5 KW
• Usage: Paper & Duplex Paper Die Punching Machine

• Material: Mild Steel
• Usage/Application: Industrial
• Max cutting size: 1400 x 1350 (mm)
• Phase: Single Phase
• Max paperboard size: 1400 x 1600 (mm)
• Frequency: 50 - 60 Hz
• Thickness of paperboard: 2-10 (mm)
• Voltage: 220 - 280 V

Die cutter phase is adjusted by computer and electric digital control In a scope of 360°, Die Cutter horizontal movement is adjusted by computer and electric digital control of a scope of ± 5mm. Uniflair glue die cutting cushion roller servo traces simultaneously, when the restored roller is input inside the serveo computer system, it will calculate accurately and automatically and follow the printing speed to ensure the velocity of blade line the same as the cushion roller and make the formation of the die cutting beautiful and same in size. No matter how the diameter of the cushion changes, the die cutting plate will not be damaged. The upper and lower roller of the die cutting adopts the design of different sizes.

• Packaging Type: Bajaj
• Material: Iron
• Automation Grade: Semi-Automatic
• Brand Name: Bajaj's
• Country of Origin: Indian
• Color: Silver

quotation for rotary die cutting machine:-one rotary die cutting cum slitting and winding machine complete with one unwinding having edge guide system,rotary die cutting station, with silicon pressure rollers, drive rollers, wastage winder, rotary slitting unit with adjustablecutters two winding shafts with pneumatic brakes for individual control , idle rollers, clutch brake, ac variable driveand other standard accessories

• Certification: CE Certified
• Weight: 100-1000kg
• Voltage: 220V
• Condition: New
• Rated Power: 1-3kw
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric

Features : Chain Feeding Rotary Die Cutting Machine Whole machine adopts chain feeding system Roll adopts high quality steel, balance & hard chrome plated Soft coat automatic repair structure, could be repair 3-4 times improve rubber mart work-life

• Condition: New
• Warranty: 2 Years
• Speed: 60-80 boxes/min; for auto feed:80-150 boxes/min.
• Size Adjustment: HMI panel for axial control.
• User friendly: Very easy to operate and use.

Speed Control : Delta VFD Drive to control speed Rotary die cutter with self-healing anvil cover. Auto repair tool for anvil cover.

Function and Uses The machine adopts chain feeding system and double roller rotary type. It can perform all process of slitting, creasing , corner cutting and hit special whole at one time. It has advantage of high precision, easy to operate, long service life and low cost. Paper Feeding Unit Adopt lead edge feeding system with vacuum adsorption auxiliary feed, (optional equipment kick feeding system) Speed: 10000 Sheets/Hr, die-cutting precision: ±0.75mm. Manual adjust former block board and computer control lateral block board, dial indicator. Leading paper roll have groove glue surface to prevent the crushed card board and increase the accuracy of feeding.   Main Characteristics The drum made of high quality steel tube, thickness 30mm, do balance treatment, plated chrome. Full machine gear made of 45# steel have been quenched treatment, Adopts lock-alx key less and cross-head system connect with shafts fi nish no gap adjustment. Driving part uses pull pump to lubricating (motorized phase adjustment type used spray lubricating). Oil box made of thick iron plate to avoid oil leakage. Phase adjustment by manual operate with micro-adjustment (or motorized adjust in 360º) Die Roller (bottom roller) lift-down adopts pneumatic control, manual or automatic operation. Rubber roller (top roller be wrapped anvil cover from “Maxdura” Brand from Taiwan (or CUE, DAY option), long use life. Rubber roller (top roller) can move automatically, move range ±40mm. Rubber roller (top roller) fix overrunning clutch to compensate line speed automatically, and avoid one position cutting. Equipped with anvil cover repair device, prolong use life.

This machine is designed for cutting, creasing and punching of corrugated sheets. This high speed machine is an ideal substitute for scoring (Rotary), slotting and additionally gives higher productivity. It is equipped with Chain feeding ensuring easy operation & helps in easy feeding of warp board. Die cutting roller is made of high quality steel with hard chromed plating. Upward roller can move 40 mm from left to right . This machine is equipped with rubber turning system. We can directly process the damaged part of rubber after long use. Kick feed and lead edge (vacuum) fed models are also available.
