Rotary Table Dealers

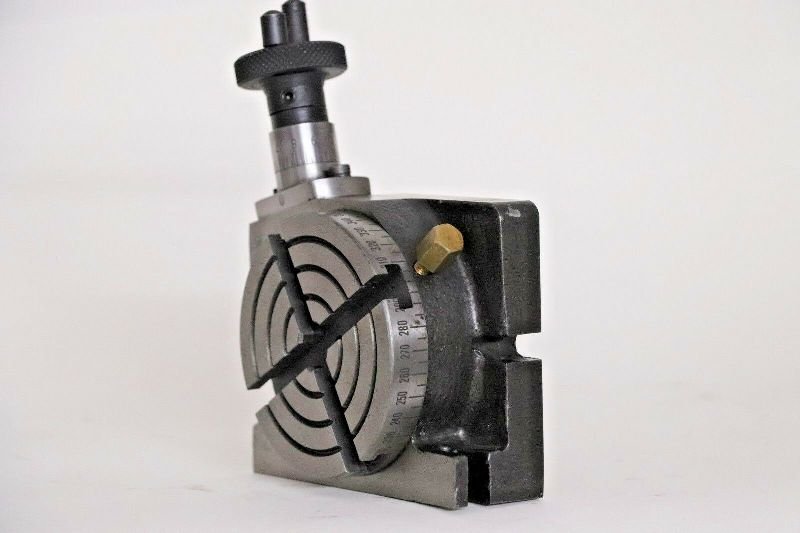

• Type: 3 Inches (75 mm) Tilting Rotary Table
• Brand Name: ASSORTS
• Material: Alloy Steel & Cast iron
• Diameter: 3 inch
• Model Number: AMTRT-75.4
• Place of Origin: India

Designed to tilt between 0- 90 degrees & can be locked at any position. Table diameter - 3 inches (75 mm) height - 47 mm worm- gear ratio - 36:1, which basically means that the 1 rotation of the handle shall rotate the table by 10 degrees. Can be used both in horizontal & vertical postion.

• Warranty: 4 Year
• Installation: Easy to Install (Plug n Play)
• High Speed Indexer: Upto 1000 Indexes per Minute

rotary indexing units with globoidal cam mechanisms are ideal for dial plate indexing. Each have stationary center through bores for routing supply lines and dual flanges for mounting a stationary dial over the indexing dial.  mechanism type:                       globoidal arrangement of shafts:               crossed sizes:                                       rt85, rt100, rt150, rt240 no. Stops:                                  (0)3 to 32 index angle:                                90° to 330° oscillating angles:                        limited possibilities max torque:                                  100 to 3400  nmindexes/minute:

• Table Size: 150 mm x 160 mm

25mm movement on both axes on Micrometer Head 0.01 mm Circular Rotary top plate with ground slot 50mm vice fine adjustment lock with T nut Alloy Steel with Nickel Chrome Plating

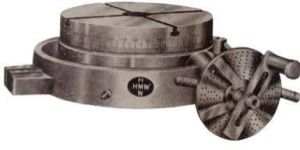

wmw union 2000X1900 mm rapid feed Rotary Table Rotary Table wmw union 2000X1900 mm with rapid feed wmw union 2000X1900 mm Rotary Table wmw union 2000X1900 mm with rapid feed Rotary Table

Pneumatic Clamping system, with built-in patented disk-clamping design (Taiwan PAT.: 217736) to ensure cutting endurance. The feature of wear resistant alloy Dual-Lead Worm Gear is high mechanical efficiency of power transmission, high indexing accuracy and easy adjusted on the backlash. Able to be connected with CNC machine to perform synchronous 5th axis multi-angle machining. Able to be connected with CNC machine to perform tilting angle machine (4+1 axis) through Single Axis Controller. Minimum Indexing Degree: 0.001° Tilting range: +/- 110 °

• Payment Terms: L/C (Letter of Credit)/T/T (Bank Transfer)/D/P
• Meas CFT: 0.3/0.4/0.8/2/2.6/3.2/4.2
• Brand Name: Fostex
• Load Capacity (Horizontal): 35-140 kg
• Load Capacity (Vertical): 18-70 kg
• Bolt Slots: 17/18
• Centre Sleeve: MT-2/ MT-3/ MT-4

* Specifications of bigger sizes can supplied on request. Note: Since the results of most modern research and development are being constantly applied to our machines, illustrations, constructional details and technical data given here are not binding upon us.

The Rotary Tilting Table is a versatile and high-performance industrial equipment designed to facilitate precise and efficient machining operations in various industries. This innovative device combines the functions of a rotary table and a tilting table, providing exceptional flexibility and enhancing productivity in manufacturing processes.

• Brand Name: E CV Products
• Supply Ability: 20 Piece/Pieces per Year
• Place of Origin: Karnataka, India
• Packaging Details: Seaworthy Wooden packing
• Products name: Rotary Table

We are the main supplier of this product.

Based in Tamil Nadu (India), we are a renowned Exporter and Supplier of precision engineered Rotary Tables. Our Rotary Tables are applicable for precise movement ranging from 10-150mm (1/2-6"); typically require a cylinder and a precision guide. Sourced from the reliable manufacturers, our Rotary Tables are available in standard with auto switch capability. Stroke adjustments are available for extended, retract, or both in ranges of 0-5mm, 0-15mm, and 0-25mm. They also come with all necessary accessories for hassle free usage. Featuring a sturdy construction, our Rotary Tables come with an enclosure base for the motor and ball screw drive, fitted on top with a rotary bearing supporting the work table. Features & Benefits : Versatile : Changeover to clockwise/anti-clockwise rotation or reciprocating motion, as well as subsequent changeover to another indexing stationAll connections and settings are accessible from one sideSturdy, overload-protected mechanical systemFlat and compact design for minimum space and optimum installation conditionsIntegrated position sensing with inductive sensor

• Country of Origin: Made in India
• Usage/Application: Industrial
• Weight: 16 kg
• Table T-Slot Size: 10 mm
• Diameter of Table Slot: 150 mm

HEAVY DUTY CNC ROTARY TABLE The Rotary table models VRT series are designed for integrating with any CNC horizontal boring machine fitted with Siemens 840D controller having additional axis capacity or with an independent controller Siemens 802 D .The rotary table position can be continuously controlled in two axis one rotary ‘B’ axis and the another longitudinal ‘V’ axis. The rotary table bed made of grey cast iron grade 30 heavily ribbed. The Rotary table movement is through a Double Pinion Gear Box driven by one or two Servo motors as required. The table and saddle guide ways are hydrostatic and can be hydraulically locked after indexing.

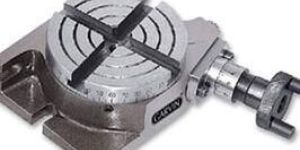

• Brand Name: GARVIN TOOLS
• Material: Metal
• Finishing: Polished
• Shape: Round
• Color: Grey
• Application: Industrial Use
• Feature: High Strength
• Type: Rotary Table
• Diameter: 4''
• Chuck Diameter: 75mm / 3

Rotary Table, high frequency spindles, Auto Leveling Platforms, Actuators

ERT series of Rotary Tilting Tables enables accurate and productive machining. These tables are designed so that the surface of the table top is on the center line of the tilting axis, for a greater piece part capacity, easier programming and less interference in the work zone.

• Table diameter (mm): Ø200
• Centre Height (mm): 140 Register diameter on faceplate (mm): Ø65
• Spindle Through Hole Diameter (mm): Ø45
• Gear ratio: 1/72
• Clamping method: Pneumatic
• Clamping Torque (N.m): 820
• Max Speed: 41.6 rpm
• Weight (kg): 65

• Material: Aluminum
• Shape: Round
• Certification: CE Certified
• Color: Multi Colour
• Pattern: Plain
• Voltage: 110V
• Finishing: Polished
• Feature: Corrosion Proof, Crack Proof, Fine Finishing
• Height: 15inch

We present superior quality Rotary Index Table in the national market. Our CNC Rotary Table is manufactured as per the customized requirement of the valued clients. They are very durable and have long lasting functional life. In addition to the above we are the most prominent Hydraulic Index Table Manufacturer from India. Click here for Detail of UHRT Series Hydraulic Rotary Indexing Table-01 Click here for Detail of UHRT Series Hydraulic Rotary Indexing Table-02 UHRT Series Hydraulic Rotary Indexing Tables Body is made up of high quality grade-30, with properly stress relived casting.   Very fast indexing even with heavy loads.   Inbuilt adjustable cushioning and flow control for the indexing.   Optional rotary knob for selecting number of indexes(Multiple indexing capability)   Special and SERVO rotary indexing table as per customer requirements can be developed based on quantities. Click on the given box to send enquiry

• Material: Metal
• Application: Industrial
• Durability: Long Life
• Surface Finishing: Polished
• Resistivity: Rust Resistant
• Drive Type: Electric

Being in the manufacturing business, every manufacture covets for automated operations with less cycle time. Fortunately, you can get it done instantly with the rotary indexing machine by Shiv Technology. This machine will reduce the cycle time and ultimately hike up the production volume. Its simultaneous actions deliver miraculous output within a stipulated time period.   How rotary indexing machine benefits your production? The rotary indexing machine permits you to properly assemble the machine parts in an accurate and speedy way. In a fast way, it helps in the completion of work without any problem. It prevents the faulty parts for further processing. So, it ensures overall quality by allowing only those parts which are absolutely good to go. This machine efficiently performs and carry on the production process and ultimately give high productivity. It uses rotary for speedy assembling and completion of work. For oddly shaped assemblies, this machine is the best. The best part is our solutions are totally cost effective and will suit your pocket for sure. You will get all the benefits from these automated rotary machines with reduced cost. This is really a good option to assemble the parts with molding options available in these machines.   Specifications Assured quality Guaranteed performance Made up of quality material   Applications Prevent faulty parts after failed assembly step To ensure quality with machine parts Reduce the requirement of the workforce, so give quick results without any flaws It leads to accurate and speedy work It’s suitable to enhance productivity and cut down production cost. It’s suitable to assemble all the intricate parts within seconds at the fastest rate.   Whatever size you want in your rotary machine, we, at Shiv Technology design it in an excellent way so that you can assemble all the parts in a great way. We prepare it completely adhering to your requirements. The specifications you can share with us, like, semi-automatic or fully automatic machine. Just opt for this rotary machine that is useful for completing work speedily plus recognizing the flaws in the process, if any. Order us and get it within a couple of days at your doorstep.

We make the clients satisfied by offering rotary table with high durability and accurate construction. Our rotary table makes the working of milling machines smooth.

• Price: Rs 1.44 Lakh / Piece

For the convenience of the clients, we facilitate them with several payment procedures including both online and offline. In addition to this, we guarantee for authentication and confidentiality. Supported by an industrious network, our organization is able to serve to patrons all over Jamnagar(India) and other marketplaces without problem.Features : High performance Long working life Minimum maintenance Power 0.5 hp to 1.5 hp Hole variation Upto 0.5 mm only
