RTPFC Panel Dealers

• Phase: Three Phase
• Usage/Application: Commercial
• Power: 20 kW
• Mounting: Floor Mounted
• Voltage: 415 V
• Frequency: 50 Hz

• Usage/Application: Pf Improvement for dynamic load/ Harmonic Reduction
• Phase: 1 - Phase
• Brand Name: Treffer
• Working Temp: 50 Degree Celsius
• Voltage: 400/440/480/525/690/800V
• Rating: 50 to 4000Kvar
• Mode of Switching: Static

• Features: High efficiency , Long working life ,Minimum maintenance

• Specifications:: Rating : 50.....4000Kvar , Voltage : 400/440/480/525/690/800V ,Mode of Switching : Static and Application : Pf Improvement for dynamic load/ Harmonic Reduction

T-RTPFC panel is an integration of CRCA powder coated MS Sheet enclosure , fully wired with Self healing MPP capacitor & Reactor , capacitor duty Thyristor, fan,APFCR, all switchgears, with IP protection , busbar ALCU, with IEC STD, a) The thyristor switched contactor shall be capable of handling the continuous current of 130% of the rated capacitor current at rated voltage of 415V. The blocking voltage of the thyristor switch during off Condition should be minimum 1800 Volt peak. Every thyristor switch should be capable of handling the dvdt of 2000 Volts S. b) The thyristor switched contactor used shall turn on at zero differential voltage across it. This zero differential voltage tolerance shall not exceed 6 Volts peak value around zero. c) The time delay between turn off and subsequent turn on should be as minimum as possible and in the range of milliseconds. There should not be any discharge devices across capacitor that can exceed the watt loss of more than 30 watt.

T-RTPFC panel is integrated with CRCA MS Sheet encloser with powder coated, fully wired with self-healing MPP capacitor & Reactor, capacitor duty Thyristor, fan, APFCR, all switchgear with IP protection, busbar AL/CU, with IEC STD, The thyristor switched contactor shall be capable of handling a the continuous current of 130% of the rated capacitor current at rated voltage of 415V. The blocking voltage of the thyristor switch during off condition should be minimum1800 Volt peak. Every thyristor switch should be capable of handling a the dv/dt of 2000 Volts/S. The thyristor switched contactor used shall turn on at zero differential voltage across it. This zero differential voltage tolerance shall not exceed 6 Volts peak value around zero. The time delay between turn off and subsequent turn on should be as minimum as possible and in the range of milliseconds. There should not be any discharge devices across capacitor that can exceed the watt loss of more than 30 watt.   MODEL : T-RTPFC   Specification: 50/60Hz Rating : 50….4000Kvar Voltage: 400/440/480/525/690/800V Mode of switching : Static Application: Pf improvement/Harmonic Reduction

This high-speed real-time Automatic Power Factor Correction Panel comes with suitable Tune and Detune harmonics filter. Venus technocrafts ensures that they compensate the reactive power required by any load requiring PF correction in a very short time (less than 20 ms), thereby reducing failure in sophisticated equipment. Maintaining unity PF, reduction in KVA demand, reduced electricity bills, enhanced capacity of transformer, switchgear, HT cable are few of the benefits accrued.       This state-of-the-art electronic switching device is primarily designed as a replacement of the electro-mechanically switched equipment. These systems while distinctly superior come with a price tag very comparable with the conventional switching APFC systems.

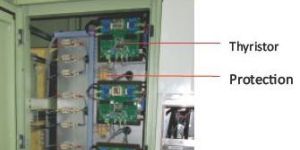

RTPFC System  Totally Custom Built Design High Speed Hot Response for VAR Compensation-Selectable upto 60mS. Harmonic Immunity through appropriate detuned harmonic blocking reactors. Thyristorised capacitor switching giving total solid state and reliable operation. Various protections to thyristors via,   1) Spike Current   2) Voltage transients   3) O/C, O/V, O/T   4) Self Health Monitoring   5) Supply system connection faults Usage of capacitors like MPP, MD, APP, Gas filled – based on site requirement along with on - line health monitoring in terms of μF Value. Data Logging facility with RS-485 PC interface. Optional GSM-SMS mode of communication for remote monitoring & control. Panel protection class based on site conditions - IP-21 to IP-56.

• Usage/Application: Textile
• Phase: 3 - Phase
• Material: Iron
• Rated Voltage: 415 V
• Application Type: Chemical Industry, Cement Plant, Sugar Plant, Textile, Hospital
• Rated Reactive Power: 50 to 1000KVAR
• Automation Grade: Automatic
• Frequency (Hz): 50
• Power Source: Electric

We are offering rtpfc panels. Real time power factor correction system panel (rtpfc): we manufacture apfc & rtpfc (thyristor based power factor correction panels) panel as per our customers’ requirement. Panel is available in both compartmental as well as non-compartmental construction. We have supplied single panels with 24 stage & 2000 kvar capacitors. Application power factor correction max. Rated current up to 4000 amp. 65ka system voltage 440 volt rrated insulation voltage 690 volt ambient temperature 50 degree c

Pqs electro link (i) p. Ltd. Is a well known company engaged in manufacturing rtpfc panels from india.
