Rupture Discs Dealers

• Color: As per model
• Brand Name: Saishraddha Graphite
• Length: Standard
• Model: As per model
• Usage: Industrial

• Country of Origin: India
• Condition: New
• Power Source: Electric

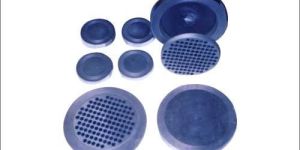

Contact us to purchase Rupture Disc, which is a specially designed valve for one time use. The replaceable valve, Rupture Disc is acclaimed for rapid pressure relief. It is mainly used to prevent piping systems from the likely excessive vacuum or pressure. At any given time, Rupture Discs are more reliable than Safety Valves. One can purchase Rupture Discs in regular as well as customized designs from us.

• Material: Steel
• Pressure Range: 20-50 psi
• Pack Type: Box
• Features: Corrosion Resistance
• Surface Finish: Color Coated

The Model BP420 burst plugs are designed specifically for use in plastic extrusion systems. Burst Plugs (also known as rupture disks) are designed for reliable, emergency relief of excess pressure in a system. The Model BP420 will instantaneously rupture at a specific, predetermined pressure and temperature. Each one piece assembly consists of a 304 stainless steel body with a welded Inconel rupture disk. The disk is flush with the tip of the burst plug with no cavity for product build up. A burst plug may be specified for primary relief in applications where pressure build-up can occur so rapidly that the response time of a relief valve is inadequate,such as in a polymerization reaction vessel. All burst plugs are tested at rated burst pressure and temperature. In addition, markings on the burst plugs are laser engraved and more visible, and each burst plug is labeled and shipped in a protective package.

• Color: BLUE
• Brand Name: FIKE
• Nominal Size: 2.5 to 3 inch (65 to 80 mm)
• Burst Pressure Range: 53.2 to 70.2 psig (367 to 484 barg)
• Max Recommended Operating Ratio: 80% of the rupture disc
• Seating Configuration: Flat Seat

• Nominal Size: 1/2", 3/4", 1"

The SKR-U™ rupture disk (bursting disc) is partnered with the UR-2 safety head to provide high integrity reverse buckling rupture disk (bursting disc) technology in a threaded union type holder. The SKR-U™ rupture disk (bursting disc) uses Saf™ technology (structural apex forming) to accurately control its burst pressure making it insensitive to the assembly torque variations that will occur in a threaded type holder. The UR-2 safety head is available in three standard nominal sizes: 12 " 15mm,34_" 20mm, and 1" 25mm. Standard inlet & outlet female threads are 12 ", 34 ", and 1" NPT. Custom thread configurations are available. The SKR-U™ rupture disks (bursting discs) are identified SKR-U™12" 15mm, SKR-U™34" 20mm, SKR-U™ 1" 25mm and are all supplied with permanently attached 3-D metal identification tags.

• Type: Direct Coupled
• Accuracy: ±5.0%
• Range: 10 Bar
• Wetted Parts: AISI 316 SS

P1020 Rupture Discs with Compact Design are used as a pressure relief device for safety applications and excess pressure relief in Petrochemical, Aerospace, Aviation, Defense, Medical, Railroad, Nuclear, Chemical, Pharmaceutical, Food processing and oil field applications. They can be used as single protection devices or as a backup device for a conventional safety valve; Rupture discs are very often used in combination with safety relief valves, isolating the valves from the process, thereby saving on valve maintenance and creating a leak-tight pressure relief solution.   Special Features : Low Cost OEM Wide Temperature Range Crevice Free Stainless Steel Construction Arch Burst Design Compact Version Leak Proof Seal Instant Response in milliseconds

• Color: Grey
• Brand Name: Ventil
• Size: 24inch
• Surface Treatment: Powder Coated
• Frequency: 50Hz
• Usage/Application: Protect From Overpressure

• Brand Name: Fike
• Material: SS316,Hastelloy,Monel,Inconel,Tantalum,Graphite,PFA& PTFE Coated
• Size: 1/2 to 24 inches
• Model Number: Axius,SRL,SRX,POLY SD,HO/HOV,AD/ADV,Graphite disc
• Burst Pressure Range: 0.2 to 300 bar
• Design Type: Reverse Buckling,Forward Acting,Composite,Graphite,Extruder type

• Color: gray
• Brand Name: Ventil components
• Country of Origin: Made in India
• Size: .0.5" to 24"

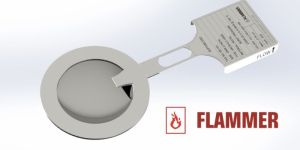

• Brand Name: Flammer
• Country of Origin: Made in India
• Material: SS
• Shape: Round
• Size: 1 Inch to 24 Inch
• Pressure: 60 kg/cm2
• Temperature: -200 deg C to 1000 deg C

• Standards: ASME CODE SEC.VIII, API RP 520, KS B ISO 4126, KOSHA CODE, FDC STD
• Size: 1/2'
• Connection: JIS, ANSI, DIN, API, etc.

We are offering rupture disc. It is co-used with our standard holder, with scored damage\r\nprocessing. It is ruptured by reaching to the setup pressure.\r\ndome is possible to be manufactured with the same or inverted\r\ndirection to the flow. Scored damage types are cross(+), c, and\r\netc. It is operable to 90% of setup pressure, long life, and non\r\nspark type available in all fields of liquid, gas, and steam.

Rupture Discs - A foil is loaded with tensile stress by means of pressure. On reaching the tensile strength, the foil ruptures. Suitable as small bursting discs and at higher pressures
