Safety Relays Dealers

• Number of Poles: 2 Pole
• Brand Name: Pizzato
• Voltage: 440 V
• Phase: Three Phase
• Rated Current: 40 A
• Model Name/Number: CS AT-02V120
• Operating Frequency: 50 Hz
• Power Source: Eelctric

• Number of Poles: 4 Pole
• Type: Industrial Relay
• Coil Type: Non Latching

We are engaged in offering excellent quality of low-profile safety relays - panasonic sf-y series. Features : forcibly guided contact structure relay complies with en 50205, type a equipped with forcibly guided contact structure that enables detection of contact welding and construction of safety circuit. small size different contact configurations low profile: 14.5mm (.571 in.) insulation according to en 60664-1: overvoltage category iii, pollution degree 2, 250vac reinforced insulation: clearance and creepage 5.5mm (.217 in.) (between all contacts and between contact no4 and coil) basic insulation: clearance 3mm (.118 in.) and creepage 4mm (.157 in.) (between all contacts and between contact nc3 and coil) typical applications : emergency stop switches machine safety engineering safety control units automation technology elevators escalators overcurrent protection with monitor contact ask for price

• Brand Name: Siemens
• Condition: New
• Country of Origin: Germany
• Material: Brand New

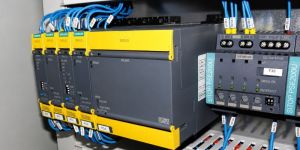

SIRIUS safety relay Basic unit Standard series Relay enabling circuits 3 NO contacts plus Relay signaling circuit 1 NC contact Us = 110 - 240 V AC/DC 50/60 Hz screw terminal

• Country of Origin: Maharashtra, India
• Brand Name: Proton Power
• Port: Nhava Sheva, Mumbai
• Supply Ability: 100000 Piece/Pieces per Month

Auxiliary relays are used for machine safety. Auxiliary relay assists a protective relay in switch-gear for a number of operations. Protective Relay performs task of measurement and under required conditions, is closes its contacts. Protective relay is relieved of all duties such as tripping, Time lag, breaking of trip circuit current, giving alarm, showing flags,etc. This duties are performed by Auxiliary Relays.Each of these duties are performed by an auxiliary relay.Seal-in Relay, Alarm Relay,Time lag Relay are some of the auxiliary relays. Contacts of Protective relay are delicate. Seal-in Relay is an auxiliary relay that protects the contacts of Protective relay. Alarm Relay is an auxiliary relay that gives trip alarm(Indication) both in audible and visual form. Time lag relays are auxiliary relay that operate after a preset time lag. They are used in control and alarm circuits to allow time for the required sequence of operation to take place. This are various applications of auxiliary relay. These parts are made of 48% Ni:Fe.PML provides these parts with high magnetic properties and critical dimensions maintained for proper working of the auxiliary relay.

• Country of Origin: India
• Color: Red
• Voltage: 220V
• Finishing: Polished
• Phase: Single Phase
• Warranty: 1 Year
• IP Rating: IP10-30
• Shape: Rectangular

• Certification: CE Certified
• Voltage: 11000V
• Frequency: 50Hz
• Type: Safety Relays
• Application: Safety Use
• Power: 1-3kw
• Feature: Accuracy

Phoenix Contact is setting new standards in safety technology. As one of the first safety products available on the market, PSR safety relay modules for process technology are now certified according to SIL 3/IEC 61508. They are also approved in acc. with EN 50156-1 for continuous operation for Safety Level 3.Conventional safety relay modules often have a very high inrush current, which control systems detect as short circuits. PSR-ESP safety relays provide optimum switch on behavior and have two separate isolated redundant form A contacts and one form B contact with a width of 22.5 mm (0.886 in.), which can switch up to 250 V AC/6 A. They are used to safely electrically isolate the field application from the control system or to adjust the voltage or power.The international standard IEC 61508 applies to electrical and electronic applications, in particular in process technology, such as chemical processing or process engineering and mechanical engineering. Like safety control systems or other control systems, compact safety relays are also an integral part of the safety chain.A new module with safe, slow-release contacts was incorporated in the PSR safety relay product family. Over a narrow 45 mm, the articles provide three enabling current paths and one signaling current path without delayed dropout for category 4 in acc. with EN 954-1. Furthermore, two slow-release enabling current paths – adjustable up to 300 seconds – are available. Single or two-channel control is possible. After the safety inputs have been enabled, the module starts automatically or manually.A connected start button is monitored to check that it functions correctly. To protect them against manipulation, the switches accessible from the top can be covered with the enclosed decal after startup.To monitor emergency stop circuits and protective door circuits without time functions, the PSR safety relay product family provides up to eight enabling paths and one signaling current path each. Modules for process engineering in acc. with IEC 61 508 SIL 3, two-hand control modules, check the parity (< 0.5 s) of the two inputs for applications in acc. with EN 574 Type III C. In the case of controlling, disabling protective devices, safety category 4 is attained. By using the corresponding extension modules, up to five enabling paths can be safely connected.All products of the family include pluggable screw connecting or spring-cage connecting terminal blocks as standard.

• Power Consumption: 500 mW
• Manufacturer: Panasonic
• Manufacturer Part Number: SF4-D-24
• Part Status: Active
• Voltage Rating: 24 Vdc
• Mounting Style: Through Hole
• Product: Power Relays
• Current Rating: 6 Amp
• Contact Form: 4PST (4 Form A)
• Packaging: Bulk
• Product Category: General Purpose Relays
• Series: S4F
• RoHS status: RoHS compliant
• Termination Style: Solder Pin
• Contact Material: Silver Alloy (Ag)

Captive key module : the key position overpasses the switch status version a key locked and turned : 4no+1nc 8a/250v key removed : 4nc+1no 8a/250v version b key locked and turned : 4nc+1no 8a/250v key removed : 4no+1nc 8a/250v versions a and b 1 line for test loop and 2 leds technical datas : power supply: 24v ac/dc; -15%/+10%, 50/60 hz current consumption: < 3,5 w (dc); < 6,5 va (ac) safety outputs: 4 no; 8a/250v ac auxiliary output: 1 nc; 4a/250v ac resistive min. Switching power : 50 mw electrical protection : surge protector temperature operation: -20°c to +60°c protection class: ip20 resistance to vibration: < 20 ms mttfd/dc : 90 years / 99.9% b10d : ac1: 860000, ac15: 300000, dc13: 300000 housing: polycarbonate, yellow connection: plug-in terminals dimensions (w x h x d) : 45 x 100 x 111 mm weight : 227 g standards: iso 13849-1 en 55022 en 60947-5-1 en 61000-6-2 : jan 2006 en 61000-6-4 : mar 2007 safety classification acc. To en iso 13849-1 : ple cat.4 certification: ce

• Brand Name: Allen-Bradley
• Material: Plastic
• Shape: Rectangular
• Color: Red
• Voltage: 110V
• Specialities: Shocked Proof, High Performance, Heat Resistance
• Phase: Double Phase

With the aid of our sophisticated packaging system, our skilled personnel are able to meet the standard as well as customized packaging requirements of the clients. Moreover, we check the entire lot before dispatch. Owing to our cordial associations with the renowned logistics companies, we are capable of delivering the orders on time.

• Warranty: 1 YEAR
• Number of Poles: 4 Pole
• Type: Voltage Relays
• Relay Modules: Bench
• I Deal In: New Only
• Brand: PILZ
• Model Name/Number: 777301
• Usage/Application: Industrial
• Voltage Type: DC
