Salt Spray Chamber Dealers

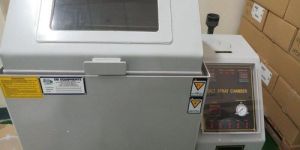

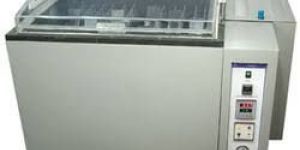

We are offering salt spray cabinet. For determine the corrosion of surface coating when exposed to a salt environment. Test can be carried out the samples by spraying salt solution into the chamber. The corrosion rates are expressed as weight loss with time. Apparatus consists of: · salt spray chamber. · pid digital temp. Indicator cum controller. · digital timer with memory back up. · heater with sensor. · atomizing nozzles. · fog collection device. · hanging arrangement with tray as per standard · safety feature water level sensor & thermostat with indicator and buzzer. · fog collection device. available in various dimensions and specifications to meet the exact requirement of our customers.

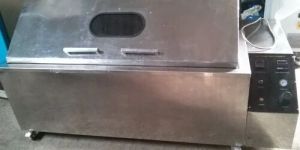

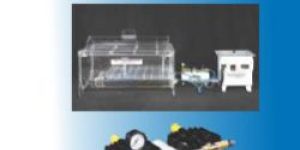

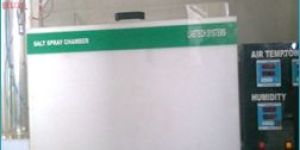

For Salt Fog testing and Corrosion Testing in Salty atmosphere Temperature Range: Ambient to +55° C Humidity Range: Ambient to Saturation Limit Control of Temperature: Digital Readout of set and actual values Testing Chamber: Acrylic Glass, Nozzle made of Acrylic plastic Heating element: SS Element: 0.75 kW, 230 V, single phase AC, fitted in the salt solution tank Solution Tank : Made of Fiber Glass, Double walled, capacity 35 liters approx, with provision for water levels Chamber Stand : Made of MS. Unit is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure upto 1 kg/cm². The following sizes are available Salt Mist Chamber size 45 x 45 x 45 cm Salt Mist Chamber size 45 x 45 x 60 cm Salt Mist Chamber size 40 x 50 x 75 cm Salt Mist Chamber size 40 x 50 x 90 cm Salt Mist Chamber size 45 x 60 x 60 cm Salt Mist Chamber size 45 x 60 x 90 cm Salt Mist Chamber size 60 x 60 x 60 cm Salt Mist Chamber size 60 x 60 x 90 cm Salt Mist Chamber size 60 x 60 x100 cm Salt Mist Chamber size 90 x 60 x 90 cm

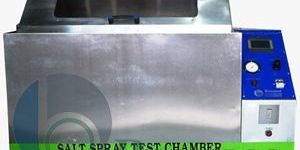

The updated models of Salt/Cass Fog Test Chamber specially designed for evaluating the corrosion resistance of the surface treatment of metallic materials by Copper Accelerated Acetic Acid Salt Spray Test Method. It consists of following parts. Test Chamber :It consists of Cabinet and Lid and is constructed with insulated double structure made of FRP Moulded Sheet. The upper part (triangular shaped lid made of FRP with acrylic glass window) has sufficient space for the mist to accumulate naturally on it and is so shaped that drops so accumulated do not fall on specimen being tested. Air-Saturator :It is provided to supply heated and humidified clean air, over 90% RH, for Atomization of the solution. It consists of Body (made of stainless steel), Heater, Bubbling Nozzle, Air Cleaner & Pressure Regulator. Air Regulator :The Air Regulator will maintain a constant pressure of Air at 70 to 170 Kpa.Air Filter :The compressed air will be passed through a Filter Arrangement to remove all traces of oil and solid matters before sent to the saturation tower.Lid Sealing :Lid Sealing through Water Seal Method.Mist Dispersion Atomizer :Atomizer made of Acrylic Glass will be equipped in the Chamber having property of non-choking. It produces a mist of atomized solution, which is distributed uniformly throughout the exposure zone by means of Mist Dispersion Atomizer incorporated with a baffle to prevent dispersion of large liquid droplets. Compressed Air and Gravity Process will help for creation Fog through Atomizer.Heating System :The Temperature within the Chamber maintained by Heater with Blower System, which provided in-between the Exterior and Interior walls.Solution Supply Tank :Solution Supply Tank will be provided to supply solution to Mist Dispersion Tower and will be made of FRP Moulded Sheet.Mist Collector :Two Mist Cylinders are provided for measurement mist quantity. Each has 80 cm² of horizontal area. The condensate is collected in individual graduated cylinders.pH Indicator :pH Indicator is inbuilt in Control Panel.Control Panel :Separate Control Panel will be provided located on the Trolley. The Control Panel will house : RH and Temperature Controllers-cum-Indicator for Main Chamber. PID Temperature Controller-cum-Indicator for Air Saturating Tower. PID Temperature Controller-cum-Indicator for Solution Tank. Weekly Programmable Timer, Hour Meter, ON/OFF Switches, Fuses, Electronic Relays and Indicating.Lamps. pH Indicator. Material :Control Panel, Stand and the Chamber containing other accessories of the Equipment will be made of Stainless Steel 304 grade. Wiring :All wiring will be as IS code. Channel type wiring will be done with suitable current rated copper wires.Power Supply : 220/240 V, 50 Hz, Single Phase, AC Mains.Safety Device : Cut-out at the time of water shortage in air saturator. Cut-out at the time of over current in control devices. Low Water Level Controller with Mechanical Floats type-Refilling Arrangement. Pre Installation Facilities to be required at user’s premises : Power Supply – Single Phase or Three Phases. Drainage System. Compressed Air. Distilled Water Reservoir or R.O. Reservoir as per user’s Test Requirement.

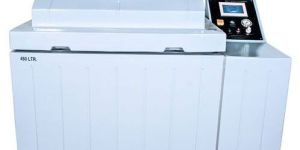

• FEATURES & ADVANTAGES: Easy loading and unloading of large samples, Digital microprocessor based control, Auto water refill system, Auto Fog Collection System, Over temperature alarm .
• Temperature range: 35°C±1°C / 50°C ±1°C
• Temperature of pressure barrel: 47°C±1°C / 63°C ±1°C
• Temperature uniformity: ±2°C
• Temperature fluctuation: ±0.5°C
• Temperature sensor: PT100
• Humidity range: ≥93% (No Controlled / Display)
• Controller type: 02 No. PID temperature controllers for chamber and pressure vessel
• Timer: Digital timer 9999 hours
• Canopy: Made of Acrylic Manual lifting
• Chamber construction: PVC reinforced hard plastic sheets for complete corrosion proof construction
• Brine tank (reservoir): 25 liters inbuilt brine tank,  Low water level indicator .
• Salt fog fallout rate: 1
• Spray mode: Continuous or intermittent spray
• Compressed Air pressure: 1.00 ±0.01kgf/cm²

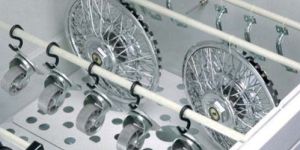

• Sample rackes: 08 Nos. V type racks,12 Nos. support rods .
• Fog accessories: 01. No. Spray tower 02 Nos. cup collectors
• Standard fittings: Mains ON/OFF, Pressure regulator, Dial type pressure gauge,  Drain system, Spray solenoid valve .
• Safety features: Over temperature protection, Low water protection
• Power supply: 220 Volts 50 Hz

• Type: Automatic
• Certification: CE Certified
• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Phase: Double Phase, Single Phase
• Warranty: 1 Year

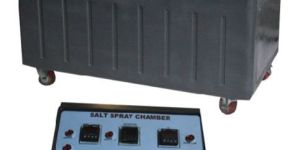

The Salt Spray Chamber has listed us amongst the finest manufacturers, exporters and suppliers based in Roorkey, Uttarakhand. These chambers that we offer are CFC free and have a semi-sealed or open type refrigeration system. The microprocessor based programmable control system makes this compact chamber easy to operate. The fog collection rate of the chamber ranges from 0.5ml to 3ml per hour.

• Certification: ISO 9001:2008
• Voltage: 220V
• Condition: New
• Application: Industrial Use, Laboratory
• Driven Type: Electric
• Automation Grade: Automatic
• Accuracy: 100%

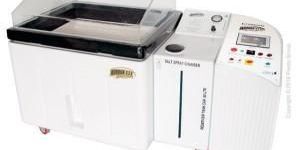

Our Salt Spray Chambers are manufactured in compliance to various standards like IS 2074/ 8168 IS 6910. These are mainly used to test the effect of salt on products by spraying it on them. Salt Spray Chambers are fabricated using rust-resistant material to ensure durability and strength.We are engaged in manufacturing and supplying a high quality range of Salt Spray Chambers. Designed and developed in compliance with the IS 2074, 8168, and 6910 standards, these Salt Spray Test Apparatus are widely acknowledged for features like high durability, strength, and rust resistance. This equipment is used to measure the effect of salt on different specimen products under test.

• Certification: CE Certified
• Warranty: 1 Year
• Type: Automatic
• Voltage: 220 V
• Use in: Laboratory
• Accuracy: 100%

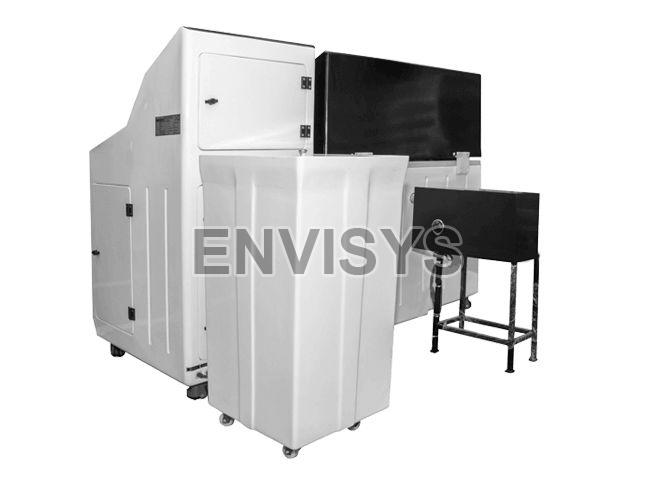

For determining the corrosion of surface coating when exposed to a salt environment. Test can be carried out the samples by spraying salt solution into the chamber. The corrosion rates are expressed as weight loss with time. All the inside parts of the chamber made of FRP sheet and outer made of metallic sheet with proper insulation. Top of the chamber made of transparent acrylic sheet.   Technical Data : Digital PID controller for chamber temperature control Digital PID controller for saturation tank temperature control Digital preset timer for total time control. Digital Humidity indicator Pressure indicator and pressure regulator for air pressure indication and control Air flow meter for control the air supply to the nozzle. Air filter for filtration of air supply to the nozzle. Saturation tank with heater, auto water level controller and pid type temperature controller. Heater with sensor Atomizing nozzles Fog collection device Hanging arrangement withtray as per standard Safety feature water level sensor & thermostat with indicator and buzzer.   As per ASTM B 117 and ISO 9227

• Country of Origin: India
• Type: Salt Spray Test Chamber
• Application: Industrial Use
• Features: 7'' Colorful Programmable touch screen controller, user-friendly, can remoto-control, Imported reinforced hard PP plates with smooth and flat surface, Power failure protection function, Self-diagnosis
• Model: 101L/270L/412L/663L/816L/1080L

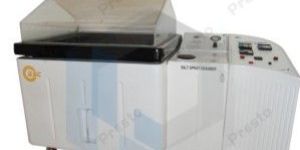

 Salt Spray Test Chamber could evaluate the anti-corrosion ability of material and material coating, make a comparsion about the product techniques and quality of similar coating and products, It be used to test the electronic elements, and metal materials and industrial products.

Traditional horizontal Salt Spray chambers from 400 to 2.000 litres basic and also enhanced models for Cyclic Accelerated corrosion tests.   Horizontal test chambers with clearcover for salt spray, conden sation test sand cyclic corrosion tests.   Corrosionbox improves comparison with outdoor results Worldwide, materials used by manufacturing industry are exposed to natural or industrial corrosion in shape of salt fog, humidity, smoke and vehicle exhaust. Laboratory corrosion tests are used extensively for selection of materials and their surface protection. Corrosionbox chambers are what you need to predict corrosion resistance of materials such as paints and coatings.  Salt spray testA corrosive solution is turned into a vapour mist through a nozzle located in the centre of the chamber. A fog diffusing tower distributes the fog over the entire test zone. The compressed air required for fog production is heated and saturated with moisture in a pressurized humidifier before it reaches the nozzle. One or more heating elements, depending on chamber capacity, ensure uniform temperature in the test chamber.Exhaust solution collected in the bottom of test chamber is drained away through a drain to the floor.Salt spray test can be executed with all chamber models.   Condensation water test Test chamber bottom is filled with demineralised water. Water is heated and evaporates condensing on the surface of samples.Chamber temperature is 40 °C. Continuous condensation test can be executed with all chamber models.Cyclic corrosion test   A large number of cyclic corrosion tests are made possible by combining salt spray environment with condensation humidity and air drying . Cyclic corrosion testing has become increasingly necessary in recent years. Dry Corrosion is one of the most popular cyclic tests alternating salt spray and air drying.Cyclic tests can be executed with all enhanced model chambers. Depending on cycle-type some options have to be installed during chamber manufacturing.   Chamber DesignChamber structure is overall 10mm thick Polypropylene. Option in PPS plastics to meet CSA flam test. Test chamber is insulated with a double wall. Access to the test chamber is made via the pivoting cover. Control panel and all necessary control devices are on the right side in ergonomic position. The Salt solution storage tank is on the left side. The electrical board is completely enclosed in a dedicated zone: next to it we find the electro-valves, humidifier and salt solution dosing pump zone. Each part is of easy access for simple and fast maintenance.  Basic modelAbsolutely easy to use. The first step for test execution is to load timer with total test time (up to 9999 hours), second is to set test chamber temperature on the controller, then press Salt spray or Condensation push-button. During the whole time of the test, the timer counts down and its display will indicate decreasing time running to test end. To inspect samples, suspend test execution pressing Salt spray or Condensation push-button, then press ventilation push-button to drain test chamber before opening it. To resume test execution simply press Salt spray or Condensation push-button again. When timer reaches zero test execution is finished.Enhanced modelFree programming, up to 15 different test programs, inputs via keyboard with soft keys and easy to use structure of the Menu. Test status is continuously displayed on the large LCD display with 4 lines of 20 characters each. Control and monitoring of test chamber and humidifier temperature, monitoring of nozzle air pressure and dosing pump RPH. Self-diagnostic including warning messages, alarm messages and safety shut down. Complete test report: chamber and humidifier temperature, nozzle air pressure and dosing pump RPH are periodically measured and stored in the controller memory together with test interruptions or alarms. By simply pressing a key a complete report of the test is printed. RS232-C interface is provided for serial printer connection.Cyclic test optionsEnhanced model control panel allows easy programming of cyclic test combining: Salt spray, Water condensation, Dry off and Ambient condition. To perform cycling the test chamber must be completed with the following optional parts:Option for Dry Corrosion, Scab Corrosion cycle. An air heater is installed to heat purging air before introducing it in the test chamber and a Titanium panel on the bottom of test chamber turns a flooded bottom into a dry bottom. Only a dry chamber bottom allows fast drying of the samples.Option for ASTM G85-98 annex 5 Prohesion. In addition to parts installed for dry corrosion a bypass is installed on the humidifier to meet standard requirements with respect to fog production.Option for ASTM G85-98 annex 4 salt/SO2 spray testing. An external SO2 dosing system is supplied and a gas diffusing device is installed in the test chamber

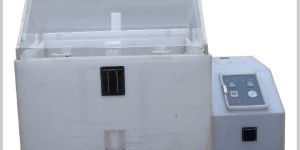

Touch Tone Salt Spray Fog Tester is used to test the corrosive resistance of products  whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil.

• Application: Industrial Use
• Warranty: 1year
• Automation Grade: Semi Automatic
• Capacity: 120 Ltr., 450ltr., 1000ltr.
• Model: SSC-120

Corrosion and weathering are the two major contributors, in degrading the metal substrate. Certain conditions like humidity, and Salt spray can be achieved or simulated in these chambers.   Confirming To : The basic system meets the requirements of ASTM B-117/ IS-1060 and other similar standards. The system can be further programmed and loaded with accessories (steam generator, dry air blower etc.)to function as per any standards or testing procedures like Causs, Prohesion, JIS, MIL ,DIN, IEC, ASTM G-85, QM-333, ISO, JSS, JSS-penta5, various automotive standards like Ford, Volvo, Renault, Honda, GM, Toyota, Suzuki or as per your requirement.   Basic Model & Control System (advanced) Inner Chamber Size     715mm L x 490mm W x  485mm H (120Ltr)  1010 mm L x 640mm W x 850mm H (450ltr.) built in tank 1300 mm L x 980mm W x 850mm H (1000ltr.) built in tank  1300 mm L x 980mm W x 850mm H (1000ltr.) with touch screen   Optional Accessories (at Extra Cost) DM Plant 100ltr./hr Peristatic Pump for Volume Regulation, with flow meter Trolley for 120ltrs. Chamber only Salt solution tank (150 ltrs.) DM water tank Salt solution low alarm Pneumatic door lifting (450 and above) Rack And Rod Set pH Meter Humidity Indicator Wet & Dry Bulb Principal Chamber illumination ( 450 & above) Lucite Atomizer Data Logger (for 120ltr to be ordered with stand) Spray Brake Alarm System (only Advanced Model)

• Driven Type: Electric
• Color: Grey
• Condition: New
• Automation Grade: Automatic
• Application: Industrial Use

Effective Lab’s salt spray test chamber checks the corrosion resistance of paint, powder-coated and plated items. Salt Spray Testing is one of the best methods to check the life of painting, coating and plating, such as powder coating, zinc plating, nickel and chrome plating, CED coating Phosphate surfaces, Alloy plating, Electroplated chromium, copper, and tin etc. Effective lab India is one of the best manufacturer of salt spray chambers

• Brand Name: Effective Lab India
• Size: 250Ltr, 450Ltr, 1000Ltr
• Material: FRP Body

  Digital Salt Spray Test Chamber A salt spray test chamber is used for conducting corrosion resistance tests of different products across various industries. Our salt spray chamber could be quick, repeatable and carefully controlled. With the help of a our salt spray test chamber, manufacturers can determine the resistance of their products in corrosive environments. Technical Specifications ModelELI-SST-D250 LtrELI-SST-D450 LtrELI-SST-D1000 Ltr Inner Dimensions 780*620*720 950*700*720 1500*960*710   Outer Dimensions 1540*1070*1300 1800*1250*1250 2370*1400*1350 Power 220V, Single phase, 50Hz, 15 A     Test Air Pressure 0.7kg/cm²-1.2kg/cm²     Test Chamber Temperature Range 35°C ± 2°C     Chamber Temperature List Count 0.1°C     Temperature Control Inbuilt PID Temperature Controller     Chamber Temperature Range Ambient to 40°C     pH value of Salt Solution 6.5 to 7.2 pH     Air Saturator Temperature Least Count 0.1ºC     Air Saturator Temperature Repeatability ± 2ºC
