Screw Elevator Dealers

• temperature: 9000C

Standard screw conveyors are made out of carbon steel or stainless steel depending on the operating conditions.Sizing of screw conveyor and pitch of flight is determined with the reference to CEMA standards. Intermediate hanger bearings are provided for long conveyors for the screw to maintain allowable sag in the rotating member.Proper selection of angular speed for the Screw conveyor is critical in order to avoid wobbling effect during operation.The tough filling factor is selected according to nature of material and also with reference to CEMA standard with typically value of around 30%, however, the drive power rating is calculated based on 100% filling factor. For high temperature application a jacketed trough and box type flights are provided with circulating cooling water through, shaft & box flights. The quantity of cooling water depends on the properties & temperature of conveying material.

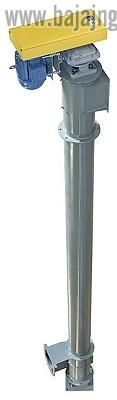

We offer a wide range of Vertical Screw Elevator.These Conveyors are manufactured using premium quality raw material, latest technology and meet international quality standards. we manufacture Vertical Screw Conveyor to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Wood Products and Wastewater Treatment.

• Shape: Round
• Certification: ISO 9001:2008
• Application: Office

• Capacity:: 100– 5000kg/hr
• Power:: 0.25- 5 HP.
• Purpose:: Lifting of raw materials or products
• Applications:: Food, ayurvedic, spices, feed and chemical industries
• Materials of construction:: Contacts parts in SS, remaining in MS

Screw elevator is used for carrying raw materials from a lower level to an elevated level.Bulk quantity of materials are handled in this machine.

We offer screw conveyor bucket elevator. A bucket elevator, also called a grain leg, is a mechanism for hauling flowable bulk materials vertically. It consists of: 1. Buckets to contain the material; 2. A belt to carry the buckets and transmit the pull; 3. Means to drive the belt; 4. Accessories for loading the buckets or picking up the material, for receiving the discharged material, for maintaining the belt tension and for enclosing and protecting the elevator. A bucket elevator can elevate a variety of bulk materials from light to heavy and from fine to large lumps. A centrifugal discharge elevator may be vertical or inclined. Vertical elevators depend entirely on the action of centrifugal force to get the material into the discharge chute and must be run at speeds relatively high. Inclined elevators with buckets spaced apart or set close together may have the discharge chute set partly under the head pulley. Since they don't depend entirely on the centrifugal force to put the material into the chute, the speed may be relatively lower.

we are offering Screw Conveyor Bucket Elevator. screw conveyor for material handling

With the help of our distinguished professionals, we are manufacturing, supplying and exporting a wide array of Screw Conveyor. The offered range of product is used for horizontal conveying of granular products in processing plants. This machine is designed for mixing oil & water required in pulses and wheat plant.Also, these screw conveyors can be used at oil seed processing centre machines.

SINGHASINI Screw Elevators are widely used in all industries for handling of bulk solids . For an efficient operation the design has to be matched for the specific duty and characteristics of the bulk material to be handled . Particular care is required with infeed arrangements for optimum performance . All our elevators are individually designed and manufactured to secure the best results for each application. STANDARD SPECIFICATION : Inclination upto 90° can be accomodated. Gravity feed options are available.  OPTIONAL  EXTRAS : Clean out doors. Alternative material of construction and finish. Drive arrangement to suit individual requirements. Split casings for easy cleaning. Chute of hopper style inlets. Mobile or fixed units. Dust extraction hoods. Jacketed construction suitable for steam , oil or water. Screw Elevators are tailor made and sizes depend on individual requirement, should you require any information please feel free to get in touch with us.

• Capacity: 1000 kgs
• Max Platform Height (mm): 1500 mm
• Min Platform Height (mm): 800 mm

Ball Screw Lifts These are special lifts for high speed applications used in paper cutting mc for unloading of paper bundles. Lifting operation is by a vertically mounted Ball Screw coupled to Servo motor to give high speeds with cushioning effect.

We provide our clients an assortment of Bucket Elevators and Screw Feeders that find extensive application in manufacturing and processing factories all over the world. These elevators are suitable for elevating a variety of bulk materials from light to heavy and from small to large lumps. Simple and robust in construction, our range is widely appreciated for its high performance, durability and is easy in operation and maintenance.

• Material: Stainless Steel
• Capacity: 800 Kg
• Country of Origin: Made in India
• Brand: Panther
• Diameter: Any
• Automation Grade: Automatic

• Capacity: 500 Kgs Per Hr Upto 800 Kgs Per Hr
• Phase: Single Phase
• Country of Origin: Made in India
• Type: Vertical
• Material: Stainless Steel
• Voltage: 220 V

We are offering ball screw lifts. These are special lifts for high speed applications used in paper cutting mc for unloading of paper bundles. Lifting operation is by a vertically mounted ball screw coupled to servo motor to give high speeds with cushioning effect.

SINGHASINI Screw Elevators are widely used in all industries for handling of bulk solids . For an efficient operation the design has to be matched for the specific duty and characteristics of the bulk material to be handled . Particular care is required with infeed arrangements for optimum performance . All our elevators are individually designed and manufactured to secure the best results for each application. STANDARD SPECIFICATION : Inclination upto 90° can be accomodated. Gravity feed options are available.      OPTIONAL  EXTRAS : Clean out doors. Alternative material of construction and finish. Drive arrangement to suit individual requirements. Split casings for easy cleaning. Chute of hopper style inlets. Mobile or fixed units. Dust extraction hoods. Jacketed construction suitable for steam , oil or water. Screw Elevators are tailor made and sizes depend on individual requirement, should you require any information please feel free to get in touch with us.

• Material: steel
• Country of Origin: Made in India
• Color: blue
• Capacity: 1 ton
• I Deal In: New Only
• Usage/Application: Industrial
• Height: 4 inch

Screw elevator is used for carrying raw materials from a lower level to an elevated level.Bulk quantity of materials are handled in this machine. SpecificationsCapacity: 100– 5000kg/hrPower: 0.25- 5 HP.Purpose: Lifting of raw materials or productsApplications: Food, ayurvedic, spices, feed and chemical industriesMaterials of construction: Contacts parts in SS, remaining in MS

The range of Screw Conveyor & Redler offered by us finds functionality in carrying of seeds & cakes to various machines for processing as well as carrying the finished products to the godowns, thereby reducing the manpower requirement. Available Types : Screw Conveyor & Redler Conveyor Available Capacities : As per the capacity of plant       ELEVATOR - DESCRIPTION Elevators are available in any height complete with top bottom and intermediate casing. The frame is made of Mild Steel Sheet made rigid by angle Steel Roller Type chain fitted with seamless pressed steel Buckets cast Iron sprocket wheels are mounted on shaft supported by double row self - aligning Ball bearings. The take-up arrangement is at bottom for easy erection and correct tensioning of the chain. The buckets are spaced at suitable distance. The top shaft is extended for drive purpose.

Screw Elevator, air drying plants, Water Treatment Equipment, Screw Conveyor
