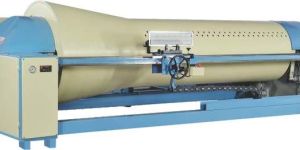

Sectional Warping Machine Dealers

• Country of Origin: India
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Capacity: 5 Meter Drum 32 Heavy

• Working Width: 1600 mm to 4200 mm
• Beam Flange Diameter: 800/1000/1250 mm
• Cone Angle: 7 Deg/9 Deg/11 Deg
• Warping Speed: 0-1000 mts/min
• Beaming Speed: 0-100 mts/min (Higher on request)
• Drum Circumference: 2.5mtr / 3mtr

Special Features : Auto Advance Warp Table : Crossing and warping combs are placed in a way that the thread run from the creel to the drum is as straight as possible, without unnecessary elbows not angles. The warping comb can be placed very near to the drum, which causes a very exact conduction of the section width. When thickness of rolled yarn increases on the drum, the comb back up automatically and simultaneously with the advance and according to the inclination angle of the cone, so that the distance between comb and drum is kept constant from the beginning to the end of the section. When the section is over, machine moves automatically and places itself in the home position for beginning following section, according to previously chosen length & with an accuracy of 1/10 millimeter. The warping comb goes forward to initial position. Touch Screen Display : All indication pilots placed in display box and in a semaphore visible from anywhere indicate the reason of drum stop: Thread breaking end or meters of length or any type failure notice like software, hardware and electrical. Disc Brakes : A hydraulic disc brake of special conception which absorbs the possible irregularities of brake drum makes, at the same time, quick & exact braking of warping drum & the obtaining of a regular tensionof the warping during the beaming. Beam Tension : Special designe develop by 'Bobbiler' to produce perfect weaver beam to get optimum efficiency for automatic looms. Boths pressure relief valve are separate for warping and beaming to get require beam tension control increase and decrease by manually of the yarn sheet during beaming. Leasing Device : With this device Yarn layers do not accumulate any where, but they pass through the crossing comb & the guide thread comb, in open state, directly to the drum. So the tangle of threads among themselves is avoided. The crossover for the placing of crossing cords is very wide and permits the worker to introduce them comfortably & without any auxiliary means. The crossover formation is done by vertical movement of the crossing comb. Beaming Device : This assembly is of very strong construction & suitable for the beaming of very heavy warpings. The starting is carried out by a drive placed in both supports of the beam. Both beam supports can move easily separately or coupled, which allows an exact alignment of the beam on the warping. Beaming speed without graduation until 100 mtr/min. Salient Features : Dynamically Balanced Metallic Solid drum with Fixed cone height. Robust Separate Warping & Beaming structure. Motorised Movable Beaming structure. A.C. Frequency variable speed drive with fully Servo & PLC control Fully servo system for precise warp table traverse motion, warp table cross motion & machine head stock motion in synchronization. Accurate length warp measuring with lost end memory. Auto section advancing. Constant warping & beaming speed.Friendly user operational panel having colour touch screen display for all desired process data. Effective caliper Hydraulic Disc brakes on both side with power failure. Hydraulic doffing and donning device.

• Working Width: 1800 - 3800 (In step of 200 mm)

New innovative separate warping and beaming structure Hydraulic disc brakes Constant warping and beaming speed Lost end memory & auto stop during beaming Digital online display for desired process data Data storage and pattern selection

• Weight: 500-1000kg
• Voltage: 380V
• Automatic Grade: Semi Automatic
• Power: 5-7kw
• Driven Type: Electric
• Country of Origin: India

• Working Width: As per Requirement
• Application: Textile Industries
• Material: Mild Steel
• Finish: Coated
• Feature: Rust Proof
• Automation Grade: Semi Automatic
• Minimum Order Quantity: As per Customer Needs

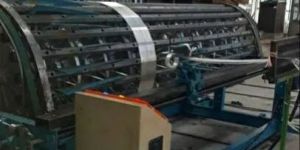

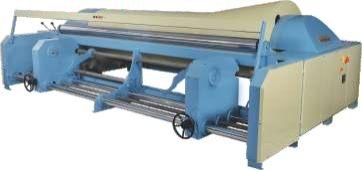

Sectional Warping Machine

we are offering sectional warping machine.

Sectional Warping Machine Automatic with Auto Stop Motion & Electro Magnetic Brake with Digital Counting Meter & Drive for variation of Warp Speed with different types of Gear Ratio as per Your Requirement.

• Beam Diameter: ∅800mm / ∅1000mm / ∅1100mm /∅1250mm
• Working Width: 1800mm to 4000 mm
• Warping Speed: 600 m/min (higher on request)
• Beaming Speed: 100 m/min
• Cone Angle: 7° to 10.5°
• Drum Diameter: ∅800mm / ∅1000mm
• Drum Circumference: 2500mm / 3140mm
• Warp table traverse control: Servo
• Static eliminator: Optional for warping table and leasing device
• Waxing device: Optional
• Beam pressure roller: Optional

• Production Capacity: 1000 meter
• Material: METAL
• Voltage: 440 V
• Power Consumption: 15 HP
• Automation Grade: Automatic
• ISI Certified: Yes
• Power Source: ELECTRICITY

• Color: Blue,Green,White
• Condition: New,Used
• Voltage: 220 V,300 V,320 V,400 V
• Application: Industrial,Textile Machine
• Materials: Mild Steel,Stainless Steel,Cast Iron,Copper
• Power Source: Electric
• Machine Type: Automatic,Semi Automatic

  Technical Details  Application range: shirting, worsted, silk, bottom weights, home textiles, and apparels   Key Features  KAMCOS SYSTEM - operator interface IPC/touch screen 12.1", ethernet interface for networking and connection for the relevant data acquisition and tele-service Compact beaming device for easier operation Computer and laser-controlled band-build-up - real time measurement from the first to the last section with central yarn tension control for perfect weaving beams Shed opener and control - for secure and fast leasing Smaller warping drum 600 mm dia for faster positioning/breaking Automatic leasing and section-changeover Genuine leasing cord automatically inserted, reduced manual handling before beaming operation Working width range available: 2200 mm and 3600 mm Maximum warping speed: 1000 m/min Maximum beaming speed: 200 m/min

We are instrumental in offering a range of Sectional Warping Machines that is developed by highly technically skilled staff and every machine is pre-inspected and tested before dispatched. Our Sectional Warping Machines are manufactured with the use of high quality components for efficiency. Our Sectional Warping Machines are not prone to the wear and tear caused by heavy duty or corrosion. Easy to operate, our Sectional Warping Machines are available at pocket friendly prices. Available Sizes From 48" to 140" in all types of Yarn Features Machine are so designed that the jacquard, dobby & drop box can be fittedManufacturing Size from 48" to 140" in over pick, under pick, pick at will (Both Head Single & Double) Suitable To Weave Suiting ShirtingBed SheetsWall PaperBelegeamBlanket Specifications All moving parts of Graded castingCrank shaft & bottom shaft fitted with gunmetal bushesManufacturing machine from size 36" to 140" under pick, over pick, pick at will (Single Head & Double Head)Machine frames are made of C.I. Casting and all seats plained with shaper and planomiller machineCrank Shafts are machine forged of 50mm superior quality steel bar and grinded on special machineAll gears are machine cut and main gears are helical teeth for better and smooth running of machine

• Brand Name: CLARTECH
• Capacity: 20000 METER
• Machine Type: Automatic, Semi-Automatic, Manual
• Power Consumption: 11KW
• Minimum Order Quantity: 1 Unit

• Material: Ms
• Power Consumption: 3 HP
• Power Source: 5 hp
• Automation Grade: Manual
• Product Type: Textile Sectional Warping Machine

• Section widths: 54"- 84"

To ensure distribution of orders within undertook period, our organization has an outstanding supply chain system in place. As a trusted name, we strictly follow all quality measures and cross check every product at different stages.

sectional warping machines, Proportional Valve

Sectional Warping Machine, direct warping machine, Electronic Jacquard

Prashant Group - We take the liberty of introducing ourselves as one of the leading manufacturers and supplier of sectional warping machine in India.

high speed sectional warping machine, Hydraulic

Sectional Warping Machine, Warping Machine, warping creel, Textile Machines

Sectional Warping Machine, pirn winding machine, Warping Machine

We are well known for supplying of wide variety of Sectional Warping Machine.

Sectional Warping Machine, Pallets, dustbins, Trolleys, Storage Systems

Sectional Warping Machine, Polycarbonate, Hensel Electric

Sectional Warping Machine, Multifunction Radio Remote Controls

sarvomatic sectional warping machine, sample warping machine
