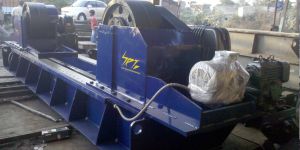

Self Centering Rotator
98,000 - 980,000 Per Set
1 Set(s) (MOQ)
self centering rotators:fohmics introduces world class tank rotators. the best in its class.we are manufacrurer, sulpplier of self centering welding rotators and our setup is situated in mumbai, maharashtra, india.robust & heavy duty design built to rotate the cylindrical vessels of all types.each set comprises of 1 drive unit and 1 idler unit.the wheel brackets are precisely & accurately machined on boring machines.construction of the fscr rotator base frame is similar to that of manual type rotators. only the wheel mounting brackets slides on the bed through lh & rh lead screw. the lead screw is rotated manually through ms handle. the roller brackets move simultaneously towards each other or away from each other.in drive unit both the wheels are individually driven by separate ac motor and gearbox which is synchronized & driven by vfd ac drive.
0.0
View Profile
Self Centering Rotator
450,000 Per Piece
0.0
View Profile
Best Deals from Self Centering Rotator
Self Centering Rotator
Get Price Quote
The construction of this type is similar to Conventional Type except that this model has a provision to slide the Roller Brackets over the Base Frame equally in both directions through a lead screw having LH & RH Threads. Unlike in Conventional Type the Roller Brackets in Self Centering Type is not bolted on the base frame. The rotation of lead screw can either be Manual or Motorized (Optional). The Technical Specifications are same as Conventional Type. Salient Features Low investment cost. Ideal version to start with new fabrication line. Most suitable for small and heavy fabrication shops. Simple & Sturdy design. Proven reliability. Accepts wide range of Job diameters.
0.0
View Profile
Self Centering Rotators
Get Price Quote
Main base frames are fabricated and stress relieved before maching. There are two Roller Beds, the Drive and Idler unit each. The precisely machined (on boring machine) Roller Brackets are bolted on the roller beds. In this type of machine one of the roller brackets is fixed at one end of the bed and the other is moved to suit the job diameter. Shafts of different lenghts are provided to cover the diameter settings.
0.0
View Profile
Self Centering Welding Rotator
Get Price Quote
0.0
View Profile
Self Centering Welding Rotator
125,000 Per Unit
0.0
View Profile
Self Centering Rotator
Get Price Quote
All rotators are designed for longer service life and trouble free operation Optimum positioning of jobs possible since wheel distance adjustment is infinitely variable Gear drive system is spur type which reduces the friction losses LH-RH lead screw arrangement allows the wheels to move simultaneously either towards or away from each other Surface speed sleeplessly variable from 150 to 1500 mmmin Speed regulation through VFD drive system Forward and reverse rotation along with inching facility provided Overload discs are provided, (if required) to protect polyurethane wheels from rupturing
0.0
View Profile
Self Centering Rotators
Get Price Quote
Our SCR is a versatile piece of equipment specially suited for manipulation of shells or any cylindrical component for positioning or processing. Special care has been taken while selecting drive elements and other components, to ensure trouble free service and optimum machine availability for production. Sturdiness is the key word since these equipments will be going generally to fabrication shops. Rollers are of composite construction. On precision machined hub PU coating is done. To reduce losses due to friction, rollers are supported on anti-friction ball bearings. Because of this mechanical efficiency is high. Shell weight is shared by powered unit and idler unit but driving torque is provided by the drive unit. Idler roller purely supports the shell / vessel. PU roller ensures high load bearing capacity and positive drive. Lead screw with LH / RH thread couples the roller brackets for one idler. The resultant end thrust during loading is taken care by using taper roller bearings of adequate capacity. L/H & R/H nuts are fixed below the sliding brackets. The protection guards over the lead screw prevent flux & slag falling on them and causing premature damage to lead screw or nut. Also there are possibilities of lead screw jamming.
0.0
View Profile
Self Centering Rotator
Get Price Quote
We bring forth highly efficient Self Centering Type Rotators for our esteemed clients. The Self Centering Type Rotators offered by us is widely used for manipulation of shells or cylindrical component for processing or positioning. Our Self Centering Type Rotators assure hassle free service and optimum machine availability for production. These Rotators are widely used in fabrication shops. Moreover, we are also engaged in providing a customized range as per the specifications of our clients. Attributes : High mechanical efficiencyExcellent load bearing capacitySturdy construction Specifications : Roller Surface Speed : 75 mm / min to 1500 mm / minDrive : Variable Speed A.C. Motor (A.C. VFD) For Job Diameter : 500 mm � min and 8000 mm � max (The Job diameter varies according to load conditions) Note : Customised Self Centering Rotators May also Be Provided Apart from Our Standards. Technical Specifications Model Capacity (Drive + Idler ) (Tones) Roller Dia. (D) (MM) Roller Width (W) (MM) Roller Material SRT-SCR- 01 1 300 90 POLYUR ETHANE SRT-SCR- 05 5 300 100 SRT-SCR- 10 10 400 100 SRT-SCR- 15 15 400 120 SRT-SCR- 20 20 400 145 SRT-SCR- 30 30 400 200 SRT-SCR- 40 40 500 175 SRT-SCR- 50 50 500 250 SRT-SCR- 60 60 500 250 SRT-SCR- 80 80 550 300 SRT-SCR- 100 100 550 300 SRT-SCR- 150 150 550 350 SRT-SCR- 200 200 600 150STEEL SRT-SCR- 250 250 600 180 SRT-SCR- 300 300 660 200 SRT-SCR- 500 500 660 250.
0.0
View Profile
Self Centering Rotator
Get Price Quote
We hold normally 2000 to 3000 tonnes of steel in our works to ensure on time delivery to clients. The material is confirmed prior to manufacturing with all required Chemical, Physical and ultrasonic tests by our Quality Control department. We hold a strong setup of raw material in various thickness ranging from 5 mm to 250 mm thickness of reputed mill. We also have full fledged facility of CNC profile cutting with modern machines and equipment for better quality.
0.0
View Profile
Self Centering Lead Screw Adjustable Type Rotator
Get Price Quote
Self Centering Lead Screw Adjustable Type Rotator, Self Aligning Type Rotators
0.0
View Profile
Self Centering Rotator
Get Price Quote
Self Centering Rotator, Self Aligning Type Rotators
0.0
View Profile
Self Centering Welding Rotator
Get Price Quote
Self Centering Welding Rotator, Welding Positioner, Automatic Welding Rotator
0.0
View Profile
Self Centering Rotator
Get Price Quote
Self Centering Rotator, Chemical Dosing Plant, Self Aligning Rotator
