Semi Automatic Weighing Machine Dealers

• Head: two head / four head Nos.

Low wastage Disposal, Easy to operate & Maintain, Semi automatic, Compact & Robust Machine, Air Compressor Require, Speed:5 to 15 Fill Minute(Depends on volume & characteristic of product)

• Type: Semi Automatic Weighing Machine
• Weight: 100-1000kg
• Color: silver
• Condition: New
• Driven Type: Electric
• Automatic Grade: Semi Automatic

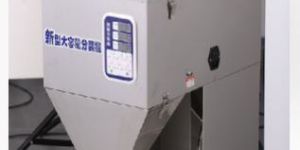

 semi automatic weighing machines(50g-100g)    size: 35*45*60cmweight :15kg.

Machine is vertical filling machine for tea, sugar, pulses, grains, wafers, namkeen, dray fruits in pouches, jars, bottles or containers. Manually the container or pouch will be kept for filling the product. Filler weighs the filling material in individual pan mounted on the load cell to get maximum output and accuracy. The load cell output is processed directly by the PLC and its modules. The vibrators and Pan opening is controlled by PLC itself. Two separate vibrator controllers are provided to adjust the feed rate of the vibrator feeders. As soon as the set weight is achieved the vibrators are switched off and the ready pay is discharged into the pouch as and when required. After filling the desired quantity the pouch will be taken for sealing or if it is a container will be taken for capping.

Only under the strict supervision and management of our team members, we make certain that the products are packed as per the set standards; by this we are capable of delivering the range safely. We believe in providing quality-approved products to the clients. For this, we make sure that all the inputs are procured from certified vendors after complete analysis of the quality. Features : Low Maintenance Accurate dimensions Corrosion Free

Machine is vertical filling machine for tea, sugar, pulses, grains, wafers, namkeen, dray fruits in pouches, jars, bottles or containers.Manually the container or pouch will be kept for filling the product.Filler weighs the filling material in individual pan mounted on the load cell to get maximum output and accuracy.The load cell output is processed directly by the PLC and its modules.

A vibrating feeder where the products are feed into the weighing hopper. A load cell continuously weighs the product and once the pre set weight is achieved the machine automatically closed the gate. Next one has to hold the packet at the discharge outlet and press the foot operated switch to discharge the product. After the release of weighed product the machine restarts the process. One can continuously pack 5 to 6 packets as per his efficiency. We require a compressed air for the operation of semi automatic packing machine. Features: • Low maintenance by use of pneumatic system. • Accuracy achieved from 1 to 2 grams for every 1kgs packets. • 5 to 6 packets per minute. • All contact parts of SS-304. • Viewing glass to ensure smooth running of machine. • Can be attached with continuously band sealer.

• Power: 1HP, Single Phase, 230 V Filling Accuracy : Up to ± 1%
• Capacity: 10 – 100gm; 50 – 500 gm 250 gm - 1 Kg Power : 1HP, Single Phase, 230 V

The Weigh Filling Machine is employed packing free flowing powders.Filling Accuracy : Up to ± 1% for most of the material at constant material,Operating Speed : 500 to 1200 Filling hr. (Depending on packing size).

Automatic weight filling. Feeding and manual evacuation. For small productions and frequent changes of format or product. Interchangeable dispenser. Available in ATEX version and immersion filling. Transportable machine format. Electro-pneumatic control. No installation required.

• Filling Volume:: 50 Gram to 1KG.
• Load Cell:: 6 KG.
• Hopper Capacity:: 30 LTR.

Compact Design, Fast Output with weighing system Digital weight Display panel Contact parts are in stainless steel Auto tare systems & manual setting for weight Flexible pouch holder for different size of pouch Foot operated function for avoid wastage Wide packing range in single compact machine Continues rotation of adjustable stirrer inside the hopper DE-Aerates to maintain uniform bulk density of the product.

• Accuracy: =/-20g
• Range: 10-50 Kg
• Speed: about 300 bags/h
• Power Supply: 220 V, 50 hz

• Filling range: 100gm to 3 kgs
• output Speed: 15 to 50 fills per minute

Semi-Automatic linear Weigh scale filling Machine is a very simple machine with Accurate weighing scale equipped with Vibratory feeding system suitable to pack all type products like whole foods, Snacks and various Granules like Sugar, Salt, Tea, Dry fruits, Food Grains, Peanuts etc. in pouches or container.

These weighing machines are partially controlled by humans and some of it's operations are computerized. They have a graphic display that supports viewing the data. They are made of the best materials sourced from the best vendors. The material imparts a rich and tough attribute to the machine. Send Enquiry specification Model: HITECH-SA50 Item: Rice, Paddy[Grains, Pulse-All free flowing products] packing machine (with conveyor and double stitch sewing machine) Range: 10-50Kg Accuracy: +-20g Speed: 200 to 400 bags Power supply: 220V, 50hz

Semi Automatic Weighing & Bagging Semi Automated Weighing & Bagging is of two Types of Weighment process - Nett & Gross Weighing Suitable for a wide range of agricultural & industrial products Essential parts in stainless steel for food & food grade products Typical output of 120 to 400 bags per hour depending on product Micro controller based Variable speed control unit PVC belt conveyor / Flat conveyor with adjustable speed motor to match with the Weighing & Bagging System Key Features: Weighing range from 10 – 50 kgs For Nett & Gross Weighing, as applicable Typical output of 120 to 400 bags per hour depending on product Suitable for a wide range of agricultural &industrial products Unique gravity discharge weigh hopper system for fast cycling Modular construction to customer requirement Micro controller based Electronic weighing system using load cells With quick detachable accessories – pneumatically operated bag clamps Essential parts in stainless steel for food grade materials Variable speed control unit Integral dust spreading hood/ clamp for powdery products Mounting structure for the machine on customization – access walkway for easy maintenance and cleaning PVC belt conveyor / slat conveyor with 0.5 HP geared motor with adjustable speed to match with the  Weighing & Bagging System Stitching Machine – Double stitching with automatic wire cutting Sewing head – adjustable as required
