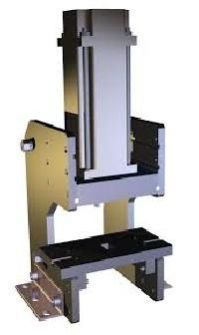

Servo Press Dealers

• Power: 6 Kw
• Brand Name: Vamtec
• Voltage: 440 V 3 Phase
• Material: Steel
• Frequency: 50 Hz
• Size: 2 x 2 x 2.5 m
•  :

Focus Controls organization has gained name and fame in offering Servo Press Machine to our clients. It is recognized for its high level efficiency and excellent performance. This can be operated easily and is equipped with different parts which help in its performance. It is offered in distinct range to our clients and emphasis has been given on quality.The servo press is "Made in India". We also offer tailor made servo press suitable to your application.

Servo Mechanical Presses of slide and cushion speeds and motion sequences make blanking, shallow drawing, trimming, coining, too tryout, transferprogressive die operations, etc. possible on the same press. The large, high-performance AC torque motors drive the eccentric gear arrangement replacing the flywheel, clutch and brake and offering dynamic control over forming operations and energy savings.

Sintering force capacities 50kN to 1000kN 250 mm stroke Single RAM or Dual RAM options Fully integrated and independent programmable pulsed or direct DC-power generator for working temperatures up to 2400ºC with maximum temperature to 2500ºC Servo controlled induction heating up to 1200ºC Furnaces for atmospheric operations up to 1200ºC Optical pyrometerthermo couple integrated with the system for temperature measurement of mold, top & bottom rams Double walled water cooled stainless steel vacuum chambers of vacuum levels to 1 x 10-5 milli bar (10-7 milli bar optional) Cylindrical or box type construction vacuum chambers Diffusion or centrifugal pumps to achieve rated vacuum Various geometry graphite metallic molds dies to user requirements

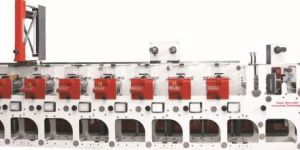

• Registration Control: 360′ Gearbox System
• Infeed/outfeed: Servo Control System
• Printing Width: 330mm, 380mm, 500mm
• Printing/ Die cutting Repeat: 177 mm to 508mm
• Max Parent Reel Dia: 1270mm
• No. of colors: Up to 12 Colors
• Output: Reel, sheet
• Rewind: Dia 700mm
• Speed: 150-175m/min(depend On Substrate)
• Wastage Rewind: Dia 508mm

• Weight: 250Kg
• Color: Black
• Country of Origin: Made in India
• Voltage: 230V
• Automation Grade: Automatic
• Material: MS

• Automatic Grade: Automatic
• Material: Cast Steel
• Size: Standard

Up to 32 part programs can be defined, Programs stored on EEPROM. No battery backup required, Load control or Distance Control, 7 other specialized methods, Load, distance, time and rate can be monitored in all methods.

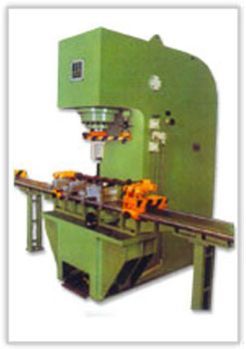

Servo Storke Controlled Straightning Press from 63 KN. to 2000 KN. capacity and straightening attachment for bar length 100 mm to 5000 mm can be supplied. Efficient hydraulic system for hydraulic power generationusing latest power generation using latest logic control/proportional values we manufacture presses of manually operated type,electrical push button operated type , PLC/PC based programmable type.              Features 0–100 Hz cycling frequency Hydraulic lifts and clamps 50/100/250/500 kN force rating actuators +/-100 mm stroke actuators Adaptable to wide range of fixtures & grips Actuator on fixed bottom crosshead Electronically servo-controlled variable flow, variable pressure, low noise, energy efficient pump 5+ kHz 32-bit digital closed loop control 24-bit data acquisition                Applications Fatigue crack propagation Fracture mechanics Room temperature tests High temperature tests Testing in corrosive environment Tension/compression Low/High cycle fatigue (LCF/HCF)

In a conventional Friction Screw Press, energy is transmitted from the transmission wheels to the flywheel by friction through a leather band. On the return stroke, energy stored in the moving parts is dissipated as heat by applying brake. In our machines, the two transmission wheels on the conventional Friction Screw Press are dispensed with. The flywheel is driven by an AC servo/ spindle motor through a timer belt/ gear. The motor can be made to run the flywheel at a preset speed very precisely till the dies come very close. The motor is now disabled and the entire energy in the moving masses gets transferred to the job. When the moving die comes to rest, the motor is reversed and the ram returns to its home position very precisely. Since there is no mechanical braking, no energy is wasted during return stroke. The motor brakes on line – regeneration principle where the kinetic energy in the moving mass is converted to electrical energy and sent back to the mains. Since the drive motor does not run when the ram is stationary no energy is consumed during idling of press

• Voltage: 220V
• Color: Blue and Grey
• Application: Presshifting,Pressing,Punching,Beveling,Crimping,Ball Pressing,Testing Springs,Straightning,Bendin
• Frequency: 50Hz
• Automation Grade: Semi-Automatic
• Pressing Force: 1 to 10 tons

• ● Press Capacity :: 98 kN
• ● Activating Point :: 1.3mm
• ● Stroke Length :: MAX. 40mm
• ● No. of Stroke :: MAX. 100 S.P.M
• ● Open Height :: 300mm

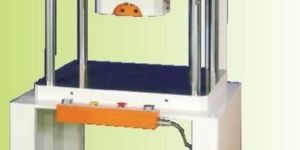

98kN CRANK SERVO PRESS - SGP 1000N ●This post type frame structure is excellent in the rigidity and exercises to highly accurate processing. Wide bolster area is enough to correspond to a large-scale of mold and owns the high flexibility to adapt to various peripheral devices, like a feeder. And also it is able to use partially of the automation line.   ●RAM (Slide) can be synchronized with the peripherals by an arbitrary out- put signal. ● Press Capacity : 98 kN ● Activating Point : 1.3mm ● Stroke Length : MAX. 40mm ● No. of Stroke : MAX. 100 S.P.M ● Open Height : 300mm ● Die Height : 260mm ● Shank Hole : Dia32 X 60L ● Max. Upper Die Mass : 35Kgs ● Adjustment : 25mm ● Power supply : A.C 200VAC,50A, 50/60Hz

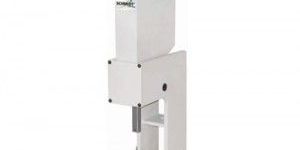

Force outputs ranging up to 150 kNSCHMIDT Servo Press systems offer an integrated solution via either the multi-axis Press Control 5000 or the single axis Press Control 600 control units used with the Servo Press modules. They meet the most complex requirements, as stand- alone machines or in automatic production lines Provides Superior process control behavior compared to conventional NC axes and can be optimized for your application

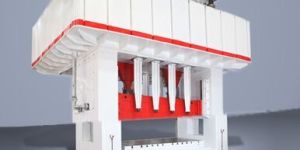

We are offering servo mechanical presses. Electropneumatics servo mechanical presses combine the speed and reliability of the eccentric drive mechanical presses and the flexibility of hydraulic presses with innovative electric servo technology to open up new opportunities for automotive, auto component, appliance and general engineering applications. Independent programmability of slide and cushion speeds and motion sequences make blanking, shallow drawing, trimming, coining, too tryout, transferprogressive die operations, etc. Possible on the same press. The large, high-performance ac torque motors drive the eccentric gear arrangement replacing the flywheel, clutch and brake and offering dynamic control over forming operations and energy savings. 1. Energy consumption less than conventional presses (even up to 40%). 2. Flexibility to perform different forming processes through slide and cushion speed, stroke and motion sequence programming- blanking, drawing, forming, progressive die operations, tool tryout, etc. 3. Higher productivity than conventional presses (sometimes up to 60%) since motion sequences can be optimally tuned and synchronised with automation devices. 4. Reduced vibration, impact and noise levels leading to superior part quality. 5. Improved die and press life,. Smaller footprint, especially for large bed presses. 6. Suitable for all materials, especially high strength steels. Features press forces up to 2000t available as single, double or triple action presses in ring frame or 4-column tie rod constructions slide motion and power from ac servo motor powered multiple reduction gear train and link mechanism slide adjustment hydraulic overload protection pneumatic slide counter-balance various die cushion options like conventional, active, multi-point, etc., programmable to suit application (hydraulic, pneumatic or electric ac servo)

servo press, Quartz Kitchen Sink Making Machine, Stamping Press

Electropneumatics' Servo Mechanical Presses combine the speed and reliability of the eccentric drive mechanical presses and the flexibility of hydraulic presses with innovative electric servo technology to open up new opportunities for automotive, auto component, appliance and general engineering applications.

servo press, special purpose machinery, armature test rig

Straight Side Direct Drive Servo Press (Sd1), Electrical Laminations

servo presses, Hydraulic Presses, special purpose mechanical presses
