Shear Tester Dealers

• Condition: New
• Application: Household, industrial, Laboratory
• Power Source: Electric
• Material: Steel
• Finish: Polished

Triaxial Shear Test For determining the triaxial shear strength of soil specimens of 28mm diameter. The length to diameter ratio of sample is 1:2 Specification: One loading unit, for single unit, for single cell mounting, capacity 5 tonnes. Supplied with motorised load frame. The loading unit is supplied with one dial gauge bracket. One Triaxial Cell for 38 mm dia specimen, stationary bushing. Lateral Pressure assembly. 0-10kg/cm sq. complete with foot pump and rubber hose. One dial gauge 0.01 mm X 25 mm for strain measurement. One high sensitive Proving Ring, capacity 200/250 kg with Calibration Report and carrying case. Accessories: High sensitivity Proving Ring, capacity 1000 kg. complete with calibration report and carrying case

• Brand Name: Mecmesin
• Place of Origin: United Kingdom

Compressive shear testing is simply the pushing apart of a material sample along a plane parallel to, and between, opposing forces. Typically it is used to test adhesive bonds, where it is the compressive equivalent of a tensile lap shear test, or the internal strength of a material that is designed to bear shear forces. A compressive shear test may be single, where one part is pushed down across another, or double, where a bonded section is pushed out from between those on either side. In the case of a single shear, potentially there are cantilever forces also at work, depending on the thickness and flexibility of the material under test

• Automation Grade: Semi-Automatic
• Material: Mild Steel
• Frequency: 50 Hz
• Brand: Asia Vision
• Voltage: 220 V
• Power: Electric

• Type: Fatigue Testing Machine
• Application: Fatigue Testing
• Weight: 10-50kg
• Color: Available in Many Colors
• Voltage: 110V
• Application: Metal Testing
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1year

Shear Fatigue Tester determines the ability of polyurethane foam slabs to withstand repeated compressions. In the test the polyurethane foam slab is placed on a flat platform and is pressed down by horizontal cylindrical rollers at angle of 15 degree. We are counted amongst the best Manufacturers, Suppliers and Exporters of Shear Fatigue Tester from New Delhi. The Shear Fatigue Tester has an electronic counter, which records all the tests results and automatically stops the motor at the end. Technical Specification : Size of Test Specimen : 380 x 380 mm Flexing Frequency : 28 CPM Stroke Length of platform : 330 mm Diameter of Hole on Platform : 6 mm Distance between holes : 19 mm Diameter of Roller: 75 mm Angle of inclination : 15 deg. Length of Roller : 460 mm Power : AC 220 V 50Hz. Related Standards : IS 7888 1976, ASTM D 3574 - 1986

SAT-1302 is suitable for all kinds of sealing tape, sealing tape, warning tape, carpet tape, electrical tape, protective film tape, wrapping tape, cutting tape, etc., as well as medical patches, adhesive labels, protection Film and other products, hold the stickiness test.

The apparatus is designed for conducting in situ vane shear test from bottom of a bore hole in saturated cohesive deposits for determining their in place shearing resistance. Specifications: The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank. The torque ring is a split ring and deforms as torque is applied and the deformation is indicated by a dial guage. A calibration Chart to convert dial gauge readings to torque force in kg.cm. is supplied. A pointer is provided for registering the rotation of the vane. A detachbale stand is provided to anchor the instrument. An attachment to security hold the string of rods is provided. The equipment comprises of the following: Torque applicator assembly capacity 2000Kg. cm. with split proving ring and dial gauge 0.002mm X 5mm complete with stand. Vane (with vane rod) 37.5mm dia X 75mm high 1 No. Vane (with vane rod) 50mm dia X 100mm high 1 No. Torque rod (Square Cross section) 0.6mtr. Long 1 No. Rods, quicks coupling type, 1mtr. long 25 Nos. Rods, quicks coupling type, 1/2mtr. long 10 Nos. Dummy rod, corresponding to 37.5mm dia vane 1 No. Dummy rod, corresponding to 50mm dia vane 1 No.     Salient Features  Essential Accessories: Guide with ball bearing arrangement for alignment of the string of rods for use with 10cm casing pipe. Guide with ball bearing arrangement for alignment of the string of rods for use with 15cm casing pipe. Accessories Vane (with vane rod) 65mm dia X 130mm high Vane (with vane rod) 75mm dia X 150mm high Vane (with vane rod) 100mm dia X 200mm high Dummy rod, corresponding to 65mm dia vane Dummy rod, corresponding to 75mm dia vane Dummy rod, corresponding to 100mm dia vane Note: Drilling equipment including casing for bore hole and jacking arrangement which are required for performing the test do not form a part of the above outfit.

We are offering shear tester, scratch tester. Precision instrument measures damage to surfaces not classified as ordinary wear. Using interchangeable tools, the taber shear scratch tester is used to measure the susceptibility of material surfaces to scratching, marring, shearing, gouging, scraping, engraving, and other similar physical damage not classified as ordinary wear. Established tester can be used in diverse applications. Useful in quality control as well as materials and product development, the applications are diverse. The shear scratch tester is ideal for evaluating adhesive qualities of surface coatings, detecting the lack of homogeneity in comparative materials, rating similar or competitive materials, or analyzing the effects of age under controlled environmental conditions. Test a wide range of products. Precision, calibrated weights provide a flexible testing range for a variety of products. The shear scratch tester can test rigid organic materials, adhesive coatings, paints, powder coatings, anodized materials, soft metals, synthetics, linoleum, laminates, plastics, glass, plus many others.

We are offering gsc 2.8 - shear. .part no. : 0 601 506 103 cutting depth:in steel : 2.8 mm in aluminium : 3.5 mm power input : 500 w no-load stroke rate : 2400 rpm weight : 2.7 kg

• Automation Grade: Manual
• Model Name/Number: 550 / 551
• Brand Name: Taber
• Hardness Scale: Balanced, calibrated scale beam

NAUGRALABS LABORATORY PRODUCT NAME: DIRECT SHEAR TESTER FOR TESTING LAB NaugraLabs Laboratory Product Code: NLE-Export-041009 Description and Specification for Lab Tenders Direct Shear Tester.  Direct Shear Tester  - Supplied with loading yoke with direct and lever for applying load. Normal stress capacity 8Kg/Sq.cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading. yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing. civil lab equipments manufacturers  Soil Testing Lab equipment manufacturers,exporters and Soil Testing Lab suppliers

A 19mm vane blade is screwed in to the base of the Geovane and the vane is pushed into the soil. Simply rotate the Geovane at a rate of 1 revolution per minute and take a reading off the face when the soil fails. A pointer stays in place when failure occurs so all you have to do is look up the reading from the face on the supplied calibration chart to get your reading in kPa.

USAGESuitable for Coating Water & Solvent base Adhesive.Use for manufacturing Label Stock Paper, Self Adhesive Tapes, Medical Tapes, etc.SPECIFICATION It has various coating applications Multi Coating heads for different products Special design Oven has per requirement. Effective Coating width from 20” to 60” working.

• Pump: 2 Plunger
• Reservoir Capacity: 250 mL

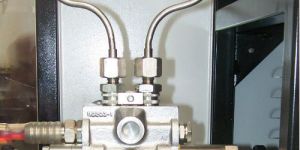

  Lubricants are often subjected to mechanical shearing, for example in automotive engines. This shearing causes lubricants to lose their viscosity. When subjected to sufficiently large number of cycles of shear, viscosity may drop below acceptable levels and may call of replacement failing which surfaces may become prone to higher wear. Even lubricants that have consistent viscosity through a wide temperature range (high viscosity index) may still be susceptible to loss of viscosity when subjected the mechanical shearing. Shear Stability Tester is an instrument used to determine an oils ability to retain its viscosity over a number of cycles of shear. The test oil is first measured for its initial viscosity after which it is subjected to shearing in intervals of 30 cycles. Viscosity is measured and compared to the oils initial viscosity following 30, 90 and 120 cycles. Oils that show a lower drop in viscosity over the duration of test are said to have better shear stability than oils that exhibit a relatively higher drop in viscosity.   Features     Floor standing designIncluded safety enclosure   Options     Recirculating chiller (if no water line is available)

Shear Fatigue Tester, Bundesmann Apparatus

We deals in supplying of wide range of bopp tape shear tester.

Lab Vane Shear, IZOD IMPACT TESTING MACHINE

Shear Stability Tester

Shear Tester

Room Temperature 10 Bank Shear Tester, ms clamps, tape slitting machine
