Short Circuit Protection Relay Dealers

We conduct payment procedure in a safe manner through both online and offline processes. You can conveniently pay in cash as well as through bank transfer. Our quality management policies and very stringent. Therefore, our entire range of products is among the best in the industry.   Features: Gets Protected against load short Circuits Opto Isolation 2500 VAC Zero Voltage Turn On Reverse Voltage Protection TTL Compatible (Sink Mode) Output NO Configuration Higher Load Cycle Resistance High Thermal Cycling Capacity High Fusing Current Normal/Fault Indication Approx. Rs 1,000 / Piece

Short-Circuit Currents are currents that introduce large amounts of destructive energy into a power system in the form of heat and magnetic force. A short circuit is also known as a fault. It is a type of current that introduces a significant amount of energy into a power system. It can take the form of either heat or magnetic force. It is a low-resistance energy path that bypasses part of a circuit and causes the bypassed part of the circuit to stop working. The reliability and safety of electric power distribution systems are dependent on an accurate and thorough understanding of the short-circuit fault currents that can exist, as well as the ability of protective devices to interrupt these currents satisfactorily.Short circuit currents pose the most serious general hazard to power distribution system components and are the primary concern in the development and application of protection systems. Short circuit currents, fortunately, are relatively simple to calculate. The basic nature of short circuit currents can be determined by applying three or four fundamental circuit analysis concepts. These ideas will be stated and applied in a step-by-step progression.To correctly apply equipment in accordance with NEC and ANSI standards, short-circuit calculations are required. The amount of detail required to perform these calculations varies greatly depending on the size and utility connection.A Short Circuit study is a thorough examination, analysis, or evaluation of an electrical system to determine the magnitude of currents that can flow during an electrical fault and correlate with those values to the ratings of installations of equipment and short circuit protection devices.It addresses short-circuit analysis activities such as design considerations for new systems, analytical studies for existing systems, and operational and model validation considerations for industrial and commercial power systems. In power systems, a short circuit protection fault study is critical.

• Condition: New
• Current Type: AC, DC
• Number of Poles: 2 Pole
• Application: power relay
• Coil Type: Latching

• Certification: CE Certified
• Voltage: 110V, 220V, 380V, 440V
• Condition: New
• Frequency: 50Hz, 60Hz
• Type: Short Circuit Protection Relay
• Application: Power Protection

Three Phase Time Over-current Protection Three Phase Instantaneous Protection Earth Time Over-current and Earth Instantaneous Over Current Circuit Breaker Failure Detection Fault Recorder

• Color: Black or Customized
• Voltage (V): 110, 220, 380, 500
• Size (mm): 85*42*110, 85*24*60

Short Circuit Protection Relay are applied in cases where only protection against short circuit currents is required. It has featues like LED indication of fault condition, Timer-controlled tripping and LED indication for activated relay.

• Usage: Factories, Shopping Malls
• Phase: 1 Phase
• Current: 25 To 90 Amps
• Mounting: PCB Mounting

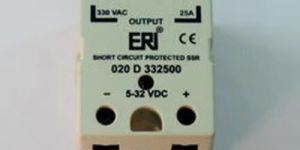

• Model Number: ERI - 020 D 332500
• Input Voltage: 5 to 32 V AC
• Output Voltage: 330 V AC

• Voltage: 48-480 V AC
• Number of Poles: 1 Pole

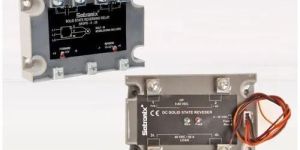

• Brand Name: Satronix
• Humidity: 95% with no condensation 40 Deg C
• Weight: 125 Gram
• Current: 10-75 A
• Storage Temperature: -40 to 100 Deg C
• Operating Temperature: -25 to 60 Deg C

Short Circuit Protected SSR, AC Input Module, Single Channel Relay

Short Circuit Protection Relay, Differential Protection Relay

Short Circuit Protected SSR, Soft Starter, interface modules
