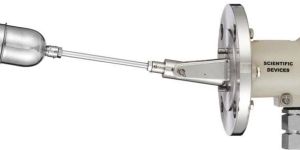

Side Mounted Magnetic Level Switch
5,000 - 15,000 Per Piece
5 Piece (MOQ)
Magnetic Level Switch (Side Mounted)
Get Price Quote
1 Piece (MOQ)
Side mounted level switch used to control liquid level in vessels containing corrosive or non corrosive liquids. It is used to pump control, Alarm, valve control or level indication.Construction It consists of 3 main parts Housing with Micro Switch Mounting Flange Float Assembly Features Easy to install Reliable Available with different flange size Available in different MOC ApplicationWater, Oil, Fuels, Chemical, Solvents, Syrup etc.
Best Deals from Side Mounted Switches
Side Mounted Level Switch
Get Price Quote
Side Mounted Magnetic Level Switches
3,500 Per piece
Float mounted at one end of rigid rod moves with change in level, magnetic capsule at other end of rod moves accordingly within fixed limits Switch contacts across the face change accordingly. As the tank fills up the float lifts up due to buoyancy. The other end of the float which is magnetic in nature goes down and during its downward motion, triggers the switch assembly and the contacts get closed, which can be used to operate an alarm or any other audio/visual load.
Side Mounted Level Switch
6,800 Per Piece
1 Piece (MOQ)
Side Mounted Level Switch
3,500 - 20,000 Per Piece
1 piece (MOQ)
Side Mounted Float Level Switch
3,100 Per Piece
4 Piece (MOQ)
Side Mounted Level Switch
Get Price Quote
Side Mounted Level Switch Magnetic Repulsion Type Principle of Operation This system has a side mounted flange. Float is fabricated out of the material suiting the service or fluid in the vessel When the level rises above the actuation point The float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease. Material specification Customized suiting to the service (fluid) and temperature. Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe etc Material of the flange cs/ ss/ pp /pvc/ hdpe/ pvdf/ ptfeAvailable with flameproof and weatherproof enclosure
Side Mounted Level Switches
Get Price Quote
We manufacture Side Mounted Level Switches in such a manner that they can easily meet exact requirements of different industries. These switches are suitable for both low and high temperature applications. Our Side Mounted Level Switches can control the level of liquid at low, high or any point in the tank. We are one of the reputed Manufacturers and Suppliers of Side Mounted Level Switches from Maharashtra, India.
Side Mounted Level Switch
Get Price Quote
Side Mounted Miniature Level Switch
5 - 1,100 Per Nos
01 Set(s) (MOQ)
We are offering side mounted miniature level switch. material of construction-ss 316.float diameter-48mm.process connection-1/4\" bsp(m) thread with lock nut.ptfe teflon gasket.mounting hole diameter-13mm.spst reed switch rated 100 va, maximum switching voltage-230 vac/ 300 vdc,maximum switching current-3 amp.with 1 metre long 19/36 swg teflon insulated flying extension leads. Maximum working pressure- 4 kg/sq.cm & temperature-125 deg c.specific gravity-0.5.
Side Mounted Level Switch
Get Price Quote
Simple Magnetic proven design Float Mounted at one end of rigid rod moves with changes in level .Magnetic capsule at other end rod moves accordingly with fixed micro switch contacts across the phase change accordingly.
Side Mounted Magnetic Level Switch
Get Price Quote
We are offering side mounted magnetic level switch. Buoyant force of the liquid on the float is used for movement of the perm anent magnet closer to or further away from reed switch and initiates the switching function of high and low level. The unique feature of reed switch technique is adopted. Product technique, concept, merit, quality and unparallel reliability are the underlying reasons for enviable performance record. Level switches with micro switch and air break type switch is also available.
Sapcon Side Mounted Level switch
Get Price Quote
Side Mounted Level Switch
Get Price Quote
Side Mounted Magnetic Level Switches
Get Price Quote
1 Piece(s) (MOQ)
We are offering side mounted magnetic level switches. “kabir” make magnetic level switches is specially suitable for high and low level signalization or automatic level control (by starting & stopping pumps or opening & closing of valves) in vessels. Horizontal mounting type directly on vessel or on external chamber. Compact & rugged construction consisting of a free moving pivoted float assembly and a switch enclosure in non - magnetic material to achieve undisturbed magnetic flux. It employs dual magnets, one carried by the float arm and other by the contact carriers housed in the switch enclosure. A change in liquid level brings the like poles of dual magnets opposite to each other and resulting repulsion force ensures a changeover of contacts with snap action. The magnetic transmission is glandless, leaving no scope for leakages from vessel into switch housing. These switches are manufactured in various materials, enclosures & special features to suit broad range of media applications. They are designed to provide high repeatability and to minimizes effects of shock, vibration & pressure. Installation:- mounted internally or externally through a chamber. External mounting is resorted to, where space is a limiting factor or mechanical devices like stirrers operate within the tank. Besides, in applications like boilers, reaction kettles etc., with external mounting, isolating is possible for regular servicing. The switch is normally side-mounted, however for applications like slurry, top installation is preferred. The switch can be wired directly "to make or break electrical circuits", of burners, heaters, motor pumps, alarms and other such electrically operated devices. Wetted parts: moc : s.s.316s.s.304 p.p switch : reed switch micro switch having no+nc+c 230 vac connection : flanges , screwed
Side Mounted Controllers
Get Price Quote
We offer a wide range of Side Mounted Controllers.Specifications: Magnetically operated level switch Contact rating: 230 V AC, 5 A, SPDT Contact output: Potential Free Temp: 150 C w / o cooling fins, 250 C with fins Pressure: 15 to 100 Kg / cm² Switching Off: 15 _+ 3 mm Process Connection: flanged / threaded Enclosure: IP 68 / IIA & IIB Contact changes due to repulsion of magnet All wetted parts stainless steel / PP Mounting side / Top For Chemicals, Oil, condensate, petrochemical
Side Mounted Liquid Level Switch
3,500 - 145,000 Per Piece
We offer superior quality Side Mounted Liquid Level Switches that are durable enough. These switches can either be supplied in Weather Proof Housing, Explosion Proof Housing or for Intrinsically Safe Application as Certified by CMRI Dhanbad. Principle of Operation A change of liquid level correspondingly travels the float to extreme level UP and DOWN. This movement of float in turn causes a magnet to move into the proximity of Micro Switch, resulting in switch actuation. Features Durable Efficient Cost effective High performance Usage Suitable for fitting into Tanks or similar Vessels for indicating or Controlling the Level of a Liquid
Side Mounted Magnetic Level Switch
Get Price Quote
Get in touch with us for acquiring top of the line quality Side Mounted Magnetic Level Switch! The Level Switch that we deal in is designed with full perfection and is in accordance with the laid quality norms. Our Switches come in high and low level alarms, pump control having point level detection for wide range of liquids. They are robust in construction and are suitable for marine and industrial applications.
Side Mounted Level Switch
Get Price Quote
It is an economical, maintenance free and a very reliable device used for high, low or intermediate point level switching. It is ideal for tanks with inaccessible tops or bottoms and where insertion depths of top mounted models are exceeded. The construction is compact & rugged with a free moving pivoted float assembly. The Switch assembly is mounted in a non-magnetic material to achieve undisturbed magnetic flux. It employs dual magnets, one linked with the float arm and other by the contract carriers housed in the switch enclosure. Change in the liquid level brings the like poles of dual magnets opposite to each other & resulting repulsion force ensures a changeover of contacts with snap action. The magnetic transmission is gland less so there is no scope of leakage from vessel into switch housing. These switches are manufactured in various materials and enclosures to suit broad range of media/applications. They are designed to provide high repeatability and to minimize effects of shock, vibration & pressure. Most economical, maintenance free and a very reliable device for point level switching Dual permanent Alnico magnets +/-2 mm repeatability 40/50/65/80 or 100 NB Flange drilled to ASA 150# Cast Al, weatherproof to IP 56/IP65 or ex-proof Gr. IIA & B or II C Enclosure 3/4" ET / 1/2" NPT Electrical connection SS 304/SS 316/SS 316L/PP/PTEE Float & Wetted Parts 0.6 min Sp. Gr Depending upon float material and dimensions Micro switch rated at 5 Amp, 220 VAC, SPDT/DPDT/ Air break type also available Load /Insulation: Resistive, 150 Mega ohms at 1.5KV Internal and External mounting through a chamber/Cage 20 KG/cm2 max pr at ambient temp. Special design available for higher pressures 150oC max temp for standard model & upto 350oC depending upon float material, switch elements and mounting
Techtrol External Cage for Side Mounted Switches
Get Price Quote
We are offering techtrol external cage for side mounted switches. Size- 4”, 6” nb moc- cs cs (a-106) ss304 ss316 pp (rubber frp ptfe lined chambers on demand .max. Temp – 100ºc, max pressure – 10 kg cm2 special features – ibr certification
Side Mounted Magnetic Micro Level Switch
2,950 - 3,175 Per
5 Piece (MOQ)
Side Mounted Magnetic Level Switch
Get Price Quote
Be it refrigerator or any other type of cooling equipment, this Side Mounted Magnetic Level Switch is designed by applying the leading-edge technological concepts. Also, this Side Mounted Magnetic Level Switch finds use in diverse types of humidifiers. We are a credible name to get premium Side Mounted Magnetic Level Switch. Construction : Float mounted at one end of rigid rod moves with change in level, magnetic capsule at other end of rod moves accordingly within fixed limits Switches contacts across the face changes accordingly Advantages : Simple and proven DesignOperates in most liquidMinimum maintenance Trouble-free operationLow cost of ownership Applications : High Low level signals for alarm Annuciation Safety interlock circuits Automatic Pump Control Solenoid Value Control Prevention of tank overflows Pump safeguard against dry running Order Details : Minimum Order Quantity : 50 PiecesPrice Range : Ranging From 1500 INR to 50,000 INR
Side Mounted Switches
3,500 Per Piece
Side Mounted Level Switch
Get Price Quote
5 Piece (MOQ)
SIDE MOUNTED LEVEL SWITCH: YPL-SMLS01
Get Price Quote
Side mounted level switch are suitable for fitting into tank or Similar vessels for indicating or controlling the level of a liquid. These switches can either be supplied in weather proof housing, Explosion proof housing or for intrinsically safe application.
Side Mounted Level Switches
Get Price Quote
we offer level switches for inside mounting of a tank for automatic topping and emptying operations.
Side Mounted Magnetic Level Switches
Get Price Quote
Model No.: JB/SMMLS/407 Side Mounted Magnetic Level Switches Mounted on side of nozzle of the tanks, float position changes with the level which in turns with the help of magnetic coupling changes the switch contacts. Used for : Automatic pump control High & low level signals Safety interlock circuits Available Material of wetted parts SS304/316/PP/Teflon linned, Weather proof/Flame proff enclosures.
Side Mounted Magnetic Level Switch
Get Price Quote
We are Into Offering Proven Range of side Mounted Magnetic Level Switches that is Designed to Meet the Demands of Various Industries. These Side Mounted Magnetic Level Switches are Known for Their Easy Installation, Resistant to Wear and Tear and High Performance among the Clients. Further, the Magnetic Level Switch Ensures a Snap Action to the Electric or Pneumatic Switch Elements. available In s.s. 304/s.s. 316 / P.pteflon Coatesweather Proof material Flame Proof Enclosures or Wetted Parts applications low / High Alarmcontrolling Level of Liquids like Water, Oils, Fuels, Condensatepower Stationchemical Industrypetrochemical Industrypharmaceutical Industry
Side Mounted Magnetic Level Switch
Get Price Quote
We are one of the foremost manufacturers and suppliers of a comprehensive assortment of Side & Top Magnetic Level Indicator. Our range is appreciated for higher degree of accuracy, precision & compact design, durability and longer service life.. The switch works on magnetic principle. The float carries a powerful magnet activating the microswitch which is enclosed in a FLP/WP housing. This snap acting switch is completely Glandless, hence no leakage possibility in the Switch housing.Enclosure - Whether proof / Flame proofMOC - CS/SS 304 /SS 316/PPContacts -1 No + 1 NcSwitch Rating - 5 Amps X 230 VAC Snap acting microswitch Size - Min. 50 NB -150 NB Max. Flanged / Screw type.
