Signal Converters Dealers

We are offering signal converters. Different industrial sensors and process control systems output various signals which may not be compatible with the existing measurement equipment. Because of that it is necessary to convert an input signal into an industrial standard range. Signal converters takes up the signals from field device and convert them into a standard signal (e.g. 4-20 ma, 0-10 v etc). phoenix contact offers you a wide range of different universal signal converters with high functionality: dip switch, jumper or pc configuration ground loop isolation noise filtering minimum wiring efforts space saving dimensions signal isolators in all phases of the product lifecycle, the macx signal conditioner ranges have been developed and produced according to standards for functional safety. This ensures the highest level of safety for your machines and systems. Your advantages precise transmission and high operational reliability with signal conditioners that are all consistently sil-certified safely isolate, adjust, filter, and amplify with comprehensive solutions for analog signal processing maximum explosion protection for all ex zones and gas groups with single and two-channel signal isolators for intrinsically safe circuits in the ex area. Integrate analog signals easily into the safety chain according to the machinery directive with signal conditioners with performance level signal conditioner from highly compact 6 mm signal conditioners and functionally safe signal conditioners to signal isolators for intrinsically safe circuits in the ex area: our signal conditioner range offers a solution for all applications in analog signal conditioning.

• Country of Origin: India,INDIA
• Brand: SANDS

It is a compact and cost-effective DIN rail mountable protocol converter solution for upgrading the old generation GPS time server to cater to new generation network equipment. It meets the required accuracy. It is a rugged and robust design suitable for a harsh environment.

Features: . Output of type Source Sink Push Pull in single module. · Input in the range 3-10 VDC and 12-30 VDC (Peak to peak voltage) · Minimum Driving current: 1.6 mA · Supply voltage:24-30 VDC@300mA . Output pulse train voltage adjustable from 4 � 28 VDC by preset · Maximum input frequency 2000 KHz · Reduces high frequency noise and gives clear square wave

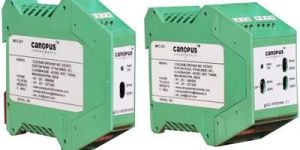

AC Voltage and AC Current Transducers find extensive use in monitoring Powerline parameters. Canopus Instruments offers the highly capable AC Voltage and Current Transducers.

• Voltage Type: AC, DC
• Voltage: 0-5mA, 10-20mA, 5-10mA
• Type: Signal Converters
• Mounting: 0-30 Mm, 30-60 Mm
• Efficiency: 99%
• Accuracy: 0.2%
• Country of Origin: India
• Output: (4-20)mA, (0-100)mVDC, (0-20)mA, (0-5)VDC Or (0-10)VDC
• Signal Frequency: 0-5 Mhz, 5-10Mhz
• No Of Outputs: 1, 2, 3, 4

We are supplier of this product.

Electro-pneumatic signal converters are the link between the control rooms and pneumatic actuators. I/P converters are available with and without booster stage. The I/P converter with various housing is available for cabinet installation, field installation, rail installation and as slide-in type. The signal conversion is based on standard signals. Current signals 0/4 to 20 mA are converted to pressure signals 0.2 to 1 bar or 3 to 15 psi. Small dimensions, low weight Influence of shock and vibration < 1 % at 10 g Input, e.g. 0 ... 20 mA or 4 ... 20 mA From -40 (optional -55) ... 85°C (-40 (optional -67) ... 185°F) ATEX, FM/CSA, GOST for intrinsically safe and pressure resistant operation IP 20 control room housing unit for rail mounting IP 65 aluminum or stainless steel field housing unit For OEM application (on request)

ABB I/P Signal Converter for standard signs : The TEIP11-PS flag converter changes electrical signs e.g. 4..20 mA in 0.2...1kg/cm2 (3...15 psi). It is in this manner an interfacing join between electrical/electronic and pneumatic systems. The flag conversion process is like the licensed power balance method. Features :   Proven and reliable concept compact design Sturdy construction and solid functionality variety of signal ranges high air capacity

• Power Consumption: 4 VA max.
• Inputs * 3: Current, 4 – 20 mA DC/ 0 – 20 mA DC Voltage, 1 – 5 V DC/ 0 – 10 V DC Specials
• Input impedance: 200 KΩ for voltage inputs 250 Ω for current inputs
• Transmitter powers * 3: 24 V DC for current inputs

Pantech's Computation Module, model 838 is designed to accept upto three inputs and provide a computed output of 4 � 20 mA DC capable of driving a load of upto 800� as per the equation OUTPUT � (A + BX) * (C + DY) / (E + FZ) where A, B, C, D, E & F are constants and X, Y & Z are three inputs. The module accepts 4 � 20 mA DC signal from two wire and not two wire transmitters. The transmitter power supply to feed upto three two wire transmitters is available as option. The module also accepts 1 � 5 V DC signals. The module is available in a wall-mounted housing. The modules can be powered from 110V AC or 230V AC or 24 V DC power sources. Power supply is isolated from rest of the electronics. The modules incorporate low drift operational amplifiers and industrial grade components. Burn in of each module ensures long trouble free operation.

• Features: Simple installation and start-up Available inputs and outputs: Current output (incl. HART®), pulse/frequency output, status output and control input Etc.

The IFC 100 signal converter is designed to measure the flow velocity, conductivity, volume and mass flow of electrically conductive liquid media. IFC 100 signal converter can be combined with any KROHNE flow sensor, making it very widely used. Available in compact version, in which the signal converter is connected to the flow sensor, at 0° and 45° version. If the measuring point is difficult to access or the ambient conditions prevent the use of the compact version, the signal converter is available in a remote wall-mounted housing. 1. Large back lit graphic display with 4 push buttons to operate the signal converter. 2. Supply voltage: 85…250 VAC, 24 VDC or 24 VDCAC (4 wire).

• Accessory Type: DALI-PWM Signal Converter
• For Use With: MEAN WELL AC-DC LED Power Supplies
• Product Range: DAP-04 Series
• Brand Name: MEAN WELL

We offer signal converter. Salient features: power line filter incorporated. If the circuit goes open, it is detected, the display shows “00“.

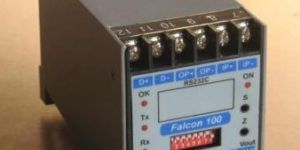

• Mounting: Din-rail / Back of Panel
• Communication: bi-directional
• Rs232 port: 25 pin D-type connector for PC
• RS485 port: 2.5 sq.mm screwed terminals
• Configuration: 2 wire / 4 wire
• Indication: Rx, Tx, power-on
• Supply: 230/110V AC, 50 Hz (others on request)

• Brand Name: Protocontrol Instruments

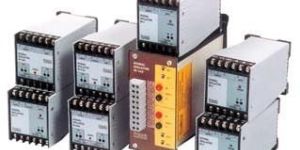

We are offering signal converters, isolators and transmitters to isolate and convert field signals like resistance, current, voltage, frequency to 4-20 ma. These isolators find use in process control industries for signal isolation. Variety of models is available for specific applications.signal converter converts field signals received from sensors like rtd, thermocouple, load cells, strain gauge to standard 4-20 ma form which is acceptable at plc or dcs for further processing. transmitters are generally head mounted and fitted in the head of temperature sensor; isolators provide further isolation of field signal so that plc side is isolated from field side. in the field, many signals are generated such as motor current, armature voltage, position feedback in the form of change in resistance or signals obtained from various types of traducers in standard voltage or current form. these signals are not isolated from input and not suitable for transmission over long distance. Converters are specially developed to overcome these problems in transmission such as line drop, interference, ground looping and non compatibility to standard processing unit. salient features includes complete galvanic isolation between input output and control supply , independent zero and span adjustments ,stable current output eliminates need for special cable, shielding, the isolators are housed in din rail mounting engineering plastic enclosure; special robust cast al. Enclosures suitable for field mounting are also available. these converters are extensively used in cement, fertilizer, chemical, and processing plants. following models are available “ sc I i I d: signal converter, din rail mounting, 4-20 ma i/p, 4-20 ma o/p st n2 p i: temperature transmitter, head mounting, rtd i/p, 4-20 ma o/p, loop powered

• Type: Signal Converters
• Certification: CE Certified
• Mounting: 0-30 Mm, 30-60 Mm
• Efficiency: 90%, 95%, 99%
• Accuracy: 0.1%, 0.2%
• Voltage Type: AC, DC
• Application: Signal Isolation
• Features: Durable, Precisely Engineered,Long Working Life,Sturdy Design

• Input signal voltage: 3 VDC-30 VDC in 3 variants as 3-5V,6-12V & 12-30VDC
• Max. input current: 10 mA
• Max. Voltage drop in output voltage: 0.5 V @ 5mA load
• Max pulse frequency: 25 KHz

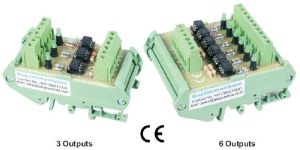

Function of differential to single ended signal converter: This module receives six differential signals viz +A,-A,+B,-B,+Z,-Z signals (5-24 VDC) and converts differential signal in to single ended signals with pulse amplitude equal to user supplied voltage anything between 65-2 VDC.Outputs are optically isolated from input encoder signals. Features: · DIN rail mountable · Three (A,B,Z) outputs module or Six (A,?,B,B?, Z,Z?) outputs module · LED indication for output signals · Reduces high frequency noise and gives clear square wave · Sink type and Source type outputs

• Accuracy: ± 0.5FS
• Mounting: Din Rail 35mm or plug in rack
• Input: 4
• Single Output: 4
• Power Supply: 24VDC
• Housing Material: ABS
• Calibration: Zero & Span Adjustment
