Signal Isolators Dealers

• Country of Origin: India
• Connectivity Type: Wireless
• Accuracy: 0.25%
• Input Voltage: 4-20mA
• Packaging Type: Packed in corrugated boxes
• Weight: 100-150 Grm

Canopus Instruments is one of the top manufacturers and suppliers of signal isolators. We provide top quality signal isolators which provides exceptional isolation.

• power: 90 to 265V AC or 18 to 36V DC.

Signal isolator is a rugged 4 wire isolator available in compact DIN rail mounting enclosure designed to accept custom built and wide range of voltage and current input signals. Signal is isolated and converted to standard instrumentation signals compatible to commercially off the shelf (COTS) automation products. 9000U is available in two models, SingleDual output and ThreeFour output. Masibus’ Signal Isolator Model 9000U provides galvanic isolation between field signals and receiving instrument, this in turn rejects any common mode voltage at field side and prevents ground loop problems. The isolator also protects expensive systems from high voltage faults on the field side.

• Input ( Predefined type ): 0-1 Amp. / 0-5 Amp. / others
• Input impedance: 200 KΩ for Voltage, mV & T/C inputs
• Cold junction compensation: Built in for T/C input.
• Analog output: Isolated / Non Isolated 4 – 20 mA DC
• Isolation type: Opto and Galvanic .. @ 1500 V DC minimum

Pantech's Signal Isolator, model 821 is an ideal instrument for providing isolation between input, multiple outputs and power supply. The module is an ideal choice when fanning out of process signal is required. It provides up to four output signals, each capable of driving of 800 ohms. All these outputs are isolated from each other, input and power supply. This ensures isolation between various subsystems and protects the system from all grounding problems. The module accepts any one out of variety of inputs. It accepts a currentvoltagetemperature input or 4 – 20mA DC from two wire transmitters “or” sensor. The unique design of the module requires only one single positive barrier at the input from a two-wire transmitter for intrinsic safety and isolates the control room. The module also accepts TC and RTD signals. The cold junction compensation is built in and up scale burn out is provided as standard features for thermocouple input ranges. As well as it can be equipped with an intrinsically safe current output.

nippon ISOXR Series is high performance Signal Isolators. The signal Isolators provides excellent isolation between Input & output Signals. This provides noise free isolated signal to the system with accurate conversion fact nippon ISOXR Isolators are housed in ABS molded din rail enclosures. Once again the indigenous R &D offers cost effective solution

since our inception, we are readily instrumental in offering a wide assortment of signal isolator. using excellent grade basic inputs and superior machinery, these are manufactured in tune with the quality values and guidelines pre-set by the industry. More to this, their availability with us in different stipulations has earned us enormous appreciation in the industry.

• Conversion Accuracy: 0.25%
• Input: 4-20mA
• Output: 4-20mA

nippon ISOXR Series is high performance Signal Isolators. The signal Isolators provides excellent isolation between Input & output Signals. This provides noise free isolated signal to the system with accurate conversion fact nippon ISOXR Isolators are housed in ABS molded din rail enclosures. Once again the indigenous R &D offers cost effective solution Application: A/D and D/A conversion Data Transmission Transducer Interface System Isolation DCS, SCADA, Data Aquisition PLC, AC drives Industrial Process C

• Sensing Distance: 2m to 50m
• Analog Output: 4-20 mA Output Signal
• Pressure Resistant Cylinder Sensors: 500 bar
• Integrated Speed Monitor: 100 Hz Operation
• Extended Temperature Rang: -40 upto +250 deg C

• Input: 0/4-20 mA, 0/2-10 VDC, 0-75 mV, DC RTD ( Pt - 100 ) Thermocouple
• Transmitter Supply: 24 VDC
• Output: 0/4-20 mA or 0-10 VDC
• Power Supply ( Isolator ): 230/110 VAC, 24 VDC
• Power Supply ( Trans. ): 12-32 VDC / 30 mA
• Accuracy: Better than ± 0.2 % of FS
• Mounting: 35 mm DIN Rail mounted

Features : • Front Calibration Facility• Three Port isolation in Isolators• High Optical isolation in Isolators• Long term stability• Single / Multi input & output option• Compact sizes for many no. of input / output• 24 VDC operated 2 wire transmitter for various inputs

• Application: Protection, Isolation
• Input Voltage: 5V

The rs 232 serial port isolator � iso 232 m is primarily intended to provide complete isolation between expensive computer or system from the serial device, so that they are protected against any inadvertent damage due to electrical disturbances. The iso 232 m also provides necessary immunity to a computer or a system against electrical noise and differential ground. Iso 232 m is available as a compact unit enclosed in a plastic casing, which takes power from the supplied power adaptor. The converter is populated with surface mount components for good reliability and to reduce the size. At the same time, it is equipped with good and reliable isolation to data signals and protection to serial port from high voltage (2500 v)

We have separated our infrastructural facility into several units and one of them in warehouse. In order to maintain high quality standards, we laced our facility with modern technology. In order to attain complete client credibility, we offer several options to the clients. Also, we make sure that the transaction is completely secure and confidential.

• Brand Name: AUTOTEC
• Place of Origin: Udaipur

Signal convertor isolator type : 4 wire input : available in rtd pt-100, tc (j,k,r,s,t,e,b) mvac, vdc, madc, ac amp, acv, resistance, pulse, frequency. Output : 4-20 ma dc, 0-20 ma dc, 0-5 v, 0-10 v, frequency no. Of output : singledual,triplequad on request isolation : optical & galvanic isolation of 2 kv is provided calibration : zero & span calibration by two individual trim pots supply : 110230 vac ±10%, 50 hz 24 vdc mounting : din rail feild

• Usage/Application: Signal Isolation
• Input Voltage: 24v DC
• Mounting Type: Vertical

Electrically insulates 1,2,3channel analog DC signals ip range0(4)…20mA & op range 0(4)…20mAor 0(2)…10V RLoad max500 OHM self powered Accuracy ±0.2% Insulation 3.7KV Prevents transfer of interferenceV&I, solves grounding problem in meshed signal network

• Accuracy: 0.25%
• Input Voltage: 4-20mA
• Input ( & Display range ): 4 – 20 mA DC/ 0 – 20 mA DC ( -1999 to 9999)
• Transmitter power: 24 V DC for current inputs
• Input impedance: 200 KΩ for Voltage
• Input ( Predefined type ): 0-1 Amp. / 0-5 Amp. / others

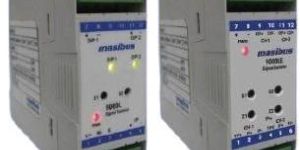

Masibus signal isolator is a rugged 4 wire isolator available in compact DIN rail mounting enclosure designed to accept custom built and wide range of voltage and current input signals. Signal is isolated and converted to standard instrumentation signals compatible to commercially off the shelf (COTS) automation products. 9000U is available in two models, Single/Dual output and Three/Four output. Masibus' Signal Isolator Model 9000U provides galvanic isolation between field signals and receiving instrument, this in turn rejects any common mode voltage at field side and prevents ground loop problems. The isolator also protects expensive systems from high voltage faults on the field side. With multiple outputs this model also acts as signal distributors. A typical application could be where the signal has to be distributed for indication on local panel, field control room, main control room and DCS system. 9000U is compatible with both 2 wire and 4 wire transmitters and has built-in transmitter power supply to power 2 Wire field transmitters. Model 9000U offers a wide range of input/ output signal types which includes mA, mV, VDC. Model 9000U offers excellent accuracy and stability for reliable operation in hostile environments and offers full 3 port isolation between input, output and power supply. Each channel zero and span calibration is adjustable by multi-turn potentiometers; the unit can accept a wide range of Aux. power from 90 to 265V AC or 18 to 36V DC. Model 9000U is designed for easy customization and can be customized to signals levels from mV to Volts both at input and output side. Features Rugged & accurate 4 wire isolator Three port isolation Universal AC/ DC Aux. supply Upto 4 outputs of different types available Wide zero & span adjustment limits 2KV AC Isolation between I/P, O/P and supply All standard current/voltage input/output options Non-standard input/output options also available Compact DIN rail enclosure Excellent long term stability High CMRR and NMRR

• Color: White, black
• Type: Transmitter
• Current Type: AC
• Power Source: Electric
• Pack type: Carton box
• Usage: Industrial

Presenting high quality Isolators manufactured using the top grade material and advanced technology. Our products are known for their durability and longer equipment life, and we make sure our products are always up to the mark of our clients requirement. We are one of the best known and trusted manufacturers, exporters and suppliers of Isolators all over the country. These Isolators are available with us at reasonable market prices.

• Brand Name: Protocontrol Instruments

Protocontrol offers signal multipliers to isolate field signals like 4-20 ma and multiply them to up to four for processing them at four different locations. Hence one 4-20 ma input can be used for location indication, remote monitoring as well as data acquisition. These multipliers find use in process control industries for signal isolation. Variety of models is available for specific applications. in the field, many signals are generated such as motor current, armature voltage, position feedback in the form of change in resistance or signals obtained from various types of traducers in standard voltage or current form. these signals are not isolated from input and not suitable for transmission over long distance. Converters are specially developed to overcome these problems in transmission such as line drop, interference, ground looping, non compatibility to standard processing unit. salient features includes complete galvanic isolation between input output and control supply , independent zero and span adjustments ,stable current output eliminates need for special cable, shielding, signal multipliers are housed in din rail mounting engineering plastic enclosure, special robust cast al. Enclosures suitable for field mounting are also available. these multipliers are extensively used in cement, fertilizer, chemical, and processing plants.

They are Switch Disconnectors with independent manual operation,capable of marketing,carrying and breaking currents under normal circuit.

Signal Converter / Isolator

• Color: White
• Connectivity Type: Wireless
• Warranty: 6 Months
• Packaging Type: Packed in corrugated boxes
• Protection: Short circuit inbuilt
• Transmitter Supply: 24 VDC

Wide choice of Input Types. Software selectable mA & V output. Three Port Isolation. Linearisation of T/C and RTD inputs. Realistic Cold Junction Compensation. Fully Configurable through Keypad. Accepts non-standard Signal Inputs. Powering Options: 20-35V DC / Mains. Dual output Model available

Isolators are optical devices that allow light to be transmitted in one direction only. They are most often used to prevent any reflected light from entering the source, thus preventing any feedback problems, such as frequency instability, relaxation oscillations, amplified stimulated emissions, or optical damage from occurring. Wavelength Range: 1050 -1080nm Reliable high power handling: As much as 80Watts High Isolation, up to 50dB isolation possible from a single stage

Electronet series TX-00 are Loop Powered Isolators with signal conversion specially used for various industrial applications.It can interface all types of inputs like RTD, Thermocouple, Voltage and provide isolated mA output. The compact design gives elegant aesthetic and also saves inner space required in panel to mount the instrument.
