Toilet Soap Wrapping Machine
Get Price Quote
Automatic:220 mpm speed; with and without servo, maintenance free; link to stamping machine; vfd drive, many more.
Soap Wrapping Machines
Get Price Quote
Best Deals from Soap Wrapping Machine
UGP-7200TS Semi-Automatic Toilet Bar Soap Wrapping Machine
100 - 200 Per piece
1 Piece (MOQ)
Details: Soap Wrapping Machines has been designed to pack toilet soap bar/cakes in single wrap of wrapping paper Machine has been designed to handle heat sealable wrapper, laminates and Polly coated wrapping material The final result is a design of a robust, highly reliable, low maintenance, operator friendly machine having a high productivity and efficiency with negligible rejections Working Principle: The soap cakes are fed onto a continuous motion In-feed Conveyor The In-feed pushers take the soap cakes to the wrapping feed station With the help of pulling rollers, the reel fed wrapper is positioned between the cakes and tumble box The wrapper is cut to the required length as the in-feed pushers push the soap along with the cut wrapper into the turret Spring-loaded end blocks retain the product in position The turret box then indexes by 180 degrees and resulting in top folding The next incoming cake pushes the previously packed cake forward which is further pushed into the sealing zone Feature: Machine suitable for detergent bar/laundry bar Heavy duty cast structure Machine weight: Approx. 1600 Kgs Speed up to 180 TPM depending upon the product dimensions, laminate quality and feeding of soap Directly linkable to bar cutting machine through conveyor for automatic feeding of bars Fixed/Adjustable size turret assembly Designed to handle soft bar Soap moves on belts with pusher to avoid any scratch mark Double spool arrangement for wrapper to save change over time of paper roll to increase the uptime of machine No soap and no wrapper interlock through PLC AC variable speed drive unit Double chain for overhead infeed conveyor Double chain for overhead discharge conveyor Speed of machine directly proportional to soap feeding Stop-start mechanism with Geneva Drive for auto feeder belt conveyor Collator unit for easy collection of packed bars Two sided heaters and cooling unit provide better sealability Double corrugation rollers Different cut length for paper stiffener lengths can be made at a cut off unit quickly. Separate temperature controller for topside heaters and rear heater Infeed queue pressure release mechanism while transferring the soap from infeed belt conveyor to prevent dent marks Centralized lubrication system Print control system with worm and worm wheel mechanism Cooling unit for electrical panel PID temperature controllers Wrapper : Paper / Poly / Hot Melt Lamination Max Dia 450mm Core ID 70mm Stiffener: Card paper/poly laminated
automatic soap wrapping machine
Get Price Quote
1 Piece (MOQ)

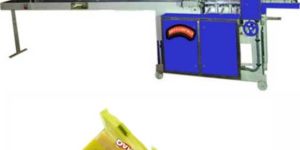

Bath Soap Wrapping Machine
Get Price Quote
We specialize in designing and fabricating a wide assortment of soap packaging machines that is used for packing and wrapping all types and sizes of soaps. Whether it is dual or single packing or manual and automatic operation, we offer our clients with all types of soap packaging machines to suit their discerning expectations.
automatic soap wrapping machine
Get Price Quote
Detergent Soap Wrapping Machine
Get Price Quote
Our clients can avail an exclusive range of Detergent Soap Wrapping Machines (Wrap 100D) from us. The Detergent Soap Wrapping Machines, provided by us, are an entry level horizontal Detergent Soap Wrapping Machine, which wraps soap using a roll of heat sealable (outside poly, inside poly, hot melt or similar) wrapping materials. Process : Fitted with mechanical auto feeder, the Detergent Soap Wrapping Machines feeds soap at right angle to the cutting machine exit conveyor. This Detergent Soap Wrapping Machines (Wrap 100D) can be directly linked to the cutting machine to feed soap directly.
Soap Wrapping Machines
Get Price Quote
We are offering soap wrapping machines. . Power transmission by gear drives. . 225 pieces per minute production rate. . Change over time less than 1 hour. . No product - no wrapper interlock machine production capacity: : 225 pieces per minute length : 13 (feet) w : 4 (feet) h : 6 (feet) weight : 1300 kg (approx) electrical power : 3 kw (max) supply voltage : single phase, 220 volts, 5060 hz wrapper material : hot, melt, inside poly coated outside poly coated
Soap Wrapping Machine
700,000 - 1,500,000 Per Piece
1 Piece(s) (MOQ)
We deal in a variety of Soap Wrapping Machine, which is inclusive of Soap Over Wrapping Machine and Soap Wrapping Machine with Side Sealing. All these Soap Wrapping Machines are acclaimed for their features like outstanding performance, compact design, high functionality and longer & hassle-free service life. Further, these Machines are quality tested. We are proficient in timely delivery of Soap Wrapping Machines across the globe.
Laundry Soap Flow Wrap Machine
Get Price Quote
Soap Wrapping Machine
Get Price Quote
Constructed for reliable operation in tough plant conditions, Easily accessible, durable electrical panel for long term performance, Special design for Fin seal compartment with 3 Rollers unit (1 Propelling & 2 Nos. of heated pair of rollers), Auto Fin seal heating tunnel opening and closing with start and stop of machine, Transparent Jaw guards with safety interlock, Dwell adjustment in running condition, System to stop machine in open jaw condition
Soap Wrapping Machine
Get Price Quote
We are offering soap wrapping machine. Cross conveyor flow wrap machine is highly appreciate in biscuit and bakery industries for packaging of cream sandwiched biscuits (in on-edge position) and chocolate cake bars, soaps etc. Products are feed manually on cross conveyor which is then transferred to main feeding conveyor. the conveyor can be customized to belt or chain type as per products. The plc controlled with touch screen panel make it user friendly and is easy to set parameters. The speed can be varied up to 80 packets per minute according to stack length.
HIGHSPPED TOILET SOAP WRAPPING MACHINE
Get Price Quote
STANDARD FEATURES » Outer wrapper and inner stiffener » High speed operation of upto 220 tablets per minute with total linkability with soap stamping machine » Vacuum pick and place with continuous rotary motion » 4 Axes servo controlled wrapper/stiffener feeding and cutting » Quick timing and setting for different sizes through PLC control » Easy height adjustment of cutoff unit and discharge conveyor » Gripped discharge conveyor for tight packing » Excellent quality of soap handling, even for soft soap » Double spool holder for wrapper and stiffener » Wrapper-break-machine-stop” interlock » Simple to maintain “no-soap-no-wrap” interlock » In line discharge » Optional collated discharge » Long top and side heaters with Cooling Plates for reliable sealing at high speeds » Vacuum pick and place with continuous rotary motion » Digital temperature controllers for all heaters (separate front and rear side heaters) » CE compliant stainless steel/ transparent guarding » All parts in contact with soap are either stainless steel or coated with Teflon. Conveyor belt is of food grade quality » Automatic centralised lubrication Highlights » Extremely gentle handling of soap » High speeds » High quality packing » Servo controls by Rockwell Automation » Low noise » Quick size change » CE compliant safety guarding » Imported instrumentation » Plant-Friendly Orientation » Human Safety » In-Built Management Information System Options: » Packing date printer » Flexible infeed conveyor to suit plant layout » Collator on discharge for easy pickup of soap » Conversion parts for size change
Soap Wrapping Machine
350,000 Per Piece
1 Piece (MOQ)
Toilet Soap Wrapping Machine
Get Price Quote
High speed wrapping machine capable of wrapping toilet soaps with stiffener and heat sealable (hot melt coated) at a speed up to 160 ppm(depending on nature of product and wrapper). Ingress to the machine is by means of an infeed belt conveyor engineered to index at higher speed. This conveyor is set at right angle to the flow of product for subsequent wrapping operation and can have right hand or left hand orientation to suit the space requirement. Handling of product is gentle throughout the operation and any rubbing of naked soap with stationary surface is avoided, Heavy cast iron structure for vibration absorption and durability.Heavy cast iron structure for vibration absorption and durability.Automatic Print Registration Unit by means of imported sensor, PID temperature controls from Honeywell or equivalent make, The machine speed upto 160 ppm (machine speed and accuracy is dependent of quality of packing material, soap size and its quality, uniform inflow of the product) with Heavy distortion free cast structure.
Soap Wrapping Machine
Get Price Quote
Soap Paper Wrapping Machine
Get Price Quote
Automation Grade: Automatic Capacity: 40 pouch/min Brand: Pactech Robotic Technology Usage/Application: Soap Wrapping
Toilet Soap Wrapping Machine
Get Price Quote
TSW-150 is designed to wrap various sizes of toilet soap with single or double wrappers. It is designed to handle both heat sealable film laminates polly coated wrapping material and glue sealable outer coated wrapping material.The machine is built from high precision components having the desired metallurgical and heat treatement characteristics, resulting in lower wear and tear, high life and less maintainance,The final result is a design of robust, highly reliable, low maintainance, operator friendly machine having high productivity and efficiency with negligible rejections.
FULLY AUTOMATIC SOAP WRAPPING Machine
Get Price Quote
Soap Wrapping Machine
Get Price Quote
Features Simple operation and low maintenance All contact parts are made of Stainless steel 316 This machine is equipped with the Ac frequency drive with the latest addition for speed adjustment. Photoelectric mark registration system for precise cutting and sealing of the sachet /pouches. Custom made to suit specific requirement.
Toilet Soap Wrapping Machine
Get Price Quote
Unipack having 6 year experience in delivering solid, robust and cost effective solution for soap wrapping, Unipack covers the entire range of High speed automatic soap wrapping requirement in pillow pack style with heat seal wrapper material. Unipack machine covers completely integrated automatic packing machine to receive cake up to 250 cakes per minute. The machine synchronized with third party secondary packaging equipment, Soap is fed manually or automatic from Plodderstamper in product feeding chain. The forming box forms tube around the soap cake. This same are sealed in bottom sealing unit by 3 pair of pulling roller and same are seal and cut by cross sealing unit, Unipack has different type of flow wrapper are available in order to pack your product in pillow pack style, Standalone Manual feed Machine Automatic Inline feeding machine Versatile wrapper to pack multiple products filled in one pack.
High Speed Toilet Soap Wrapping Machine
Get Price Quote
We are prominent High Speed Toilet Soap Wrapping Machine Supplier in India. High Speed Toilet Soap Wrapping Machine wraps toilet soaps with twin layers of card stiffener and heat sealable outer wrapper. Finally packed soap has the outer wrapper with heat seal on belly and envelops type end folds (also heat sealed). Soap is fed on flat belt conveyor that brings it to vacuum pick and place unit after taking a right angle turn in the High Speed Toilet Soap Wrapping Machine. Soap is placed on twin belts with lug pushers assisting in pushing it through vertically fed stiffener and wrapper. Care is taken to avoid any rubbing of soap with any stationery surface to prevent any mark. Partially wrapped soap is rotated by 180 degree and then moved by a gripped conveyor of the High Speed Toilet Soap Wrapping Machine to complete folding and sealing. Wrapped soap is erected and place in vertical position (optional) on a flat belt conveyor.Specifications : Power : 2 KW Dimension (L*W*H) : 2 sq.mtr floor space Voltage : 220 V Weight : 500 Kg
Toilet Soap Wrapping Machine
Get Price Quote
Soap Wrapping Machine
220,000 Per Piece
1 Piece(s) (MOQ)
Soap Wrapping Machine
Get Price Quote
We are offering soap wrapping machine.
Soap Wrapping Machine
Get Price Quote
DT-80SC Sheeting and Cutting Machine is specially designed by Dematics Technology. The Machine can be used to make sheets of Khawa and Cut into desired sizeDT-80SC Sheeting and Cutting Machine is specially designed by Dematics Technology. The Machine can be used to make sheets of Khawa and Cut into desired size
Soap Wrapping Machine
460,000 Per Piece
Soap Wrapping Machine
Get Price Quote
Soap Wrapping Machine, Banding Machine, bundling machine
Toilet Soap Wrapping Machine
Get Price Quote
Toilet Soap Wrapping Machine, mop shell buttons, rod bushes
Soap Wrapping Machine
Get Price Quote
Soap Wrapping Machine, precision wrapping machine
