Automatic Soft Drink Processing Plant
3,500,000 Per Piece
1 Piece (MOQ)

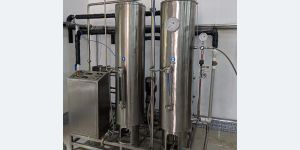

Fully Automatic Soda Soft Drink Plant
2,500,000 - 12,500,000 Per Piece
1 Plant (MOQ)
Most soft drinks are made at local bottling and canning companies. Brand name franchise companies grant licenses to bottlers to mix the soft drinks in strict accordance with their secret formulas and their required manufacturing procedures. Clarifying the water The quality of water is crucial to the success of a soft drink. Impurities, such as suspended particles, organic matter, and bacteria, may degrade taste and color. They are generally removed through the traditional process of a series of coagulation, filtration, and chlorination. Coagulation involves mixing a gelatinous precipitate, or floc (ferric sulfate or aluminum sulfate), into the water. The floc absorbs suspended particles, making them larger and more easily trapped by filters. During the clarification process, alkalinity must be adjusted with an addition of lime to reach the desired pH level. Filtering, sterilizing, and dechlorinating the water The clarified water is poured through a sand filter to remove fine particles of floc. The water passes through a layer of sand and coarser beds of gravel to capture the particles.Sterilization is necessary to destroy bacteria and organic compounds that might spoil the water's taste or color. The water is pumped into a storage tank and is dosed with a small amount of free chlorine. The chlorinated water remains in the storage tank for about two hours until the reaction is complete. An activated carbon filter dechlorinates the water and removes residual organic matter, much like the sand filter. A vacuum pump de-aerates the water before it passes into a dosing station. Mixing the ingredients The dissolved sugar and flavor concentrates are pumped into the dosing station in a predetermined sequence according to their compatibility. The ingredients are conveyed into batch tanks where they are carefully mixed; too much agitation can cause unwanted aeration. The syrup may be sterilized while in the tanks, using ultraviolet radiation or flash pasteurization, which involves quickly heating and cooling the mixture. The water and syrup are carefully combined by sophisticated machines, called proportioners, which regulate the flow rates and ratios of the liquids. The vessels are pressurized with carbon dioxide to prevent aeration of the mixture. Carbonating the beverage Carbonation is generally added to the finished product, though it may be mixed into the water at an earlier stage. The temperature of the liquid must be carefully controlled since carbon dioxide solubility increases as the liquid temperature decreases. Many carbonators are equipped with their own cooling systems. The amount of carbon dioxide pressure used depends on the type of soft drink. For instance, fruit drinks require far less carbonation than mixer drinks, such as tonics, which are meant to be diluted with other liquids. The beverage is slightly over-pressured with carbon dioxide to facilitate the movement into storage tanks and ultimately to the filler machine. Filling and Packaging The finished product is transferred into bottles or cans at extremely high flow rates. The containers are immediately sealed with pressure-resistant closures, either tinplate or steel crowns with corrugated edges, twist off, or pull tabs. Because soft drinks are generally cooled during the manufacturing process, they must be brought to room temperature before labeling to prevent condensation from ruining the labels. This is usually achieved by spraying the containers with warm water and drying them. Labels are then affixed to bottles to provide information about the brand, ingredients, shelf life, and safe use of the product. Most labels are made of paper though some are made of a plastic film. Cans are generally pre-printed with product information before the filling stage. Finally, containers are packed into cartons or trays which are then shipped in larger pallets or crates to distributors.
Best Deals from Soft Drink Processing Plant
soft drink processing plant
Get Price Quote
soft drink processing plant
Get Price Quote
Fruit juices are made from fruit pulpconcentrate artificial sugar may or may not be added to the juice extracted. The sugar syrup is prepared first in jacketed mixing tank and then it is mixed with fruit pulp, water along with other ingredients like flavor, color, preservatives etc. In the other mixing tank. This mixture is pasteurized to remove any microbial growth from it and later on homogenized to prepare a uniform blend of juice. complete sets of fruit juice beverages and soft drinks production line: 1. Sugar syrup preparation tank 2. Fruit pulp storage tank 3. Filter press 4. Blending 5. Homogenization 6. Standardization 7. Pasteurization 8. Filling line: - automatic bottle filling line with rinsing filling & cap sealing machine in addition to the above machine, we can also offer a bottle blow molding plant which will make bottles for you from pet preform per your desired shape and size.
Soft Drink Mixing Tank
750,000 Per Set
soft drink processing plant
Get Price Quote
Fruit juices are made from fruit pulpconcentrate artificial sugar may or may not be added to the juice extracted. The sugar syrup is prepared first in jacketed mixing tank and then it is mixed with fruit pulp, water along with other ingredients like flavor, color, preservatives etc. In the other mixing tank. This mixture is pasteurized to remove any microbial growth from it and later on homogenized to prepare a uniform blend of juice. Complete sets of fruit juice beverages and soft drinks production line: 1. Sugar syrup preparation tank 2. Fruit pulp storage tank 3. Filter press 4. Blending 5. Homogenization 6. Standardization 7. Pasteurization 8. Filling line: - automatic bottle filling line with rinsing filling & cap sealing machine in addition to the above machine, we can also offer a bottle blow molding plant which will make bottles for you from pet preform per your desired shape and size.
soft drink processing plant
Get Price Quote
Bottling machines are suitable in Plants for Soft Drinks, Synthetic and Natural Juice Plants, Beverages, Alcoholic Drinks, Breweries, Packaged Drinking Water or Mineral Water. bottling plants, spare parts of soft drink, Packaged drinking water (Mineral Water Plant) all kinds of beverage and food processing industries.
soft drink processing plant
Get Price Quote
Soft Drink Plant is designed by our expert engineers by keeping in mind the set standards and norms of food industry. Our quality experts also check the bottles, fillers and tankers on various parameters such as quality, durability and capacity. Further, our plant is developed by implementing modern processing and automation technologies. In addition, this plant is available with optional features of automatic and manual operation. Simple control and easy operation, High efficiencyRobust construction, Long service life, Reliable performance, PLC based operations, Low operation cost.
soft drink plant
1,000,000 Per Unit
1 Units (MOQ)
soft drink processing plant
Get Price Quote
For projects awarded on Turnkey basis, we are in the capacity to offer project for RTS Beverage Lines for fruits like Passion Fruit, Synthetic flavored drinks, Guava, Mango and so on from Planning – to – Visualization to Realization. We also manufacture process lines for RTS beverages & Carbonated soft drinks that consist of the following section:
soft drink processing plant
Get Price Quote
Soft drink processing plant Mineral water plant process the normal water from natural source or from the municipality etc. and convert it to Pure Mineral water which is now a days very much popular among the health conscious people all around the world.
soft drink processing plant
Get Price Quote
Carbonator With Intermix units are designed for the production of soft drinks containing carbon dioxide. In this process, water is deaerated under a high vacuum, then carbonated with co2 and doses in any desired proportion with syrup. The finished product is then carefully fed by adjustable co2 overpressure to the bottle filler.
soft drink processing plant
Get Price Quote
soft drink processing plant, chemical pressure vessel
soft drink processing plant
Get Price Quote
soft drink processing plant, turnkey mineral water plant, Food product Labels
soft drink processing plant
Get Price Quote
soft drink processing plant, Wafer Packing Machine, Pouches, toffee wrappers
