Solid Fuel Fired Thermic Fluid Heaters Dealers

• Material: Alloy Steel
• Certification: CE Certified
• Application: Domestic, Industrial, Machinery
• Weight: 100-1000kg
• Color: Metallic
• Automatic Grade: Automatic
• Motor Power: 1-3Hp
• Feature: Double Chamber, Easy Installation
• Temperature: 100-150°C, 150-200°C

Solid fuel fired thermic fluid heater has two sets of coils. One is provided above the furnace to take advantage of radiant heat exchange and other set is used to carry out convective heat transfer. The thermic fluid is recirculated from process in closed loop with the help of the circulation pump. Product Range : From 1,00,000 kcal/Hr. to 50,00,000 kcal/Hr. Temperature upto  300oC. Fuel - Coal, wood, lignite, briquette, agro waste such as bagasse, husk. Firing - Manual as well as automatic with bubbling bed or fluidised bed combustion. Salient Features : Excess Air optimisation - Radiant Heat Exchange is carried out above the furnace  Hence, less excess air is required and ultimately increase efficiency. Air preheating - Combustion air from FD fan passes through air preheater that absorbs the waste heat in the fuel gases. It ultimately results in increase in efficiency. Balanced Draught System - It means reduction of infiltration of unwanted air though fire gates of minimum level. It results into maximum heat recovery from air preheater and assures greater efficiency.

• Type: Four pass vertical coil type
• Temperature: 280° C and 340° C
• Temperature: 280° C and 340° C
• Capacity: 200 000 to 3000 000 kcal/h

• Brand Name: Therm Tech
• Application: Industrial
• Material: SS
• Frequency: 50 Hz
• Usage/Application: Industrial
• Voltage V: 240 V
• Coil Type: 8 to 20 Lac Kcal/h

• Application: Industrial
• Type: Solid Fuel Fired Thermic Fluid Heaters
• Country of Origin: India
• Temperature: 250-300°C
• Size: Customized
• Capacity: 1,00,000 to 5,000,000 kcal/Hr
• I Deal In: New Only
• Firing Mode: Suitable To All Soild Fuels With Difference Furnaces (Standard Gratedar , Nozzle Bed )
• Capacity: 1, 000 Kcal/hr TO 50

Ø  Temperature of Thermic Fluid at outlet up to 280 °C (Expandable up to 320 °C )          Ø  Fuel Variant: Briquette/Wood/Coal/Agro-Waste/Rice Husk, Bagasse   Ø  Efficiency: 78±2 % Ø  With Advance Cyclonic Air Provision System in furnace for proper combustion of fuel and distribution of flue gases. Ø  Newly discovered four-pass design with provision of effective all flue gas passes within heat exchanger. Ø  Suitable for applications in industries like Plywood & Laminate Industries, Food Industries, Textiles Industries, Chemical Industries, etc.

Solid fuel thermic fluid heater thermic fluid/thermal oil heater is designed for maximum efficiency, using a variety of solid fuels including agro-waste fuels. It allows high process temperatures at low operating pressures.   Product Features          For fuel such as coal, wood, sawdust baggase, etc.          Option of Trava grate/inclined water-cooled grate/flat grate, etc.          Standard capacity range from 2.0 lack kcal/hr up to 40 Lack kcal/hr The combustion system for solid fuels consists of fuel handling and stoking equipment, refractory lined chamber, air and flue gas handling system (including draught, forced draught or balanced draught) with blowers and pollution control equipment. The furnace construction is done on site. It includes foundation, fabrication and erection of supporting structure, building up refractory chambers, fixing up firing doors, ash doors, access doors, fuel feeders, support bars for grates, grate bars, etc.   Operating Range          Capacities: From 2.0 to 40 Lack kcal/hr          Operating temperature: Up to 325 deg. C                     Firing fuels: Solid fuels/agro-fuels

• Material: M.S
• Power (Watts): OIL FIRED) Fully Automatic Oil / Gas / Electrical Capacity- 50000 Kcal/Hr to 1,500,000 Kcal/Hr

• Material: Carbon Steel
• Temperature: 300 Degree Celsius
• Brand Name: Maxtherm India
• Automation Grade: Automatic
• Frequency: 50-60 Hz
• Voltage: 210-230 V

• Material: Mild Steel
• Country of Origin: Made in India
• Usage/Application: Industrial
• Thermal Oil Capacity: 1lac kcal to 2 cr kcal

delta - solid fuel fired thermic fluid heaters solid fuel fired thermic fluid heaters are available in capacities from 1,00,000 kcals/hr up to 40,00,000 kcals/hr. The vertical design with integral furnace assures rated output on any solid fuel like coal, wood & bagasse. The well planned design of the delta ensures thermal expansion with low stress. the basic advantages of the delta arc, low operating cost reliable operation safety against low thermic fluid flow precise thermic fluid temperature control expansion cum dearator tank the expansion chamber cum deaerator tank is designed to ensure long fluid life. The combined tank has a unique design & offers significant protection against oxidation of thermic fluid. Tangenitial thermic fluid entry in the deaerator tank ensures good deaeration.

Thermic Fluid Heater - Solid Fuel Fired   Salient Features of This Model Furnace is designed for multi fuel options, with major thrust on proper selection of combustion grate, furnace height, combustion volume, fuel feeding systems. To ensure efficient combustion & lesser heat loss. Coils are designed with optimum flow consideration to gain maximum heat from flue gases. Coils are tested at 3 stages before final dispatch as a part of Thermotech’s stringent quality control. ID Fan, FD Fan & booster fan (in any) are selected as per fuel’s perfect air-fuel ratio requirement, which ensures optimum air quantity for combustion & thus saves power consumption. Expansion Tank capacity is specifically selected after consulting total holdup of Thermic Oil. Deaeration Tank is specially designed considering flow & temperature requirement. Thermotech offers complete solution of Thermic Fluid heating system along with Pipeline, Pollution control equipments, fuel handling, etc on Turnkey basis. Auto Controls & Safety Thermic Fluid Temperature controlDigital temperature indicator-cum-controller cut of ID/FD fan of preset temperature and restart of preset temperature and restart of preset differential temperature to maintain system temperature. Stack Temperature ControlA blind temperature controller cut of ID/FD fan and sound alarm if stack temperature exceeds to preset temperature. Low/NO Flow of Thermic FluidDifferential pressure switch connected across intel and outlet headers signals low flow alarm in case of low fluid pressure of Thermic fluid in coils. Low Level of Thermic FluidThe visual level indicator and float actuated lever switch fitted in expansion tank signals alarm in case of low level thermic fluid in the system. Thermic Fluid Pump Motor TripIn case of thermic fluid pump motor trip, electrical interlocks, cut off ID/FD fan. Power FailureDiesel engine drive keeps thermic fluid moving in the system to prevent its degradation and overflow. Excess Furnace Bed TemperatureDigital temperature indicator-cum-controller senses furnace bed temperature and cut off ID/FD fan above set value(for FBC unit). Benefites Multi-Fuel Option Low Power Consumption Energy Optimization Low Maintenance

Capacity: 70,000 KCals/hr. to 15,00.000 KCals/hr. Suitable Furnace For Every Fuel Horizontal grate For Coal, Lignite, Wood Chips etc. & Inclined Grate (Step Grate ) For loose Bagasse, Wood, Waste, Husk etc. Balanced Draft System : Ensure minimum infiltration of unwanted air. so efficient combustion & Higher Efficiency. Vertical / Horizontal Design : Easy to operate & maintain, Low building & infrastructure cost. Thermic Fluid Preheater : Absorbs the waste heat of the flue gasses & Increase the efficiency.

Solid Fuel Fired Thermic Fluid Heater Today solid fuels or agro waste as fuels is the best and low cost option for heat generation. We design, manufacture and supply Solid Fuel Fired Thermic Fluid Heater for various industrial applications from chemicals, textiles and food processing to pharmaceuticals as well. Solid fuels or agro waste can reduce the operating costs to half of the cost of fuel oils or gas. The heater design can be made suitable for below mentioned options : Coal / Indonesian coal Wood, wood chips Palm kernel shell Bagasse, briquettes   Other Information Port of Dispatch: Mumbai - India Production Capacity: 10 mln Kcal-Hr

• Capacity: 00, 000 KcaL/hr, 1, 000 Kcal/hr TO 50
• Fuel: Wood /Coal / Agro waste / Bio-Mass
• Firing Mode: Manual And Fluidization Bed Combustion Systems

Solid (Multi) Fuel Fired Thermic Fluid Heater Feature Capacity : 1,00,000 Kcal/hr up to 100,00,000 Kcal/hr. Operating Temp. : up to 400 degree celsius. Fuel : Coal / Lignite / Wood / Briquette / Husk / Wood / Bagasse / Agro-waste / Pet coke.

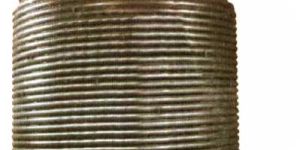

We bring our premium range of Multipac Solid Fuel Fired Vertical Thermic Fluid Heater which is in high demand in the market due to its high performance and superior design. This heater is Fully Automatic and offers a choice in Installation and Operation (Vertical / Horizontal). All the components in the Multipac Solid Fuel Fired Vertical Thermic Fluid Heater are of reputed and quality assured make and we also offer Prompt Service and Spares Support. This heater we offer has high unit dependability and has a maximum outlet temperature of 300 Degree C. Features : Suitable for Multi Fuel (Husk /Firewood /Coal)Consistent Efficiency of 72%Long lifeProven design Built in Controls : Fluid Level Low : Magnetic level switch ensures minimum thermic fluid level in the department cum expansion tank.Fluid Flow Low : Different pressure switches ensure sufficient flow of thermic fluid across the coil and thus prevent coil chocking, over heating and coil failures.Outlet Templet High : Temperature indicator cum Controller prevents over heating of Thermic Fluid.Return Temperature High : Temperature Indicator cum Controller ensures Constant Temperature for the process and control ID & FD Fan Operation according to the set temperature.Spring Loaded Safety Valve Click Here For Technical Specifications
