Sonometer Dealers

Simple type model, it comprises a wooden board 700 x 90 mm (L x W) on four feet, fitted with two steel wires about 0.3mm x 1m (dia x length). At one end of base there are two 50 N spring balances with hooks and at the other end are two wrest pins. Supplied complete with three bridges, one large to span both wires and two small bridges for individual wires, two steel wires 0.3 mm dia. x 1m long.

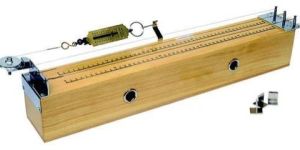

Comprising a seasoned wood resonance box 45"x4"x4" with meter scales one meter long sub-divided in millimeters. One each brass and steel wires of S.W.G. 26 and 24 respectively, attached to a fixed bridge and tensioned by fine adjustment pegs; two moveable bridges, pulley and fixed screw to enable a third wire to be fixed for tensioning by weights.

• Country of Origin: India
• Material: Wooden and metal
• Features: Glossy finish, Precisely designed, Superior strength
• Usage/Application: A sonometer is used to determine the frequency of alternating current
• Finished Type: Wooden
• Condition: New
• Scale Length: 50 cm

• Material: Wooden
• Application: Study The Sound Concepts
• Application: Industrial
• Feature: High Strength, Optimum Finish
• Finishing: Polished
• Power: Electric

The Sonometer, offered by us, is effectively used for the testing of performance and characteristics of vibrating wires under tension. Our bone Sonometer is accessible with thumb screw geared mechanism. In addition to this, our clinical Sonometer is noted for easy changing of wires. Consists of wooden resonance box with two metal rules graduated into mm. Two wires of brass and steel attached to fixed bridge and tensioned by fine adjustment pegs , two movable bridges, pulley and fixed screw to enable a third wire to be fixed for. Besides, we are one of the leading Sonometer Manufacturers and Suppliers in India.

Sonometer, Slide Box, Pipette Stand, Conical Flasks, Sample Container

Comprising a hollow wooden box 1140x125x100mm with 2 meter rules divided in mm. Two wires of brass & steel attached to fixed bridge & tensioned by fine adjustment pegs. Two movable bridges, pulley & fixed screw to enable a third wire to fixed for tensioning by masses. Complete with two bridges.

• Features: Sonometer Aluminum Soft wood nicely polished with metal fitting.Sonometer Aluminum With wooden riders.And provide with 3 different wire 100 cm long.Sonometer Aluminum fitting is without wt.
• Use: School, College, University, Research Laboratories.

• Material: Wooden
• Packaging Type: Carton
• Usage/Application: Lab
• Scale Length: 50 cm
• Capacity: 100 N
• Over All Size: 67.5x10x10.5 cm approx.
• Model: SH250

The sonometer made available by us is effectively used for the testing of performance and characteristics of vibrating wires under tension. Our bone sonometer is accessible with thumb screw geared mechanism. In addition to this our clinical sonometer is noted for easy changing of wires. Besides, we are one of the leading sonometer manufacturers and suppliers from India.

We are engaged in supplying of Sonometer

• size: 1200 X 115 X 60 mm

SONOMETER, THREE WIRE Comprising a hollow wooden box size 1200 X 115 X 60 mm with two fixed bridges with a one metre scale in between and pulley complete with a long movable bridge, wrest-pin key and two each brass and steel wires 0.4mm dia each and one of 0.08mm dia, of 1.5 m length, supplied without masses.

• Features: Sturdiness, Elevated durability, Finely polished

Comprising a wooden resonance box of 114 cm length, 12.5 cm width and 10 cm height, with two rules 1 meter long sub-divided into millimeters. One each brass and steel wire of different diameter attached to fixed bridge and tensioned by fine adjustment pegs, two moveable bridges, pulley and fixed screw to enable a third wire to be fixed for tensioning by masses. One each additional wire of steel and brass, each 1.5 m lenght and of 22 SWG.

Nvis 6052 Experimentation with Sonometer is a useful apparatus for investigating the vibration of a string or wire under tension. The equipment allows the length of the string and its tension to be varied. Sonometer can determine the Frequency of AC mains in an easy way with very precise and fine arrangement. It consists of a thin metallic (steel) wire stretched over two bridges that are usually mounted on a soundboard, also known as monochord. It is used to measure the vibration frequency, tension, density, or diameter of the wire, or to verify relations between these quantities.

• Type: Sonometer
• Material: Wooden
• Feature: High Strength
• Condition: Good
• Finishing: Polished
• Power: Electric
• Packaging Type: Box

Comprising a wooden resonance box of 114 cm length, 12.5 cm width and 10 cm height, with two rules 1 meter long sub-divided into millimeters. One each brass and steel wire of different diameter attached to fixed bridge and tensioned by fine adjustment pegs, two moveable bridges, pulley and fixed screw to enable a third wire to be fixed for tensioning by masses. One each additional wire of steel and brass, each 1.5 m lenght and of 22 SWG.

• Type: Sonometer
• Material: Wooden
• Application: College Lab
• Feature: High Strength, Optimum Finish
• Condition: New
• Finishing: Polished
• Packaging Type: Box, Carton, Corrugated Box

We are the main supplier of this product.
