Spark Tester Dealers

• Condition: New
• Application: Industrial
• Warranty: 1yr
• Brand Name: LALITH,LALITH
• Voltage: 220V

Digital HVAC Spark Tester for online Testing of Cables during manufacturing Ranges 15 KV to 40KVAC,50Hz

AC SPARK TESTER Range :0- 15Kv HV Spark Tester is designed for checking the quality of pvc coated or insulated wire online manufacturing unit. The insulated wire is passed through brass ball chains which are carrying high voltage. If any pinhole or fault comes in insulated wire, the spark develops and electromagnet counter counts the fault. The spark tester is therefore necessary for every cable manufacturing unit. Our spark testers upto 15 KV are air cooled.

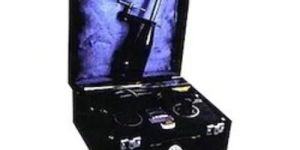

ASSOCIATE ELECTRONICS pioneers in manufacturing SPARK TESTER and ancillary testing equipments now offers the latest innovative Model ST-40 that confirms the chemical fabrication field proven cases with advanced Technology in solid state circuitry that is simplified & more efficient with reliability.        APPLICATION To detect Pinhole, Puncture & Blank portion in thick(1mm to 10 mm) insulating coating on conductive material.  *  FRP Lining*  Glass Lining*  Rubber Lining*  Teflon Coating *  P. U. Coating *  Cement Coating etc...UNIQUE TECHNICAL FEATURES Its range of voltage from 0 KV to 40 KV in continue mode allows you to set the voltage exactly to the level you desire for the coating you are inspecting, whatever the coating may be FRP LINING, GLASS LINING, RUBBER LINING etc.. You have at your control the voltage setting that you require. SPECIFICATIONS *  Operated by       :  230 V +- 2%, 50 Hz. *  Out put Voltage  :  0 KV to 40 KV pulse type *  Size                       :  (W) 9" (D) 4.5" (H) 7" *  Weight                :  2.5 Kgs. approximately ADVANTAGES  *  Digital Display *  Light Weight *  Easy to carry *  Compact design *  Separate (detachable) H.T. probe stick available with instrument. *  Backed with after sales Technical services. *  One year warranty.

• Feature: Electronic switching based unique design.,Sine wave, low power circuit.,All digital displays for easy readout.

We manufacture Spark Testers for extrusion and rewind lines to check for defects in cable insulation. Cable passes through in a high-voltage bead chain electrode in the spark tester, and any insulation fault causes a spark from this electrode to the ground via cable core. Any spark is detected by spark tester electronics and registered as a fault. By using spark testers at your extrusion or rewind lines, you can monitor your cable product. If there is any fault in cable insulation, the spark tester will warn you by its alarm and you can search the possible cause and fix the problem, so you get product without any faults.

After giving tough competition to our contemporaries in Pune(India), we have now come forth to challenge the providers in other markets. Quality being the prime concern of the company; it keeps a strict check on the production, packaging and delivery processes.

• Dia. Range: Up to 150mm
• Line Speed: 300 m/min.

High voltage spark testers are designed for checking the quality of insulation coated wires for pin holes weak insulation exposed conductor during made at work floor. The wire is passed through brass ball beads which carry high voltage. If any pin hole is detected in PVC, a spark develops and electro magnetic counter counts the fault. Spark Testers can be used for high speed extruders and high speed Recoiling processes. The efficiency of Spark Tester is up to 95%.

• Country of Origin: Made In India
• Usage/Application: Industry
• Brand: Stech
• Packaging Type: Box

• Brand Name: KAT

Katcon make spark testers are designed for testing the insulation or sheathing of the cable during extrusion, winding processes.

• Application: Control Panels
• Frequency: 45Hz
• Operating Current: Double Phase
• Warrenty: 1year
• Temperature Capacity: High Temperature
• Features: Easy To Use

kat controls spark tester consists of a high voltage electrode unit and an electronic control unit which has a highly reliable solid state structure and requires minimal maintenance. ball chain assembly used in h.v. Electrode unit which is in direct contact with some surface of the cable under test and combines with the resulting corona in h.f. Spark testers to form an extremely effective contact zone around the cable insulation. this unique feature ensures that the actual voltage displayed on kv meter is applied accurately and consistently to the cable surface even if the bead chain do not touch the cable from all sides. A pre-adjusted and extremely sensitive fault detection circuit detects all the faults (pin holes) in the cable insulation at proper voltage setting. These spark tester are able to detect all the faults which are otherwise detected in water immersion testing of cables. the interlock with the electrode unit cover protects the operator from accidental contact with the electrode.

• Frequency: 50/60 Hz
• Features: Easy operation, Low maintenance, Hassle free performance
• Brand: Maxwell
• Packaging Type: Box
• Display Type: Analog
• Voltage: 220 V
• Weight: 2 Kg
• Phase: 1 Phase
• Power: 0-15 KV/ 1 KVA

• Type: Spark Tester
• Certification: ISO 9001:2008 Certified
• Application: Control Panels
• Condition: New

1. Input Supply: 230 VAC± 10%, 50/60 Hz±2 Hz 2. Output Voltage Range: 0.5kV to 10kV AC / 0.5kV to 15kV AC RMS 3. Load: Capacitive cable load up to 18 mm diameter max 4. Output Frequency: 2.5 to 3.5 kHz, 5. Line Speed: 1200 MPM 7. Fault Counter: 6-digit electromechanical counter (Incremental resettable type) 11. Standards referred: IS 10810-(Part 44)-1984 Appendix-A / UL - 1581 (Part 900) 13. Flasher & Hooter for Fault 14. Type of Electrode: Ball chain Electrode 15. Safety interlock: Microswitch interlock for protective cover of HV chamber. 16. Cable Fault conditions: Pin holes, Bare patches. (Fault current 600 microamp) Electronic

HV Spark Tester is designed for checking the quality of pvc coated or insulated wire online manufacturing unit. The insulated wire is passed through brass ball chains which are carrying high voltage. If any pinhole or fault comes in insulated wire, the spark develops and electromagnet counter counts the fault. The spark tester is therefore necessary for every cable manufacturing unit. Our spark testers upto 15 KV are air cooled (there after for higher capacity transformer is oil cooled and control panel air cooled).

We are recognized Manufacturer, Exporter and Supplier of Spark Plug Cleaner & Tester. Highly appreciated for flawless quality, efficient working, durability and corrosion resistant properties, Spark Plug Cleaner & Tester are made using the best quality raw material. The Spark Plug Cleaner & Tester are offered at market leading rates as per customers̢۪ requirements on timely basis. Attributes Superior qualityDurableCorrosion resistantEffective working

• Brand Name: Puretronics
• Voltage Range: 0 - 25 kv
• Dimension: 450 x 336 x 405 mm
• Electrode: Bead Chain housing of 350mm long
• Sensitivity: Adjustable sensitivity knob
• Approximate Weight: 20.4 Kg
• Test Frequency: 2.5 - 3.5 kHz
• Wire Size: 0.5 - 15 mm
• Wire Speed: 2500 mts/min
• Fault Counter: Digit LCD
• Safety: Door Interlocking
• Wire Running Height: 900 mm to 1100 mm

High Frequency Spark Tester consists of a Solenoid and an Interrupter which has natural High Frequency and when the current passes through the Solenoid, the hammer is attracted by its core, thereby breaking the circuit and at the same time charging the condenser. The hammer then springs back reforming the contact and allowing the condenser to discharge through an inductance of a few turns of thick wire of the Tesla Coil.

• Feature: Electronic switching based unique design.,Confirms to National / International standards..

We manufacture Spark Testers for extrusion and rewind lines to check for defects in cable insulation. Cable passes through in a high-voltage bead chain electrode in the spark tester, and any insulation fault causes a spark from this electrode to the ground via cable core. Any spark is detected by spark tester electronics and registered as a fault. By using spark testers at your extrusion or rewind lines, you can monitor your cable product. If there is any fault in cable insulation, the spark tester will warn you by its alarm and you can search the possible cause and fix the problem, so you get product without any faults.

• Type: Spark Tester
• Brand Name: Bosch
• Certification: ISO 9001:2008 Certified
• Application: Control Panels
• Condition: New
• Frequency: 45Hz
• Feature: Easy To Use
• Operating Current: Double Phase
• Warrenty: 1year
• Temperature Capacity: High Temperature
• Puncture Voltage: 11000V

Spark Plug TesterWhen it comes to the search of best Spark Plug Tester Manufacturer, N.P. Electronics appears as an most deserved name. Our company also leads the market among biggest Spark Plug Tester suppliers with a vast array of Spark Plug Tester.
