Split Bearing Dealers

• Type: Bearings
• Material: Chrome Steel
• Shape: Round
• Thickness: 8-30mm
• Weight: 10kg
• Capacity: 40L/Hr, 60L/Hr
• Bore Size: 8-32mm
• Outside Diameter: 30-50mm

• Application: Machinery, Motors
• Color: Silver
• Finishing: Polished
• Structure: Spherical
• Feature: Highly Functional, Optimum Finish
• Corrosion Proof: Yes

As we take complete care of the products that we offer, we make excellent arrangements for their storage as well. Thus, there are minimal chances of damage at buyer's end. To ensure distribution of orders within undertook period, our organization has an outstanding supply chain system in place.

The bore is so accurately dimensioned as to have firm seat on the shaft just by tightening the side bolts. ence use of additional accessory like heated oil bath or induction heater for press fit, is eliminated

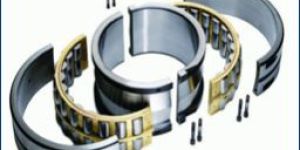

Assisted by a hardworking team and modern manufacturing set up, our manufacturing, supplying and distributing unit is affianced in providing supreme quality Split Cylindrical Roller Bearing in the domain. Our capable team of workforce design and fabricate the offered bearings using quality-approved metal steel and avant-garde techniques adhering to industrial standards. Additionally, we offer these bearings in customized form as well. Usage: Optimum performance Dimensional accuracy Corrosion Abrasion resistance

Split cylindrical roller bearings are intended primarily for bearing arrangements which are difficult to access or for cranked shafts. It is advantageous to use them in all cases where the maintenance or replacement of non-split bearings would require considerable extra time-consuming effort and would cause long and expensive or even inadmissible machine downtime.

1. Split Roller bearing is basically a Cylindrical Roller Bearing cut into two halves. 2. All the components like i.e. Inner race, outer race and Roller cage assembly are all split on a highly sophisticated equipment to retain the original. 3. These bearings are used mainly in the middle of shafts where mounting and dismounting can be done without disturbing adjacent components.

ZKL bearing are used extensively in heavy engineering and mining industries and in many other industrial segments as wel as in agricultural equipment. The heavy engineering segment especially utilizes special bearings which are currently paid special attention in our company. These are cross-split roller bearings, the construction and manufacture technology of which are in ZKL tested on special roller bearings up to the 900 mm outer diameter and on spherical roller bearings up to the 1 600 mm outer diameter. The portfolio of these bearings is constantly extended and puts ZKL among the prominent world manufacturers. The cross-split bearings are suitable for applications mainly in those conditions where axial mounting of the bearing into the seating is unfeasible, which is for instance multiply seated shafts, crankshafts or long transmissions, or in such cases when mounting of the bearings into the seating would be too long, and the resulting shutdown of the device would cause severe operation faults. Most frequently used cross-split bearings in the world are the single-row roller and double-row spherical roller bearings. Both the above mentioned design groups are included in the ZKL’s production programme. The said bearings have a radial-split outer ring, inner ring and also the cage for conducting the roller elements. The cages are usually massive, brass. Both halves of the cage are coupled to be able to resist dynamic forces, which the cage is exposed to during the operation. Both halves of the inner ring are placed on the shaft with the help of belting rings, equipped with a threaded joint, provided with an arresting mechanism. The splitting joint between the halves of the outer ring can be perpendicular to the front of the ring. On the other hand, the plane of separation of the inner ring is designed as inclined at an angle, so that no impacts occur during rolling of the roller elements in the loaded zone on the edge of the plane of separation. CLICK FOR MORE DETAILS

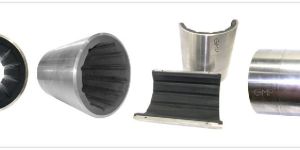

GMP Split Cutlass Bearings are designed for easy fitment and extraction; bearing shell material can be metal (brass, bronze, stainless steel) or nonmetal sleeve that is precision machined with keystone or dovetail races for easy fitment. Longitudinal water grooves run the full length of the shell to provide optimum water flushing and lubrication

Two Halves bearing for the industrial purpose . clutch yoke , clutch bearing .

• Feature: Reduce production losses caused by maintenance,Easy to installations and maintenance,Stable for long life etc.
• Applications: Conveying,Material Handling,Mixing Equipment,Packaging etc.

Split Bearings mainly using for bearing arrangements which are difficult to access for cranked shafts. With this we also offer other similar bearings products. Mainly consist of split cylindrical roller and spilt spherical roller bearing etc. This can be implemented in various types of industries applications. Split bearing supplier, dealer, exporter and service provider from Mumbai, India to entire domestic and abroad containing asia, africa, europe and america. Split Bearings Salient Features Reduced the cost of installations Routine maintenance and replacement Available in various unique designs. Easy to installations and maintenance Reduce production losses caused by maintenance Stable for long life Improved performance Ultimate reliability in bearing Improved efficiency and cost savings Available in various colors, types, size, capacity, costing, features, etc. Split Bearing Applications Used in cold tube rolling mill crankshafts Excavators applications Rolling mill drive spindles Large ventilation installations Conveying Mixing Equipment Material Handling Automotive Packaging Implemented in Steel Mills industries

• diameter: 600 mm

FKL provides comprehensive solution with a wide assortment of roller and ball bearings for diverse applications. The effort usually goes out to the direction to abate the downtime production and increase profitability by greater productivity. FKL split roller bearings are a solution, especially for applications where mounting and dismounting process of a bearing leads to a huge loss in productivity, which is rather time consuming. FKL manufactures split cylindrical roller bearing up to 600 mm bore diameter and split spherical roller bearings up to 1120 mm bore diameter.

This European range of bearings is available in an infinite range of bores to suit any shaft size from 45mm to 150mm (1 34" to 6"). The unit is fully split with the housing made of cast iron and the split bush made of gunmetal. Replacement inserts are available from stock. Replacement shells can easily be fitted.

• Material: Stainless Steel
• Brand Name: TQS
• Thickness: 30 MM
• Country of Origin: Made in India
• Bore Size: 80 MM
• Usage/Application: Auto Parts / Automotive Bearing
• Surface Finishing: Polished

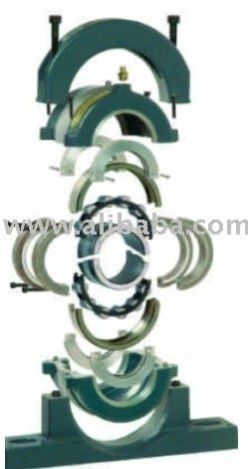

We Offer Cooper Bearing Which is Completely Split to the Shaft. this Feature Alone Save Countless Hours On Installation and Inspection. there is No Need to Remove Ancillary Equipment to Check a Cooper Bearing. Inspection is Simple. simply Remove the Pedestal Cap and the Top Part of the Cartridge Housing and Outer Race Assembly. the Entire Bearing is Now Ready for Inspection. this Applies to Every Cooper Bearing, No Matter How Large or the Type of Mounting, Every Cooper Bearing Can Be Inspected and Maintained in this Way. maintenance Savings as the Inspection Process is So Easy, the Saving that Can Be Made in Maintenance Hours are Considerable. When the Working Life of a Cooper Bearing is Taken Into Account, the Cooper Bearing Becomes An Extremely Attractive Investment. proven Return On Investment in the Case of One Long Term Cooper Customer: a Heavy Duty Clinker Breaker Application in the Cement Industry Utilizing Solid Bearings Was Undergoing Bearing Replacement Every Six Months, Each Changeout Took 32 Man Hours with the Downtime At 16 Hours. Production Loss Was Quoted At $7,500 per Hour, this Alone Totaled a Production Loss Cost to the Customer of $120,000 per Changeout. the Total Cost per Year for this Customer Was $240,960. the Bearings Were Then Replaced with Cooper 03 Bcp 180mm Gr Bearings. Installation Time Plummeted to 4 Hours with the Resultant Savings. Uptime Increased with Production Loss Costs Reduced to $15,000. Instant Savings of $105,000. on Going Long Term Benefits in Three Years, the Original Cooper Bearing Has Not Been Changed. this is Due to the Customers Preventative Maintenance Program, Ease of Inspection and the Quality of the The Cooper Product. at the Time These Costs Were Compiled, this Customer Was Saving $235,940 per Machine. the Level of Saving Increased On a Monthly Basis, Proving that Even in the Toughest Operating Conditions, a Cooper Bearing is a Proven Return On Investment. the Top Photograph Shows the Clinker Breaker with Guards Removed for Photographic Purposes and the Lower Picture Illustrates a Typical Trapped Application, in this Instance, a Steel Works Cooling Bank. the Accessibility Benefits of a Totally Split Cooper Bearing Can Be Readily Appreciated from These Two Photographs.

Ball roller bearings series BXRO are double row bearings whose rows of rolling elements are in an O arrangement. They can thus support both radial and axial forces.In comparison to series 32 ball bearings, up to 50% more rolling elements can be fitted in these ball roller bearings due to the innovative assembly method, which enables higher basic load ratings in the same space. The advantages of the BXRO compared with the 33 series (three ring bearings) lie in the simplified assembly as well as the increased bearing accuracy due to the optimized raceway geometry and the single-piece inner ring.

Material SS, Brand NMB, Functions Minimizes friction between the rotating parts, Distributes load evenly across the roller

We offer a precision engineered range of Split Bearings to our clients. These are a kind of roller bearings with cylindrical rollers that are long and thin in relation to their diameter. In spite of their low cross section, needle these bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.

Split spherical bearings are divided into two structures: Split Cylindrical Roller Bearings and Split Spherical Roller Bearings. It is mainly used for trunnion of converter on the steel-making. And this kind of bearing is easy for mounting, dismounting as well as protection and maintenance.

SKF cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single and double row full complement bearings (without a cage) and split bearings complete the SKF standard assortment provided here.

Features Revolvo SRBs are world leaders in Split Bearings. The advantages of using these are given below. Split bearings, including the Housing and other components are all in 2 halves allowing close inspection and easy replacement.
