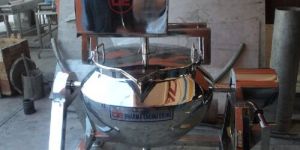

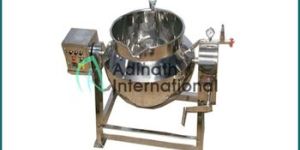

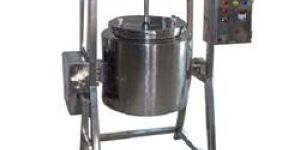

Starch Paste Kettle Dealers

• Type: Starch Paste Kettle
• Material: Stainless Steel
• Certification: NA
• Weight: 150 TO 200 KG
• Color: Metallic, Shiny Silver, Silver
• Feature: Fast Heating, Long Life, Low Maintenance, Rust Resistance, Shocked Proof, MANUAL STARTER WITH VFD
• Voltage: 440V
• Condition: New
• Capacity: 20-30L, 30-40L, 50 TO 500 LITER AS PER REQUIREMENT
• Automatic Grade: Manual, Semi Automatic
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric
• Warranty: 1year
• Country of Origin: India
• PHARMACEUTICALS: STARCH PASTE KETTLE

• Material: Stainless Steel
• Weight: 40-50Kg
• Color: Shiny Silver
• Feature: Long Life, Rust Resistance
• Capacity: 50-500 Ltrs
• Finish: Polished

Starch Paste Kettle is designed as per good manufacturing practices in terms of clean ability of components, surface finished, absence of sharp corners, assembling and dissembling of components and control devices. Machine can be design as per jacketed type, electrically or stream heated, thermostatic control with the unit, safety valve, insulated with suitable insulating material, tilting with hand wheel. Easy transfer of paste while tilting, unit will be provided with suitable lid, suitable discharge bottom valve for steam water, which should easily removable and easily cleanable.

This Unit Is Used For Preparation Of Starch Paste. Conical Shape Ensures That The Heating Of The Starch Paste Is Uniform And Gets More Surface Area. The Tilting Type Arrangement Ensures Ease In Unloading The Paste Into Any Container Or Vessel. TECHNICAL FEATURES Conical shape bottom of the machine. Material discharge cock ( 2” Size or bigger size if specified ) at centre of the conical bottom is provided. Paste Preparation Vessel would be  with top loose open-able cover and 04 nos. of  legs with castor wheel ( if electrically heated ) and with fix plate ( if steam heated ). Jacket ( Water Jacket OR Steam Jacket ) made from M.S. / SS304 as per customer need. Jacket insulated with mineral wool & covered with M.S. or Aluminum or SS304, as per customer need. Vessel with tank mounted stand for geared motor. Geared   Motor mount on the stand and covered. Slow speed stirrer (Anchor type ) with geared motor for mixing of the paste. In electrically heated model, Electrical heaters with temperature controller is given. Operating panel provided with vessel. Outside surfaces will be insulated with SS304 and inside surface will be polished to the mirror finished.

• Capacity: 100 L
• Material: SS
• Voltage: 440 VAC
• Phase: 3 Phase
• Power Source: Electric
• Brand: Ambica
• Model Name/Number: APK100
• Automation Grade: Semi-Automatic
• Electric Heater: 6 kW
• Insulation Thickness: 50 mm
• Charging Height: 1250 mm
• Discharge Height: 600 mm
• features : Mixing stirrer with VFD control, Digital temperature controller and digital timer.

• Price: Rs 2 Lakh / Piece(s)

Affordable price and high quality are the major attributes owing to which our Starch Paste Kettle is highly in demand amongst buyers. By following a strict selection process, we source the entire range of raw materials from the certified vendors. Thus, we make sure that our finished goods will be flawless.   Features : Hemispherical design for proper mixing past Jacket provided with steam/ thermic/ fluid heating arrangement Anchor type impeller with scrapper design for proper mixing of paste Tilting arrangement for kettle is provided for discharge for paste Safe earthing system Driven via motor and gear box assembly mounted on top with Arm Operating panel provided with vessel Outside surfaces will be insulted with SS304 and surface will be polished to the mirror finished In compliance available -50Ltrs to 300 Ltrs. Bottom discharge with flush bottom ball valve. All contact part made of SS316/SS316L as per CGMP standard. Optional : Flameproof Construction VFD to change the Rpm of Stirrer Digital temperature controller or digital timer. Document - Documentation Like DQ, IQ, OQ, Manual and FAT provided with the machine

• Condition: New
• Material: Stainless Steel
• Warranty: 1 Year

We settle the financial transactions with our customers through the secured payment procedures. We also settle down upon a variety of negotiable instruments. Our range of products is favored by many, as it is quality guaranteed and according to global quality management standards.

• Country of Origin: Made in India
• Phase: 3 PHASE
• Warranty: 1 YEAR WARRANTY
• Capacity: 30 LTRS
• Features: Rust proof , Fine finish , Durable.
• Size: Various sizes
• Is It Portable: Portable
• Material Grade: SS 316 / SS 304
• Automation Grade: Manual
• Brand Name: AKSHAR KETTLE
•  :

• Capacity: 300Liter/hour
• Material: Stainless Steel
• Voltage: 415 V
• Warranty: 1Year
• Country of Origin: Made in India
• Brand Name: Shashvath
• Model Name/Number: SFE-SP
• Automation Grade: Semi-Automatic
• Is It Portable: Non Portable

• Capacity: 50 Litre
• Material: Stainless Steel
• Voltage: 220 V
• Automation Grade: Automatic
• Power (kW): 5
• Application: Industrial
• Surface Treatment: Powder Coated
• Brand Name: Technic Pharma Equipments

• Material: Stainless Steel
• Capacity: 10 Ltrs to 300 Ltrs
• Automatic Grade: Automatic
• Tilting Arrangement: Manual Tilting
• Voltage Supply: 220 - 440 Volt
• Usage/Application: Used for Preparation of Binder materials
• Brand: Mark Maker
• Model Name/Number: MMPEPPV

• Material: Stainless Steel
• Color: Metallic
• Feature: Energy Saving Certified, Fast Heating, Rust Resistance
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric

Electric/Steam/Thermic Oil Heated and Jacketed Kettle For Solution Preparation.    Design as per stringent cGMP requirements. All contact parts SS 316 Electric heated / Steam heated / Thermic oil heated, Tilting unit for unloading Available in 50 Liters, 100 Liters, 150 Liters Capacity. Option-mixing stirrer and digital temperature control.

• Material: Stainless Steel
• Weight: 1-10Kg, 10-20Kg
• Color: Shiny Silver
• Voltage: 110V, 220V
• Capacity: 0-10L, 10-20L
• Automatic Grade: Fully Automatic
• Power: 1-3kw, 3-6kw
• Driven Type: Electric
• Feature: Energy Saving Certified, Rust Resistance

The Starch Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries. We are considered as the best Paste Making Kettle Manufacturer and Starch Paste Mixing Kettle Exporter from Thane, Mumbai. Features All contact part made of SS 316 as per GMP standard Hemispherical design for proper mixing paste Jacket provided with steam/thermic/fluid heating arrangement Driven via motor and gear box assembly mounted on top Tilting arrangement for kettle is provided for discharge for starch paste Anchor type impeller design for proper mixing of paste Safe earthing system Optional Accessories Flameproof construction VFD to chase the RPM of stirrer Documentation Documentation like DQ, IQ, OQ and FAT provided with the machine.

YPM Starch Paste Kettle GMP Model will be made out of S.S. 304 Rectangular Pipes and will be an independent resting type frame work where no foundation will be required. The Kettle will be a hemispherical type bowl with either steam / Oil / Water heating Jacket will be provided. The Kettle will be manufactured from 2.5 mm thick S.S. 304 Sheet and The Jacket will be of 2.5 mm Mild Steel (In case of steam Jacket the thickness will be 4 mm) There will be oil / water heated fitted at the back bottom side of the Kettle. The Kettle having a worm type arrangement for tilting. A temperature controller & a temp Indicator will be provided for temp control & Indication. The Kettle will be Insulated with 50 MM thick glass wool Insulation & Cladded with 16 SWG S.S. 304 Sheet. Starch Paste Kettle will be buffed to 150 grit matt finishes externally and Internally the Kettle will be buffed to 220 grit mirror finish.   Functions : Basically YPM Starch Paste Kettle is used for preparation of Starch Paste. Hemispherical shape ensures that the Heating of the Starch Paste is Uniform & gets more Surface area. The tilting type arrangement Ensures ease in unloading the Paste into any container or vessel. The Starch Is put in the kettle and water is added till desired thickness is achieved. The Kettle is jacketed & is heated till the Starch Melts an Thick Paste is achieved. This Paste can be agitated either manually or with The Help of an Anchor Type agitator which will constantly stir. The Paste so that there will no lumps formation and proper mixing is achieved. Temperature can be set to desired temp by adjusting the thermostat provided.   Optional Available : Starch Paste Kettle is built in stirrer arrangement with lifting & lowering device Our Starch Paste Kettle is equipped with Steam fittings with all connections factory fitted Non Tilting type with bottom discharge models is also available.   Capacities Available : Our Starch Paste Kettle is available From 50 Liters to 1500 Liters Capacity. We Also Manufacturer Capacity 3000 Liters & Above. Needless to say, it also provides the benefits of the effective manpower utilization.

• Type: Mixing Machine
• Material: Metal
• Capacity: 50 to 500 ltrs
• Power: 1-3kw
• Feature: Energy Saving Certified
• Warranty: 1year

The Starch Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries.

cGMP Starch Paste Kettle are generally used in the pharmaceutical industry for paste preparation. It has a universal application which gives uniform melting. Starch Paste Kettle is used in chemicals, Foods, Cosmetics and Pharmaceutical Industry. The basic principle of this kettle is the jacket for passing steam in order to melt down the product to make paste. This kettle has an unique tilting arrangement for discharging the product.Salient features All contact part made of SS 316 as per GMP standard. Hemispherical design for proper mixing paste. Jacket provided with steam/thermic/fluid heating arrangement. Driven via motor and gear box assembly mounted on top. Tilting arrangement for kettle is provided for discharge for starch paste. Heating insulation provided to avoid heat loss. Anchor type impeller design for proper mixing of paste. Safe earthing system. Available in Size from 10 to 500 lts.

Available in batch capacities rating from 50 Kgs to 1000 Kgs, as per client requirement. Salient Features:- Available in standard cGMP and customized models with SS304/SS316/SS316L Contact Part. Serves an effective purpose in heating of paste, pulp, juice of fruits and vegetables to the desired temperature. Hemispherical design for proper mixing of paste. Discharge from bottom via butterfly valve. Driven via motor & Gear box assembly mounted on top. Anchor type impeller design for proper mixing of past Hydraulic lifting with tilting arrangement.

Starch Paste Kettle is designed as per good manufacturing practices in terms of clean ability of components, surface finished, absence of sharp corners, assembling and dissembling of components and control devices. Machine can be design as per jacketed type, electrically or stream heated, thermostatic control with the unit, safety valve, insulated with suitable insulating material, tilting with hand wheel. Easy transfer of paste while tilting, unit will be provided with suitable lid, suitable discharge bottom valve for steam water, which should easily removable and easily cleanable.

• Capacity: 200kg
• Power: 2.2kw
• Voltage: 220V
• Material: Stainless Steel
• Usage: Heating
• Processing: Heat Exchanger

• Capacities: 25 Ltrs. To 1500 Ltrs.
• Application: Pharmaceuticals, Cosmetics, Food Industries, Dairy Industries

Starch Paste Kettle will be made out of S.S. 304 Rectangular Pipes and will be an independent resting type frame work where no foundation will be required. The Kettle will be a hemispherical type bowl with either steam / Oil / Water heating Jacket will be provided. The Kettle will be manufactured from 2.5 mm thick S.S. 304 Sheet and The Jacket will be of 2.5 mm Mild Steel (In case of steam Jacket the thickness will be 4 mm) There will be oil / water heated fitted at the back bottom side of the Kettle. The Kettle Will be having a worm type arrangement for tilting. A temperature controller & a temp Indicator will be provided for temp control & Indication. The Kettle will be Insulated with 50 Mm thick glass wool

• Features: easier to install, operate and maintain (requiring only an annual check of the thermal fluid)., No exhaust flue for combustion gases/smoke or other special on-site construction is required
• Capacity: Available in 165, 250, 335, 505, 725 LITRES

  Starch Paste Kettle Will Be Made Out Of S.S. 304 Rectangular Pipes And Will Be An Independent Resting Type Frame Work Where No Foundation Will Be Required. The Kettle Will Be A Hemispherical Type Bowl With Either Steam / Oil / Water Heating Jacket Will Be Provided. The Kettle Will Be Manufactured From 2.5 Mm Thick S.S. 304 Sheet And The Jacket Will Be Of 2.5 Mm Mild Steel (In Case Of Steam Jacket The Thickness Will Be 4 Mm) There Will Be Oil / Water Heated Fitted At The Back Bottom Side Of The Kettle. The Kettle Will Be Having A Worm Type Arrangement For Tilting. A Temperature Controller & A Temp Indicator Will Be Provided For Temp Control & Indication. The Kettle Will Be Insulated With 50 Mm Thick Glass Wool Insulation & Claded With 16 Swg S.S. 304 Sheet. Starch Paste Kettle Will Be Buffed To 150 Grit Matt Finishes Externally And Internally The Kettle Will Be Buffed To 220 Grit Mirror Finish OPTIONAL AVAILABLE:- Starch Paste Kettle Is Built In Stirrer Arrangement With Lifting & Lowering Device.  Our Starch Paste Kettle Is Equiped With Steam Fittings With All Connections Factory Fitted.   Non Tilting Type With Bottom Discharge Models Are Also Available. CAPACITIES AVAILABLE:- our Starch Paste Kettle Is Available From 10 Ltrs To 2000 Ltrs Capacity. FUNCTIONS:- Basically Starch Paste Kettle Is Used For Preparation Of Starch Paste. Hemispherical Shape Ensures That The Heating Of The Starch Paste Is Uniform & Gets More Surface Area. The Tilting Type Arrangement Ensures Ease In Unloading The Paste Into Any Container Or Vessel. The Starch Is Put In The Kettle And Water Is Added Till Desired Thickness Is Achieved. The Kettle Is Jacketed & Is Heated Till The Starch Melts A Thick Paste Is Achieved. This Paste Can Be Agitated Either Manually Or With The Help Of A Anchor Type Agitator Which Will Constantly Stir. The Paste So That There Will No Lumps Formation And Proper Mixing Is Achieved. Temperature Can Be Set To Desired Temp By Adjusting The Thermostat Provided And The Temperature Can Be Seen In The Dial Thermometer Provided. Our Machines Are Also Known As Tablet Dies Punches, Tabletting Machine, Pharmaceutical Machinery, Tablet Manufacturing Machinery, Tablet Making Machinery, Tablet Pharmaceutical Machines Supplier, Tablet Making Machines, Tablet Section, Single Punch Tablet Punching Machine, Tablet Compression Machine, Tableting, Tablet Section Machineries, Tablet Compression Machine, Tablet Pharmaceutical Machinery, Manufacturer Tablet Dies And Punches, Tablet Press, Tablet Dies, Manufacturer And Exporter Tablet Press, Tablet Press Compression. We Are Manufacturer, Whole Seller, Supplier, Trader, Exporter Of Starch Paste Kettle. We Are A Leading Pharmaceutical Machinery Manufacturer And Supplier From Ahmedabad, Gujarat, India OUR PRODUCT RANGE Tablet Section Machineries Liquid Section Capsule Filling Machine R & D Pharmaceutical Machineries Dies - Punches And Spares Jacketed Reactors Vessels & Storage Tank Online Pharmaceuticals Machinery

• Gross volume: 170 Ltrs
• Working capacity in liter: 100 Ltrs.
• Electric heater: 6 KW
• Jacket thickness: 50 mm
• Insulation thickness: 50 mm
• Charging height: 1250 mm
• Discharge height: 600 mm
• Approx size (L X W X H): 1150 mm X 1500mm X 1300mm
• Approx weight: 250 KG.

The Starch Processing Kettles we offers are specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials. This is also called starch paste kettle and is constructed as a hemispherical kettle with jacket mounted on trunnion that is supported with the help of a shaft. The kettle is provided with an anchor type beater for mixing the binder material and the paste with multiple speed option. Granulation Line:- starch paste kettle is a specially designed unit for preparation of binder material.The kettle is provided with a suitable slow speed stirrer with geared motor mounted on the top. It is available from 50 Ltrs to 500 Ltrs. Capacity. Salient Features: The starch paste kettle is a specially designed unit for preparation of binder material It is a hemispherical kettle with jacket mounted on trunnion supports with the help of shaft. The kettle has a small cylindrical top shell with a spout for pouring out binder mass. The kettle is provided with Anchor type beater for paste mixing with dual speed option. Jacket is provided with steam accessories i.e pressure guage. Safety valve and vent cock. The Kettle is also provided with a lever with hand wheel to accomplish titling manually The kettle is provided with 16 swg thick SS 304 losses lid. Optional: Port of Dispatch: Mumbai Production Capacity: 4Units/Month Delivery Time: 4-6weeks Packaging Details: in wooden cases
