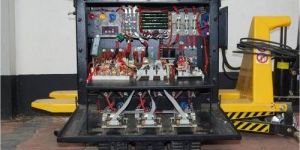

Static Var Compensator Dealers

Manufacturer & Exporter of Static Var Compensator. Our product range also comprises of Heavy Duty Capacitor, Automatic Controlled Capacitor Bank and Filter Banks.

• Input Voltage: 6kV to 500kV
• Power Range: 5MVAR to 750MVAR
• Features: Rugged design

We are offering static synchronous compensator, statcom can be considered a voltage source behind a reactance. Physically, it is built as a three-level inverter operating at constant direct current (dc) voltage. It generates and absorbs reactive power by electronically processing voltage and current waveforms in a voltage source converter (the grid views it as a synchronous machine without inertia). As a result, capacitor banks and shunt reactors are not needed for statcom to generate and absorb reactive power, which enables a compact design and small footprint. The high switching frequency of the igbts provides extremely fast control, and is particularly useful in applications such as mitigating the voltage flicker created by electric arc furnaces, voltage balancing, harmonic filtering and grid voltage recovery.

• Capacity: 400V

A static VAR compensator is a set of electrical devices for providing fast-acting reactive power. ASVGs improve power factor, harmonics and stabilizing the system. Unlike a synchronous condenser which is a rotating electrical machine, a static VAR compensator has no significant moving parts (other than internal switchgear). A pioneer in the past, a leader today in the industry Most Comprehensive Capacity Series Of ASVG.

• Voltage Type: AC
• Application: Power Factor Correction
• Material: Stainless Steel
• Grade: Commercial Grade
• Power Source: Electricity
• Mode: Semi Automatic

• Grade: Commercial Grade
• Material: Stainless Steel
• Voltage Type: AC
• Mode: Semi Automatic

• Usage:: Metal industry
• Features: Easy maintenance, Sturdiness Long ,service life

• Phase: 3
• Automation Grade: Semi-Automatic
• Material: Mild Steel
• Country of Origin: Made In India
• IP Rating: IP54
• Frequency: 60 Hz
• Power Source: Electricity

• Type: IGBT based DSP controlled voltage source converter with DC link capacitor.
• Phase: 3 phase
• I/P Voltage: 415V AC, 3 wire system
• Power compensation: Upto 50 KVAR.
• Power factor improvement: From 0.6 to 0.99.

• Usage/Application: Industrial
• Reactive Power Rating: +- 0.5 MVAr To +-10 MVAr And Up To [0; 20] MVAr
• Max Rated Voltage: Medium Voltage Level With Standard Transforme
• Rated Frequency: 50/60Hz
• Cabinet And Container Solutions: Forced Ventilation/Water
• Brand Name: Nidec

Static var compensator is one of the valuable applications for power electronics technology. For ac power transmission and distribution system, various types of static reactive power compensator have been proposed. Shunt compensation is widely used to improve power factor and voltage stability. A static synchronous compensator (STATCOM) based on voltage source converter (VSC) can be said to be the most advanced shunt-type reactive power compensator. In contrast with thyristor-based reactive power compensators,
