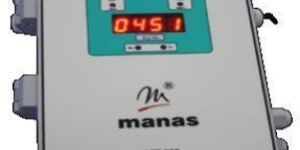

Pantech Instrument’s Model 845S represents FLOW INDICATORS TOTALIZERS CONTROLLERS for mass flow applications related to STEAMS flow. The instrument is so designed to accept 3 inputs of FLOW, PRESSURE and TEMPERATURE at a time. Based on these inputs, and high end algorithms of STEAM TABLES fed in the chip, the instrument calculates MASS INSTANTANEOUS FLOW RATE to a resolution of 44.5 digits.

• cable length: up to 50 m / 164 ft

Steam flow meter for saturated steam applications. With the optional pressure sensor the flowmeter has an integrated density compensation available, which even allows an exact measurement of gases and superheated steam with varying process conditions. The additional integrated gross and net heat measurement makes this flowmeter to be a reliable partner for advanced energy management systems.

• Display: Digital
• Accuracy: 0.5 to 1%
• Voltage: 230 V
• Material: SS
• Pressure: 0-4 MPa
• Temperature: -20 to 150 degree C
• Media: Steam
• Material Grade: SS304, SS316

• Type: Meters
• Application: Industrial
• Feature: High Accuracy
• Display Type: Digital
• Warranty: 1Years

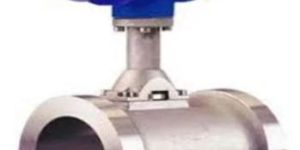

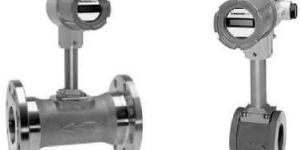

The Vortex Steam Flow Meter are compact, available in flange and sandwich version, and are suitable for measuring liquids, gases and vapors. The temperature compensation for saturated steam is integrated as standard thus enabling direct compensation of the density; the mass and energy can also be measured.

On Line computation of Steam Density.Automatic Saturated or Super heated Steam detection. Extremely accurate ...based on standard IAPWS 1997 (International Association for properties of water and steam).

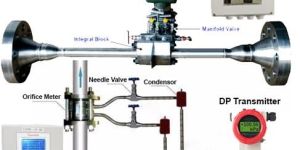

The SFMc-150 Steam Flow Meter system is engineered to suit your requirement. It has no moving parts and no wiring connections are required during installation.The mass flow rate of Saturated and Superheated steam is calculated by measuring the differential pressure across the orifice plate and instantaneous density. Online density compensation is possible because of the online pressure and temperature measurement.In conventional system of measurement, the differential pressure generated by orifice plate is measured by DP transmitter. The output of from DP transmitter after square rooting is accepted as proportional to flow rate. This assumption is true only when the density is constant.

• Country of Origin: India
• Type: Vortex Flow Meter
• Brand Name: Forever Tech
• Material: Stainless Steel
• Color: White
• Voltage: 220V
• Operating Type: Automatic
• Power: 24VDC Or 220VAC
• Driven Type: Electric
• Certificate: ISO 9001:2008 Certified
• Display: Remote
• Warrenty: 1 Year
• Finishing: Polished
• Corrosion Resistance: Yes
• Shape: Round
• Phase: Single Phase
• Usage: Residential, Industrial, Laboratory, Chemical Flow Measurement, Water And Chemicals, Hospital, Clinic
• Specialities: Digital Water Meter Display, Accuracy
• Line Size: 15 MM to 600 MM
• Packaging Type: Carton Box, Wooden Box
• Pressure: Low Pressure, Medium Pressure
• Weight: 50-100kg
• Dimension (LxWxH): 440x260x295mm
• Accuracy: 1 %
• Operating Temperature: 40 Deg to 350 Deg
• Analog Output: 4 - 20 mA
• End Connections: Flange

• Size: 1 inch to 10 inch
• Accuracy: ±2.5% to 3% of actual reading
• Size :: 1” to 10”
• Type of flow element :: Differential flow element.
• MOC of flow element :: SS 316
• End Connection :: SORF flange
• MOC of flanges :: M.S/C.S/S.S
• Orifice Flange assembly :: WNRF Class 300
• Accuracy :: ±2.5% to 3% of actual reading
• Gas Temperature :: Up to 70°C
• Power Supply :: 85 to 265 VAC @ 50Hz
• Type of flow element: Differential flow element
• Typical turndown: 10
• Density compensation: Online monitoring and compensation of density
• Communication protocol: MODBUS, RTU
• Communication port: RS485, RS232 (optional)

• Size: 1 inch to 10 inch
• Accuracy: ±2.5% to 3% of actual reading
• Display:: Digital
• Material:: SS
• Output: 4-20mA/HART/Relay/Batching/GSM/Data Logging
• Cable length: Up to 50 m / 164 ft

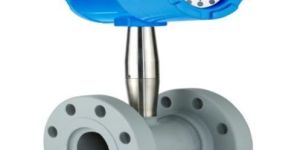

We stringently make complete arrangements for the vigil examination of the inputs used for the products. By this, we are capable of bringing forth reliable products that are presented after complete inspection and examination by the experts. We offer a variety of payment methods to our customers so that they can pay as per their convenience while focusing on the core trade. Our Steam Flow Meter is applicable for measuring flow rates of saturated and superheated steam in closed conduits.

• Medium: gas,liquid,vapor
• .Accuracy: Liquid Gas 1% Steam 1.5%
• Temperature: -20oC to +350oC
• Measure: Liquid Gas Steam
• inside nominal diameter (mm): 25,40,50,65,80,100,125,150,200,250,300,(300
• nominal pressure (MPa): DN25-DN200 4.0(>4.0 order by agreement),DN250-DN300 1.6(>1.6 order by agreement)
• medium temperature (°C): piezoelectric type:-40
• noumenon: 1Cr18Ni9Ti,(order by agreement if need other material)
• vibrating acceleration: piezoelectric type:0.2g     capacitance:1.0
• range: ±1%R,±1.5%R,±1FS;plug-in:±2.5%R,±2.5%FS
• Range degree: 1:6
• service voltage: sensor:+12V DC,+24V DC;transmitter:+12V DC ,+24V DC;battery supply feed:3.6V battery
• output signal: square wave pulse (non- battery supply feed):high level≥5V,low level≤1V;current:4
• loss coefficient: JB/T9249 Cd≤2.4
• anti-explosion sign: Ben-an type:ExdⅡia CT2-T5 anti-explosion type:ExdⅡCT2-T5
• Protection grade: ordinary type IP65     dive type IP68
• environment condition: Tem-20°C
• transmission range: three-wire system flow sensor:≤300m,electric sign of two-wire system transmitter (4

• Accuracy: is ± 1%

Steam flow meter a direct reading of FIVE process parameters at the same time. Low maintenance, easy installation, and great configuration flexibility. Product mass flow measurement accuracy is ± 1% of rate for liquids and 1.5% of rate for gases and steam over a 30:1 range.

For all types of Flow Measurements TEMP TECH manufactures Flow elements to suit to the requirements of the clients. The Bore diameter (Sizing) calculations are computerized and done in house as per ISO-5167 BS- 1042. Flow elements wherever required are individually calibrated and supplied. The calibration is done at FCRI IIT and calibration certificates are provided.

• Features: Precise , Compact design, Reliable.

• Blue: White

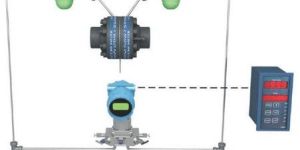

These meters are based on the principal of differential pressure generated by Orifice element. Designed as per ISO5167/BS1042. On line density compensation delivers very accurate results. Various Types of IBR/Non IBR valves for isolation and drain. Various Sizes of Orifice Assemblies with or without IBR Certificate. Complete System is Engineered to suite your requirements. Highly Reliable and Repeatable System; No Moving Parts. Easy for Calibration.

To have complete control of the utilities in the plant, it is very important to measure & monitor their consumptions. Steam being the one of the costly utilities in the process plant a proper measuring system must be in place. Unless & until we monitor, we cannot optimize its usage.
