Steam Separators Dealers

• Material: Mild Steel
• Shape: Cylindrical
• Color: Black
• Condition: New
• Finishing: Coated
• Pattern: Plain
• Feature: Durable, Fine Finished, High Strength, Low Maintenance

Condensate pipe carries approximately 90% (by volume) of flash steam, and 10% of condensate. This bi-phase condition occurs immediate downstream of the trap or discharge orifice. To recover the flash steam, the bi-phase fluid has to be separated into condensate and flash steam. As the pressure is low, the separation method cannot allow much pressure drop, but must separate the two phases efficiently, so that the flash steam is dry enough to use.Heating of feed water with the help of flash steam generated from boiler blow down. In continuous blow down system, especially where blow down rates are high as a result of poor feed water quality, Flash Separators can be used to recover energy from blow down. This can improve boiler efficiency substantially, and increase the steam generation of the boiler. (Every 6 degree C rise in feed water temperature results in 1% fuel saving.)

Valsteam Adca provides a complete range of steam traps using different materials, from DN15 to DN 150, designed for pressure up to 80 bar and flow rates of over 100,000 Kgsh.

Forbes Marshall moisture separators effectively remove the moisture from steam ensuring the highest dryness fraction at the outlet. These moisture separators are available with IBR test certifications if required. Forbes Marshall offers a wide range of moisture separators in different materials and a large variety of sizes. Thorough engineering and precise manufacturing ensure complete removal of entrained moisture particles. Moisture separators can be cast or fabricated as required.

• Finishing: Polished
• Material: Cast Iron
• Capacity: 10-7500 cfm
• Surface Treatment: Galvanized
• Orientation: Vertical
• Rotation Speed: 16300 rpm

We are one of the well-known Steam Separators Manufacturers, Exporters and Suppliers, based in India. Since moisture contents are harmful for the life of turbines, the industrial grade Steam Separators provided by us are extensively used to segregate water and moisture out of steam to make it dry and worthy of passing through turbine. Specially designed by experts, these Steam Separators are surely the best choice available in the markets. Highlights Excellent quality Customized Precisely engineered Long life Note : IBR & Third party inspection undertaken.

Steam Separator are available in various sizes. Our steam separators also finds usage in saturated steam lines for separation and removal of moisture formed due to the heat loss. These steam separators are offered in different forms and are as simple as a baffle, which uses the inertia caused by a direction change. Cyclone separators & steam dryers are its integrated parts.

• Material: Cast Iron
• Capacity: 10-7500 cfm
• Rotation Speed: 16300 rpm
• Surface Treatment: Galvanized
• Brand: Lotus Boilers
• Orientation: Vertical

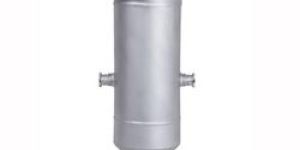

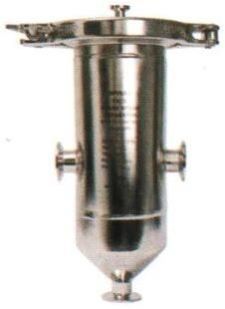

Clean Steam Moisture Separator Forbes Marshall clean steam moisture separator are ideal for removing moisture from clean steam systems.

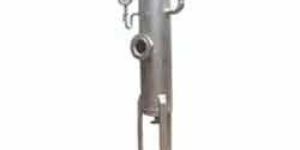

The steam is used in the process plants at various pressures depending upon the temperature requirements. The condensate from the high pressure steam when comes to low pressure, some part of the condensate get evaporated which is called as flash steam. Recovering the maximum possible flash steam back to the feed water tank reduces the fuel consumption of steam boiler. Flash steam has substantial amount of heat which is ignored & vented to atmosphere in most of the process plants. The percentage of flash steam generated from condensate is lower but the heat content of flash steam is high. A properly designed flash steam separator can separate the maximum flash steam from the high pressure condensate & send it back to the feed water tank where it gets mix with the feed water increasing its temperature. Higher the steam pressure used in equipment higher amount of flash steam will be generated from condensate.

Formation of flash steam Flash steam is produced when high pressure condensate is discharged to a lower pressure. The word ‘flash’ describes the way it is formed. At atmospheric pressure, water boils at 100 Deg. C. Inside steam piping or any pressurized vessel, steam is generally utilised at a pressure above the atmospheric pressure.

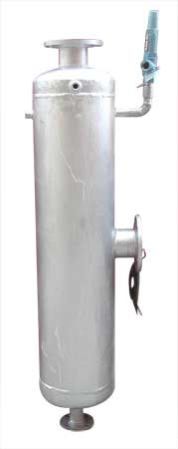

We are offering flash steam separator. We are a renowned manufacturer and supplier of flash steam separator that is known for high precision and serve the demands of the diverse industries. Fsrs is manufactured using quality components to ensure durability as well as quality. features : low separation velocity designed in accordance with ibr code durable ibr certified versions available on request superior build quality and parts applications : pharmaceuticals textile industry chemical industry paper plants

We are counted among the foremost Manufacturers and Exporters of an exhaustive array of Steam Separators that finds extensive usage in boilers for the purpose of separating a mixture of vapor from liquid phases of water. Moreover, our Boiler Steam Separators are also used to separate and remove moisture which is formed due to heat loss. We have the capability of offering our accurately designed Modular Steam Separator in varied sizes, capacities and specifications as per the customized requirements of our customers.

Purpose designed for flash steam separation, Manufactured as per Pressure Vessel Design Codes, Low separation velocity ensures steam dryness, Safety Valve and Automatic Vacuum Breaker included, Discharge Steam Trap Assembly Level Control Valve included.

Even in the cleanest and best designed clean steam systems, moisture entrainment is possible. This might result in unacceptably low dryness fraction, non-compliance of critical sterilization standards, damage to control valvesinstrumentation and overall low efficiency of the system.

• Maximum Working pressure: 10.5Kg/cm2 at 180Deg C

Condensate when discharged from higher pressure to lower pressure, the difference in the sensible heats at the two pressures causes certain amount of Condensate to again convert to Steam known and referred to as Flash Steam. This is as good as dry steam, albeit at lower pressure, and can be utilized as such.This separation can be done by allowing the Hot condensate to discharge into a vessel of a pre determined volume, to get the desired amount of condensate and Flash at a specific pressure. This vessel is known as a Flash vessel.

• Brand Name: Thermax
• Material: Carbon steel
• Type: Steam Separator
• Model: Steam Separator - PN 25
• Max Working Pressure: 25,21 (Steam),17 Air
• Max Working Temperature: 228,217,50 Degree C

• Brand Name: Thermax
• Material: Carbon steel
• Type: Steam Separator
• Model: Steam Separator - PN 25
• DN: 15-20-25-32-40-50 65-80-100-125-150-200
• Max Working Temperature: 228,217,50 Degree C
• Connection: Flanged

Principle :: The flow velocity of the steam, air or gas is significantly reduced as it enters the body and a series of baffles change its flow direction several times. The relatively heavy water droplets impact on the internal baffles and are accumulated. Gravity allows the accumulated water droplets and other foreign particles to fall to the drain and removed from the system using either a steam trap, or when used on air or gas distribution system, a liquid drainer.    :: Body Material :: Cast Iron (ASTM A48 Cl 30) Ductile Iron (DIN 1693 GGG 40)    :: End Connection :: Screwed to BSP, BSPT, NPT Flanged to ANSI, DIN, BS

Steam Separator is used to remove moisture content from the steam that is harmful for the life of turbines. This industrial Steam Separator is used to segregate water content out of steam to make it dry and make it capable of passing through turbine. Steam Separator or steel moisture separator, offered by us, is kept under ibr/3rd party inspection. Moreover, our Steam Separator is customized as per requirements of the customers.
