Stoppering Machine Dealers

• Accuracy: ± 1%
• Direction: Left to Right
• Production Rate: Up to 120 fills/ Min for Single DoseUpto 60 Fills / Min for Double Dose
• Fill Capacity: 2ML to 50ML for Single Dose (with the help of Change Parts) (for 100 ML Filling double Dosing is Required)
• Syringes Available: 2ML to 10ML10ML to 50ML
• No. of Syringes: Four
• Electrical supply: 1.5 HP
• Power Requirement: 440 Volts, 3 Phase (4 wire System) 50 Hz
• Height of Conveyor: Adjustable from 800 to 850 MM
• Dimension: 3087 MM (L) X 837 (W) X 1800 (H)
• Net Weight: 650 KGS. (Aprox.)
• Gross Weight: 900 KGS. (Approx.)

• Brand Name: ASHIRVAD
• Model No.: AIAILF-120 / AIAILF-240
• Machine Direction: Left to Right.
• Machine Dimension: 3000 mm (L) x 1220 mm (W) x 1680 mm (H)
• Production Speed: 120 to 240 Vials / Minute.
• Power Characteristics: 440 Volts/3 Phase/50 Hz./ 1440 RPM (Four Wire System)
• Machine filling range: 2 ml. to 50 ml. (With the Help of Different type of Syringes)
• Machine filling range: 2 ml. to 10 ml. (6 Nos.) & 10 ml. to 50 ml. (6 Nos.)
• Filling Accuracy: + 1% in single dose.
• Container Diameter: 15 mm to 70 mm.
• Container Height: 25 mm to 140 mm.
• Rubber Stopper: 13mm, 20mm & 28mm Butyl with the help of change parts.
• Motor: 2 HP.

• Finishing: Polished
• Machine Weight: 500-1000 Kg
• Brand Name: LODHA
• Material: Stainless Steel
• Shape: Rectangular
• Driven Type: Electric

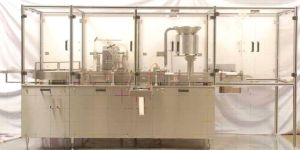

Glass Vial Liquid Filling & Rubber Stoppering Machine is suitable for Round Vials with maximum speed of 240 Vials per minutedepending on nature of Liquids, Vial Neck Size, Fill Volume and Rubber Stopper size. Machine construction in fully Stainless-Steel finish including machine frame structure. Machine with built-in Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing vials for smoother operation. All parts coming in contact with Liquids and Rubber Stoppers are made from SS 316 Materials. Machine also available with vaccumetric type Rubber Stoppering System. Special Features: Total Controls on your figure tips. Servo based filling volume adjustment. Easy to adjust filling volume from PLC screen. Easy to maintain and changing spare part, changing format form for different vial sizes. Suitable for the filling Volume of 2ml to 100ml. Volume adjustment by pic controls. Provision of Manually fine volume adjustment Higher accuracy with higher speed due to servo control continuous motion. Provision of half and full stoppering. Inbuilt Scrambler &Unscr ally or fully stopper filled vials. Vial filling machine shall be equipped with eject collect tray for un stopper Vials. Provision for inert gas purging – pre and post the filling. Rejected without stopper vial shall be store in a safe condition, Vial filling machine shall perform the following functions. Vial half stoppering. Nitrogen purging (pre and post fill). Fallen vial eject, no stopper ejects. Ambler with rejected vial collect facility. Rigid vibration free construction for trouble free performance Pick and place type stoppering machine Vial filling machine shall be equipped with pumps with an accuracy of 0.5 on the fill volume. Suitable for Plain as well as Slotted Stoppers, with the help of change parts High Precision manufactured Syringes (2 Nos.) Servo Motor driven Syringes

The Vial Filling and Stoppering Machine has been manufactured specifically to be used for filling injectable glass vials. The basic components of the vials liquid filling machine includes a turntable, conveyor belts made of stainless steel, unique eccentric pre-gassing, filling and other post-gassing aspects. The syringes are made of excellent quality 316L stainless steel. Apart from this, it consists of non-toxic tubing made of synthetic rubber of reliable and durable quality. Furthermore, the compact panel is easy to access, reach and use. Since the area between the machine that is responsible for filling the vials and the one responsible for stoppering the vials is less, hence, the risk of the contamination reduces considerably. It is very important to understand that the machine has been made to work specifically in a sterile environment to ensure that there is no contamination. These are designed for use under the laminar flow protection itself. The redesigning of the un-scrambler has been done to reduce the dead ends and increase efficiency of the spots that are difficult to clean. This is of compact cGMP model This is ideal for filling vials of 2ml to 250ml These are for piston pump/peristaltic pumps filling It provide high accuracy rate There is a system of No Vial-No filling and No Vial-Machine Stop to reduce wastage Systematic auto filling of the objects is designed through in-feed turn tables Reduction in any sort of cross contamination Easy validation processes A/C frequency setup to easily adjust the velocity Validation systems for cross check of bulk production Online mechanism Documentation through IQ/OQ Optional system of PLC with Graphical user interface

• Accuracy: ± 1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity.
• Gross Weight: 950 kg
• Net Weight: 650 kg.

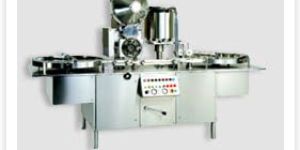

AUTOMATIC HIGH SPEED POWDER FILLING FOR INJECTABLE WITH RUBBER STOPPERING MACHINE. Legend Automatic Injectable Powder Filling with Rubber Stoppering Machine is a versatile machine suitable for Round Vials with an optimum Production Rate of various fill rates.Machine is provided with in-built Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing vials for smoother operation. The Machine is equipped with Single Head Single Track Eight Port Powder wheel, which works on Vacuum and Air Systems to fill powder in Vials.

The machine will have single hopper & single wheel each the track. Negligible powder spillage will be there between hopper & wheel. Parts / Assemblies required to be autoclaved will be easily removable and reset with user friendly assemblies.

System With Unique De-Nester System Individual PFS Filling & Stoppering For Validation Of Individual Syringe Compact Footprint 21CFR Part 11 Compliance Suitable for Aqueous & Viscous Drugs Filling Accuracy @ (+/-) 0.02ml In 0.2ml Fill Fill Volume Spectrum : 0.2 Ml To 10 Ml (Change Part Supported) Servo Driven System

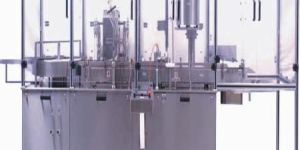

Automatic Vial Filling & Rubber Stoppering Machine is compact model uses for the filling & rubber stoppering of injectable liquid vials. Adinath offers different models of Vial Filling & Rubber Stoppering Machine suitable for pharmaceutical industry. Our Automatic Six Head Vial Filling & Rubber Stoppering Machine provides output up to 9000 vials/hour suitable for large batch production, Our Automatic Four Head Vial Filling & Rubber Stoppering Machine provides output up to 7200 vials/hour suitable for medium batch production and Our Automatic Two Head Vial Filling & Rubber Stoppering Machine which provides output up to 3600 vials/hour suitable for medium & small batch productions. Our Vial Filling Machines are easy to operate & complies as per cGMP standards. Our standard machine equipped with stainless steel piston pump for the liquid filing, further we can also provide peristaltic pump for higher filling accuracy upon specific customer request.     Salient Features     No cross contamination.   Suitable for the filling Volume of 2ml to 250ml.   Piston pump/Peristaltic pump aseptic filling.   Filling with accuracy of ±0.5-1%.   Easy to validate filling system for small/large batch production.   All Contact Parts Made from S.S 316L & framework by S.S. 304.   Variable A.C. frequency drive for speed adjustmentDigital Vial Counter for counting production output.   In-feed Turn Table/ Unscrambler for automatic feeding of objects.   On-line Mechanism.   “No Vial - No Filling" system.   “No Vial - Machine Stop" system.   IQ/OQ documentation can be provided.   PLC with Graphical User Interface. (Optional)   Process Operation     The incoming dry vial (sterilized and siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of S.S. 316 construction and both, glass as well as S.S. syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided

• Warranty: 1 year manufacturing warranty
• Voltage: 440 volts
• Usage: Liquid
• Certification: ISO 9001 2008
• After-Sales Service Provided: Engineers available to service machinery overseas
• Brand Name: Adinath
• Packaging Details: Product & transport worthy packing
• Weight: 250 kgs.
• Dimension(L*W*H): 2000mm(L) x 850mm (W) x 1680mm (H)
• Model Number: ALVF-120
• Supply Ability: 5 Unit/Units per Month

Vial Filling With Rubber Stoppering Machine With Diving Nozzles. The Unit Is Made Compact, Versatile And Enclosed In Stainless Steel Elegantly Matt Finish Body, Consists Of Delrin Conveyor, Reciprocating Nozzle With Self-centering Devices & SS Syringe.

• Model No: 3000 Syringe/hr.
• Output: 3000 Syringe/hr.
• Filling ht.: 775 - 825mm adjustable
• Electrical rating: 4.1. 230v. 50 Hz. 4.2. 2 HP, 3 Phase, 440V. 50Hz
• Overall dimensions: 1200mm (L) x 750mm (W) x 1200mm (H)

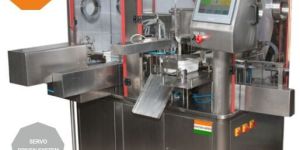

Monoblock pre Filled Syringe filling and Stoppering machine Model - CPPFS is very compact and elegant PLC based GMP model for automatic filling and Stoppering operation of pre filled syringe. Operator has to keep a nest (tray) of 100 pre filled syringes over the SS jig. Then he has to put a jig to filling magazine and start the machine to filled syringes.  Operator has to keep a nest (tray) of 100 pre-filled syringes over the SS jig. Then he has to put a plugs tray with suitable stoppers over the SS-316 plug tray. Then after he has to close the evacuation and Stoppering chamber. Now he can start the machine. Automatic Filling cycle start one by one as per the programmed Stoppering cycle mentioned as under. 100 stoppers are plugged into the pre-filled syringes precisely after vacuum hold cycle. Now last cycle of nitrogen flushing with vacuum break completes the Stoppering operation. PROGRAM CYCLE FOR EVACUATION AND STOPPERING   Cycle Operation 1 Vacuum evacuation in the chamber 2 Nitrogen Flushing. 3 Vacuum Evacuation repeats. 4 Nitrogen flushing repeats. 5 Vacuum creation with hold. 6 Plunging of stopper inside the pre-filled syringes 7 Nitrogen purging cycle with Vacuum break.   SALIENT FEATURES:   Model : PFS - 05 is a compact, elegant and matt - finished encompassed with stainless steel (SS-304) Perfect synchronization of PLC based cycle, filling stroke and Syringes to fill volume for 1ml to 5ml Compact and feather-touch MMI control panel for easy control of the machine operation The machine is equipped with easily adjustable leveling legs so foundation is not required. Nitrogen filter is provided pre-filter 0.5u. and final filter is 0.2u. air ex. Is 0.2u.   UTILITIES   Sterile air and nitrogen Important Requirements 1 Vacuum pump is to be installed outside the sterile area. 2 Silicon tubes are under the scope of customer 3 Water line is required for cooling of vacuum pump chambers PERFECT SYNCHRONIZATION OF PLC

Salient Features Inbuilt Scrambler & Unscramble. 24". Suitable For 2 ml to 100ml vial. No vial no filling. No stopper machine stop. Rigid vibration free construction for trouble free performance. S.S. Elegantly matt-finished body. Elegant and easy control panel for total control on operation. Minimum change over time from one size to another container or fill size. Drip Trey provided.

Direction;Left to Right,Production Rate ;Up to 100 to 120 VialsMin. (For 5ml. fill size),Fill Capacity ;0.5 ML to 100 ML ( Up to 50 ML single dose & for 100 ML double dose),Power Requirement;415 Volts, 3 Phase (4 Wire System), 50 Hz.

Automatic Four Head Volumetric Motion type Liquid Vial Filling with Vacuumetric Rubber Stoppering Machine Model LF-120 is suitable for Round Vials with maximum speed of 120 Vials per minute depending on nature of Liquids, Vial Neck Size and Fill Volume. Machine construction in fully Stainless Steel finish including machine frame structure. Machine with unique motion filling system, Filling Nozzle moves alongwith Vials during the Liquid Filling Process without stoppage of Vials and also with time tested Vaccumetric Rubber Stoppering System for positive placement of Rubber Stopper on Vials at higher speed. All parts coming in contact with Liquids and Rubber Stoppers are made from SS 316L Materials.       TECHNICAL SPECIFICATIONS Vial Diameter : 15mm to 50mm* Vial Height : 75mm Maximum* Rubber Stopper Diameter : 13mm and 20mm Dry or Wet Grey Butyl Fill Range : 1ml to 50ml with help of Change Parts / Syringes Accuracy : +/- 1% Depending on Liquid with Single Dose Electrical : 220 VAC Single Phase Power Supply Power : 3.0 H.P. Speed : upto120 per minuite, Syringe Fill Range: 0.1ml to 1ml, 1ml to 5ml, 2ml to 10ml and 10ml to 50ml Conveyor Height : 800-850 mm Overall Dimensions : 1200 mm (L) x 1100 mm (W) x 1400 mm (H)

• Power Supply: Three Phase, 440V, 50Hz (Stabilized)
• Working height: 850mm ± 50mm

Machine is a compact, elegant and matt (Dull) finished encompassed with stainless steel (SS 304) Viscous substance (1 ml to 3 ml).Accurately with the help of change parts Perfect synchronization of filling and stoppering cycles through pneumatically controlled stoppering mechanism.Very easy & accurate electronic based Volume setting of different prefill syringes.Diving system with the design of Germany make ball screw and stepper motor control which has no vibration and very smooth kind of filling and system itself take care that, filling material must be fill centrally in the syringe

• Model: PFS-SA-10.
• Out put: 2600 to 7200 Syringe/hours.
• Filling ht.: 775 – 825mm adjustable.
• 775 – 825mm adjustable.: 775 – 825mm adjustable.

Pre Filled Syringe Filling & Stoppering Machine Model PFS-SA-10 is very compact and elegant PLC. Based cGMP model for automatic filling and Stoppering operation of pre filled syringe.

• Diameter: 15mm to 70mm
• Vial Height: 25mm to 140mm
• Overall Dimension: 1900mm L x 800mm W x 1680mm H, 2000mm L x 850 W x 1680mm H

The incoming dry Vial (sterilized and siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of SS 316 construction and both, glass as well as SS syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided. On same station the Filled Vial pick the Rubber Stopper from Vibratory Bowl to the help of Delivery Suite and place the Stopper on Vial using the Roller pressure. The Vial is move for the Next Operation.

AUTOMATIC High Speed LIQUID Vial Filling & VACUUM Rubber Stoppering Machine MODEL: AHVF 4, 6 & 8 Description: High Speed Automatic Vial Filling & Rubber Stoppering Machine suitable for the filling & rubber stoppering of glass vials. Our Automatic Vial Filling & Rubber Stoppering Machine is widely uses in SMALL & large volume injectable preparations. Machine consist automatic feeding, filling, bunging & ejection system all complies as per cGMP requirements. Automatic Vial Filling & Rubber Stoppering Machine can be attached to Vial Washing Machine and Vial Cap Sealing Machine in order to complete online Sterile Vial Filling Line. Machine complies as per GMP requirements. Our standard machine equipped with stainless steel piston pump for the liquid filing, further we can also provide peristaltic pump for higher filling accuracy upon specific customer request. Salient Features: • Suitable for the filling Volume of 2ml to 250ml. • Piston pump/Peristaltic pump aseptic filling. • Filling with accuracy of ±0.5-1% • Filling with accuracy of ±0.5-1%. • All Contact Parts Made from S.S 316L & framework by S.S. 304. • ariable A.C. frequency drive for speed adjustment. • Digital Vial Counter for counting production output. • In-feed Turn Table/ Unscrambler for automatic feeding of objects. • On-line Mechanism. • “No Vial - No Filling” system. • “No Vial - Machine Stop” system. • IQ/OQ documentation can be provided Process Operation: The incoming dry vial (sterilized and siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of S.S. 316 construction and both, glass as well as S.S. syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for 'No Vial-No Filling' operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers six vials together on conveyor for rubber stoppering operation.
