Stud Anchor Dealers

• Stainless Steel: SS 304, SS 304L, SS 304H, SS 310, SS 310 S, SS 330, SS 316L, SS 321, SS 321H
• Incoloy: Incoloy 800 ( UNS 8800 ), Incoloy 800H ( UNS 8810 ),  Incoloy 800HT ( UNS 8811 ), Incoloy 825 ( UNS 8825 )
• Inconel: Inconel 600 ( UNS 6600 ), Inconel 601 ( UNS 6601 ),  Inconel 625 ( UNS 6625 ), Inconel 718 ( UNS 7718 )
• Hastelloy: Hastelloy C-276 ( UNS 10276 ), Hastelloy C22 ( UNS 6022 ),  Hastelloy C-4 ( UNS 6455 )
• Others: Any other Metal Grade as per Customers requirement

Refractory Anchors For Insult Twist Refractory Studs MATERIAL OF CONSTRUCTION

• Material: Free Cutting Brass CZ121
• Capacity: 1000000 Pieces / Month
• Certificate: ISO 9001:2008
• Place of Origin: Jamnagar

Product description: brass pool anchor measure 1316 diameter x 1-58 tall and are the same barrel size for all manufacturers. Actual screw thread may vary from one manufacturer to another. anchors ship complete with barrel and screw. Brass wood deck anchor come complete with brass screws for real wood and composite pool decks. Wood deck anchors can be surface mounted or recessed with a forstner bit for a flush mount finish. Brass concrete anchor comes from size m5 to m16. Used with concrete surface to use with heavy load. Brass anchor flange can be used to cover concrete chipping around anchor holes or for added strength.

• Type: Studded
• Material: Brass
• Certification: ISI Certified
• Color: Golden
• Finishing: Polished
• Feature: Corrosion Resistance, High Quality, High Tensile

Stud anchors wedge nuts are also known as wedge anchors, stud anchors are one piece expansion bolts with universal style collars for heavy duty fastening into stone or solid concrete. Stud anchors come with nuts and washers.

Sourced from renowned manufacturers, our range of Stud Anchor Y Anchor V Anchor is highly durable. These are made using stainless steel and are offered in various forms such as v and Y as per the requirements of the clients. Our range can be availed in various grades such as 304, 316, 310, 321 and 330.

We manufacture SS Stud Anchor & Washer for Ceramic Fiber Holding in Industrial Furnaces. These Ceramic Fiber and SS Stud Lining method is used now a days in place of conventional Ceramic Brick Lining method. These studs are easy to install, less bulky and extremely light in weight as compared to Ceramic Bricks. SS Stud Anchor and washer can be used for any depth of Insulation. Washers are used for locking the anchor. These Studs are manufactured in Qualities : SS 304, SS310, SS 316, Inconnel 600 and also as per customers requirement in any other material. We manufacture these Stud in 3 types :   Size – 6 x 3 x length as per requirement.   Size – 8 x 4 x length as per requirement   Size – 5mm Dia to 8mm Dia x length as per requirement. We also manufacture Ceramic Cuplock used for locking purpose of SS Stud.

• Stainless Steel: SS 304, SS 304L, SS 304H, SS 310, SS 310 S, SS 330, SS 316L, SS 321, SS 321H
• Incoloy: Incoloy 800 ( UNS 8800 ), Incoloy 800H ( UNS 8810 ),  Incoloy 800HT ( UNS 8811 ), Incoloy 825 ( UNS 8825 )
• Inconel: Inconel 600 ( UNS 6600 ), Inconel 601 ( UNS 6601 ),  Inconel 625 ( UNS 6625 ), Inconel 718 ( UNS 7718 )
• Hastelloy: Hastelloy C-276 ( UNS 10276 ), Hastelloy C22 ( UNS 6022 ),  Hastelloy C-4 ( UNS 6455 )
• Others: Any other Metal Grade as per Customers requirement
• Stainless Steel: SS 304, SS 304L, SS 304H, SS 310, SS 310 S, SS 330, SS 316L, SS 321, SS 321H
• Incoloy: Incoloy 800 ( UNS 8800 ), Incoloy 800H ( UNS 8810 ),  Incoloy 800HT ( UNS 8811 ), Incoloy 825 ( UNS 8825 )
• Inconel: Inconel 600 ( UNS 6600 ), Inconel 601 ( UNS 6601 ),  Inconel 625 ( UNS 6625 ), Inconel 718 ( UNS 7718 )
• Hastelloy: Hastelloy C-276 ( UNS 10276 ), Hastelloy C22 ( UNS 6022 ),  Hastelloy C-4 ( UNS 6455 )
• Others: Any other Metal Grade as per Customers requirement

• Color: Golden
• Size: 1/2 Inch to 5 Inch
• Material: Brass
• Technique: Hot Rolled
• Rust Proof: Yes

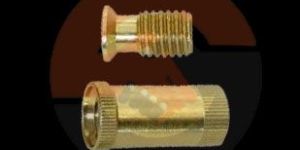

Brass Stud Anchors technical data and specifications as below tables, Any kind of Brass Stud Anchors can be developed and supplied exactly as per customer specifications and requirement. Brass Stud Anchors  Specification:- Internal Tapering Module Which Enables The Anchor To Expand And To Auto Locks The Suspension Rod And Gets Into Position. It Has Larger Bearing Area and Functions Also As A Socket, Suitable For Solid Brick, Light Concrete Hollow Core Concrete Panels and Timber. Brass Stud Anchors Are Also Useful With Light Weight Rail Fixings. The Body Is Knurled For Improved Performance Fixture Can Be Removed And Replaced. Thread Size M4 M5 M6 M7 M8 M10 M12 M14 M16 Outside (Mm) 5 6.5 8 8 10 12 15 18 20 Full Length (Mm)15 15 20 23 28 28 32 38 43 50 Safe Static Load Tension (KN) 0.02 0.87 1.10 1.30 1.40 2.20 2.30 2.50 2.85 Material:- Free Cutting Brass IS 319 Types (I) Free Cutting Brass as per BS 249 Types (I) High Grade Free Cutting Brass. Any Special Brass Material Composition as per customer’s requirement Installation:- Drill a Hole as Per the External Diameter of Brass Stud Anchors Hammer the Anchor into the Hole Take a Required Bolt for Screwing Fix It with Suitable Spanner Brass Stud Anchors  Process:- Embossed Surface With Two Strips And Four Segments Corrosion Resistant And Hence Can Be Used In All Environments Embossed Surface Provides Extra Grip Inside Conical Shape Ensures Equal Expansion Of Segments While Screwing Application:- Brass Stud Anchors  Are Multifaceted Components And Are Able To Work Any Surface Like Brick, Concrete, Metallic Or Timber Based Surfaces. Finish:- Brass Stud Anchors  Come Primarily In Natural Brass; However They Can Be Coated With Chromium Nickel, Copper Or SS For Extra Strength And Looks. All Kinds of Brass Stud Anchors  Can Be Developed as per Customer’s Specifications.

Features and Application: Feature a Bolt body and pre-assembled expander plug. Fast and Easy to install. Bottom Bearing design is ideal for jacking and levelling application. Hammer driven expansion design eliminates torque requirements, for dependable holding capacity. Commonly used to anchor equipment to concrete slabs. The external studs make for easy jacking and levelling for easy cleanup in industrial setting. Available with external threads for easy equipment setting. Type of fixing: Pre Fastening, Through Fastening and Externally Threaded. Raised Impact section prevents thread damage during installation. Two embedment depths for a wide range of fastening thickness. Used in all indoor and dry conditions. Used in applications ranging from light duty to heavy duty fastening.

• Brand Name: Canco Fasteners
• Material: Stainless Steel, Carbon Steel, Copper, Iron, or according to your requirement
• Length: 10 mm to 300 mm
• Standard: ISO, DIN, ANSI, JIS, BS
• Place of Origin: India

We are the leading manufacturer and exporter of stud wedge anchor. Size: 14 inch 516 inch 38 inch other details: din: as per required

They are used in various industrial applications. These are available at a cost effective price. These anchors are available various specifications in different sizes based on the requirement of the customer.

With the help of our skilled professionals, Piyush Steel manufacture and supply a large assortment of Stud Anchors, which is available in different dimensions, specifications, grades and patterns. These products are used in different marine applications, chemical plants, paper plants, coastal industries and food industries. Our products are highly acknowledged for their fine finishes. Features: * Corrosion resistance * Stress proof * High strengths

• Size: Various
• Packaging Type: Packet
• Grade: SS 202/ 304
• Material: SS 202 / SS 304 / MS
• Surface Finishing: Polished
• Brand: Goyal Fasteners

Stud anchors, sleeve anchors, lag shields, machine screws, drop in anchors, double expansion systems, spring toogle wings, conical anchors, nail drive anchors, anchor bolts, and many other anchoring products with best quality.

brass round stud anchor, brass drop anchor, brass wood anchors

brass stud anchor, brass extrusions, Pipe Fitting - 05, Pipe Fitting - 04

Brass Round Stud Anchors, transformer connectors, PVC Cable Gland Shrouds

stud anchors, lightweight anchors, chemical anchors, chemical mortars
