Sump Pump Dealers

• Brand Name: Kirloskar
• Delivery Size: up to 200 mm
• Capacity: up to 2200 m³ /hr
• Head: up to 150 m
• Temperature: up to (-) 50 °C to 350 °C

These pumps are developed for process Applicationss and are generally conforming to API 610. These are gland packed or mechanically sealed. These pumps are ideal for air conditioning, condensate extraction, distilleries, edible oil sugar and textile. Delivery size ranges from 20 mm to 200 mm.Features Conforming to DIN 24256 and ISO 2858 Back pull-out design Generally conforming to API 610 Gland Packed / Mechanical Seal Also available in vertical execution Applications Air-Conditioning Condensate Extraction Distilleries Edible Oil, Sugar, Textile and Process Industries Water Treatment Plants

• Country of Origin: India
• Type: Sump Pump
• Application: Ground Water Supply
• Color: Blue
• Voltage: 220V
• Fuel: Electric
• Condition: New
• Available Type: SH,KPDS

• Country of Origin: India
• Voltage: 220V
• Fuel: Electric
• Pressure: 30-40bar
• Automation Grade: Automatic
• Application: Transfer
• Capacity: 0.50 m3/hr to 150 m3/hr
• Head: 100 metres (max)

Sump Pump is used for transferring hot liquids which might create cavitation problems with horizontal centrifugal pumps and other liquids with slurry(where Horizontal Centrifugal Pumps' mechanical seals might fail & start leaking, here the pump itself is immersed in the tank & thereby removing the need for a mechanical seal.) These Pumps are widely appreciated for their robust design, energy efficiency and durability. We manufacture these Pumps using superior quality raw materials that are procured from the trusted vendors in the market. This pump can be customized according to the specifications of the customers. We offer these at affordable prices in the market.   MATERIAL OF CONSTRUCTION Pump Casing/ Back plate : C.I. / SS304 / SS316 Impeller : C.I. / SS304 / SS316 Shaft-Sleeve : C.I. / SS304 / SS316 Base plate : M.S Shaft Sealing : TEFLON / GRAFOIL PACKINGS

• Country of Origin: India
• Series: MTV
• Capacity: Upto 500 M3/Hr
• Head: Upto 60 Mtrs
• Temperature: Upto 80°C
• Casing Pressure: Upto 16 Bar
• Material: Stainless Steel & Nickel Alloy

Vertical single stage sump pump compliant with ISO 5199 and optional features with API 610 bearing spans.The vertical sump pump incorporating best in class hydraulic design for efficient and reliable service. The vertical sump pump can be customized to meet a wide range of needs. Compliance  with ISO 5199 and available in wide range of hydraulic wet-ends and a wide variety of materials of construction. It is also available with multiple mechanical seal options and sump depths.Pump Description : Single stage vertical centrifugal pump Radially split casing with flanged connections Cast iron or cast steel motor support assembly Column and discharge pipe assembly, Sole plate mounted Enclosed impeller, Open and Semi Open impeller based on application need. Bearing housing with bronze guide bearings (optional materials available) Labyrinth oil seal at bearing housing (optional design) Grease lubricated thrust bearing (standard) or oil lubricated thrust bearing (optional) Gland Packed / many optional mechanical seal types available Maximum of 4 m sump depth can be offered. Benefits : Back Pull-Out design for ease of maintenance allows easy maintenance. Optimum Efficiency Various materials of construction available Durable Mechanical seal Compact design Standards Compliance : Testing Standard: ISO5199, HI standards Construction standard: ISO2858 Bearing Housing Lubricated : Thrust Bearing : Grease Lubricated Oil Lubricated Oil mist lubrication technologies Radial Bush Bearing : Product Lubrication Optional fluted rubber with rigid shell, bronze, carbon and other special alloys are available. Petro-coke cartridge is also available. Material of Construction : Stainless Steel SS316 Stainless Steel SS304 Duplex Stainless Steel Super Duplex Stainless Steel Nickel Alloy

• Color: Blue
• Automatic Grade: Automatic
• Application: Industrial
• Voltage: 220V
• Warranty: 1 Year
• Country of Origin: India
• Max Flow Rate: 1500m3
• Head: 10 Meter

• Impeller Type: Semi Open , Closed , Fully Open

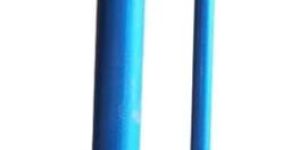

LEAKLESS Manufacturer Vertical Submerged Pumps In CF8M for leak free performance where leakage is not allowed. No mechanical seals or glands , So no breakdown of pump. Operating Range For VERTICAL SUBMERGED PUMP Sump Depth Up to 4.5 Mtr Capacity Up to 100 m3Hr Head Up to 100 Meters Speed 1450 to 2850 RPM Pump Size-DN 19mm To 150mm Temp Up to -20° C - +150° C

• Driven Type: Electric
• Color: Blue
• Certification: CE Certified
• Type: Automatic
• Warranty: 1 Year
• Country of Origin: India

Applications: Liquids with solids in suspension Sludes & pulpy material Industrial waste handling Liquid containing fibrous & powdered material Coal tar Effluent

Obtain quality-grade verticle sump pump from us at reasonable prices, as we are reckoned among renowned suppliers of the product. Since incorporation, our organization has sustained its procedure to make delivery within the postulated time. Therefore, we assure to distribute goods to patrons' doorsteps on the day promised.

Vertical Sump Pump can be used in any installation or specially where the saving of space is important factor and most important where liquid is difficult to lift because of nature like temp, corrosiveness etc. These pump are designed for use where the liquid handled to be is of highly corrosive. Nature or where non - adherence of product or zero metallic contamination is must. These pumps are equally ideal for continuous or intermittent service for handling Corrosive as well as ultra pure chemicals without fear of corrosion or contamination. High Temperature services : Maximum working temperature is 110 C / 200 C. Length : Pumps lengths available from 1 to 12 with flow rate up to 50m3/h or 120 meter head. Higher capacities and head available on request and even multistage pump can be also made. Models : Available in conventional or tailor-made configuration. Several models such as suction extension with float switch, duplex pumping station with float switch (auto on/off device) also available. Application Fields : These pumps are in extensive use in the fields of : Pollution Control Filtration Transferring Corrosive Chemicals Slurries Bio gas plants Sewage Waste water treatment plant Phosphoric Acid Plant. H,PO, H2SIFs, H2SO4, HF And Their Mixtures Gas washing plant Scrubbed liquids containing, F,CL,SO2, Ammonia Water treatment plant Any types of acidic water lifting M.S Vertical pump are used for transfer of sulphuric acid 98 %. OLUM, CLOTO, NEPTHA

• Color: Blue
• Pressure: Up To 6 Kg/cm2
• Certification: ISO 9001- 2015
• Type: vertical type
• Capacity: Up to 325 M3 /hr
• Head: Up to 60 Mtr
• Discharge Size: 25 mm to 125 mm
• Temperature: 60° C
• Pump Length: Up to 4 Mtr.
• Speed: Up to 3500 rpm
• M.O.C: C.I C.S, SS-304/304L. SS316/316L, Bronze,Alloy-20. CD4MCU, Hastelloy B & C etc.
• Pump RPM [Speed]: 1440rpm

• Country of Origin: India
• Type: Vertical Sump Pump
• Shape: Vertical
• Certification: ISO 9001:2008
• Color: Green
• Condition: New
• Maximum Head Pressure: Up to 150 Mtr
• Maximum Flow Rate: Up to 500 M3/hr
• Design Pressure: 16 Bar
• Maximum Temperature Capacity: Up to 200֯ C
• Impeller Type: Semi Open / Close
• Speed: 1440/2880rpm
• Material: Cast Iron, Cast Steel, Wcb, Ss-304/l, Ss-316/l, Alloy 20, Hastelloy C
• Range: DSP

• Shape: Vertical
• Color: Black
• Automatic Grade: Automatic
• Application: Industrial
• Type: Vertical Sump Pump
• Country of Origin: India
• Motor Phase: Three Phase
