Tablet Counter Dealers

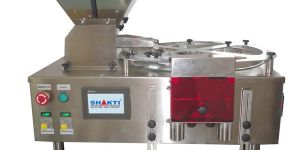

Semi Automatic capsules / tablets digital counting and filling machine is ideal for small / large scale pharmaceutical units. The machine is compact, occupies minimum space, simple to operate and easy to maintain. Operation : Filled capsules / tablets are fed into the hopper. The amplitude of vibration can be controlled to synchronize and achieve the required counting speed. The capsules / tablets move along the periphery and are aligned to enter the adjustable guide channel in single line along the track to pass through the beam of Photoelectric Fiber Optical Sensor / Scanner at the filling station. The photoelectric scanner counts the pre-determined quantity of the capsules / tablets and stops automatically until the next container is placed underneath the Filling nozzle. The machine is  incorporated with two filling nozzles for continuous counting and filling. One bottle is always in place for filling. The operator simply picks up a filled bottle and replaces it with an empty bottle. A No-Bottle-No-fill sensor is provided at the bottle holding station. Once the  bottle is filled, the machine stops automatically.     Salient Features : Product contact parts SS 304 / SS 316 / SS 316L quality (except rotary tablet ). Photoelectric Fiber Optical Sensor / Scanner for sensing capsules / tablets. Counting speed is adjustable through variable Frequency Drive. Amplitude of vibrator is adjustable to meet counting speed. Programmable Logic Control (PLC) system with HMI enables visual display of the operating parameters besides ensuring accuracy, reliability and reduced operator fatigue. No change parts required. Glass Rotary table. No-bottle-no-fill arrangement. OUTPUT (Approx) Tablets – 1000 to 1800 per minute  Capsules – 1200 to 1500 per minute   TECHNICAL SPECOFOCATOPMS : Main Drive : 0.25 HP, 220volt, 3 Phase, 50 Cycles, 1400 RPM   Overall Dimension : 1150mm (L) x 950mm (W) x 1600 mm (H)   Net Weight (Approx) : 1050 Kg.

Harsiddh presented Automatic Electronic Multi channel Counting and Filling machine, which are counts and fills tablets, capsules, caplets, pills, soft gels and other similar products in bottles, jars and other containers. Used for tablets (any sizes and shapes), capsules (any sizes hard gelatine and soft gelatine capsules, transparent gel capsules), pills and most solid granules. Our automatic photoelectric tablet/capsule counting and filling machine is capable to count and fill any kind of tablets, capsules, caplets and pills without any change parts or accessories. The special advantage of our machine there are no change parts require for any sizes and shapes of tablets, capsules, caplets and pills. The highspeed electronic tablet/capsule counting and filling machine combines 8/12/16/24 tracks counting channels. Compactdesign with single and double track conveyor systems can improve the capacity of output. The machine is furnished with advanced sensing system which can count and fill all standard and irregular shapes and sizes of tablet, capsules, caplets, soft gels with 100% accuracy.

• Condition: New
• Country of Origin: Made in India
• Voltage: 230 V
• Capacity: 700 Pcs/ min
• Machine Type: GMP
• Material: Stainless Steel
• Brand: Pharmech
• Is It Rust Proof: Rust Proof
• Usage/Application: Tablet & Capsule Counting
• Machine Weight: 150 Kg Approx
• Machine Size: 1000 mm x 650 mm x 1100 mm
• Air Pressure: 1 Kg
• Power Source: Electric
• Material Grade: SS304
• Phase: 1
• Features: Accuracy in counting, High Performance, Variable Speed Available
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)

• Contact Parts: Stainless Steel
• Power consumptions: 0.75 KW / 1 H.P.
• Air Consumption: 40 lit/minute@ 6 bar pr.
• Power supply: A.C. 3 Phase440 V, 50 Hz Motor-1440rpm
• Feed Disc: Bakelite
• Packing Case Dimension: 1981 (L) X 1219 (W) 1016 (H) mm
• Net Weight: 290 Kg.
• Gross Weight: 425 Kg.

A unique machine to count &fill tablet /capsule in plastic /glass bottles in bulk quantity. Tablet Counting Machine gives promised capacity of fill. Each disc is designed and manufactured to count coated/uncoated tablets, hard or soft capsule. One bottle can be filled at a time through one single -track filler, one set of machine can fill four bottles at the same time which enhances the output.

• Country of Origin: India
• Type: Tablet Counting Machine
• Application: Tablet Counting
• Automatic Grade: Automatic

• Material: Stainless Steel
• Voltage: 110-220V, 220-440V
• Condition: New, Used
• Application: Laboratory
• Capacity: 0-500 Pec/Min, 500-1000 Pec/Min
• Finishing: Coated, Polished
• Driven Type: Electric
• Automation Grade: Automatic, Manual

• Certification: ISO 9001:2008
• Application: Tablet Counting
• Output: 10,000 Tablet/min
• Filling Ht: 775 - 825mm Adjustable
• Electrical Rating: 230v. 50 Hz (02nos Motor and 01 No Vibrator)
• Length: 1500mm
• Width: 600mm
• Height: 1200mm
• Item Code: YMMC_501

• The highest speed: 50 Bottles per minute
• Commonly used style: Tablets/capsule
• Bottle diameter: φ20～φ100mm
• Bottle highth: 40～240mm
• Power source: 220V-50/60Hz
• Compressed air: 0.5～0.6MPa
• Total power: 1.5 Kw

The Counter will fulfill all your needs of tablet / capsule counting and filling. It enables every possibility!     100% counting accuracy guaranteed. Having highly speed Counting quantity can be set from 3pieces to 30000pieces per bottle. The design of heavy duty stainless steel with polished welds on all horizontal surfaces prevents dust building up in operation. Seamless design prevents potential product contamination. This machine is equipped with advanced detecting system including of a dust compensator and bulit-in spike controller. The sensor adjusts its sensitivity automatically to offset the gradual accumulation of 'dust' on the sensor window. Product contact materials are all made of 316,304 Stainless Steel or PE. Auto rejection system removes incorrectly-filled containers off the conveyor and resets the correct counting amount. This machine is programmable to stop immediately when containers are incorrectly filled.     Technical Specification

• Material: SS
• Voltage: 230 V
• Application: Pharmaceutical Industry
• Brand: Pharma Seals
• Grade: Manual
• Frequency: 50-60 Hz

• Country of Origin: India
• Type: Tablet Counter
• Material: Stainless Steel

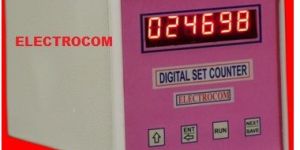

Tablet counter  offered by Electrocom  is widely used in pharmaceutical  company to display tablets , packing boxes , speed of tablet production etc. It is microprocessor based instrument which display data accurately with features like auto stop at set counts.Application Area in industries…. Ø  Pharmaceutical company Ø Tablet Machines Ø  Marble Industry Ø  Tiles Manufacturing Industry Ø  Ceramic industry Ø Food Processing industry Ø  Mineral Bottle Plant Machinery Special Features ·         Big  Size Display (1”, 2” and 4” size available) ·         Control  Output availability ·         Computer Interface to display and record production readings       Keyboard Data Entry       Microprocessor Based       Sensor  Input ::  Proximity Sensor, TTL Signal , PFC-NO

• Country of Origin: India
• Material: Stainless Steel
• Driven Type: Electric
• Warranty: 1yrs
• Automation Grade: Manual
• No Of Castor: 2 with Brake + 2 without Brake

• FEATURES: PLC system with HMI,No-bottle-no-fill arrangement.

The machine is compact, easy to operate and maintain. The photoelectric scanner at the filling station counts the pre-determined quantity of the capsulestablets and stops automatically until the next container is placed at the filling station. The machine is incorporated with two filling nozzles for continuous counting and filling.

We are offering tablet counting machine. • machine size length 1000mm ,width 650mm, height 1100mm • machine weight 150kg. Approx • machine structure stainless steel 304 • fully automatic machine (plc based) • air pressure 1 kg. • variable speed available. • electric power 230 volt, single phase tablet , capsule per mint,counting 700 pcs. (depend on table shape size)
