Temperature Calibrator Dealers

Temperature Calibrator suppliers makes highly reliable test lab standard Temperature Calibrator which operates on normally available AC Supply. Temperature Calibrator suppliers is used for Calibration and Temperature performance observation for many types of Process Control Instruments and Testing Equipments. This is very useful tool for Electronic Instrument manufacturer and R&D Units for performance verification and Quality Assurance. FEATURES Temperature Calibrator suppliers Suitable for calibration of mV,J, K, Pt100 Input / Output. Operation 9 VDC batteries size PP3. Ideal for production and R & D to observe long duration performance. Temperature Calibrator suppliers – Independent calibration facility. Temperature Calibrator suppliers – Typical Accuracy 0.1% +- 1 digit Functional description –   Power ON– This switch powers the instrument with batteries/ eliminators when switched “ON”. Select– Rotary selector switch to select required parameter mV/J Termocouple/K Thermocouple/Pt100 Mode– Source (Generation) or Sink ( Measurement) facility can be selected. mV/J/K Coarse & Fine Adjustment- Both the potentiometers are multi- Turn heliports & used to get exact value of mV/J/K. Pt100 – Temperature Calibrator supplier Pt100 simulation directly in terms of Temperature is achieved by Multi-turn Helipot.You can select the Temperarute for which  Resistance output is required. Reed the value and then feed by using READ/FEED SWITCH. Terminal – Temperature Calibrator supplier is Provided for mV/J/K (Source), Pt100 (RTD) source. Battery Eliminator : (Optional) This facility is provided in the calibrator to suit the operation on 230Vac 50Hz +- 10%.AS soon as you connect eliminator Socket,batteries get disconnected automatically & vice versa. Battery Rep. When “ Low Bat” indication appears on DPM, the discharged batteries must be replaced , otherwise the accuracy will not be achieved.For replacing battery remove side bottom plate & then slide out the bottom plate on which battery is firmly placed. Calibration Chart : With respect to Temperature suitable for Thermocouple J/K/PT 100.Temperature Calibrator Application – Temperature Calibrator suppliers used for calibration of process control instruments and systems for various industries such as cement, Chemicals, Dyestuff, Paint, Drugs, Pharmaceuticals, Sugar, Paper, Glass, Food Industries, Steel, Synthetics, Auto, Air-Conditioning and Refrigeration. As fault finding tool. Quality Assurance tool for ISO 9000, QS 2000 companies for control of inspection & measurement. suppliers.Temperature Calibrator suppliers.Temperature

Range : -40°C from Ambient to 123°C • Accuracy : ±0.3°C • Advanced – Micro-controller based Technology • Heavy Duty Portable Bench-top Model • High Accuracy, Resolution & Stability • Fast & heat cooling • 128 x 64 Graphic Display • Measurement Capability for RTD, mA & Resistance Signals • Touch Membrane Keypad • Switch Test Contact Measurement

• Type: manufacturer
• Warranty: 1 year
• Country of Origin: India
• Brand: Sansel

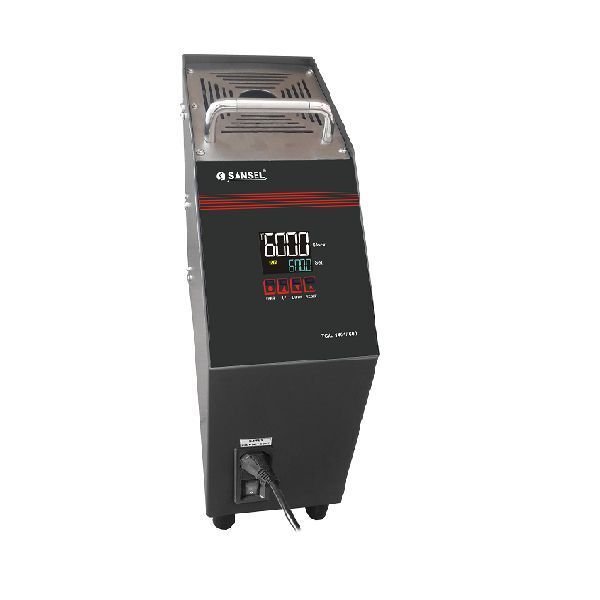

dry block temperature calibrator model                   : tcal 1401/-30 make: sansel display                 : 0.58" (upper), 0.3" (lower) 4 digit lcd display with four key range                   : -30 to 100°c resolution             : 0.1 accuracy: ± 0.3 °c stability: ± 0.1 °c dimension (l*w*h): 490 l x 178 w x 357 h power supply: 230 v ac weight: 12.5 kg

• Display Type: Digital
• Weight: . 7.1 kg / 15.7 lb
• Accuracy: CTC-1205 with internal ref. sensor . +-2 DegreeC /+-3.6 DegreeF
• Model Name/Number: Jofra CTC 1205
• Temperature Range: 100 to 1205 DegreeC / 212 to 2201 DegreeF Widest temperature range
• Power Supply: 115 V (90-127) / 230 V (180-254)
• Features: Stability +-0.1 DegreeC / Colour display
• Dimension: 248x148x390 mm
• Connection Type: Immersion Depth. 110 m
• Stem Dia: Well diameter 27 mm / 1.06 in

• Power Supply: 230 Vac, 800 W (Coil 500 W +300 W Approx )
• Size: 300(H) x 400(W) x 200(D)
• Weight: 7 Kg Approx
• Application: Temperature Controlled Portable Furnace
• Furnace Working On: 230VAC.
• Durability: Long Life

Specifications :Ceramic block of dia 65 mm , height 75 mm, With Facility Holesa) 25 mm, b) 19 mm, c) 12 mm, d) 8 mmwith air circulating fan, Max Temp. 1000 deg.CTemperature controlled by PID Controller Resolution Adjustable with range Resolution 0.1 deg C. upto 400 deg C  Resolution 1 deg C. above 400 deg. C Control Relays Solid State Relays suitable to furnace rating Stability of set temperature +/- 4 deg. C

• Application: Temperature Reading
• Weight: 0-100gm, 100-200g, 400-800gm
• Condition: New
• Display Type: Digital
• Driven Type: Electric
• Feature: Auto Controller, Durable, Heat Resistance, High Performance, Low Battery Consumption, Stable Performance

We are a leading Digital Temperature Calibrator Supplier and Exporter from India. Obtained from reliable vendors, our Digital Temperature Calibrator is precisely designed by expert engineers. These Digital Temperature Calibrators are highly demanded by the clients due to their compact designing, easy operation, and long functional life. Moreover, clients can avail Digital Temperature Calibrator at market leading rates from us. Salient Features 4 Digit LCD Display Auto Power Off (Can Disable) Accuracy +0.05% Standard Accessories Test Leads Holster Manual

Testo Thermator is flexible, accurate & mobile. The Thermator is a unique multifunction temperature calibrator made by Testa. In order to conduct temperature calibrations, the operator of the Thermator can choose between four different operating modes: liquid bath, dry block, infrared and surface. Easy and fast handling is ensured because of specific inserts, which can be easily changed with the help of removal tool supplied. Thus, a fast change from one operating mode to another is guaranteed. For the operating modes - dry block, infrared and surface, the calibration range is from -20°C to 150°C. In the liquid bath mode, calibrations can be conducted in the range of -35°C to 160°C.

• yellow: 18000

tempreture calibrator  u.s.a.

• Product Type: Temperature Calibrator
• Quality: Best
• Packaging: Finest quality packaging materials.
• Place Of Origin: Gujarat
• Min. Order Quantity: As per client requirement

The Temperature Calibrator, provided by us, is reckoned for its make. We work in close coordination with the team members and packaging professionals; they ensure that the products are packed sternly using the finest quality packaging materials. Being a quality driven firm, we source the raw material from the certified vendors only who assure us for the quality and reliability of the material.

Dry Block Temperature Calibrator   ACE Instruments make Negative Dry block Temperature Calibrators are comprehensively  utilized in Calibration labs, Pharmaceutical divisions, Thermal plants, metallurgical plants, bond plants, Fertilizers divisions, and so forth for adjustment of temperature sensors like RTDs, Thermocouples, temperature measures, temperature switches, and temperature transmitters, utilizing the dry square to accomplish uniform programmable temperature in the square as appeared in computerized readout show. The alignment extend is from negative to positive i.e. - 35 to 125 Deg C. Features of Dry Block Temperature Calibrator 1. Dry Block 2. Good Stability 3. Fast Heating and Cooling 4. Power Supply Transmitter

• Accuracy: ±0.5°C @ 100°C ( ±1.0°F @ 212°F) / ±0.8°C @ 500°C ( ±1.4°F @ 932°F)
• Power: 220VAC(±10%), 1.25A / 110VAC(±10%),2.5A
• Temperature Range: 50°C
• Stability: ±0.1°C @ 100°C ( ±0.2°F @ 212°F) / ±0.3°C @ 500°C ( ±0.5°F @ 932°F)
• Target Emissivity: 0.95
• Resolution: 0.1°C /0.1°F
• Heating Time: 30 minutes to max
• Cooling Time: 30 minutes to 100 °C (122°F)
• Aperture Diameter: 58mm

• Brand Name: Measurax
• Driven Type: Electric
• Current Type: AC
• Color: Black, Orange
• Condition: New
• Feature: Durable, High Performance
• Display Type: Digital
• Type: Dry Block Temperature Calibrator
• Weight: 8 kg
• Frequency: 50Hz
• Accuracy: ± 0.1˚C
• Country of Origin: India
• Control Range: -30 to 100 ˚C @ 25˚C
• Control Accuracy: ± 0.1˚C
• Resolution: 0.1 ˚C

• Type: Dry Block Temperature Calibrator
• Certification: CE Certified
• Application: Block Temperature Reading
• Color: Black
• Condition: New
• Frequency: 50Hz
• Driven Type: Electric
• Temperature Range: -30-100°C
• Feature: Durable, High Performance, Stable Performance
• Current Type: AC
• Brand Name: Tunix Corporation
• Application: RTDs, Thermocouple Calibration
• Accuracy: ± 0.05 ˚C

We are offering precision temperature calibrators. Thermometers, thermocouples and other temperature sensors are subject to mechanical, thermal and chemical stresses especially in industrial use. This leads with increasing time to a drift that is not predictable. since the temperature in industrial processes has become one of the most important indicators of quality, operating safety and services life, the calibration of temperature sensors on site has achieved special importance. only the regular calibration of the sensors provides information on the difference between actual and measured temperature and thus makes the special drift behavior visible. the series 38000 metal block temperature calibrators are the perfect solution for the calibration of thermocouples and temperature transmitters.

• Driven Type: Electric
• Warranty: 1 Year
• Brand Name: Beamex
• Display Type: Digital
• Model: MC6
• Body Material: Plastic

• Temperature: -23° to 650°C (-9° to 1202°F)

The ITC series employs the slim and rugged design of the CTC series.Intuitive user interface, the clear LCD display, and the functionality that is used in the successful CTC series.

We rank among the leading Manufacturers and Suppliers of Dry Block Temperature Calibrator in Aurangabad, Maharashtra, India. Our Dry Block Temperature Calibrator exhibit accuracy and repeatability that cannot be matched by other metal block temperature calibrators in the class. The unit comprises of rugged, lightweight, and water-resistant enclosure. There are two wells in each block which allows simultaneous comparison calibrations.

RTD Temperature Calibrator rCAL model RC12 The Ultimate RTD Calibrator for sourcing or measuring RTDohms and measuring mA V mA(24V). It is compact, rugged and easy to use hand held device with graphical user interface. Compact, handheld, User friendly menuRTD Temperature Calibrator RC 12 has Source and Measurement capability with independent parameter and range selection for source and Measure, also the source and measure terminals are isolated from each other.Easy to read Graphical TFT LCD display, Rechargeable lithium Ion battery with enhanced power control for prolonged battery life, Simultaneous Measure or Source: RTDohms and Measures mA, V, mA(24V), 24 VDC Loop power Supply to power transmitters and loops, Other Features: MaxMinAverage, filter settings, tare facility, adjustable backlight, alarm annunciation (on display and buzzer), automatic Display off, Compatible to pulsed RTD transmitter.

• Certification: CE Certified
• Weight: 4-8kg
• Display Type: Analogue
• Driven Type: Electric
• Application: Temperature Reading
• Feature: Durable, Heat Resistance

• Material: Metal
• Display Type: Digital
• Temperature Range: -50 to 1200 degree C
• Power Supply: 230 VAC
• Usage/Application: Industrial
• Brand: TEMPSENS

Nagman is one of the leading manufacturing & supplying company of high quality temperature calibrators from india.

• • Operating Range: Environment / +550ºC (600ºC Optional)
• • Stability: ±0.05°C a 450°C
• • Display Resolution: 0.01 / 0.1°C
• • Reading Accuracy: ±0.3°C @ 450°C
• • Reading: °C or °F
• • Interface: RS 232
• • Test Wells: 4 holes Ø 4.5, 6.5, 9.5, 176 × 135mm
• • Power Supply: 230V 50 Hz

• Control & Calibration of temp. sensor, in the laboratory & in the field, inconformity with ISO 9000 standards; control of thermostats; automaticcomputer – controlled calibrations.
