Temperature Detectors Dealers

• Material: SS
• Diameter: 310 mm
• Temperature Range: 200-420 Degree C
• Packaging Type: Packaging Type
• Features: Precisely Designed, Compact Size, Durability
• MOQ: As per Requirment
• Quality: Optimum Quality

• Brand Name: System Sensor
• Operating Voltage Range: 8 to 30VDC (Nominal 12/24VDC)
• Typical Standby Current @ 25ÞC: 60μA @ 24VDC (LED no blink)
• Maximum Alarm Current (LED On): 80mA @ 24VDC (Limited by panel)
• Application Temperature Range: -30°C to +70°C
• Humidity: 5 to 95% Relative Humidity (non condensing)
• Diameter: 102mm
• Model: 5351E

The 5351E thermal detector forms part of the Series 300 range of conventional detectors. This range of detectors has been produced using the latest in manufacturing and design techniques, pushing out the boundaries of existing conventional detector technology. With its multitude of innovative features, the Series 300 is a detector which ‘acts conventionally, thinks intelligently’. The 5351E thermal detector incorporates an Application Specific Integrated Circuit (ASIC). Combined with the latest in thermal element technology the detector provides efficient and accurate detection of fires, especially in environments such as bars or kitchens where smoke detectors are inappropriate due to the high level of airborne contamination.   Features• Low profile design• Low current draw• Backward compatible with Series 100 detector range of bases• Wide operating voltage 8 to 30VDC• Bi-colour LED detector status indicator• Programmable sensitivity• Addressable feature• Advanced maintenance features via remote hand-held test unit• Range of detector bases available• Tested and approved to EN54 – 5:2000 Class A1R (Amendment 1)• Extended warranty

• Application: Industrial Use
• Certification: CE Certified
• Color: Black, Silver
• Voltage: 220V
• Power Source: Battery, Electric
• Feature: Light Weight

Types Pt10 / Pt46 / Pt50 / Pt100 / Pt 200 / Pt500 /pt1000, Cu- 53, Cu-2000 in Simplex / Duplex / Triplex  Version in  Wire Wounded or Film Type with 2/3/4 Wire  Configuration   Calibration As per Din / Jis / Gost/ American Standard in  Standard or Special Tolerances   Sheaths Copper / Ss304 / Ss316 / Ss321 Etc.   Sheath Dia From 1 Mm to 8 Mm.or Any other Diameter.open Elements with Extension Leads are also Offered.   Insulation Mineral Insulated (mi) or Beaded or with Teflon/fiber Glass / Silicon Rubber Insulation.   Termination Head – Weather Proof to Ip 65/ Flame Proof Suitable for Cable Groups I, Ii A, Ii B or Ii C with Single, Double Entry in Cast Aluminium/cast Iron /ss, with or Without Cabe Gland. Seal Pot with Flying Leads. Seal Pot with Male / Female Connectors. Ceramic Terminal Block with Ss Base Plate. SS Base Plate with Flying Leads for Mounting Temperature Transmitters   Specials Surface Rtds, Skin Rtds, Multipoint Rtds,Rtds, with Bayonet Lock, Type Fitting All Rtds are Subjected to Test as per Quality Control Plan and are Supplied with the Calibration Certificates. Special Tests like Self Heating Test, Response Time Test, Non – Seismic/seismic Vibration Tests and Test as per Customer’s Requirement Can Be Carried Out At Extra Cost. Custom Made Rtds for Special Application is Our Speciality

• Feature: High durability
• Calibration: As per DIN 43760
• Head: With / Without head
• Sheath Material: S.S. 304 / 316/ 310/ Inconel / Incolloy
• Sheath Dia: 3/6/8 mm. (MI type) . 6/8/10/12 mm ( Beads type)
• Configuration:: Simplex/Duplex/Others

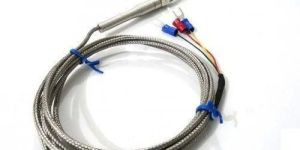

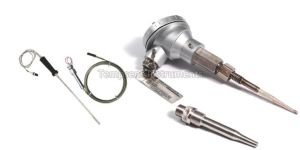

Resistance Temperature Detectors (RTDs) are sensors that measure tem-perature by correlating the resistance of the RTD element with tempera-ture. Most RTD elements consist of a length of fine coiled wire wrapped around a ceramic or glass core. The element is typically relatively fragile, so it is generally installed inside a sheath to protect it. The RTD element is con-structed from a pure material, the resistance of which, at various tempera-tures, has been documented by various international standards institutes. The material has a predictable change in resistance as the tem-perature varies; it is this change that is used to determine temperature. RTDs are generally considered to be among the most accurate temperature sensors available. In addition to offering very good accuracy, they pro-vide excellent stability and repeatability. RTDs also feature high immunity to electrical noise and are, therefore, well suited for applications in process and industrial automation environments, especially around motors.

We offer resistance temperature detectors. Manstronic’s platinum resistance elements are specially designed to ensure precise and repeatable temperature versus resistance characteristics. The sensors are made with controlled purity platinum, have high purity ceramic components and constructed in a unique strain-free manner. Rtds are best for most industrial measurements over a wide temperature range, especially when sensor stability is essential for proper control. Generally speaking, if accuracy is your most important concern and the application temperature is between 140°c and 650°c rtds are probably the best choice. Three-wire is the most common but four-wire provides higher system accuracy.

• Usage: Btd or Bearing Temperature Sensors are Used to Measure Temperature of the Bearing Case.
• RTD Types: PT-50, PT-100, PT-200, PT-500, PT-1000
• Temperature Range: -200 to +600 ° C
• Elements: Platinum Thin Film Rtd, Ceramic Wire Wound
• Class of Tolerance (referencedin En 60751): 1/3,1/10, Class A, Class B, Class C, Class Y & K
• Standard RTD Mi Probe Sizes: 0 3,4.5,6,8 mm
• Configurations: Duplex, Triplex
• Grade of Protection: IP 55, IP 65, IP 67, Ccoe, Flame Proof
• Type of Termination: Plug and Socket, IP Rated Head, Din and Explosion-proof Connection Head
• Connectors: Mil Std, Nylon, Plastic, Ceramic
• Type of Measurement: Air, Gas ,Liquid Immersion, Contact, Surface
• Sheaths: SS 304, SS 316 Inconel 600, Inconel 800

• Type: Pt-100 (PRT) / Cu-53 (CRT), Simplex / Duplex, 2 /3/4 / 6 wire.
• Calibration: As per DIN 43760
• Head: With / Without head
• Sheath Material: S.S. 304 / 316/ 310/ Inconel / Incolloy
• Sheath Dia: 3/6/8 mm. (MI type) . 6/8/10/12 mm ( Beads type)
• Sheath length below head: As per clients’ requirement
• Process Connection: 1/4"/ 3/8”/1/2” BSP(M) /NPT(M) adjustable/ Flanged/ Clients’ specn.
• Temperature Range: -100 deg to 400 deg C.
• If without head: Terminal block on flange / Plug-Socket
• Thermowell type: Bar stock - Tapered / Straight. Others
• Thermowell Matl. & Length: SS 316, 310, Inconel, or as per clients’ requirement

We are a prominent Manufacturer and Supplier of Resistance Temperature Detectors in Tamil Nadu, India. The RTD that we deal in is precision engineered, compact in design assuring fast response time. One won’t encounter vibrations or thermal shock. The Resistance Temperature Detectors, offered by us, have high tolerance. In order to fulfill different requirements of the buyers, it is provided by us in ample of specifications. Details : Elements / Inserts / Probes: Resistance Temperature Detectors (RTD's) Type Platinum / Copper / Nickel - Simplex / Duplex. Standard Din 43760 / IS 2848 / JIS / Gost / IEC 751 Accuracy Class A, B 1/2 Din, 1/3 Din, 1/5 Din Resistance Platinum - Pt 46/50 / 100 / 200 / 500 / 1000Ω at 0 OC Copper - Cu 53 ohms / 10 Ω at 0 OC Nickel - Ni 100 / 200 Ω at 0 OC Insulation MgO Filed, Ceramic Beaded, Mineral Insulated Sheath SS 304 / 316 / Teflon / Kynar etc OD From 3mm Dia to 12mm Dia Termination Plug and Socket, Head Assembly, Lead wire with lugs and Special Construction Extension PTFE / Fiberglass / SS braided Cable. P.C Compression fitting, bayonet fitting, Screwed.

Context Plus XP95 temperature (heat) detectors have a common profile with ionisation and optical smoke detectorsbut have a low air flow resistance case made of self-extinguishing white polycarbonate. They monitor temperature by using a single thermistor network which provides a voltage output proportional to the external air temperature. The response to temperature increases of the standard temperature detec tor (part no: 55000-400IMC) enables the detector to be utilised as an EN54 Grade 2 heat detector. To provide a device for use in ambient temperatures of up to 55°C, a high temperature detector (part no: 55000-401IMC) is also available. This has similar characteristics to the standard temperature detector at 25°C but reaches a 55 count (alarm) at 90°C.

• Type: BTD PT-100
• Certification: Jindal
• Voltage: Hv Test On 1.5 Kv
• Warranty: 12 Months
• Brand Name: Jindal
• Weight: As Per Specification
• Usage: Bearing Temperature Sensing
• Bore Size: As Per Drawing
• Outside Diameter: As Per Drawing
• Seals Type: High Temperature Epoxy Casted
• Motor Type: Power Generating Motor
• Model Number: JINDAL- BTD
• Place of Origin: Roorkee

System Sensor 200 Series intelligent plug-in smoke detectors with integral communication provide features that surpass conventional detectors. Detector sensitivity can be programmed in the control panel software. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with decade address switches, providing exact detector locations for selective maintenance when chamber contamination reaches an unacceptable level. Models 5251B and 5251RB use an innovative thermistor sensing circuit to produce 135°F fixed and rate-of-rise thermal detection in a low profile package. Model 5251H provides fixed high temperature detection at 190ºF. These thermal detectors provide cost effective, intelligent property protection in a variety of applications. Specification Height : 2.0 inches (51mm) Diameter 6.1 Inches installed in B210LP base 4.1 inches (104 mm) installed in B501 base Shipping Weight Heat 4.8 oz. (136 g) Photo/photo with heat 5.2oz. (147 g) ion 5.4 oz. (153 g) Operating Temprature Range Ion Photeo : 32-1200F (0-490C) Photo with Thermal 32-1000F (0-380C) Thermal : -4-1000F (-20-380C) High Temprature : -4-1500F (-20-660C) UL Listed Velocity Range Ion : 0 - 1200 fpm (0 - 6.1 m/sec) Photo with Thermal : 4000 fpm Suitabe For Installation in ducts Insect Screen Hole Size Photo : 0.016 inch (0.41mm) nominal Ion : 0.035 Inch (0.8mm) nominal Relative Humidity : 10-93% noncondensing Thermal Rating Fixed Temprature Setpoint : 1350F (570C) Rate of Rise Detection : 150F/min (8.30C/min.) High Temprature Heat : 1900F (880C) Voltage Range : 15-32 Volts DC Peak Standby Current (Max. Avg.) Ion/Thermal : 150 pA @ 24 VDC (without communication, LED off) 200 pA @ 24 VDC (one communication every 5 sec. with LED enabled) Photo/Photo With Thermal : 250 pA @ 24 VDC (without communication LED off), 300 pa @ 24 VDC (one communication every 5 sec. with LED Enables) LED Current (Max.) : 6.5 mA @ 24 VDC (on)

We do not have to worry about stock-out situations and undertaking bulk orders, as are facilitated by a large storage facility. It has the latest inventory management software that helps us to maintain year around availability of the products. Buyers can rely on us for on-time and safe delivery as we are aided by modern transit facilities.   Specifications : 2, 3 or 4-wire platinum element in simplex or duplex assembly Temperatue range -  -50 to 250oC Triple element assembly in 6 mm diameter on request Standard lengths  -  100mm, 150mm and 300mm( Longer assemblies not recommended) Standard 6mm sheath diameter, other sheath diameter available on request Termination  -  Weatherproof Die cast aluminum head with threaded cap and chain 1/2"BSP (F) single cable entry with single compression gland Different types of terminal heads available SS316 sheath material as standard
