Tenoning Machine Dealers

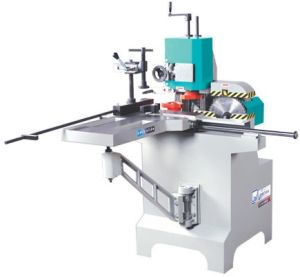

Tenoning m/c with sliding table and end - cutting unit for better & more workability Easy table slide movement with heavy wood clamping facility for accurate tenoning. End cutting circular saw unit for perfect tenon length. Model No. J-1919 Standard Accessories :-   2 no.electric motor of 2HP/2800 RPM ( 3-phase), 1 no electric motor of 1 HP/2800 RPM, 2 nos.R/F switch, 2 nos. carbide cutter blocks, mitre gauge, saw guard, mitre guage with wood clamping facility, toolkit & m/c manual.

• Model: 271
• Maximum Length of tennon cut stroke: 5
• Top & Bottom tennon spindle: 4
• Diameter to tennon spindle: 1½
• Size of Table: 31
• Maximum depth of cut: 1½/37 mn
• Power required: 2 H.P. 3 Nos. 2880 RPM 440 V 3PH.
• Floor space occupied: 55

We are offering tenoning machine. to make tenon (sal).

Standard Accessories : J-1919 2 no electric motor of 2 hp / 2800 rpm (3 phase) 1 hp / 2800 rpm (3-phase) 2nos. R/f switch R/f switch 2 nos. carbide cutter blocks mitre gauge saw guard Toolkit & m/c manual Standard Accessories : J-919 2 no electric motor of 2 hp / 2800 rpm (3 phase) 2 nos. carbide cutter blocks Mitre gauge Toolkit & m/c manual

• Brand: Umiya
• Model No: U-661
• Table Size: 27" x 16"
• Table Movement: 32"
• Max Length of Tenon: 6"
• Max Width of Workpiece: 8"
• Top Cutter Horizontal Adjust: 1"
• Max Circular Saw Diameter: 10"
• Max Depth of Cut Circular Saw: 2"
• Size of Dust Collection Port Dia: 4"
• Approx Weight of Machine: 360kg

• Application: Wood Cutting
• Weight: 100-1000kg
• Voltage: 220V
• Rated Power: 1-3kw
• Automatic Grade: Automatic
• Driven Type: Elecric
• Warrenty: 1year

We are counted amongst the prominent Manufacturers and Suppliers of Wood Tenoning Machine from Gujarat. We use only quality-tested Wood Tenoning Machine while assembling this Wood Tenoning Machine. Our Wood Tenoning Machine is robustly built, sturdy, have high operational life. We can make available this machine in numerous specifications depending upon buyer’s need. We ensure delivery of only flawless lot of machine to the buyer’s area.

• Color: Green
• Condition: New
• Rated Power: Three Phase Power
• Automatic Grade: Manual
• Voltage: 440V, Single Phase or Three Phase
• Type: Tenoning Machine
• Weight: 500-700 kgs
• Warranty: 1 Year warranty on motor
• Country of Origin: India

Wood Working Machinery Mistry Machine Tech JamnagarFor inquires Please call us on +91 09428319810 or +91 08469133802.This Tenoning Machine is used to make Two sides slot at the same time on wooden bar. It is widely used by Carpenters.

• Model No: J-1941
• size: mm / inch
• Max. width of tenon: 100 / 4"
• Max.depth of tenon: 70 / 2¾"
• Max.thickness of tenon: 25 / 1"
• Diameter of cutter: 30 / 1"/16"
• Spindle speed-RPM: 9500
• Motor power-kw: 2.2

Various tenon axis angle, Variable speed for cutting Tenoning width & depth is adjustable within specified limits, The tenoning axis can be horizontal, vertical or 45° by changing the data in PLC unit. Model No. J-1941

• CODE: U 1013

We are offering double automatic tenoning machine with ultimate working capability. We are the most renowned manufacturer in making of highly efficient machinery in assistance of our dedicated professionals. The body of device has been fabricated with ultimate quality raw material using the advanced modish machinery. We have given two tables enclosed in it which is pneumatically operated; these tables are movable and its speed is variable & adjustable. The maximum working width is 100 mm & overall size of machine is 1400 x 1300 x 1300 mm.this product is well liked by our customers for its excellence working with higher productivity.

• Table size: 27
• 2 Nos. cutter blocks size: 7
• Power required: 2 motors of 2 HP , 3 phase, 2800 RPM
• Table size: 27" x 12"
• Table movement: 12"
• 2 Nos. cutter blocks size: 7" dia. x 2" width
• Cutter block adjustment: 0 to 4"
• Blades in each cutter block: 2 Nos. X 2
• Max. length of tenon: 6.1/2"
• Max. depth of cut on both side: 2"
• Power required: 2 motors of 2 HP 3 phase, 2800 RPM

• Table size: 27" x 12"
• Table movement: 12"
• 2 Nos. cutter blocks size: 7" dia. x 2" width
• Cutter block adjustment: 0 to 4"
• Blades in each cutter block: 2 Nos. X 2
• Max. length of tenon: 6.1/2"
• Max. depth of cut on both side: 2"
• Power required: 2 motors of 2 HP

Motorised tenoning machine specially designed to make accurate and true tenons, double of single as required. The tenon heads are easily adjustable having max. length of tenons at one stroke 5" top or bottom tenon head will rise above table 4" dia. of tenon spindle 1.1/4" size of table 35" x 12.1/2" max. depth to cut 1.1/2", complete with 5 HP, AC 440/3/50 electric motor and starter. Standard accessories :4 blades fitted in the cutter block, 2 motor of 2 HP, 3 phase, 2800 RPM.

We are recognized as one of the outstanding double end tenoning machine manufacturers in India. Due to various countable features like unmatched quality, inexplicable performance and optimum output, the entire array of tenoning machine are demanded in the national as well as in the international market. In addition to it, the materials used in the manufacturing of the tenoning machine has also helped in making it as per the norms set at international level. Moreover, customers are also facilitated with the delivery of the automatic tenoning machine within the predetermined time period.   Note : There is no minimum order quantity, you can place order for even a single machine.

We are recognized as one of the outstanding double end tenoning machine manufacturers in India. Due to various countable features like unmatched quality, inexplicable performance and optimum output, the entire array of tenoning machine are demanded in the national as well as in the international market. In addition to it, the materials used in the manufacturing of the tenoning machine has also helped in making it as per the norms set at international level. Moreover, customers are also facilitated with the delivery of the automatic tenoning machine within the predetermined time period. Note : There is no minimum order quantity, you can place order for even a single machine.

• Wood length: 600
• Wood thickness: 30
• Net weight: 850 kg

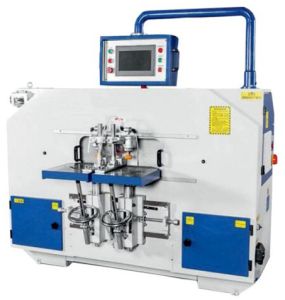

The machine consists of one set of tenoning head and two sets of saw heads.The entire machine motions are controlled by a CNC controller, providing easy operation.Right and left movement of table is driven by a servo motor combined with ball screw transmission featuring fast travel and high accuracy positioning.Automatic 90˚ sawhead rotation rotation is actuated by swing cylinder.

• Table Size: 21”x8”
• MODEL NO.: RKI-134
• Table Movement: 8”
• Max. Length of Tenon: 6”
• Carbide cutter: 2nos.
• Blocks of Size-: 6”dia.x1”
• With each Electric motor-: 2
• Motor each of: 2HP (3ph)
•  : 2800 RPM
• Approx. Wt.: 280 Kg.
