Tension Controller Dealers

• Brand Name: Prakash
• Phase: Single
• Usage: Industry
• Frequency: 50 - 60 Hz
• Voltage: 380 - 480 V
• Maximum Stop Rate: 350 fpm/ps
• Roll Sidelay: +/-12 mm

• Type: Automatic
• Input Value: 230 V AC Single Phase Supply
• Usage: Auto Tension Control, Web Tension Control, Powder Brake
• Digit Display Size: Single Display

Tension Control from last 25 years. High quality and heavy duty Tension Control for Inspection Rewinding Machine, Doctoring Winding Machine,Close loop control by measuring web tension by two load cells, insures that malfunction or wrong web tensions are corrected.

CTK Controllers are closed-loop tension measurement and control instruments, designed to be used with  a hysteresis  brake or to act as a monitoring tension meter.The PLC control closed-loop type allows for interfacing with PLC and providing required current to the hystresis brake.Closed-loop type-this model measures and displays real-time running tension, while simultaneously comparing it to the preset tension values. Its built-in software compensates output current to the hysteresis break accordingly for precise, stable and consistent tension.Stand-Alone type - this model does not provide curent output. They are used to measure and display real time tension. It also alerts (Output alarm) the user when tension is detected to be out of preset range (the upper and lower tension limits can be preset.)

Modular Design, allows the controllers to be configured to exact application All customers’ adjustments are on board to simplify set-up. Microprocessor based control, can be used in any tension zone (Unwinder, Rewinder & intermediate). To enter data using keypad allows the user to scroll through the selections and values, making set-up easy. Indication and correction will be reliable, and efficient. Close loop control by measuring web tension by two load cells, insures that malfunction or wrong web tensions are corrected. Krishna Engineering Works, a leading manufacturer, exporter and supplier of Tension Control from last 25 years. High quality and heavy duty Tension Control from India.

Automatic Paper Tension Controller throughout the paper pad, paper in the paper pads can be used till the end without any paper scraping i.e. Tension-compensating system.The springs are calibrated for different paper thickness and clearly color coded. Tape tension constant on the flat and on the edge of the wire (compensator controller provided). Paper breakage sensors best suitable for 6mm width of paper which enables auto stoppage of machine as the paper tape breaks.Special Mica Taping Rollers provided for MICA tape which allows smooth insulation without breakage. All insulations like Carft Paper, Krape Paper, Nomex, Mica, Polyester And Kapton Can Be Effectively Used.Pitch : 0.4 to 40 mm in 0.1 mm stepsPitch Accuracy : +_0.5% in running stage +_1.0% in start and stop stage The Tapping head is equipped with marking scale to enable the operator to precisely adjust the staggering of the tapes accurately. Tension of the tape 1.0N to 40N.Special Mica Taping Rollers provided for MICA tape which allows smooth insulation without breakage. All insulations like Kraft Paper, Krape Paper, Nomex, Mica, Polyster And Kapton can be effectively used.

7 Segment LED & Graphic LCD (Dual) Display for Clarity High & Stable Measurement & Easy Tension Calibration Strain Gauge based Tension Sensor Build‐in PI Algorithm Acceleration & Deceleration Operation Automatic/Manual Tension Control Parameters Protection by Password, avoid inadvertent Modification Wide Range Input Switching Power Supply (120 ‐ 240 V AC)

• Features: Excellent performance, Compact design , Durability.
• Supply Voltage: 24 VDC, ±10%, 250 mA, 6 VA

• Temperature: 32 - 122 DegreeF
• Open Or Enclosed Design: Enclosed
• Input Power: 100 - 240 VAC 50/60 Hz
• Mounting Style: Panel Mount
• Length: 10.24 in
• Outputs: 4-20 mA and 0-10 VDC, Meter Output

The Tension Control bolting system has quickly become the most widely used method of tensioning high strength structural bolts. The ease of use and economic benefits has provided tens of thousands of projects with consistent, reliable, and economical steel connections.

Tension regulator with two operating modes: torque regulation on winders and unwinders, and speed tension regulation. Can be used with load cells or dancing rollers. Standard version complete with setpoint option.

• High Torque,: Cost Effective

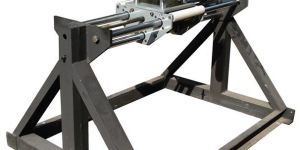

We are offering conductor tensioner features : .free sliding carrier .pressure screw hardened and plated for life .carrier also comes with screw to control motion .all motions in the product are through bearings. .large window for transposition .thick pressure plate to equalize pressure on conductors.

Tested and Validated Solutions for Packaging Machines Functions related Film digital tension control Architectures

  It’s a simple to operate web tension control utility, which works on the closed loop principle and can be mounted on any press running at your end. TENSIONPACK 35 is an easy to mount structure supplied along with its independent controlling panel. It can handle the web width of 915 mm running at a 40000 CPH speed. With this utility in operation, you can control the web tension ranging between 90 to 250 N as per your requirements depending upon total number of running at a time.

• Application: Industrial
• Mounting Style: Panel Mount
• frequency: 50/60 Hz
• Temperature: 32 - 122 DegreeF
• Voltage: 100 - 240 VAC

This is a microcontroller based unit. It will measure Current tension and generate control output signal to maintain desired tension. SPECIFICATION : Input : Load cell (Up to Two in parallel) Excitation : 10 VDC Control Output : Analog 0 to 5VDC Operating voltage : 24VDC +/-10% Display : 4-digit 7-segment, 0.56” red LED Keyboard : 4-keys Digital Input : Auto/Stop mode enable from Front Enclosure : Panel mount, General purpose, Metallic Dimension : Bazel: 96 x 96 x 100 mm (D) Cut-out: 92 x 92 mm FUNCTIONAL DESCRIPTION : This unit will provide excitation to Loadcell. It will support up to two load cells. Unit accepts analog input signal from load cells. Based on Loadcell input, current value of tension will be displayed. User will be able to set desired value of tension as set point. Control parameter: P, I & D will be settable. In auto mode, unit will generate control output: 0 to 5VDC using PID algorithm. This output can be used to control tension using breaking system. Visual indication of control value will be available on front plate. When ‘Stop’ key is pressed, control output will be set to Zero. User will be able to set desired value of control output

All FMS Web Tension Controllers are fully compatible with all FMS force sensors and tension measuring amplifiers. They are specially adapted to measurements of dynamic processes. Advantages Easy to operate and provides flexible set-up. We offer two types of Web Tension Controllers namely - CMGZ309 Digital Tension Controller and CMGZ480 Controller with CAN-BUS©. We are a well-known Exporter and Supplier of Web Tension Controller in India.

• Current: 2 A
• Supply Voltage: 85-264 V
• Rated voltage output: DC12 V
