Product Code: EKE 2322The Unit helps in calibrating given thermocouple for the range 0°C to 100°C. While calibrating, thermocouple is once dipped in ice for 0Q C and then in boiling water for 100°C. This is done till the thermocouple shows the actual temperature of ice (0° C) and boiling wafer (100°C) and a linear calibration is set. A mV meter is provided to know the corresponding voltage.Specifications: A digital mV Meter and a digital temperature indicator with 2 different type of thermocouples. A water container with heater of 1 KW. A technical manual accompanies the unit. Services Required: Table surface area - 2 m X 1 m X 0.5 m height. 220V, 50hz. Stabilize Electric Power Supply. Ice cubes - 0.5Kg. Approx.

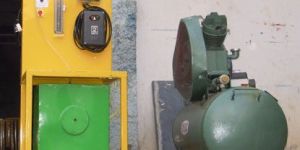

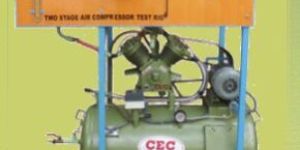

The test rig comprises of a two-stage air compressor fitted with an air tank with orifice, pressure gauges and energy meter to measure the input & Temperature indicator measures the temperatures at various points. The compressor is connected with the motor, and is provided with air relief valve and a pressure switch. The unit determines volumetric efficiency and isothermal efficiency at various discharge pressuresSpecifications: Air compressor - Double cylinder connected with Three - phase motor Air tank and orifice with water manometer for air intake measurement. Pressure gauges at outlet on both stages. Digital temperature indicator and RPM Meter for rpm measurement. Energy meter to measure input power. Services Required: Floor space of 2,5 X 1.5m. 440 V, 15A, 3ph. AC supply with neutral and earthing connection. A hand tachometer.

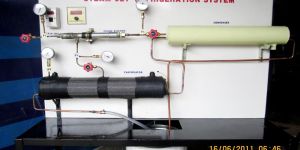

we are offering steam jet refrigeration test rig. the steam jet refrigeration test rig (naesjr), offered by us, consists of steam ejector, an evaporator, a condenser mounted on a board as shown in the picture. necessary valves at the inlet & exit of the ejector, and between ejector and evaporator are provided in this steam jet refrigeration test rig (naesjr) for the flow variation and maintaining the pressure differential. an insulated water sump is used in steam jet refrigeration test rig (naesjr) as a source of circulating water. a small submersible pump is fitted in the sump for the circulation water through the system. our steam jet refrigeration test rig (naesjr) has a digital temperature indicator with a provision of six numbers of channels to indicate temperatures at various points. why our steam jet refrigeration test rig (naesjr)? accurate in testing efficiently maintains the pressure differentialworking can be easily understoodeco-friendlyindicates temperature at all levels easy to use

• Water supply: 15 Lit/min.

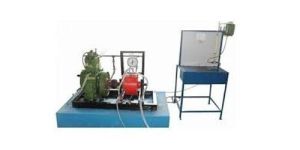

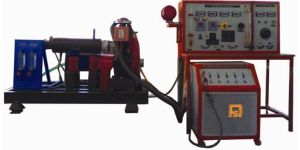

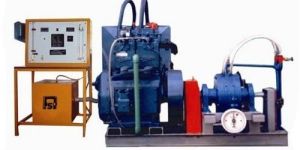

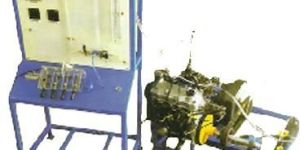

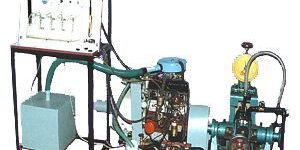

Engine – Automotive petrol engine. Four stroke three Cylinder Four Cylinder, water cooled, developing 15 BHP at 2500 RPM, Provided with battery and self starter.Arrangement to cut off the ignition to conduct Morse test The test rig enables to determine I.H.P.B.H.P., specific fuel consumption, Air fuel ratio Volumetric efficiency and heat balance sheet at different loads and speeds.

• Filter Drier: DM 50, (3/8”)
• Capacity: 4KVA

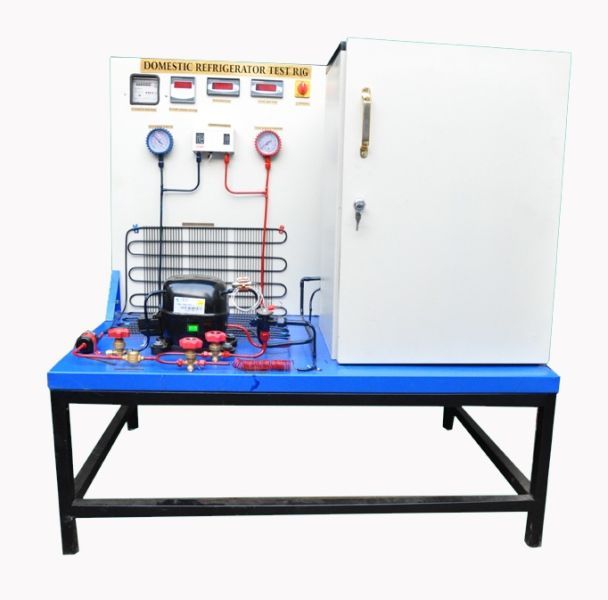

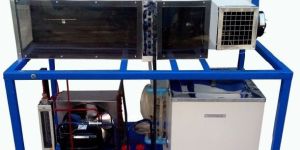

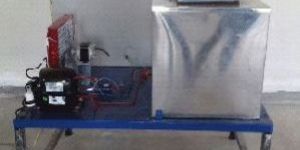

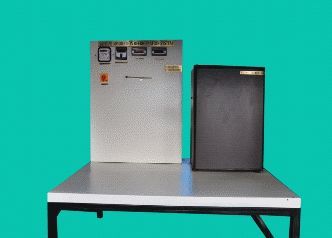

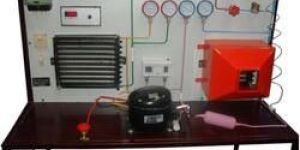

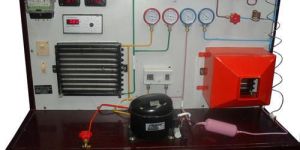

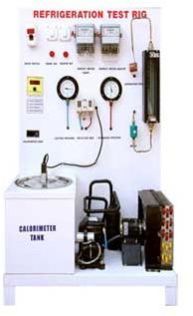

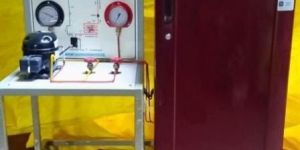

This Laboratory scale working model housed on a M.S. Square tube frame further mounted on a wheels (CI) with nstrumentation panel is used i) To study the Vapour compression Cycle ii) To calculate co-efficient of performance (COP) iii) To evaluate tonnage capacity.

THIS AIR COMPRESSOR TEST RIG IS USED TO FIND VOLUMETERIC EFFICIENCY OF AIR COMPRESSOR WHETHER SINGLE STAGE OR MULTI STAGE .....

We are manufacturer for all types pumps testing machine our 25 year acspiryns to all types pumps testing equipment and s p m shree

The newly developed compressed air filter test rig DFP 3000 delivers fully-automated measurements of fraction separation efficiency for compressed air filters under overpressure up to 10 bar, offering better results in the process than ISO 12500. On request we can also supply an additional filter holder for flat filter media. The fraction separation efficiency is measured with the new aerosol spectrometer Promo® 3000 P, which is equipped with pressure-resistant welas®aerosol sensors for raw gas and clean gas measurements. The system offers the following advantages (among others): Clear determination of the particle size and concentration directly under overpressure up to 10 bar Automatic adjustment of the sampling volume flow in the event of pressure changes No diffuser, no dilution required The DFP 3000 can be equipped with three different aerosol generators: For measurement of the fraction separation efficiency with oil: PLG 3000 For burden tests, short burdening times with oil: AGF 3000 For tests with solid particles up to 3 bar: RBG 1000 D The largely automated setup of the test sequence together with the clearly defined individual components and the individually adjustable sequence programs of the filter test software FTControl deliver the high reliability of our measurement results. All air volume flows and the overpressure in the system are automatically monitored and adjusted. The results are presented in detailed form in tables and diagrams and analyzed. With more than 120 complete filter test systems manufactured and delivered in over 16 different versions, Palas®is the world-leading manufacturer of filter test systems.

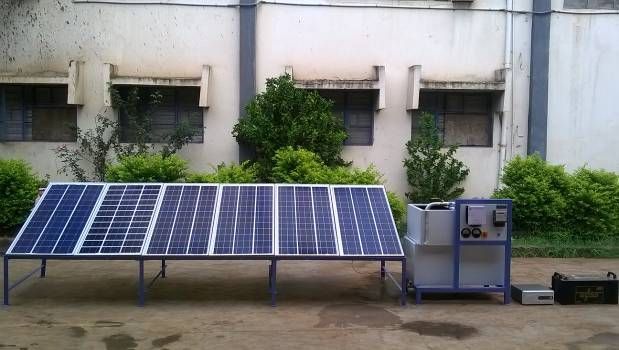

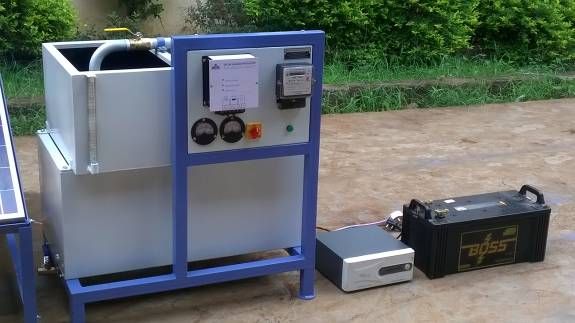

You may please find enclosed the technical literature for all model of SPV water pumping system. DATACONE offers  SPV AC  pumping system and  SPC DC pumping system.    If the water requirement is met by a few hours of operation of SPV water pumping system, the SPV array can be used to charge the batteries. The batteries can power an inverter of suitable capacity. Typically a 1  Kwp  SPV array can generate 5500  Whrs ( 5.5  Unit of DC  electricity ) @  STC.  Part of this can be used the motor ( say 1 unit ). The remaining energy can be used to charge the batteries ( 5.5 Uits –1 Units = 4.5 Unit )         The Different Components of Our Spv Water Pumping System is :  Inverter - (Only for AC SPV pumping system) The inverter is designed  to optimized the operation of an induction motor with SPV array. The power circuitry is based to MOS FET technology. The Software included in the inverter has the following features. The V/f control ensure the motor to operate at constant torque. The MPPT feature ensures maximum power from the array to be transferred to the load. The above two features optimizes the operation of the pump during the various insulation levels of the sum. The discharge is indirect proportion to Sun intensity. The electronics help the AC Submersible motor pump to work in low intensities when DC pump set cannot work. The overall discharge in a day of solar powered   AC submersible pump exceeds a solar powered DC pump because of  the above two features. AC Submersible Motor & Pumpset : The pump set is suitable for 100 mm dia bore wells. The pump is multistage with high efficiency impeller a vane assembly. The motor is proven and rugged construction. The motor is water-cooled construction type. This features help in easy service. Large number of pump sets with similar construction operating with grid power is in operation in India.  DC Motor and Pumpset : The DC pumping system consists of Permanent Magnet DC motor and Centrifugal pump. The system can be used only for surface operation and is suitable only for open well  operation. The motor is rugged and is simple  in construction. The total dynamic head ( TDH ) is 15 M. SPVE  Array : Datacone  manufactures single crystalline silicon solar cells since 1988. The efficiency is 14%. The cells are regular evaluated at NREL  U. S. A. The manual capacity of our cell line is 2  MW.  W e process 100 mm round,  102 mm pseudo square and 125 mm pseudo square. The customers for our cells include REIL, BHEL  and other module manufactures. Our module  line has a capacity to produce 2 MW  annually. Vacuum lamination of our modules ensure longer life. The modules are tested for its output rating with our Sun Simulator,  Sun Simulator  simulates the sun spectrum at Air Mass 1.5. A  1 Kwp  SPV  array occupies about 11 Sq. mm. The array generation 5500 Whrs of energy @ STC. Mechanical and Electrical Accessories : Manual traceable SPV array mounting structure suitable for mounting the SPV module is supplied. The pump is erected with HDPE pipe of suitable length cables and interconnecting wires as required for installation is supplied suitable box for housing the inverter. We recommend you to refer our literature on DC SPV water pumping system for your battery charging and AC pumping system for your water requirement. You may please write to us for any further clarification.

• Voltage: 415, 380V

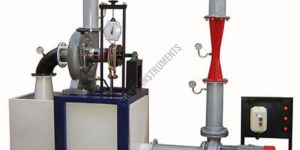

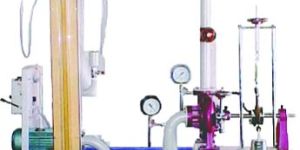

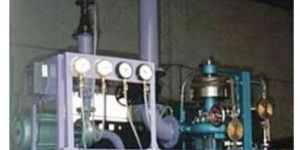

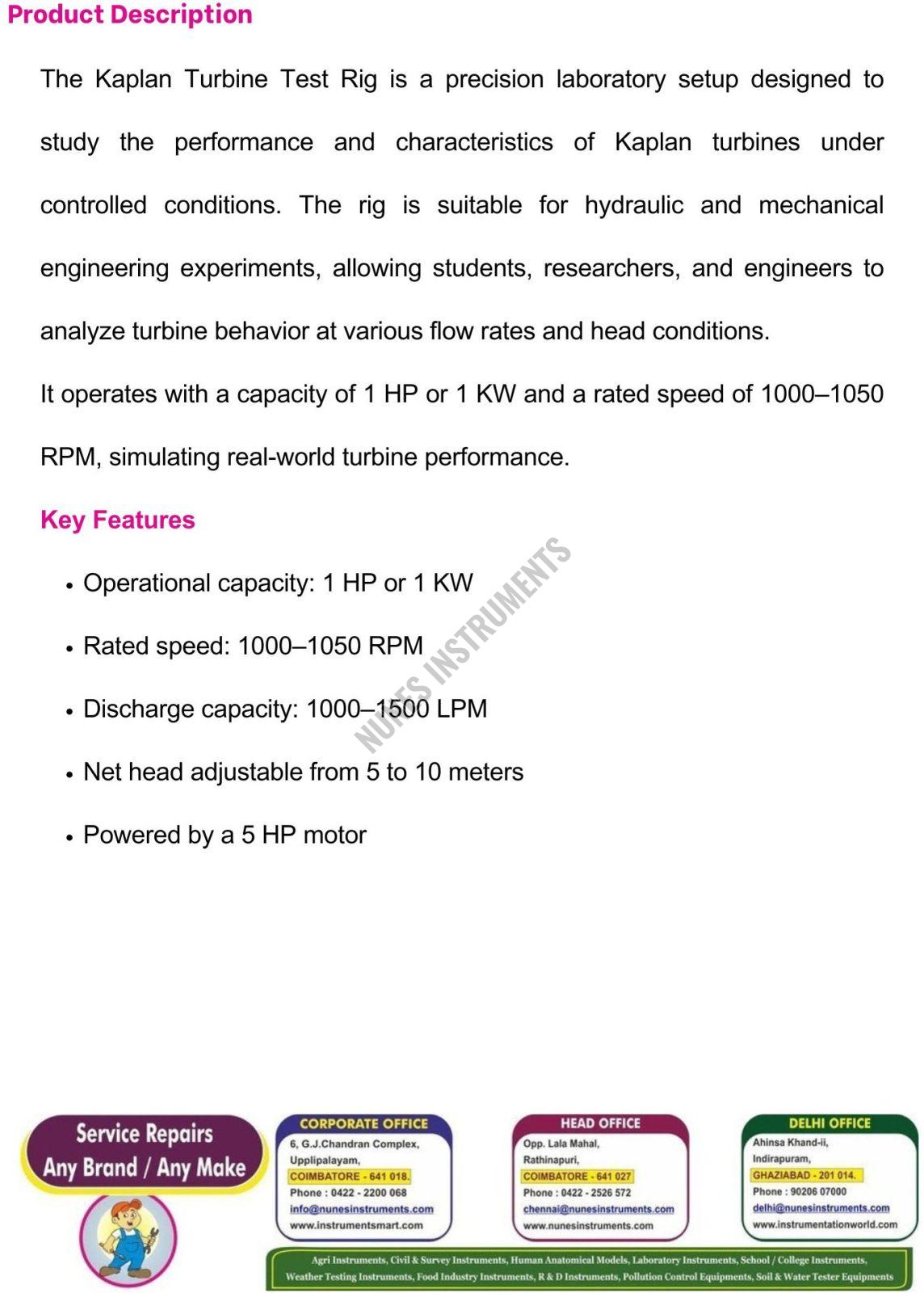

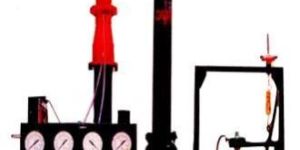

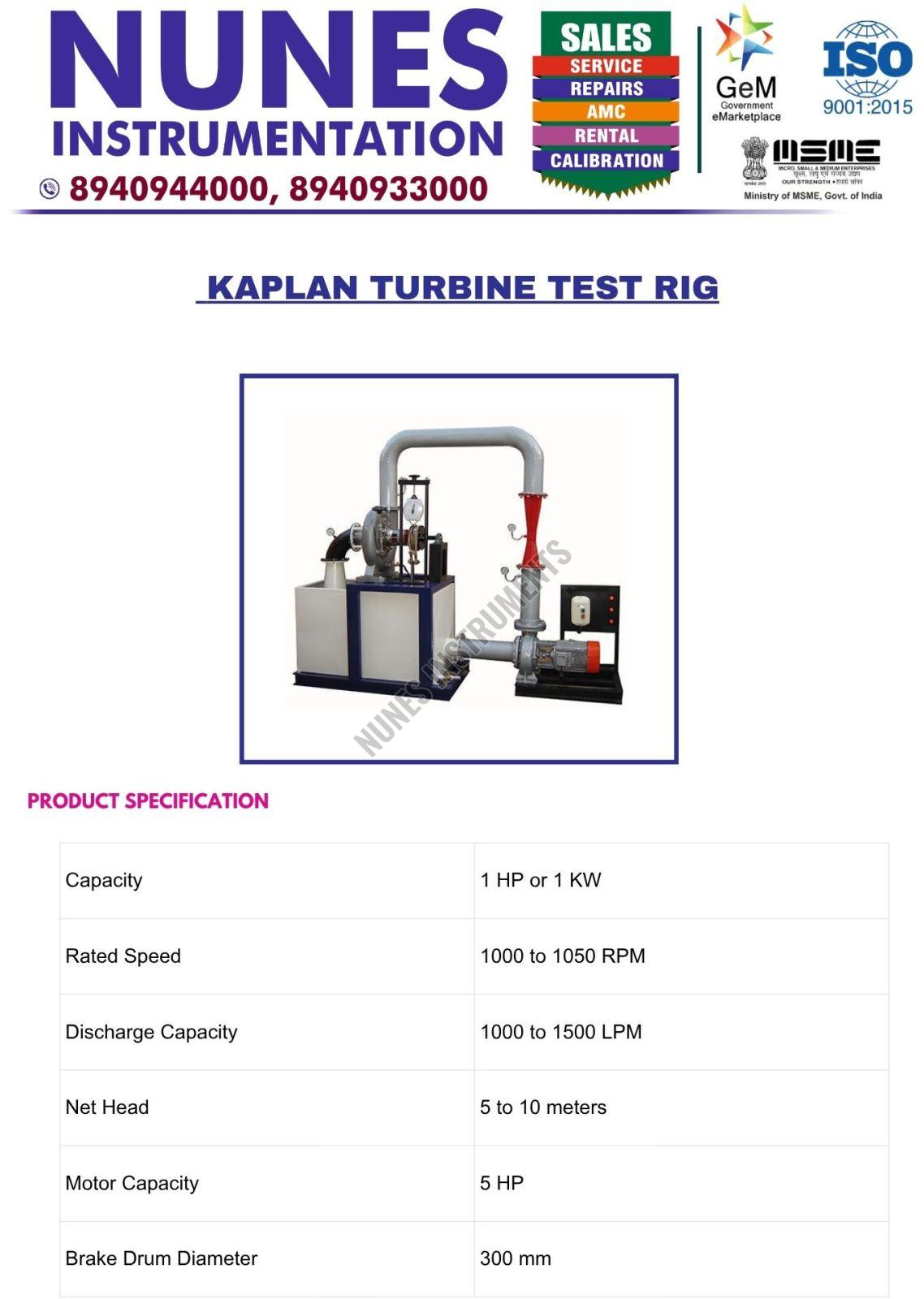

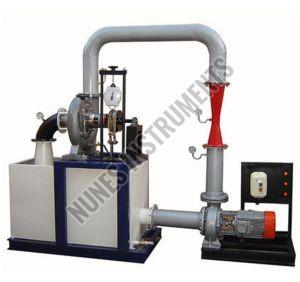

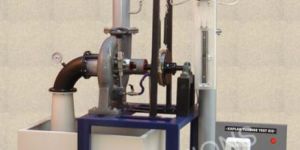

• Type: Kaplan Turbine Test Rig
• Brand Name: Axtech
• Automation Grade: Semi-Automatic
• Power Supply: AC
• Phase: 3
• Material: M.S

• Brand Name: APPSYS GB
• Torque: From 5 Nm to 10000 Nm
• Speed: Right from Zero upto 3000 RPM

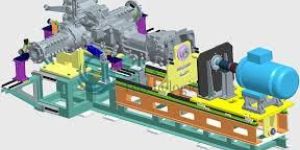

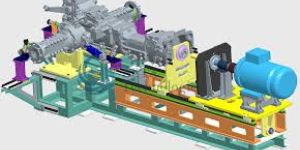

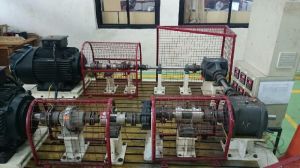

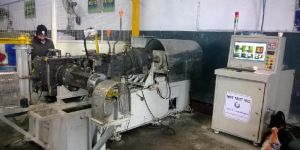

We are offering gear transmission test setup machine. Dynamometer upto 10000 nm capacity to test various types of gear boxes – worm, worm helical, helical, bevel & planetary gear boxes. Set up comprises dynamometer, computerized control panel with data acquisition, to monitor, input electric power & output mechanical power, with efficiency measurement, t-slotted test bed with x, y & motorised z axis (length, width & height) with motor mounting portable table ( castor wheels with locks) with x,y & motorised z axis adjustments

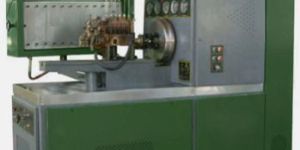

Paskals can supply fully automatic software controlled Fuel Injection Pump Test Rigs for performance & operational testing of pump at variable Pressure, Flow, Temperature& RPM ratings. The Test Rig comprises of Hydraulic Power Pack, Cooling Circuit, Lubrication Circuit and Gear Box with all measuring Instrumentation namely Pressure Transmitters, Flow meters, RTD’s etc with control & other safety features. Testing can be done at 120ºC using ATF.

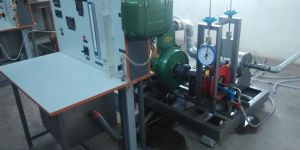

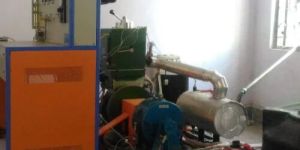

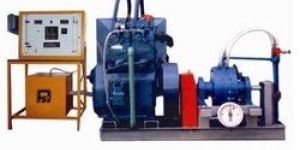

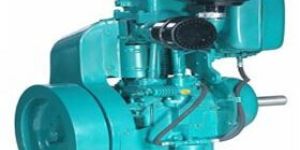

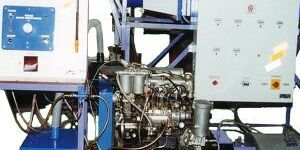

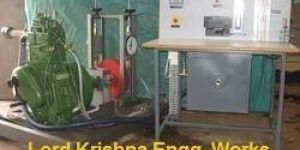

• Type: Diesel Engine Test Rig
• Voltage: 240 V
• Condition: New, Used
• Application: Industrial Use
• Driven Type: Mechanical
• Power Source: Diesel
• Motor Power: 0-10 Hp
• Automation Grade: Automatic, Manual

• Weight: 100-400kg
• Voltage: 220V
• Application: Industrial Use
• Power: 1-3kw
• Automation Grade: Automatic
• Utilities Required: Water Supply and Drain.
• Electricity: 15 kW, 440V AC, Three Phase

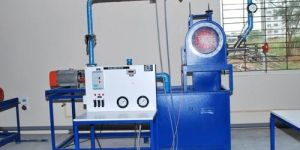

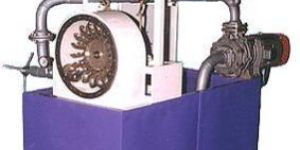

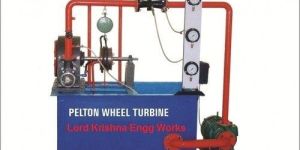

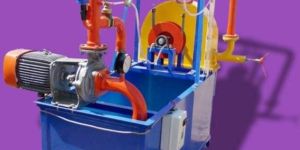

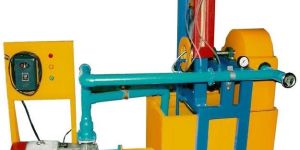

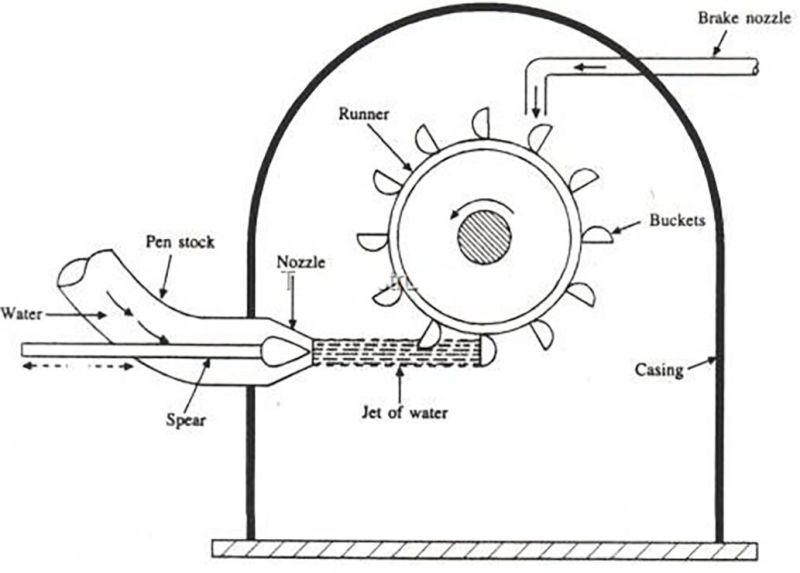

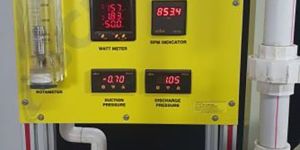

We bring forth premium Pelton Wheel Turbine Test Rig in India. Our Turbine Test Rig is specially designed for experimental purposes in laboratories. Our Turbine Test Rig is manufactured as per the international quality standards and premium components to ensure high durability. We make available Pelton Wheel Turbine Test Rig with different technical specifications according to the requirement of buyers. Buyers can acquire Pelton Wheel Turbine Test Rig from us at affordable price.Experiments :        To study the operation of a Pelton Wheel Turbine        To determine the Output Power of Pelton Wheel Turbine        To determine the Turbine Efficiency

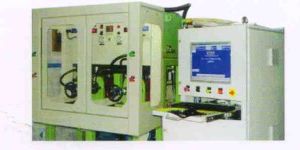

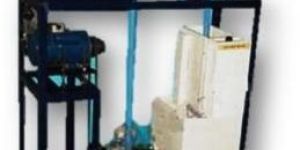

Want to obtain Gear Pump Test Rig at market's lowest prices? Deal with us. We are famous supplier of Gear Pump Test Rig Backed by a capacious warehouse, we can easily undertake urgent and massive orders of the clients. Also, we ensure complete security of the products.

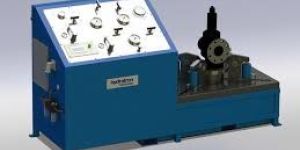

We offer test rig. Used for testing of forged steel valves size range - 1/2" - 2" # 800, 1500, 2500 & 3000

• Weight: 100-400kg
• Voltage: 110V
• Application: Industrial Use
• Power: 1-3kw
• Automation Grade: Automatic
• Capacity: 2 HP (Closed circuit)

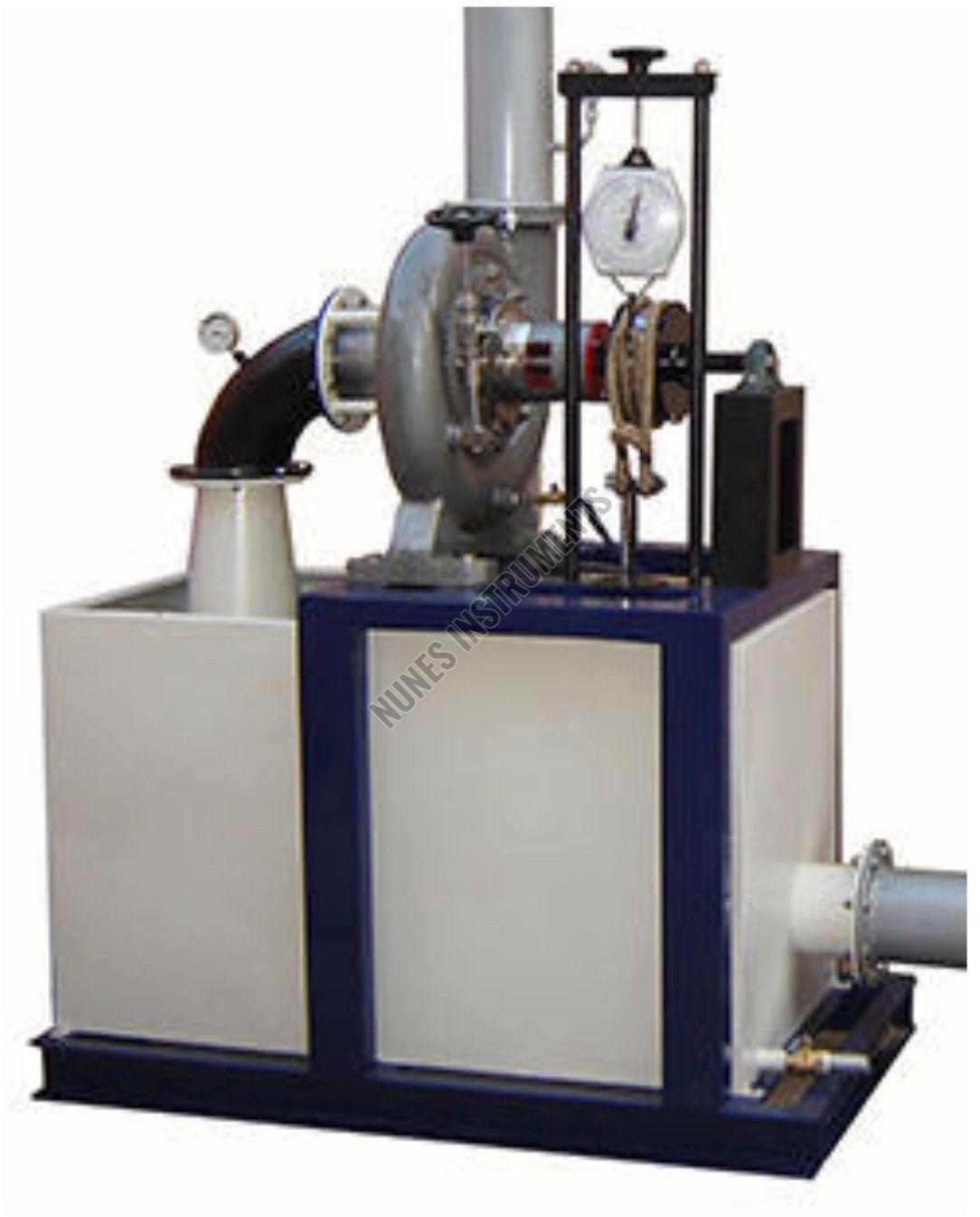

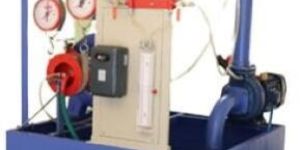

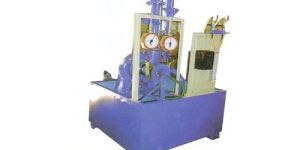

We make sure that there will be no damage to the products that we deliver to the customers. For this, we use high quality packaging material and hi-tech machines ensuring the same. To make our transactions secure, we allow our clients to make payment through both offline and online mediums. Specifications : This Francis Turbine Test Rig 100mm size to develop 2 HP at 1250 RPM with a flow o( about 1400 Ipm at 15 meters supply head Supply pump set lOOxlOOmm size, 1500 Ipm at 15 meter head suitable for supplying water to the above turbine. Monoblock Centrifugal Pump - (7.5 HP, 3 Phases, 440V) Pump Size - Suction size 100mm & Delivery size 100mm Pump Discharge - 2500 LPM Delivery Head - 7 meter RPM - 3000 RPM Sump Tank : MS Tank to store sufficient water for independent circulation through the unit experimentation and arrange within the floor space of main unit. Capacity 650 ltr. Rope Bake Dynamometer is used to measure the output. Spring balance and dead weights are used to measure the load Runner Diameter 220mm. Discharge control valve used to control the flow rate of water. Spring Balance 6 Kg (Salter Make) Pressure Gauge of 4.2 kg/cm2 is used to measure the pressure head. Rigid MS frame work compactly fitted with all the above items as a self-sufficient Package unit suitable for operation without any foundation. Switch and starter suitable for above motor pump set mounted on the control panel board. Experimental Capabilities : To determine the efficiency of Turbine To draw the characteristics curve of Turbine.

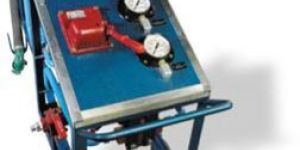

rake test rig is for testing the air braked train.
