Test Terminal Blocks Dealers

• Type: Test Terminal Blocks
• Feature: Easy To Connect
• Country of Origin: India

heavy duty terminal blocks (ct connections shorting type) suitable for 3 phase, 4 wire abt energy meters (tri vector meters).

• Voltage: 600 V max.
• Housing & Top Cover: Phenolic moulding,Black
• Terminals, screws & links: Brass, Nickel plated
• Rated current: 20 A max.

      Facilitate easy testing   Rugged construction   High electrical strength   Extended top cover-optional   Transparent top cover-optional

• Application: Electronic Use
• Feature: Easy To Connect, Proper Working, Shocked Proof, Sturdy Construction, Superior Finish
• Voltage: 110V, 220V, 440V
• Power Source: Electric
• Phase: Single Phase, Three Phase
• Country of Origin: India

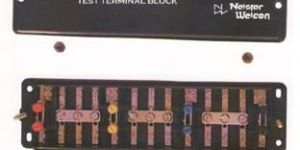

Test Terminal Block 3 Phase 4 Wire, 13 Way.

We are an eminent Supplier of Terminal Test Blocks in Haryana, India. Our Test Blocks are procured from reliable vendors who manufacture under the supervision of experienced professionals. We provide Terminal Test Blocks in different sizes and technical specifications according to the requirement of buyers. Ours Test Blocks are strong and durable in nature. They require low maintenance. We provide Terminal Test Blocks at market-leading prices.

• Brand Name: CANDS
• Material: Bakelite
• Power Source: Electric
• Voltage: 220V

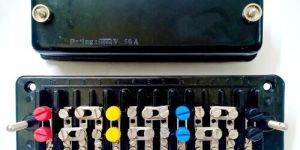

CANDS test terminal blocks 3pahse 4 wire back connection

Product Description Suitable for use with energy Meters & Shorting of current TransformerAssigned Rating:500 Volts, 10 AmpInsulation:0.66/2.0 KV Accessories:Banana Plugs size M4 Design Features •   Compact Size .•   Tamper-proof sealing facility .•   Common dimensions for all types .•   Permanent wiring at rear or front .•   Additional facility of testing through M4 banana sockets .•   Connection diagram inside the cover .•   Testing instructions inside the cover. With Enquiry / Order Please Specify •   Type Designation•   Bulb / LED Voltage•   Accessories Required Our Other Products •   Control / Programme Switches •   Selector Switches•   Switchboard Accessories•   Banana Plugs•   Terminal Blocks

ALUMINUM TEST BLOCK (FOR SENSITIVITY).Dimensions: Thickness based on customer requirements.Description: The Aluminum Test Block is an aluminium test piece with dimensions of 3 inches by 2 inches by 3/8 inches with a notch cut into it to allow for side-by-side penetrant comparison. The strength of "in-use" penetrants is evaluated using the test block. To accomplish this, one half of the block is processed with "used" penetrant, and the other with "fresh" penetrant. sensitivity of new and old penetrants, or sensitivity of different penetrants, can be compared.Block of Aluminum Test (for Sensitivity) The sensitivity of various penetrants or the sensitivity of new and old penetrants is compared by a cracked aluminium block.Material : Aluminum.

These blocks are used for measuring, control, regulatory circuits and for current transformer connection application. They provide a clear functional advantage for devices having utility instruments and associated transformers. Circuit disconnection is achieved by opening the central slide link. The barrel nuts provide test sockets for inserting test plugs and for carrying out current and voltage injection protocols. Cross connection is possible with the aid of external shorting links. CA515 & CA514 switchable link assembly can be used for current transformer shorting application.

We offer ic disconencting type terminal blocks can be used to disconnect the continuity of the circuit without removing the wires. The terminal blocks can be used in applications like measuring, control and regulatory circuits a sliding link is used for disconnection. The link can be moved to one side by unscrewing and the barrel nuts provide test sockets as monitoring points for test plugs.

• Type: Test Terminal Blocks,Test Terminal Blocks
• Material: Ceramic,Steel
• Application: Electronic Connectors
• Color: Brown, Dark Brown
• Power Source: Electric
• Feature: Easy To Connect, Four Times Stronger
• Phase: Single Phase
• Certifications: CE Certified
• Color: Black
• Brand Name: SLBI
• Uniformity: ≤9HLD
• Model Number: NWKB/FC-01

Every household today has tons of electrical equipment. These equipment are getting complicated by the day and their frequency of use is also increasing with time. With our Test Terminal Block, these can be easily integrated. These connectors which come with easy screw manipulation can be easily installed in any household for long lasting performance.

• Voltage: 1100V
• Current Rating: 50Amps continuous at 50 degree Centigrade
• Diameter of entries: 4 mm

The basic terminal arrangement consists of three voltage terminals and a neutral terminal together with 3 sets of current terminals. The voltage in neutral terminals and movable links which allow the meter or relay to disconnect from their normal supply voltage. The links are connected to the terminals by means of screws and knobs. When several meters are tested their current circuits should be connected in series. If meter are to be tested individually, separate test terminal blocks are required for each meter.

• Termination Method: AC
• Mounting Type: Panel Mounting
• Maximum Operating Temperature: 65 Degree C
• Current Rating: 30 Amp
• Contact Material: Brass
• Pin Type: 6 Pin

• Phase: 3 Phase
• Brand Name: Sahyadri
• Type: Test Terminal Block
• Wire: 4 wire
• Used In: Control Relay panels,Metering panels

• Free cutting Brass 319 type BS 249 type: ISO Metric (MM Threads) , BA Threads , BSW Threads (Inches) , UNC, UNF Threads Any threads as per custom design.
• As per customer requirements.: Natural, Nickel Plated, Tin Plated, Natural Brass or any coating as per customer specification.

Brass neutral link and terminal block for all types of panel board switch gears and electrical switch boards.

Capital' T.T.B. enables easy testing of polyphase meter or relay installed at site without interrupting the load circuits. This can be mounted at any convenient position and has facility for projection mounting. T.T.B. is made of superior grade bakelite moulding material with 5mm dia hole for cable entry. Barriers provided protect completely against flashover. Top ccover is M.S. deep drawn qaulity secured in place by knurled knobs and provided with sealing arrangement. All Terminals and screws are of bras and nickle plated to prevent corrosion. Each terminal has 5mm hole for cable entry and 2nos of 4BA screw for clamping.

The test terminal blocks are used for easy access during on site testing of Ammeters, KWH Meters, Maximum Demand Indicators, Trivector Meters, Relays and Instrument Transformers without disconnecting from load and avoid CT open circuit problems. Connections for testing can be easily made. The Test Terminal Block therefore becomes an important element of the Metering Solution. The Test Terminals Blocks are designed for projection mounting with either front or back connection possibilities, designated with FC or BC. The Test Terminal Blocks are for 3 phase, 3 wire or 3 phase 4 wire application for up to 50 A continuous rating at 600 V.
