Thermocouple Tips Dealers

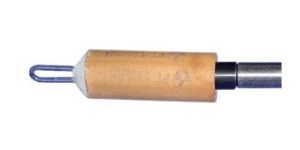

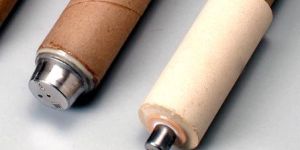

Thermocouple tips for measurement of molten metal temperature are available in standard ipts 68 and ipts 90 calibrations with different thermocouple types. The thermocouple wires are rigorously selected in order to guarantee and accuracy of 0 to ±1.5°c at 1554°c (pd melting point). ​features: measuring time: 3 to 8 seconds maximum immersion time : 8 seconds available in a variety of immersion tube lengths and connector diameters. Available with steelaluminiumcopper protective cap

• Type: Thermocouple Tips
• Shape: Round
• Application: Industrial
• Packaging Type: Carton
• Country of Origin: India

Quick and reliable reading of temperatures is a prerequisite in steel manufacturing. One tool that makes it easy to read liquid metal temperatures in a fast and accurate manner is thermocouple tip. These tips are also very cost effective as they have standard connectors and can be used in different applications. Temperatures over a wide range can be accurately measured using these products. Galaxy Enterprise is one of the largest manufacturers and exporters foundries of these thermocouple tips products. The company supplies them to its clients in various industries. We make thermocouple tips of various types according to specifications of our clients.

We are offering thermocouple tips / temp. Tips for molten metal. In1996, as a logical diversification, we have launched our company namely pro heat thermotech, as a manufacuring unit, for expendable thermocouple tips, lollypop samplers, and associated accessories. Our manufacuring facilities includes all the necessary and desired built inceck and inspection facilitiesat at different stages of production, and ensuring internationally accepted standards of quality of our products.

• Model Number: BMD tips
• Type: Temperature Sensor
• Temperature Range: variation
• Brand Name: True temp technology
• Application: Industrial

SIXSENSE Offers variopus types of Expandable/ Disposable thermocouple TIPPS. Different Types of Models are :  Mk III Mk IV Mk V Mk VI Mk VII B.M.D Tips Mk IV with antisplash Coating All models are manufactured in following Types:- TYPE R : Pt / Pt 13 % Rh TYPE S : Pt / Pt 10 % Rh TYPE B : Pt 6 % Rh / Pt 30 % Rh Paper tube length 300 mm, 600mm , 900 mm, 1200 mm SIXSENSE also provide carbon cups with tellurium coating to determine accurate % C and % Si in Gray , ductile and malleable irons..

• Type: Thermocouple Tips
• Packaging Type: Box, Carton

Temperature tip ,thermocouple tips.

R, S, B Type thermocouple tips, Provided with extension hold pipe, Peak Temperature indicators provided, Widely used in steel plants, Temperature upto 1800 c.

Thermocouple tips are used for measurement of molten metal temperatures. We manufacture a variety of models for various requirements, viz. MK III, MKVI, MK VII (5 Types) and ceramic body – male connector type. All these models use different connectors (either Female Type or Male-Female Type) and use paper tubes with different Inner diameters. The Thermocouple tips are available in a range of calibrations. The junctions are: Platinum & Platinum 10% Rhodium (Type S) Platinum & Platinum 13% Rhodium (Type R) Platinum 6% Rhodium & Platinum 30% Rhodium (Type B) The Platinum & Platinum alloy wires are housed in a quartz tube capable of withstanding temperatures of up to 2000° C. Thermocouple cartridges are fitted on to spiral wound paper tubes. Paper tube lengths up to 1800 mm as per customers requirements can be supplied. Paper tubes have wall thickness of 6.5 + 0.25 mm – 0.50 mm. Optional Antisplash ceramic coating on front portion of the paper tube can be supplied as per customer's specifications.

• Type: Thermocouple Instrument Cable
• Application: Industries
• Feature: Quality Tested
• Name: Tips

Tips

• Model Name/Number: Mark IV
• Temperature Range: 1200 Degree Fahrenheit
• Length: 1200 mm
• Diameter: 30mm
• Material: Aluminium (Cap Material)
• Power Source: Electricity
• Head Shape: Round
• Usage: Used for sampling molten metal from the furnace

THERMOCOUPLE TIP BIG MULTI DIP (BMD) K TYPE WITH CERAMIC SLEEVE OF 70MM Brand Name: BMD Accuracy: 1deg celcius Usage: Can be used 8-10 times in slag free condition, only used for small furnace upto 1 ton Outer shell is Ceramic Connector type is Mini (Male) BMD is used especially for Non- Ferrous foundry

• Temperature Range: 1700 Deg. Celsius
• Length: 300 mm-1500 mm
• Outer Material: Ceramic
• Shape: Cylindrical
• Packaging Type: Packet

• Temperature Range: 1760 Deg C
• Accuracy: +- 3 Degree C
• Brand: DATA
• Usage/Application: Industrial
• Length: Up to 1200 mm
•  :

• Temperature Range: 1000 TO 1750 DegreeC
• Application: Industrial
• Brand Name: Karuna
• Model Number: KTS Mark VI
• Country of Origin: Made in India
• Material: Stainless Steel
• Type: Temperature Sensor
• Item Code: MARKVI
• Mounting: Female connector
• Outer Diameter: 30mm

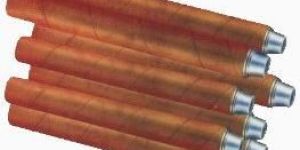

xpendable Thermocouples, TEMPTIP are widely used for molten metal temp measurement in BOF, electric Arc Furnaces, Induction Furnaces. Crucibles & Various types of ladies. This assures rapid and accurate temp measurement within seconds.   Range and Specifications: Calibration : Pt / Pt -10% Rh (Type -S), Pt / Pt -13% Rh (Type - R), Pt 30% Rh / Pt 6%(Type - B), conforming to International standard ITPS - 90 / BS 4937 Part - 1. Accuracy of Wires : At Palladium Point - 1554°C; within ± 1.5°C Measuring Time : 3 to 6 seconds Lenghts of Paper Tube : Ranging from 300 mm to 1800 mm.

• Product Type: Temperature Sensor
• Usage/Application: Industrial
• Material: Glass
• Temperature Range: 1600C
• Dimension: 300-600 mm
• Brand Name: BMD
