Thermoelectric Modules Dealers

Thermoelectric technology is an active thermal management technique based on the Peltier effect. It was discovered by J.C.A Peltier in 1834, this phenomenon involves the heating or cooling of the junction of two thermoelectric materials(bismuth and telluride) by passing current through the junction. During operation, direct current flows through the TEC module causing heat to be transfered from one side to the other. Creating a cold and hot side. If the direction of the current is reversed, the cold and hot sides are changed. Its cooling power also can be adjusted by changing its operating current. A typical single stage cooler (Figure. 1) consists of two ceramic plates with p and n-type semiconductor material (bismuth ,telluride) between the ceramic plates. The elements of semiconductor material are connected electrically in series and thermally in parallel.

• Brand Name: ISA
• Color: White
• Voltage: 12V
• Usage/Application: Equipment
• Height: 3MM
• Length: 40MM
• Width: 40MM
• Hot side Temperature: 25C to 150C

• Dimensions :: 40mm x 40mm x 3.6mm
• Voltage :: 12V, Umax (V) : 15.4V, Imax (A) : 6A, QMax (W) : 92W

Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmercooler. Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts These devices must be used in conjunction with a heat sink to avoid burned Each device is full inspected and tested Fitted with 6-inch insulated leads Installation Cooling piece is very simple to install and use. Before installation, to find a dry cell, connected to the two leads of the cooler, obviously cold you can feel at one end and the other end of fever, remember that the polarity of the lead and determine a good cooler cold and hot end.

• Color: White
• Net weight:: 22g -Package weight: 31g.

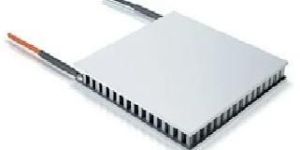

TEC1-12706 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module 12V 60W Features: - Get ice cold in minutes or heat to boiling by simply reversing the polarity, -Used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmercooler. - Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts -These devices must be used in conjunction with a heat sink to avoid burned - Each device is full inspected and tested - Fitted with 6-inch insulated leads Technical Specifications: -Model: TEC1-12706 -Size: 40mm x 40mm x 4mm -Operates from 0~15.2V DC and 0~6A -Operates Temperature: -30℃ to 70℃

• Brand Name: New Brand
• Application: Refrigeration Parts
• Certification: RoHS
• Model Number: TEC1-12709
• Place of Origin: Andhra Pradesh, India

Product ID: 1212 This is TEC1-12706 40x40mm thermoelectric cooler Peltier plate module 12V 60W Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler. Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts Its work is characterized by side refrigeration and side fever. Hot and cold on both sides of the temperature difference of 68 degrees Connected to the 12-volt power supply cooling piece on both sides there will be difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise it will cause cooler internal overheating and burning. Model: TEC1-12706 Operates from 0~15.2V and 0~6A Operates Temperature: -30C to 70C Max power consumption: 60W
