Thread Book Sewing Machine Dealers

Our Manual Thread Book Sewing Machine KMC 2000 / KMC 3000 Sewing Master has been established as top level production machinery, leaving conventional stitcher far behind. The Manual Thread Book Sewing Machine is equipped with all the latest technology and functions. Manual Thread Book Sewing Machine has gained worldwide acceptance and popularity because of their best quality and higher efficiency in comparison with other machines in the market. Attributes Robust construction High performance Low maintenance Fitted with best quality components

• MAX SIZE: 16.5" X 9"
• STITCHES: UP TO 7 SETS

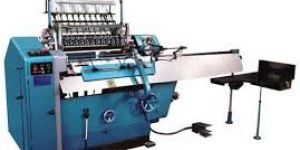

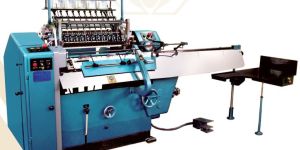

We are offering semi automatic thread book sewing machine model kmc-7000. it is an ideal machine for section sewing of hard bound and paper back books. The machine is completely risk free as signatures are put on a moving chain. The variable speeds of be monitored with a knob. Section sewing with lining is an additional feature of the machine that strengthen hard bound books one can get double output on this machine in comparison to an ordinary machine. technical specifications specification kmc-7000 largest size of books 425 x 225 mm (16.5"x9") smallest size of books 150 x 100 mm (6" x 4") number of stitches up to 7 sets speed 70 to 110 sections per min motor 0.75 kw (1 hp) 1400 rpm with variable speed controller

• Type: Thread Book Sewing Machine
• Driven Type: Mechanical
• Application: Book Sewing
• Automatic Grade: Semi Automatic

We are in the industry from last 20 years, we are dealing with end to end machines for all types of binding machine. our machine book sewing machine very easy to operate and economical.

• Finishing: painted
• Packaging Type: Wooden Box
• Phase: Single Phase
• Overall Weight: 700 kgs
• Usage: note book stiching
• Specialities: High Performance, Easy To Operate
• Dimension (WxDxH): 1000mm X 1000mm
• Max Sewing Speed: 70 sections per min
• Max Stitch Length: 6 to 18 inches
• Brand Name: uniquestitch
• Material: Cast Iron
• Shape: Square

• Type: Automatic
• Certification: CE Certified
• Voltage: 380V
• Power: 3-6kw
• Driven Type: Hydraulic
• Warranty: 1 Year
• After-Sales Service Provided: Spare Parts
• Application: Book Sewing
• Weight: 100-1000kg

The Thread Book Sewing Machine is used for sewing of signatures which are already gathered in order to form book blocks. Useful for both paper backed books or hard backed books, the Thread Book Sewing Machine delivers outstanding performance of max 70 sections per minute. The Thread Book Sewing Machine is also available with electro-magnetic clutch and brake. Accessories : Two Spanners One Screw Driver L Keys One Oil Can One Extra Cutting Knife

Thread Book Sewing Machine Backed by decades of research and innovative work, Thread Book Sewing Machine Model FEC 3000 has been established as top level production leaving conventional stitcher for behind. The Machine is provided with latest technology and functions. It is fully enclosed, compact and robust in construction, reliable efficiency and capable for even the intricate block construction. It has very good accessibility to all structural units. The machine is absolutely free from risk prone possibilities as the same has been provide with ELECTRO MAGNETIC system for instant magnetic brake in adverse conditions. The machine contributes to good psycho logic and physiologic working conditions. Due to auto fed lubrication device, the machine free from general maintenance, resulting in good quantum of production.

Salient Features of thread book sewing machine Electro-Magnetic Clutch and Brake Automatic Centralized Lubrication System Control Panel and Machine Lamp Thread book sewing machine is one kind of book binding machine that sews forms which have been collated in order to form book blocks. It can be widely used for paper backed books or hard backed books as well. Output The construction & working of the machine permits a maximum speed of upto 70 sections per minute and depends on the capability of the operator.

We are offering thread book sewing machine. Semi automatic thread book sewing machine number of stitches 1-7.

Thread Book Sewing Machine Model KMC 300 Sewing Master is rated as a highly sophisticated product, thread book sewing machines, high speed book sewing machines, high efficiency thread book sewing machines, central thread sewing machines. Some of the latest technologies are developed in the machine.

• Driven Type: Electric
• Largest Size of Book: 420 X 250 Mm (16½
• Nett Weight Approximate: 675 Kg
• Gross Weight Approximate: 910 Kg
• Speed: Up to 70 Sections per Minute
• Motor: 0.37 kW (1/2 HP), 1400 rpm
• Space Required: Approx. 1.5 X 1.4 M³ (5' X 4'.7
• Shipping Space: approx. 2.1 m³ (2.6 cbc yards)

Features : Can cut required size of paper by charging gears Static Eliminator to neutralize paper Jogging arrangement Counting provided Speed increase and decrease in possible Self loading reel stand No necessity of oiling in gears Ruling disc and Spacer are of standard machine Imported A.C Very Speed Control provided with inching facility Speed about 100 to 125 meters. per minute depending on quality of paper Paper Sensors for auto stop.   Specification : The variable speeds of the machine can be monitored with a knob The machine is completely risk free as signatures are put on a moving chain One can get double output on this machine in comparison to an ordinary machine Section sewing with lining is an additional feature of the machine that strengthens hard bound books

    It is an ideal machine for section sewing of hard bound and paper back books. The machine is completely risk free as signatures are put on a moving chain. The variable speeds of the machine can be monitored with a knob. One can get double output on this machine in comparison to an ordinary machine.

Largest Size of Book :420 X 250 mm (16 12" X 97 8"), Smallest Size of Book :115 X 100 mm (4 12" X 37 8"), Nett Weight approx:675 KGs., Gross Weight approx:910 KGs., Speed:up to 70 sections per minutes, Motor:0.37 kw (12 HP), 1400 RPM, Space Required:approx. 1.5 X 1.4 m3 (5' X 4.7"), Shipping Space:approx. 2.1 m3 (2.6 cbc yards).

• Maximum size of Book: 460x250mm 18'' x9 3/4''
• Minimum size of Book: 100x80mm 4'' x3 1/4''
• Net weight (approx.): 700 kgs.
• Gross weight (approx.): 900 kgs.
• Speed: 70 sections p.m.
• Motor: 0.5 H.P. 1440 R. P. M.
• Space required: 5' X5'

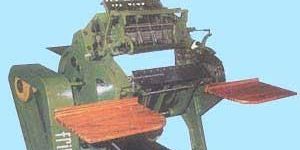

Cat. No. : WM-35THREAD BOOK SEWING MACHINEAsian Thread Book Sewing Machine for Hand Feed is ideally suitable for small editions for professional binders. The machine is well known and approved as a valuable asset in book binding industry. Provided with Magnetic Brake.

Thread Book Sewing Machine is extensively used for section sewing of hard bound and paperback books. This machine is safe to use as signatures are put on a moving chain. We are recognized among the trusted Manufacturers, Exporters and Suppliers of Thread Book Sewing Machine from Punjab, India. The Thread Book Sewing Machine offered by us gives double outputs. The variable speeds of this machine can be monitored with a knob. This machine is known for its simple and easy operations. Our Thread Book Sewing Machine is highly demanded by the customers due to its fully enclosed and compact design, robust construction, efficiency and intricate block construction. It is provided with electromagnetic system for instant magnetic brake in adverse conditions.

• Largest Size of Book: 450mm x 230mm (18"x9")
• Smalles Size of Book: 115mm x 100mm (4½"x4")
• Nett Wt. Approx.: 675 Kgs.
• Gross Wt. Approx: 910 Kgs.
• Speed: upto 70 sections per minute
• Motor: 0.37 kw (½H.P.) 1400 RPM
• Space Req.: App 1.5 x 1.4 m3 (5' x 4'7")
• Shipping Space: App 2.1 m3 (2.6 cbc yards)

Heavy duty and compact model. Machine is used for sewing of signatures which are already gathered in order to form book blocks. Useful for both paperback books or hard backed books. Max 70 sections per minute. Machine is also available with electromagnatic clutch and brake.

We offer four latest models of thread book sewing machines. These machines can be supplied with mechanical operation, electro magnetic clutch & brake with push button controls and with chain delivery options.

The new KMC 150 is the ideal choice for customers who need to process all kinds of Signatures. This enables the KMC 150 to provide easy operation, quick make-ready, high quality sewing and high output. The opening head includes the Lap opener. A programmable device for mechanical opening of signatures with high and low folio lap anywhere in the book. The lap opener is practiculary helpful with come-and-go signatures. The minimum lap required is 8mm.
