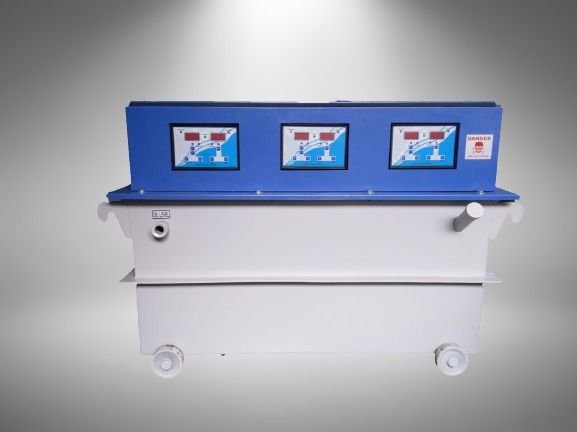

Three Phase Servo Controlled Voltage Stabilizer Dealers

• Type: Three Phase Voltage Stabilizer
• Certification: CE Certified
• Color: Multi Colour
• Voltage: 220V
• Frequency: 60hz
• Automatic Grade: Automatic
• Feature: Auto Cut, Easy Operate, Shocked Proof, Stable Performance

Our company is professionally involved in manufacturing, exporting, and supplying of Three Phase Oil Cooled Servo Controlled Voltage Stabilizers. We are based in Gujarat, India. These Three Phase Oil Cooled Servo Controlled Voltage Stabilizers are fabricated using the authentic raw materials and components. We adopt modern tools and latest technology in manufacturing these stabilizers. It is acknowledged by our customers for its great fluctuation tolerance. The offered stabilizer is manufactured under the supervision of our experts and tested on the basis of various quality norms. Our stabilizers are highly cost-effective. Features : Input / Output voltage range as per requirement       Digital voltmeter / Digital Volt-Ampere-Frequency meter       Servo Bypass switch       Line Noise and surge suppression network

• Country of Origin: India
• Type: Three Phase Voltage Stabilizer
• Certification: CE Certified
• Color: White
• Feature: Auto Cut, Easy Operate, Shocked Proof, Stable Performance, Works In Low Voltage
• Voltage: 380V
• Condition: New
• Frequency: 50hz
• Automatic Grade: Automatic, Manual
• Cooling System: Oil Cooling
• Power Capacity: 50-100kw
• Warrenty: 1year
• Brand Name: Servo
• Application: Stabilizer The Voltage
• Phase: 3

Owing of our extremely talented team of professionals, we are engaged in offering excellent quality Three Phase Servo Controlled Voltage Stabilizer. The offered voltage stabilizer is manufactured using top notch quality components and progressive technology as per the set industry norms at our ultra-modern production unit. In addition to this, our quality examiners test this voltage stabilizer on different parameters to ensure its quality.   Features : Sturdiness Accurate performance Rugged construction   Specification : Range : 170 Volt-470 Volts, 225 Volt-470 Volt, 295 Volt-470 Volt, 260 Volt-470 Volt

• Automatic Grade: Manual
• Voltage: 220V

3kva to 8000 kva available  Sales and Services available Pan India

• Type: Three Phase Voltage Stabilizer
• Color: Sky Blue
• Voltage: 415 V (+/- 1%)
• Condition: New
• Automatic Grade: Automatic
• Cooling System: Oil Cooling
• Brand Name: SERVOMAX INDIA
• Phase: THREE PHASE

description: negligible losses in full boost & buck condition suitable for continuous 100 % duty cycle linear type vertical rolling contact regulator lowest power consumption on no load - 0.5 % to 1 % life of stabilizer at full load is 15-20 years comes with 5 year unconditional warranty double wound buck / boost transformer electronic control circuit and metering panel rugged and robust design technology cost of automatic voltage stabilizer can we recovered in 2 to 3 years servo voltage stabilizers come in a wide range of models. The standard 3-phase models are suitable for balanced & unbalanced supply/loads   advantages: 60% depreciation as per income tax act reduces global warming higher productivity reduction in mdi uniform quality of end product low maintenance cost reduction in breakdown of electrical equipments high energy savings

• Brand Name: Rameshwar
• Capacity: 20 kva
• Output Voltage: 415
• Response Time: 3 sec
• Efficiency: 50 hz
• Ambient temp: 30 degree
• Controls: Micro
• Cooling: Air
• Country of Origin: India
• Class Of Insulation: F
• Colour: Water blue
• Time Delay: 3 sec
• Type of Load: 15 kw
• Input Range - Standard range: 360
• Input Range - Extended range: 480
• Correction Speed: 60 ms

• Brand Name: SERVOSINE,SERVOSINE
• Automation Grade: Automatic
• Capacity: 60KVA
• Output Voltage: 400V P-P
• Efficiency: 98%
• Controls: Push Buttons
• Cooling: Oil Cooled
• Country of Origin: India
• Input Range - Standard range: 340V-470V
• Warranty: 12 Months

• Brand Name: Serv66596o.
• Automation Grade: 23.W6597*6
• Capacity: 60
• Output Voltage: 440
• Response Time: //....\ .+..J
• Country of Origin: India

Input Voltage 280 V to 460 V Output Voltage 415 V Power Capacity 100 kVA Oil cooled AND air cooled

• Indications: Mains Input on 3 LED Indications, 3ph output on indication Phase Reversal indication over Load indication
• Indications in LCD Display: Input High and Input low Output on indication Output high Cutoff and Output Low Cutoff
• Input voltage range: 300 – 460v 340 – 480v 360 – 460v ac 3 ph
• Output voltage(3 ph): 415v
• Ac system: Unbalanced 4 wire – R Y B N
• Connections: star
• Operating frequency: 47 to 53 hz
• Output voltage adjustable: 380 to 415v ac in 3 ph
• Output voltage regulation: + 1% (no load)
• Output voltage regulation: + 1% (full load)
• Overload capacity: 120% Correction Rate – 60 25 15V per Sec-3 Phase
• Waveform Distortion: nil
• Output Waveform/td>: true
• Reproduction of Input Insulation: Class B
• Short Circuit period & Percentage: 300% for 250 Milli Sec. 0 0
• Normal Operation Temperature: 0 C to 45 C 0
• Climate Conditions: 90% Rh Max
• Non Condensing at 35 C Type of Cooling: Natural Oil cooled up to 5000 KVA
• Mode of system: Fully Automatic System
• Construction: As per IS – 9815 1994

Backed by our dexterous professionals, we have emerged as a reliable Manufacturer and Supplier of Three Phase Oil Cooled Servo Controlled Voltage Stabilizer in Hyderabad. The Three Phase Oil Cooled Servo Controlled Voltage Stabilizer we make available are manufactured in conformity with international quality standards and norms. To cater bulk and urgent requirements of buyers, we maintain a large stock of Three Phase Oil Cooled Servo Controlled Voltage Stabilizer at our state-of-the art warehouses. Buyers can obtain the Voltage Stabilizer at market-leading rates.

• Phase: Three Phase
• Application: Industrial
• Country of Origin: Made in India
• Cooling Type: Air Cooled
• Rated Capacity: 100 KVA

• Frequency:  50/60Hz
• Voltage Single phase:  220±2%VAC,three phase 380±2%VAC
• Output Accuracy:  1-5% adjustable
• Effectiveness: >95%
• Response time:  <2S
• Environment temperature: -10ºC

Frequency : 50/60HzOther Details:A voltmeter with a selector switch, which can monitor any line voltage (Phase to Phase i.e. R-Y, Y-B, B-R) for both input and output voltageThree ammeters to monitor output current continuously at each phase.A miniature load ON-OFF switch actuates an AC line contractor, which in turn, actuates the 3-Phase load system.A reset switch counteracts tripping of supply to load. The switch will not reset the system unless the source of tripping is removed

• Description: Three Phase
• Capacity: 3kva1500kva
• Input Voltage: 295-465v
• Wide Range: 245-465v
• Output Voltage: 380/400/415v +/- 1% Settable
• Nature Of Cooling: Air / Oil Cooled
• Regulation: +/- 1%
• Efficiency: >96%
• Input Frequency: 50hz +/-3hz
• Speed Of Correction: 70v/ Sec
• Servo Motor Drive: Ac Synchronous
• Indications: Input On, Output On High/ Low Cutoff
• Metering: Anolog Input/Output Voltmeter
• Protections: Under/Over Voltage Overload & Short Circuits Protection
• Manual By Pass(Optional): Through Change Over Switch
• Operating Temperature: 0-50 Degrees Celsius
• Enclosure: Crca Mild Steel
• Standard For Stabilizer: As Per I.S. 9815

• Output Voltage: 230V
• Efficiency: 98 %
• Capacity: 50 KVA
• Brand Name: DG Power
• Input Voltage: 380V - 415V
• Phase: Three Phase
• Frequency: 50-60 Hz
• Warranty: 1 Year
• Cooling Type: Air Cooled
• Material: Copper
• Power Source: Electric
• Automatic Grade: Automatic
• Usage/Application: Industrial

• Phase: Three Phase
• Brand Name: Beltronics
• Regulator Type: Linear Regulator

Capacity range upto 200 KVA 3Ph   ParticularStandards Input Voltage Range 300 - 460V / 340 - 480V / 360 - 460V AC 3 Ph Operating Frequency 47 to 53Hz Operating Voltage Adjustable 380 to 415V AC in 3 Ph Output Voltage (3Ph) 415V AC 3 Ph System Unbalanced 4 wires: R Y B N Connections Star Overload Capacity 120 % Correction Rate 30 / 25V per Sec-3 Phase Output Voltage Regulation ± l% (No Load & Full Load) Short Circuit period & Percentage 300% for 250 Milli Sec. Waveform Distortion Nil Output Waveform True Reproduction of Input Insulation Class F Normal Operation Temperature 0° C to 45° C Type of Cooling Natural air cooled up to 200 KVA Climate Conditions 0% Rh Max. Non Condensing at 35°C Mode of System Fully Automatic System Construction As per IS : 9815 - 1991       Indications Programmable Controls • Input ON 3 LED Indications, • Display Scrolling - • 3ph output ON indication Auto / Manual • Phase Reversal indication • Start / Stop Buttons • Over Load indication Menu / Start / Stop / Reset / Log Button         Systems Indications in LCD Display • Single Phasing Preventor Output ON indication • Output Electronic Over Load Protection Output high Voltage Cut-off • Phase Reversal Protection Output low Voltage Cut-off • Input Short Circuit Protection with MCB/MCCB Micro Controller Technology. • Input Over Load Protection with MCB/MCCB   • Output Low Voltage Protection   • Output High Voltage Protection   High Reliability Uses Solid state control circuits, Synchrnous motor drive, No warm-up time, No relays, Professional grade ICs and components are used.   Trouble free operation Quick response time 10 millisec (half a cycle), Efficiency, Low losses, Low temp. rise and withstands in all climate conditions, Provides perfectly stable output power even under severe conditions of voltage fluctuations, Zero wave-form distortion, Unaffected by load power factor, Ruggedized construction Enclosure-IP32, Mounting- Floor Mounted/Free on Wheel, Servo Motor Drive- Rugged AC step synchronous motors.   • CNC Machines• Telecommunications Equipments• Bio Medical Equipments • Large Computer Installations • Printing Machinery• Scientist Equipments• Cell Phone Networks • Garments Equipments • Textile Machineries etc

• Input voltage range: 300 – 460v 340 – 480v 360 – 460v ac 3 ph
• Output voltage(3 ph): 415v
• Ac system: unbalanced
• wire: r y b n
• Connections: star
• Operating frequency: 47 to 53 hz
• Output voltage adjustable: 380 to 415v ac in 3 ph
• Output voltage regulation: + 1% (no load)
• Output voltage regulation: + 1% (full load)
• Overload capacity: 120.00%
• Correction rate: 60 30 25v per sec-3 phase
• Waveform distortion: nil
• Output waveform: TRUE
• Reproduction of input insulation: class f short circuit
• Period & percentage: 300% for 250 milli sec. 0 0 normal
• Operation temperature: 0 c to 45 c 0
• Climate conditions: 90% rh max.
• Non condensing: 35 c
• Type of cooling: natural air cooled up to 600 kva
• Mode of system: fully automatic system
• Construction: as per is – 9815 1994

• Type: Three Phase Voltage Stabilizer
• Certification: ISO 9001:2008
• Color: Sky Blue, White
• Feature: Shocked Proof, Stable Performance
• Voltage: 380V, 440V
• Condition: New
• Frequency: 50hz, 60hz
• Automatic Grade: Automatic
• Cooling System: Air Cooling
• Power Capacity: 50-100kw
• Warrenty: 1year
• Brand Name: INFLUX
• Country of Origin: India
• Application: HOME APPLIANCE , MEDICAL INSTRUMENTS , TEXTILE INDUSTRIAL , FACTORY
• Phase: 3 ThreePhase
• Product: INFLUX
• Product Name: Air Cooled servo stabilizer
• Usage: FOR machines and commercial
• Colour: VIP BLUE

Three Phase Servo Controlled Voltage Stabilizer, ONLINE UPS, Generators

We are the renowned Manufacturer, Exporter and Supplier of 3 Phase Servo Controlled Voltage Stabilizer in the global market. The 3 Phase Servo Controlled Voltage has a capacity to handle from 3 KVA up to 500 KVA. The 3 Phase Servo Controlled Voltage features star type connection that is suitable for unbalance loads. This 3 Phase Servo Controlled Voltage Stabilizer features high torque AC sync motor that is controlled by a truly solid state electronic controller. Highlights Highly efficientSturdy constructionEasy-to-installCan withstand overloads
