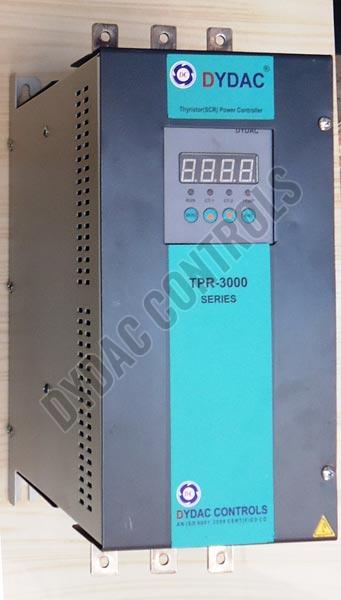

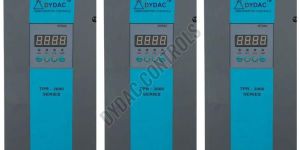

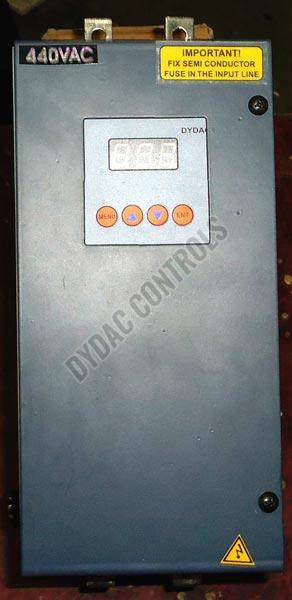

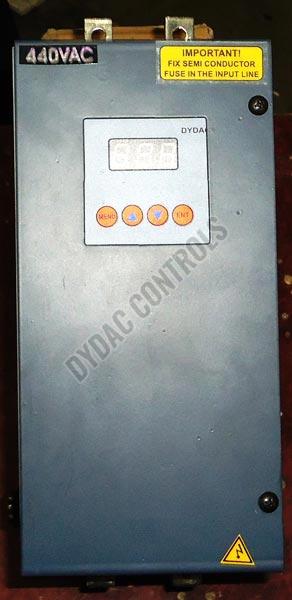

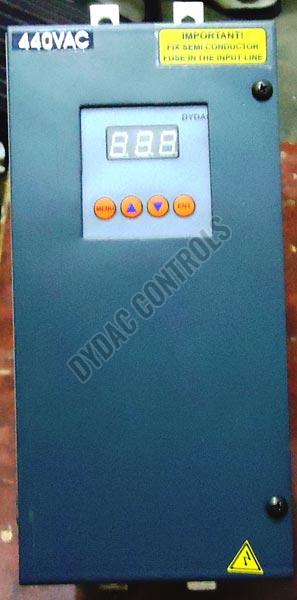

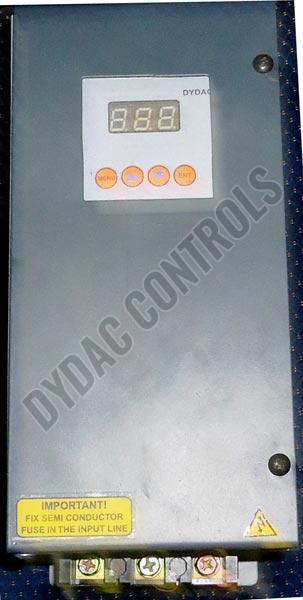

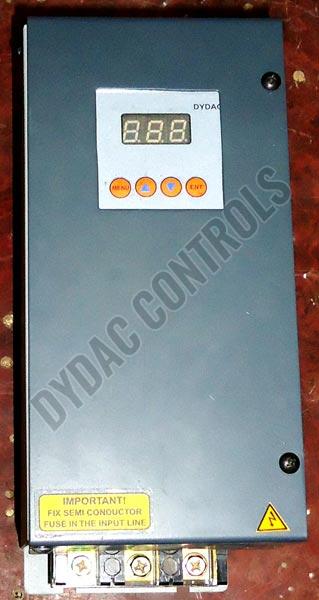

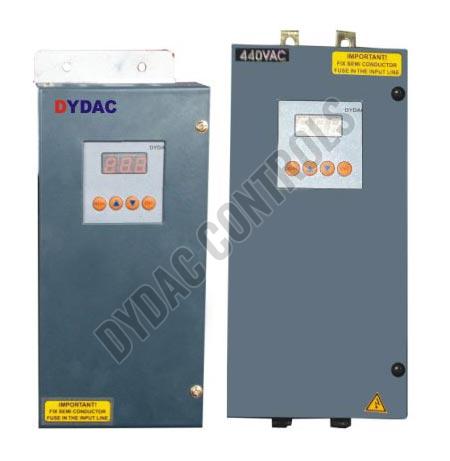

Double Phase Thyristor Power Controllers
Get Price Quote
We are engaged in manufacturing, exporting & supplying of Double Phase Thyristor Power Controllers from Delhi, India. Our Thyristor Power Controllers is known for their durability, power consumption, and smooth operation. Buyers can rely on us for delivering small or bulk orders of Double Phase Thyristor Power Controllers within the postulated time. Features : Soft start – bake out feature prevents moisture at start up Current Limit , Phase Loss Trip, Over temperature Trip Microprocessor Digital Programmable Thyristor Power Controller with Percentage Display. Program : Setting of Current Limit, Soft start etc by front keys Dydac Controls Thyristor SCR Power Controllers | A sample of some typical applications : Plastic Extruders , Plastic Injection Moulding machines Thermoforming, textiles, industrial furnaces and ovens, extruders, kilns, chemical process heating, fast water heat. Paper and pulp drying, packaging machines, pharmaceutical processes, infrared ovens and dryers. High-temperature ovens and furnaces, kilns, glass, ceramics & high-temperature alloys. Large tank heating and mechanical relay replacement. High-speed paper and ink dryers, high temperature IR heating, high temperature materials processing. Primary of transformer-coupled loads. Phase angle proportional control. No temperature or power cycling I2T Rectifier fuses standard Isolated SCR's Integrated thermal/mechanical design saves panel space Voltage protection - MOV capacitance 10 to 400 Ampere current ratings. Other Ratings Over 400 Amps Possible. Easy to install, test, service The Dydac Thyristor Power Controller is a heavy duty, fully Digital two phase power control unit for controlling the voltage applied to loads such as heating elements, thus, allowing temperature control while eliminating contactor switching and over/under heating. The first in a series of Digital ( SCR ) Power Controllers incorporating protection functions. Built in switching methods are : Phase Control Firing Zero Crossing Firing Advantages at a glance : Fully digital Thyristor Analog Thyristor Phase Control and Zero Crossing Current: 15 – 300 A (consult us when higher ratings are needed) Voltage: 230- 500 V 50/60Hz Cooling Method: Natural or Forced air Ambient. Temp: 0 - 50°C Continuous Duty Two controlled phases C.T.'s Input, 4-20mA or 0-20mA, 0-10VDC Digital display Control Input: Analog (4-20mA/0-20mA/1-5V/0-5V) Indicating of analog signal. Automatic Output-limit cognition of external volume or internal limit setting. Various alarm mode(over current, line failed, over temperature, load unbalance) Fault alarm output / Run output Programmable soft start. True RMS current display Auto/Manual mode operation is possible. Over current trip Output Current Limit Function Built-in watch timer Heat-sink temperature Load unbalanced level is programmable Compact size LEDs : Over Current Over Temperature Alarm Trip Protection functions : Under & Over current Shorted SCR Heat sink over temperature Trip & Alarm Internal failure The SCR control can deliver electrical power to heaters in several ways: phase angle fired, zero voltage switched and on/off control. Double Phase: Watts÷ Volts= Amps - Example: 18,000W ÷ 440V = 40.9 A Amps X Volts= Watts - Example: 40.9Ax 480V = 18,000W Amps X Volts X 1.73 = Watts - Example: 60A x 480V x 1.73 = 49,824W, Example: 18,000W ÷ 240V = 75A Specification : Ratings : Double Phase – 25 , 34, 59, 70, 90, 150, 200 , 250, 300 Amperes Range : 15 A - 400 A , 220-1200V Connection types : Double Phase Power Calculation : When selecting the correct sized SCR power controller, rate the SCR for at least 110% of the heater load. Heaters and power lines have tolerances that can swing on any given day or location.

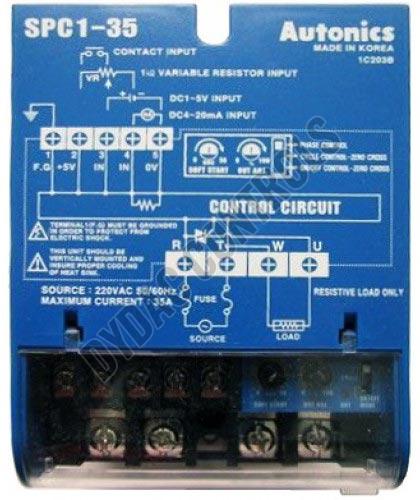

Autonics Thyristor Power Controller
Get Price Quote
1 Piece (MOQ)
Best Deals from Thyristor Controllers

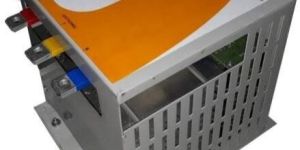

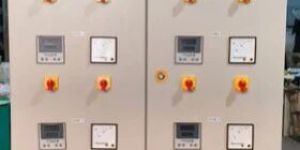

Thyristor Power Controllers
6,000 - 100,000 Per Piece
1 Piece(s) (MOQ)
âS. S. Controlsâ brings in superior quality Thyristor Power Controllers in the international market. The Microprocessor Based Thyristor Power Controllers made available by us, have single, two and three phase A.C. SCR power controllers for resistive inductive loads. These Thyristor Power Controllers can also be availed in analog version. They find numerous applications in A. C. power control of inductive and resistive loads of any capacity. Apart from the above fact, the company is identified as one of the chief Thyristorised Power Controllers Manufacturers in India. Thyristor (SCR) Power Controllers / Power Control Circuits. Single / Three Phase / Two Phase A.C. SCR Power Controllers for Resistive Inductive Loads. Microcontroller / Analog Versions available. Applications: A.C.Power Control of Inductive / Resistive Loads of any Capacity. Resistance Metal Gathering / Heating Machines. Thyristor Control Cards / Circuits Single Phase / Two hase Thyristor control Cards for Resistive / inductive Loads. Microcontroller (Digital) / Analog version available.

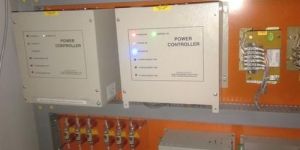

Automatic Thyristor Power Controller
Get Price Quote
0.0
View Profile

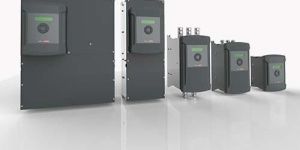

PL/XD Thyristor Stack Controller
Get Price Quote
1 Piece (MOQ)
The PL/XD is used for controlling external 3-phase thyristor stacks for DC motors and slip-ring motors. It possesses the same functionality as the PL/X range, except that the output power stage is not included.The PL/XD makes an extremely economical solution for users of very large power DC motors wishing to separate the control and power modules. Based on the PL/X Drive SystemThe PL/XD provides the same functionality as the integrated PL/X drive, except without the power stage. The PL/XD uses the same frame size as the PL/X 5 – 50 model and hence is extremely compact. The PL/XD provides all the world-class control features of the PL/X series. The PL/XD can control a 6 pulse 2Q bridge (6 thyristors), 2 bridges in parallel (12 thyristors) or a 6 pulse 4Q regenerative anti-parallel bridge (12 thyristors).State-of-the-art Digital controlThe PL/XD provides gate drive pulse for driving user supplied pulse transformers with primary pulse current up to 1.5A. The PL/XD can be supplied with supply voltages up to 690VAC as standard. There is also an integral motor field bridge with independent single-phase AC supply inputs for controlling fields up to 32A or 50A. Internal field supply input voltage is set at 480VAC.Powerful EthernetThe PL/XD can be fully equipped with Drive.Web to enable the Industrial Internet Of Things (IIOT). Drive.Web distributed control technology uses Ethernet and powerful graphical tools to provide robust Programmable Peer Control (PPC) for drives and systems. Options for field bus systems include Ethernet, Profibus, CANbus, Modbus, DeviceNet and many more. The PL/XD is CE approved.
0.0
View Profile

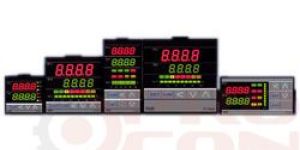

thyristor controllers
Get Price Quote
The thyristor family of semiconductors consists of several useful devices; the most widely used devices of this family are silicon controlled rectifiers (SCRs), Triacs, SIDACs and DIACs. In many applications these Thyristor Controllers perform key functions and are real assets in meeting environmental, speed and reliability specifications which their electro-mechanical counterparts cannot fulfill. We are dealers in Thyristor controllers for varying load applications at convenient market rates. Essential Points Single Phase (230 V) : 20 A - 80 A (With Neutral) Three Phase (230 V) : 20 A - 80 A (With Neutral) Three Phase (415 V) : 20 A - 80 A (With out Neutral) Slow Start : The output can be started slowly by internal adjustment. Frequency : 50/60 Hz Output Voltage : 0-97% output Applicable Load (A) : Resistance load Applicable Load (C) : Resistance load, Inductance load, Transformer load Input Signal : 4-20 mA, 1-5V DC, 0-10V DC, VR adjustment by Manual Cooling System : 30A 40A self-cooling, other by forced air cooling Ambient Temperature :-10oC~55oC, below 90% humidity
0.0
View Profile
Thyristor Controlled Reactor
Get Price Quote
1 Set(s) (MOQ)
Thyristor Controlled Reactors are major components of an SVC system. The power semi-conductors are used in an SVC scheme to generate harmonics, and need to be eliminated by harmonic filters. Therefore in an SVC system harmonic filter, Thyristor Controlled Reactors are employed as well. The reactive power consumption of our Thyristor Controlled Reactor can be continuously controlled by thyristor valves. These Thyristor Controlled Reactors are commonly used in combination with switched shunt capacitors to provide variable reactive power as required. To limit the inrush current of the capacitors, series connected damping reactors are inserted ahead of the capacitor bank of the Thyristor Controlled Reactor. Highlights Variable reactive power Limited inrush current of the capacitors Controlled reactive power consumption Variable reactive power

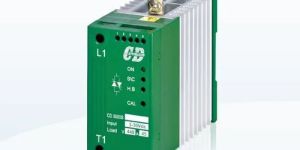

Thyristor Power Controller
Get Price Quote
We supply Thyristor Power Controllers to all our clients. This is an important electronic device that is employed in numerous electronic circuits. We supply these to our loyal clients who regularly purchase from us in bulk and marginal sized quantities. Our delivery services are reputed to be prompt and supply the goods securely packed without any kind of loss in quality or quantity.
0.0
View Profile

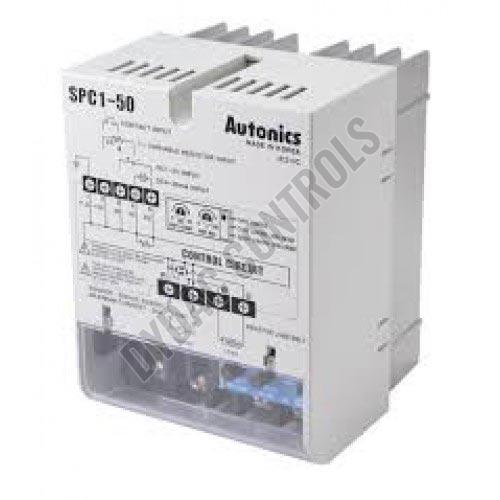

Autonics Thyristor Power Controller
102,000 Per
0.0
View Profile
Thyristor Power Controllers
Get Price Quote
0.0
View Profile
Thyristor Power Controller
5,000 Per Piece
0.0
View Profile
Thyristor Power Controllers
3,000 Per Units
0.0
View Profile

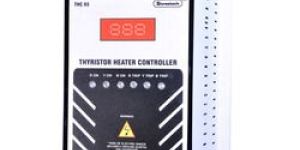

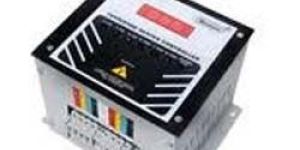

Infrared Heaters Thyristor Controller
Get Price Quote
We are leading Supplier and Manufacture of Infrared Heaters Thyristor Controller in Pune, Maharashtra. Specifications: Rating 200 Amps. Input 230V.+/- 10%, 50 Hz Output 0 â 100% as per KW Input control 4-20 mA. signal by external process 0-10 V. DC signal by external process Controller details Out put voltage proportional to input control signal by phase angle control of thyristors Digital Indications a) Power On b) over current Adjustment a) Voltage Setting Protections a) DV/DT protection by RC snubber Construction Open execution module suitable to mount in side the panel
Thyristor Controller
15,000 Per Piece
0.0
View Profile
thyristor controllers
Get Price Quote
Fotek Thyristor controller is having CE certified in compact version, i think we are the most advance product which has CE in thyristor & power regulator apart from this we have We are dealing wide range of products in Fotek India proximity sensor, photoelectric sensor, ssr, relays, light curtain, temperature controller, thyristor controller, timers etc.
0.0
View Profile
Zero Crossover Thyristor Firing Cards
Get Price Quote
These are very compact, sealed solid state cards with no moving parts, particularly suitable for high power switching of Capacitor Banks. Each Card can fire two separate Thyristor-Thyristor Module, with common control, without any need of external power source since the driver draws power from the mains 440Vac supply. Switching is silent, instant, does not cause any arcing and is unaffected by the number of switching operations, vibrations and corrosive atmosphere. The control input is optically isolated from the mains AC Power Switching Circuit. One Card is used per stage of APFC Control Panel. Input is a 3V-12VDC source in series with the APFC Controller Stage control output. A Single source can drive and control all the stages.
0.0
View Profile
thyristor controllers
Get Price Quote
Fotek Thyristor controller is having CE certified in compact version, i think we are the most advance product which has CE in thyristor & power regulator apart from this we have We are dealing wide range of products in Fotek India proximity sensor, photoelectric sensor, ssr, relays, light curtain, temperature controller, thyristor controller, timers etc.
0.0
View Profile
Thyristor Power Controller
Get Price Quote
0.0
View Profile
thyristor controllers
Get Price Quote
LOAD OPERATED FAST RESPONSE REACTIVE POWER COMPENSATION SYSTEM :- . The system is designed to work automatically on highly variable, fluctuating, unbalanced loads. The compensation is done on percentage of load current set able on site in program mode of Controller with fast response with cut off of set value of power factor. Load operated Thyristor switched Automatic power factor system mainly suitable to Welding Loads, Lifts, Crane, Injection Molding Machines. It is a highly Fast response system properly designed to measure ,display, connect & disconnect the required Kvar Capacitors to achieve target power factor. Load operated APFC RELAY -Microprocessor based, most advanced device to measure & Display all electrical network parameters & calculate load Kvar to work automatically to connect & disconnect capacitors banks to achieve target power factor with ultra fast response. Display Parameters of APFC Relay: Voltage, Current, Power Factor, Active Power (KW), Apparent Power (KVA) -All at LT side Reactive Power (KVAR), Capacitive Reactive Power (KVAR) Active Energy (KWH), Apparent Energy ( Energy (KVAH), Reactive Energy(KVARH) Real Time, date, Network fault message display Capacitor bank status display,Load sideParameters viz. Current, P.F. & KVA. Protection : Controller offers protections in the following situations, High voltage , Low voltage, Over-load, Under load, Imbalance, Load Current Imbalance, Over Capacitor Current, Capacitor Current Imbalance, Over Temperature Programmable Parameters of APFC Relay: Target Power Factor - 0.90 lead to 0.85 lag. Time Delay (TD) - 0.5 mili sec - 120 Sec. CT Ratio - Current Transformer ratio to measure actual load. PT Ratio - Potential Transformer ratio to measure actual voltage. No. of Steps - 1 to 4 Capacitor steps. Capacitor Step Rating -on percentage of load current with connected Kvar. Display Scroll time delay. Capacitor's discharge time in Seconds. Compensation mode - fine-Avarage /minimum/maximum of load Kvar basis.
0.0
View Profile
thyristor controllers
Get Price Quote
