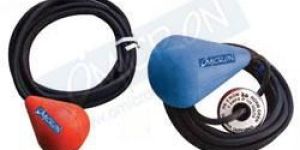

top mounted float operated suspended and tilting float switches   principle of operation   a pear shaped float weighted at its upper end is suspended inside  a vessel on the end of a flexible cable. as the liquid level rises the lower end of the float is supported by the fluid, the float tilts and operates a micro switch inside it (not a mercury switch)   material specification   customized suiting to the service (fluid) and temperature.available in ss 304/ ss 316/ pp/ pvdf

• Current Rating: 20A(R)-8A(I), 250VAC
• Tilt: +/- 10
• Max Temperature: 85 deg C
• Float Size: 95mm X 152mm ht
• Float Protection: IP 68
• Cone Weight: 462 gms
• Cable Type: 3 conductors x 1 mm2
• Cable: Neoprene H07RN8-F

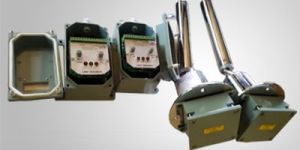

TILT SWITCH is an electronic device specially developed for sensing the level of an approaching stockpile on stacker-reclaimed or material in a hopper, in a silo and to provide an output signal which can be used to initiate control actions.

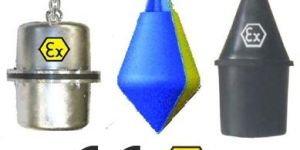

We are listed amongst pioneering manufacturers, exporters and suppliers of Cable Suspended Tilt Level Solid Switch from Maharashtra, India. Our product is made using high grade casting material. This switch has range up to 15mtrs with liquid density more than 0.75 g/cm3 and is very easy to install. With high level detection of solids, this switch is used in silos containing cereals, cattle food, pet food, polyethylene granulate, powders, wood dust, cement, lime, etc.   Details : Easy to install through cable suspension.  Very reliable for high level detection of solids. Range - upto 15 mtrs Liquid Density - > 0.75 g/cm3 Floats - 9 options Float MOC - PP, Hypalon, SS Max Temp - 85oC Max Pressure - Atm Contacts - 2A or 3A or 8A, 250VAC x SPDT Options - ATEX Certified for explosive areas Application : In Silos Containing Cereals, Pet Food, Cattle Food, Cement, Lime, Polyethylene, Granulate, Wood dust, Powders, etc.

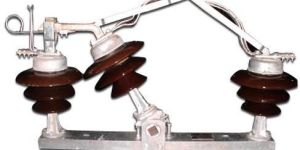

11kv Tilting Type AB Switches that we offer are known for providing flawless performance for longer term. 11kv Tilting Type AB Switches is widely used in transmission lines and similar other applications. We provide these 11kv Tilting Type AB Switches in accurate dimensions and used in various industries.

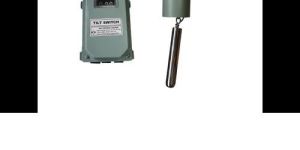

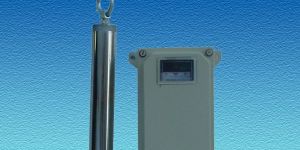

We are offering mechanical tilt level switch. Protocontrol with a vast experience of more than 25 years offers complete level management solutions. We offer solutions for measuring levels of liquid, powder,granule, solids and bulk solids. We are the first in india to develop capacitiv proximity switch for packaging industry. We are the first to design and prove chute block switch for bulk solids.mechanical tilt level switch application: tilt switch is an electronic device specially developed for sensing the level of an approaching stockpile on stacker-reclaimed or material in hopper in a silo and to provide an output signal which can be used to initiate control action. It is used for measuring level of solids & granules. Operating principle: the tilt switch comprises of two parts : sensor probe & monitoring unit. The sensor probe is of tubular structure & is hanged by means of a chain link arrangement. When tilt probe gets tilted by material, the output relay gets actuated. The sensor probe unit has uni-directional sensing pattern and hence on whichever side its tilts, it provides output signal. It has built-in adjustable on & off delays to take care of nuisance tripping due to wind flow or momentary jerks at the start and stop of the machine. Features: adjustable on & off delay, to prevent nuisance tripping. Uni-directional sensor probe. The switch operates when tilts to any direction.less maintenance.

To sense the level of bulk material such as lime stone, coal, Iron ore, Pellets etc. stored in open yard or in a bunker, or hopper etc. The working of this switch is more simple than capacitance type level switch.

• Mounting Options: TCB Mount
• Switch Type: Ball Tilt
• Current Rating: 15 mA
• Media Type: Liquid
• Pole And Throw Specification: SPST
• Country of Origin: Made in India
• AC Voltage: 6 V

• Switch Type: SPDT
• Brand Name: Sai Make
• Automation Grade: IP-65
• Material: Cast Aluminium
• Mounting Option: Side Mount,Top Mount,Bottom Mount
• Surface treatment: Polished
• Frequency: 50 Hz
• Voltage: 230 VAC

• Mounting Options: Top Mount
• Switch Type: tilt
• Current Rating: 0.25A Max
• Brand Name: Comus
• Material/Body: Metal
• AC Voltage: 60V Max.
• Features: Low maintenance, Easy to operate, Fine quality

• Material: Non-toxic Polypropylene
• Brand Name: Radix
• Country of Origin: Made in India
• Cable Material: PVC
• Contact Type: Micro Switch with 1 C/O Contact
• Switch Speed: Max 60/min
• Usage/Application: Drinking/ Sewage Water, Failsafe Indication & Pump Control
• Model Name/Number: CFS201
• Liquid Density: Above 0.8gm/cc
• Pressure Range: 2 kg/cm
• Operating Pressure: 2 kg/cm
• Maximum Load: 10A, 230 VAC (Resistive)
• Contact Life: 10 Million Switches
• Operating Temperature Range: 0 DegreeC to 70 DegreeC
• Switch Angle: +-45 Degree

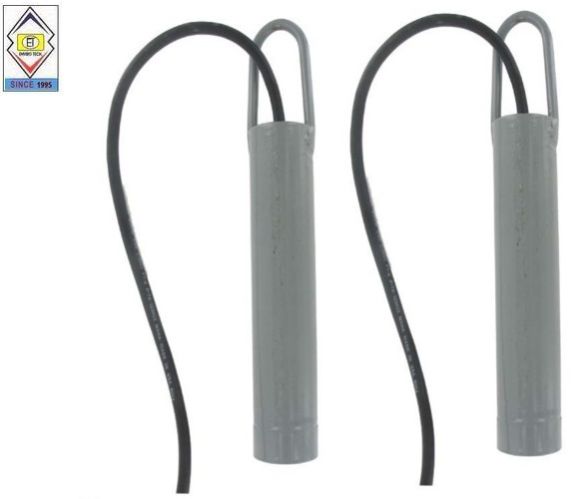

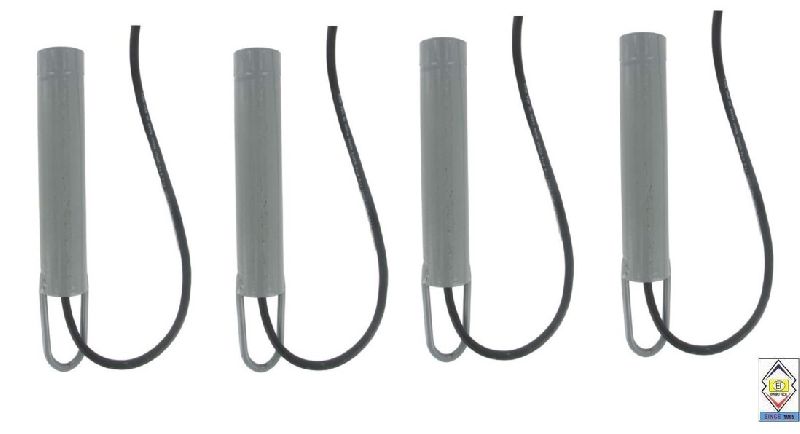

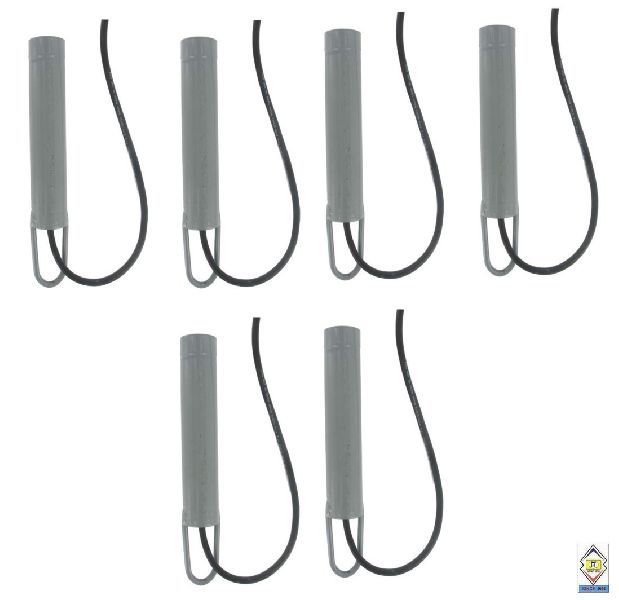

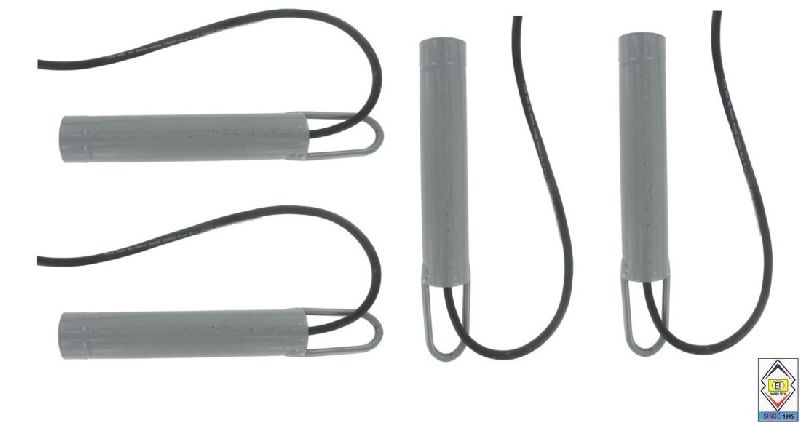

Tilt switch level sensor is a very rugged and proven instrument for monitoring top level of bulk material stored in an open space or in a bunker silo. It has a special level detecting probe which is beyond a preset angle due to piling of material. The sensor probe is available in a robust MS tube for solids and a light duty plastic tube for food grains and fertilizer. Special models for use in hazardous environment are available.

The Tilt Switch and Display System consists of three devices, Digital Tilt Sensor, controller device and display. The tilt sensor gives two angles while controller activates two relays depending upon angle limits. The Digital Display connects with tilt sensor and displays the two angles.

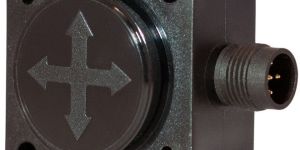

We are offering digital tilt switches. Aeron's digital tilt switches sense the orientation of a platform and generate audio and visual alarms when the platform orientation crosses safe operating limit.

Low cost, high level detection Switch made from Cast Iron or Cast Aluminum construction. Easy installation, light duty and adjustable measuring height.

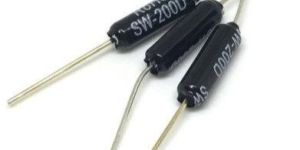

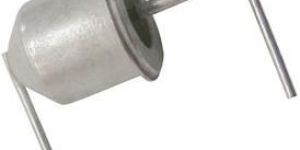

This tilt sensor is used to detect the inclination. It is a mercury switch where the glass fills with mercury. It acts as on-off switch for some pre-set angle.

tilt switch, Electronic Component, Vibration Sensor, Motion Sensor

We are offering tilt switches.

digital tilt switch, Digital Inclinometer, digital magnetic compass

We are supplying products like as Tilt Switches

tilt switch, 4 Way Ball Valve, Miniature Air Cylinder

AB Switch Double Stack Tilting Type, HT and LT Stay Sets, 11KV GI Pin

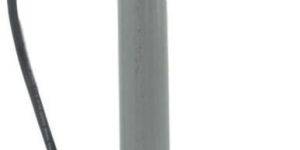

Tilt Switch Probe, coal handling equipment, power plant operation service
