Tilting Devices Dealers

• Features: Used for unloading of sand through tilting device.Operates on the hydraulic system and can be merged with the hydraulic power pack.Perfect positioning of Hydraulic pushing cylinders ensures perfect tilt angle and smooth, efficient operation.

• Type: Tipper Body Fabrications
• Material: Iron
• Shape: cube
• Certification: ISO/TS16949:2009
• Application: Industrial Use
• Pattern: Printed
• Appearance: Antique, Modern
• Finishing: Polished
• Feature: Rust Proof
• Color: grey white

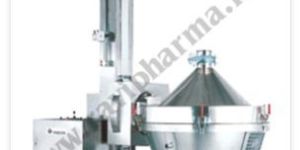

This equipment is most useful to transfer the material from container of FLUID BED DRYER TO INTERMEDIATE PRODUCT CONTAINER. With help of this equipment dust free and very speedy material transfer from FBD bowl is possible. The equipment is equipped with one cone type container which is provided with clamping hooks to clamp the FBD bowl, rubber gasket for air tight fitting between FBD bowl and cone type container. The container is also have a butterfly valve at bottom to drain the material in required IPC or any other container. The hydraulic system (power pack unit with cylinder) is provided to lift the complete assembly with FBD bowl and tilt the pair of cone type container and FBD bowl at 180 degree. With help of the hooks first clamp the FBD bowl with cone type container. Lift the whole assembly with FBD bowl at a desirable height. With help of hydro-mechanical system tilt the whole assembly at 180 degree. Finally all the material which was in the FBD bowl is transfer in cone container. Discharge the material in IPC or any other hopper, with help of butterfly valve which is provided at discharge of cone type container.

• Type: Tipper Body Fabrications
• Material: Steel
• Application: Industrial Use
• Feature: Attractive Designs, Light Weight, Rust Proof
• Shape: Round
• Certification: ISO 9001:2008, ISO/TS16949:2009
• Pattern: Plain
• Appearance: Modern
• Finishing: Polished

We are main supplier of this product.

Features Capacity – 30 Kgs to 200 Kgs Contact parts – SS 316 / SS 316 L Non- Contact parts – M.S Cladded with SS 304 Finish – Contact Parts – Mirror Finish        Non contact parts – Matt Finish 5.   Mechanical Locking arrangement 6.   Hydraulically operated .

Simple to work and clean. Completely shut task to abstain from cleaning. Can associate with granulator for continous release. Simple to brace with liquid bed dryer bowl. MOC SS 304/316.

• Frequency: 50-60 Hz
• Voltage: 220-240 V
• Features: Simple to operate, Easy to install, Sturdiness
• Material: Stainless Steel
• Load capacity: 700k
• Weight: 900 Kg

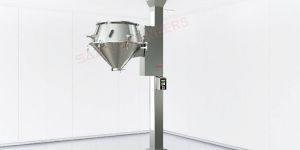

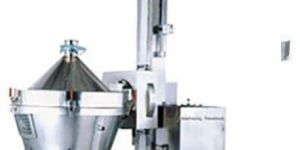

Bowl Lifting & Tilting Device is very useful and easy to operate and clean. Salient features of the Bowl-Lifting Apparatus are as like- Totally closed operation to avoid dusting; it can connect with granulator for continuous discharge; it is easy to clamp with fluid bed dryer bowl which is made of stainless steel. That is why, we are considered as the notable Bowl Tilting Device Manufacturer in India. Features Specially designed for lifting of IPC / BINS. Main structure will be made of AISI 304 and covered with SS 304 guard. Designed on hydraulic system. For up and down position of lifter there will be a limit switch for safety. Front side will be covered with flexible belt. Easy to operate and clean. Totally closed operation to avoid dusting. Can connect with granulator for continuous discharge Easy to clamp with fluid bed dryer bowl. Optional Accessories / Attachments FLP Construction Plc with MMI Additional Locking and positioning Common lifting arm for different bin / IPC Documentation Documentation like DQ, IQ, OQ and FAT provided with the machine.

• Connecting Voltage: 3 ph 415 V, 50 Hz
• Installed power: (KW)1.5
• Load capacity (K): 700

We are offering bowl lifter. This is a well-designed device that helps save space in bakeries. Made of high-grade, quality materials, it efficiently discharges bowls. Thus making the process smooth and simple. advantages easy and convient maintenance procedures options to lift and discharge bowls at differently heights(according to bakery's requirements) bowl can tilt either to left or to right (according to bakery's requirements) options different supports and clamping eyes to lift and discharge two or three different bowls.

Applications: For easy lifting and tilting of FBD bowlKey Features: Fully automatic system, with hydraulic lifting and tipping arrangement for quick and easy handling Eliminates tedious and unhygienic manual handling of products. Quick fixing lever clamp provided on the cone to clamp FBD bowl with the system Available in standard capacities of 60kg, 100kg, 200kg, and 300kg.

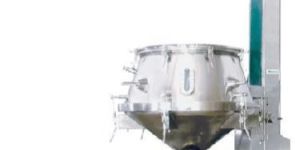

Tapasya's Tipper, a Hydraulically or mechanically operated equipment is used for lifting and tipping granules from the FBE Bowl to granulating equipment and through it to a BIN or an IPC container. The Tipper provides a dust free operation and eliminates tedious scooping or manual handling and is fabricated with high quality SS to impart a cGMP finish.     Features High Quality SS for lift ypke & discharge cone clamps Water tight Control cabinet with hydraulic power pack & electric controls Stable Design conforming to cGMP/cGEP Standards Hydraulic Cylinder with 3 stage Fail safe seals designed for an operating pressure of 100 BAR Solid Machined trolley made out of 30 MM Machined Frame 2 no.s 8 MM SS 304 Wire ropes instead of chain Lift Lock for safety Imported Mono Block Power Pack Control Cabling and rigid piping included CE Certified meeting 19 EN specifications Built-in provision for the Vibratory Sifter/ Mill to be electrically connected Hydraulic Tilting arrangement for maintenance free operation Limit switches for up & down movement Limit switches for stopping the cone in 0 degree & 180 degree M.C.B. and overload relays for electrical faults Pilot operated Hose Burst Valve on the hydraulic cylinder for hydraulic safety Single cone for 2 sizes of FBE Bowl with adaptor Timer control for discharge valve Mechanical & Pneumatic locking for Safety   Benefits For You Dust-free transfer operations Eliminates manual handling & tedious scooping Low maintenance Designed to European Safety Standards & cGMP standards Variety of Optional features available including Free standing unit Hydraulic / Mechanical design Adjustable stop Additional lift column height Double Column for heavier loads Hydraulic arrangement for tilting 180° SWIVEL column Pneumatically actuated valve Single cone for 2 sizes of FBE Bowl with adaptor   Tipper used in Industries Pharmaceutical Nutraceutical Food Chemical Cosmetics

Applications: For easy lifting and tilting of FBD bowl Key Features: Fully automatic system, with hydraulic lifting and tipping arrangement for quick and easy handling Eliminates tedious and unhygienic manual handling of products. Quick fixing lever clamp provided on the cone to clamp FBD bowl with the system Available in standard capacities of 60kg, 100kg, 200kg, and 300kg.

• Warranty: 3 years/unlimited km on vehicle, 4 years/unlimited km on engine and gearbox
• Model Name/Number: Pro 2110XPT
• Truck Type: Tipper
• Brand: Eicher
• GVW: 13000 kg
• Engine Type: E494 3.8L 4V CRS
• Max Power Output: 160 hp @ 2600 rpm
• Max Torque Output: 500 Nm @ 1200-1800 rpm
• Emission: BSVI
• Transmission: ET60S5
• Gear Type: 5 speed 5F + 1R
• Clutch Dia: 330 mm
• Steering: Tilt and telescopic Standard Power Steering
• Ground Clearance: 250 mm
• Battery: 12 V - 100 AH
• Front Suspension: Semi elliptical laminated leaf (with shock absorbers)
• Fuel Tank Capacity: 160 (Anti- Corrosive Composite HDPE Polymer)
• Tyre: 8.25X20 Standard Nylon Tyres (Size)
• Cabin: 2m wide tiltable cabin. PEGASUS family look with eagle eyes. New interiors with infotainment system.
• Rear Suspension: Semi elliptical laminated leaved with helper spring
• Fuel: Diesel
• Wheelbase: 3350 mm
• Gradeability: 32%
• Turning Circle Diameter: 13 mm

• Chassia: Ashok Leyland 2516 / H
• Body Sheet: 5 mm M.S. Plate
• Bottom Channel: 6x3 TATA
• Side Channel: 4x2 TATA
• Platform: 8 mm Plate
• Rear door: Single (or) Double Door

  Description It is an equipment where the FBD bowl containing dried Granules are hydraulically lifted and tilted into a container, a multimill or a sifter as per the process requirements. The process consists of bringing the FBD bowl beneath the cone of the tipper. The inverted cone of the tipper is lowered such that it touches the flange brim of the FBD bowl. Both are then clamped together with quick fixing levers. The whole assembly is then raised hydraulically to align with the receiving container / process equipment. At the discharge there will be butterfly valve. It provides a complete dust free operation an eliminates the tedious exercise of manual scooping. Advantages : It provides a complete duct free operation and eliminates the tedious exercise of manual scooping.       Salient Features   High performance external gear pump, Rexroth / Dowty Make. Load holding valve mounted on the cylinder to ensure complete safety. High quality, low friction seals of imported make (Merkel / Das). All components rated for a pressure of 210bar to 350bar, Systems designed for a working pressure of 100 bar. Motion control valve provided for tilting operations Dansfoss Makes. For 500 Kgs. and above capacity FBD bowl, Twin Column arrangement is provided as shown.

EASY TO OPERATE AND CLEAN TOTALLY CLOSED OPERATION TO AVOID DUSTING EASY FOR CONTINUOUS DISCHARGE EASY TO CLAMP WITH FLUID BED DRYER BOWL MOC SS 304 316 HYDRAULIC POWER PACK ARRANGEMENT FOR SMOOTH JERK FREE LIFTING TROUBLE FREE TILTING ARRANGEMENT STRUDY UNIT WITH S.S. CONSTRUCTION CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

IPEC is one of the leading manufacturer, supplier & Exporter of Tippers in Ankleshwar, Gujarat, India. Tipper is Easy to operate and clean. Totally closed operation to avoid dusting. Connect with granulator for continuous discharge. Tipper is Easy to clamp with fluid bed dryer bowl. MOC SS 304/3I6.

Prakash is one of the leading manufacturer, supplier & Exporter of Tippers in India. Tipper is Easy to operate and clean. Totally closed operation to avoid dusting. Connect with granulator for continuous discharge. Tipper is Easy to clamp with fluid bed dryer bowl. MOC SS 304/3I6.

Bowl Lifting and Tilting Device is the well-designed device that assists in saving space in bakeries. It allows efficient discharge of bowls, thus making the complete process smooth and simple. The advantage of offered equipment include easy and convenient maintenance procedures, options for lifting as well as discharging bowls at different heights (as per bakery's requirements) and for allowing bowl to be tilt either to left or right as per bakery's specific requirements. The available options with the Bowl Lifting and Tilting Device equipment include different supports as well as clamping eyes for lifting as well as discharging two/three different bowls. THE TECHNICAL SPECIFICATIONS OF BOWL LIFTING AND TILTING DEVICE DP-1 comprise Load capacity (K) of 700, Installed power of ( Kw) 1.5, Connecting Voltage of 3 ph 415 V, 50 Hz and dimensions availability in (mm) 2860, 2400, 3770, 1600 and 1200. Further, the system is available in weight (kg) of 900 and come with features like easy and convenient maintenance procedures, options of lifting and discharging bowls at different heights, options of bowl to be tilted either to left or to right, different support as well as clamping eyes for lifting and discharging two/three different bowls. TIPPER- LIFTING & TIPPING DEVICE : It is on equipment operated hydraulically or mechanically for lifting and tipping FBD Bowl loaded with dried granules. Content of the Bowl is transferred smoothly to granulating equipment and through it to a BIN or on IPC container. It provides completely dust free operation and eliminates tedious scooping or manual handling. The process consists of bringing the FBD Bowl beneath the Tipper. The inverted cone of the Tipper is lowered so that the brim flange of the bowl touches the brim flange of the inverted cone. Both ore then clamped together with quick fixing clamps. The whole assembly is raised hydraulically to the required height and then rotated mechanically to 1 80 degree on Ms axis and lowered to a suitable height to align with the receiving container / equipment. The discharge point cone is fitted with an Iris / Butterfly valve by operating which the contents are discharged to Multi Mill or a sifter cum Multi Mill as per the process requirement. The flanged cone and the valve is of S.S.316 /304 malarial, as required. The bottom and the complete drives are covered with highly polished S.S.304 sheets to impart a cGMP finish. SALIENT FEATURES : Stainless steel lift yoke with integral Gearbox for rotation of discharge cone and container. Discharge cone clamps ore made of stainless steel with ease of secure, clamping design. Control cabinet is in powdered coated in M.S. and is tight, complete with hydraulic power pack and electric control. Complete fail safe design. Conforms to latest cGMP Standards. Discharge cone is fitted with a butterfly valve. The MOC is SS316/304. Standard power pack with safety features. OPTIONAL FEATURES : Free standing unit. Hydraulic/Pneumatic/Mechanical design. Adjustable stop. Additional lift column height. Double Column For heavier loads. Imported power packs. Hydraulic arrangement for tilting. 1800-SWIVELcolumn. Pneumatically actuated valve. Single cone for 2 sizes of FBD Bowl with adaptor.

Hydraulic Tipper is having fixed hoper with silicon gasket & clamps to adapt FBD bowl. FBD Bowl is lifted to the required ht. & is inverted to discharge the dried granules into Multi Mill. The lifting and tipping of FBD bowl is done by independent hydraulic power pack & cylinder. Most suitable for dust free handling of granules.Also avail. Hydraulic Lifter for charging of powder into RMG, PLM, Sifter etc

KETTEL TILTING DEVICE, HAND OPERATED TUBE-LIQUID FILLING MACHINE

• Size: 4", 8"

  Tilting Indexing Device ( with 3 Jaws Chuck Mounting )   Features : For bigger quantity work, rapid indexing is simplified by use of replaceable notched rings can be notched to individual requirements. Rapid direct indexing through 360 degree by means of scales graduated in units of one degree division on the flanges. Indirect indexing is by means of worm and worm wheel giving direct reading of one minute on handwheel scales. The chuck can be swivelled up to 90° Worm Gear is easily and quickly detachable for direct indexing. Three Jaws chuck is standard equipment with one set of reverse jaws. The Graduation ring on hand knob is adjustable Application : An ideal indexing device for mechanics, tool makers and engravers for speedy and precision milling, drilling, boring and grinding operations. Finish : Blue Powder
